Self Locking Differential 16 Friction Faces - Options (ETV Gearbox Parts)

Self Locking Differential 16 Friction Faces - Options (ETV Gearbox Parts)

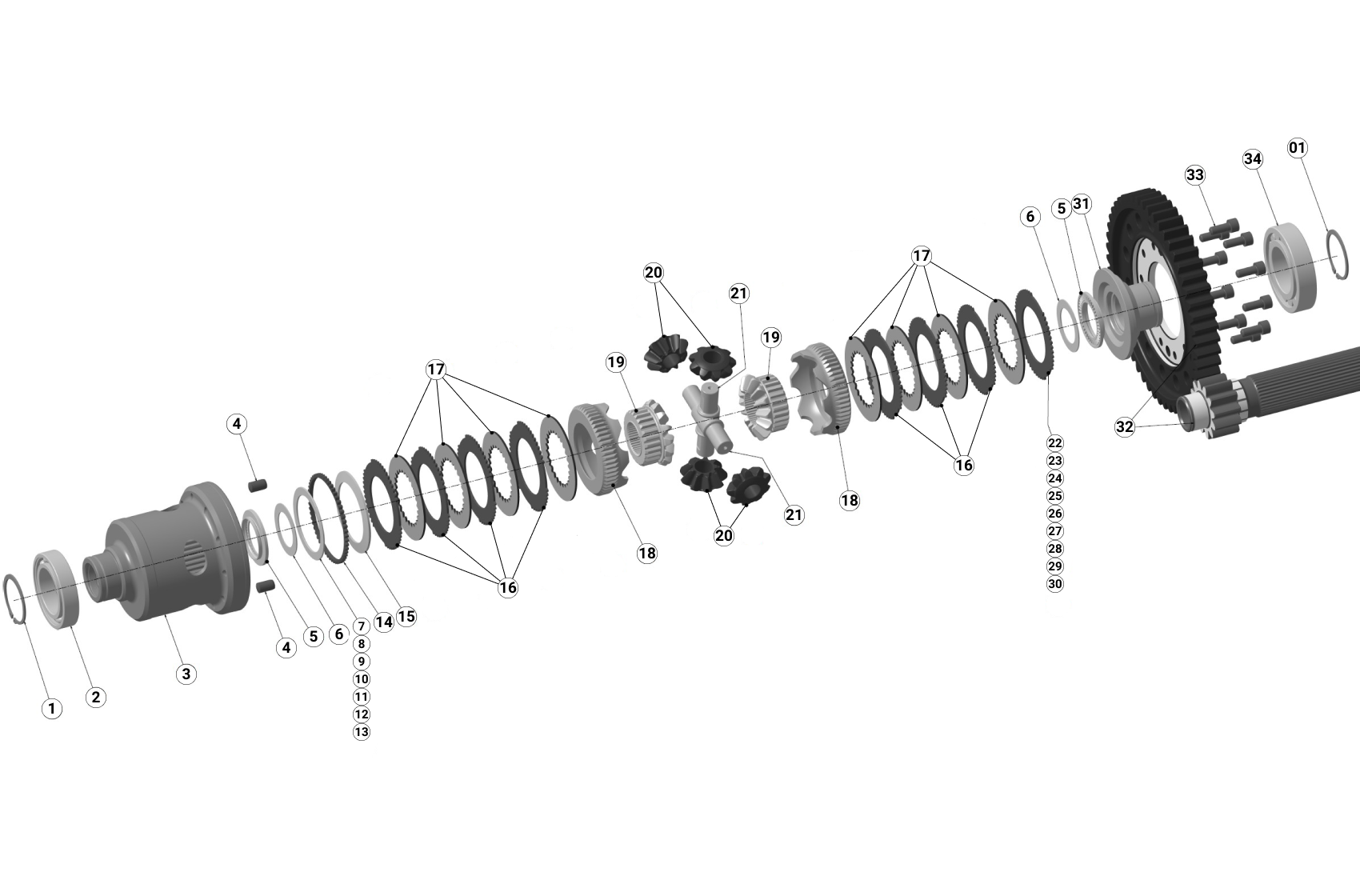

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Snap ring

322200002

€3.95 €4.86
2
Ball bearing

101000002

€28.74 €35.35
3
Limited slip differential casing

P9002201

€877.48 €1079.30
4
D10xL18 pin

513310018

€7.61 €9.36
5
Stop bearing

101700001

€20.91 €25.72
6
Stop bearing washer 1mm

101710002

€5.01 €6.16
6
Stop bearing washer 1,50mm

P9008003

€13.36 €16.43
6
Stop bearing washer 1,70mm

P9008004

€13.36 €16.43
6
Stop bearing washer 1,30mm

P9008005

€13.36 €16.43
7
2,10 shim washer thickness

RA5672-210

€56.41 €69.38
8
2.20 shim washer thickness

RA5672-220

€55.03 €67.69
9
2.30 shim washer thickness

RA5672-230

€55.03 €67.69
10
2.40 shim washer thickness

RA5672-240

€55.03 €67.69
11
2.50 shim washer thickness

RA5672-250

€55.03 €67.69
12
2.60 shim washer thickness

RA5672-260

€55.03 €67.69
13
2.70 shim washer thickness

RA5672-270

€55.03 €67.69
14
Spacer

P9002210

€27.71 €34.08
15
Belleville washer

513210003

€64.17 €78.93
16
Core external disc

P9002202

€48.15 €59.22
17
Molybdenum interior friction disc

P9002221

€93.26 €114.71
18
30°/75° Diff ramps - option

JC9002009

€503.39 €619.17
19
Evo Bevel gear

P9002219R5

€377.75 €464.63
20
Planet gear

P9008002R5

€138.64 €170.53
21
Planet gear axis

P9002207

€75.94 €93.41
22
1.90 adjust disc thickness

DA5683-190

€82.90 €101.97
23
1.95 adjust disc thickness

DA5683-195

€82.90 €101.97
24
2.00 adjust disc thickness

DA5683-200

€76.16 €93.68
25
2.05 adjust disc thickness

DA5683-205

€82.90 €101.97
26
2.10 adjust disc thickness

DA5683-210

€82.90 €101.97
27
2.15 adjust disc thickness

DA5683-215

€82.90 €101.97
28
2.20 adjust disc thickness

DA5683-220

€82.90 €101.97
29
2.25 adjust disc thickness

DA5683-225

€82.90 €101.97
30
2.30 adjust disc thickness

DA5683-230

€82.90 €101.97
31
Limited slip differential cover

P9002208

€113.55 €139.67
33
CHC bolt M8-20 cl.8.8

512008020E

€0.51 €0.63
34
Bearing

101100008

€132.00 €162.36
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
