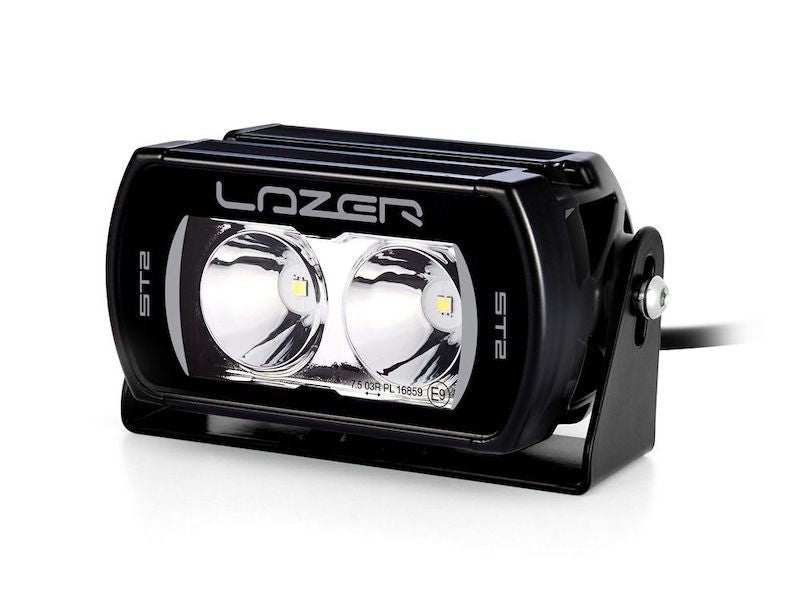

ST2 Evolution - Black

ST2 Evolution - Black

SKU:0002-EVO-B

Regular price €143.75 €176.81
Sale Sold out
  • Feature Icon 2068 Lumens
  • Feature Icon Length: 124mm

View full details

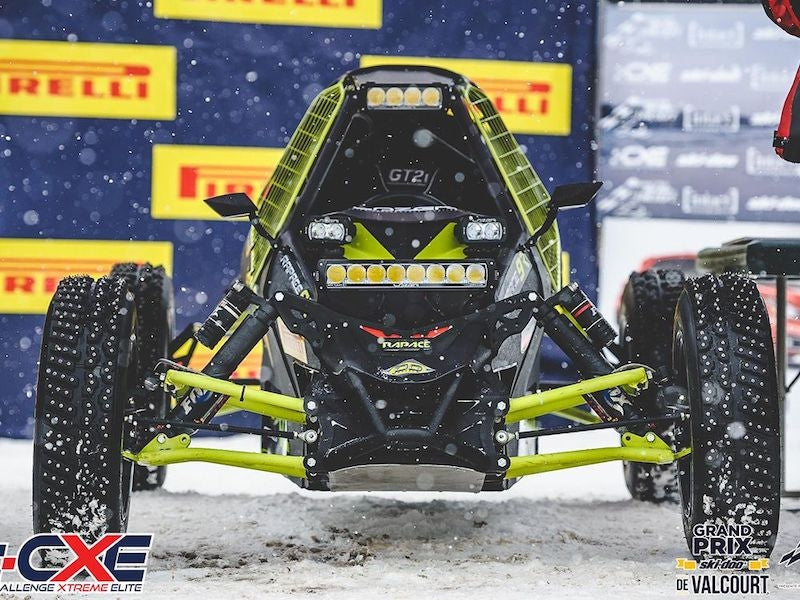

The ST / T Evolution range of products feature highly efficient, premium ‘bin’ 11W LEDs in combination with vacuum-metallised conical optics to deliver a powerful beam pattern with wide spread. This makes the products especially well-suited to rural and off-road applications. Incorporating the same electrical and product design across both ST and T lights, the former indicates lights that are UNECE certified to Regulation 112 as high beam driving lights, while the latter indicating the larger light bars not certified and intended for off-road use only operated via an independent switch.

Available in sizes ranging from the 124mm (5”) ST2 to the 1164mm (46”) T28, these are LED light bars benefitting from huge versatility, having been adopted across a wide range of different applications and vehicle types, since the products were first launched in 2010. Since then, the range has been re-engineered and re-designed incorporating the latest and best technology alongside a more contemporary, seamless, low profile design making them easier to install, more resistant to dirt, snow and ice accumulations and with styling guaranteed to complement and enhance the appearance of modern vehicles.

Superior lighting performance is delivered by the high power 11W LEDs, alongside advanced electronic design, combined with sophisticated thermal management systems and ultra-reflective vacuum-metallised reflectors to harness the maximum amount of light where you need it: on the road or trail ahead. Like all Lazer products, the LEDs are carefully selected at 5000k colour temperature to maximise sharpness and definition of your surroundings.

Performance aside, the ST / T Evolution LED light bars are built to last backed by a comprehensive 5 year warranty. Designed, engineered and manufactured in-house, in the UK, there’s no compromise when it comes to build quality, ensuring the lights perform as well as they look and function for years to come.

Downloads:

ECE Reg 10 - Certificate (ST Evolution) (1.49 MB)

IPx9K - Certificate (ST Evolution) (41.38 KB)

ECE Reg 112 - Certificate (ST2 Evolution) (168.28 KB)

ST2 Evolution - Product Information Sheet (1.91 MB)

Lazer Lamps - Instructions (1.85 MB)

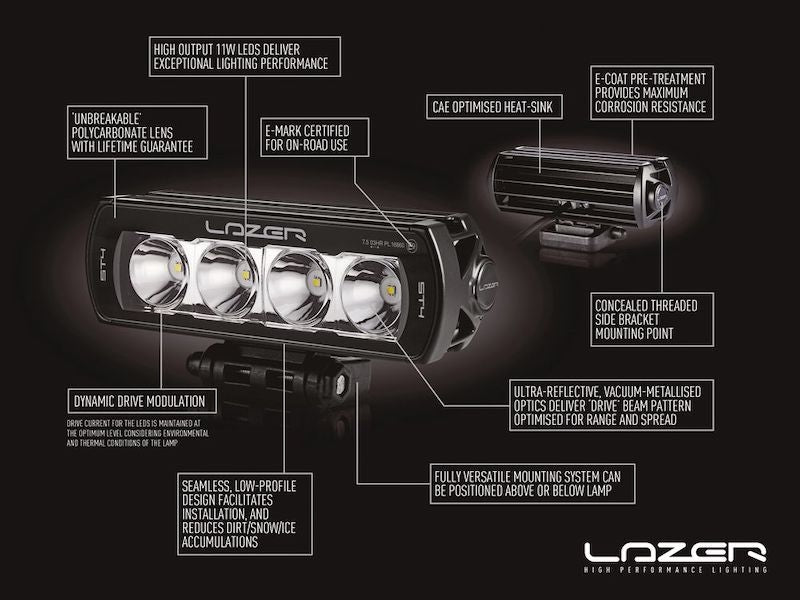

  • High density, premium ‘bin’ 11W LED technology
  • 5000K LED colour temperature and 80CRI maximises sharpness and definition
  • Ultra-reflective, vacuum-metallised conical optics deliver excellent spread
  • Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.

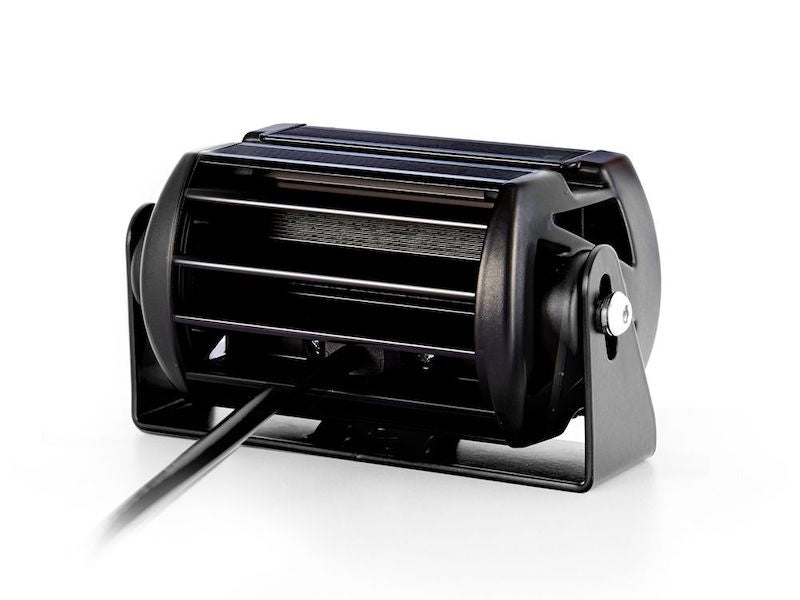

  • Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
  • Electronic thermal management system optimises light output to preserve longevity of the LEDs
  • Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
  • CAE optimised heatsink offers improved thermal dynamics
  • Over voltage protected
  • Reverse polarity protected
  • ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
  • UNECE approved Reg 112 Class B Driving Lights for on-road high beam function
  • UNECE approved Reg 10
  • IP68 watertight
  • 5 year warranty
  • Supplied with pre-wired male/female 2-pin superseal connectors
  • Designed and manufactured in UK

Product Specifications:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • Weight: 0.43 kg

HIGH BEAM FUNCTION

  • Total Luminous Flux: 2,068 Lm
  • Total Driver 'FOV' Flux †: 1,245 Lm
  • Colour Temperature: 5000K
  • Power Consumption: 23 Watts
  • Current Draw (14.4V): 1.6 Amps

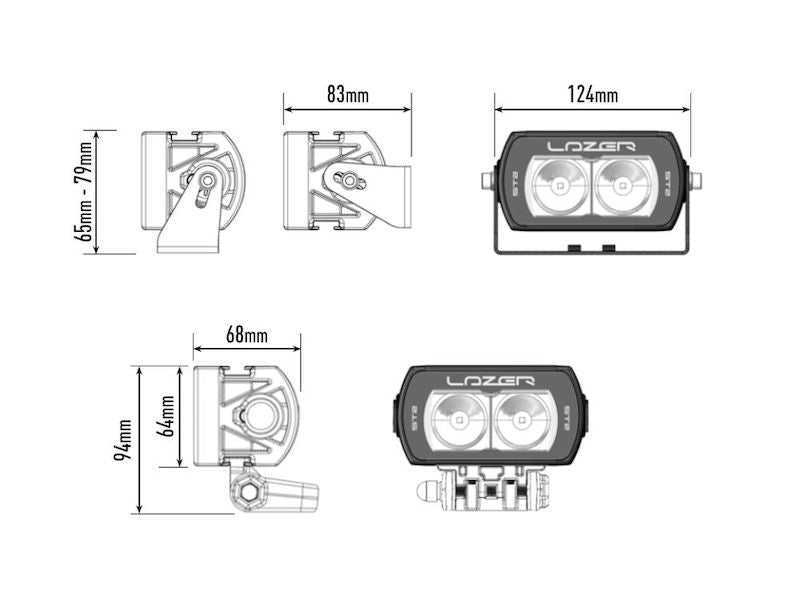

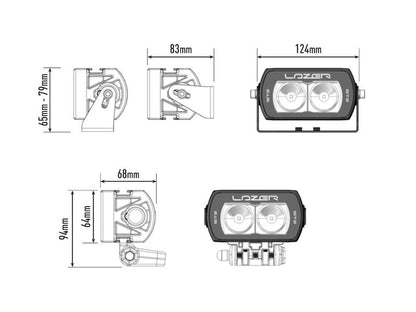

DIMENSIONS

  • Width: 124mm
  • Depth: 68mm
  • Height: 64mm

CERTIFICATION

  • IP Rating #: IP68
  • High Beam (E9 approval): ECE R149 - Ref: 7.5
  • EMC Certification: ECE R10
  • Salt Spray Test: ISO 9227
  • Dump Load Protection: ISO 7637-2

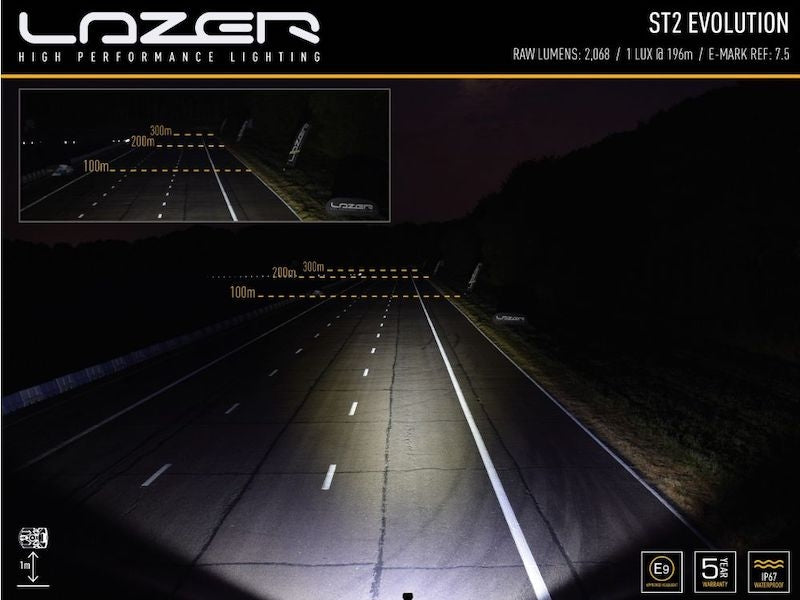

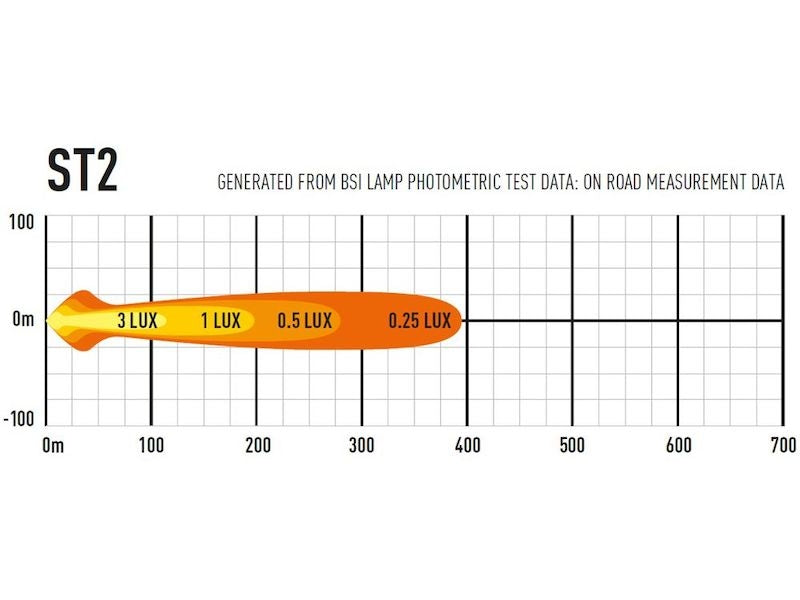

Photometric Data

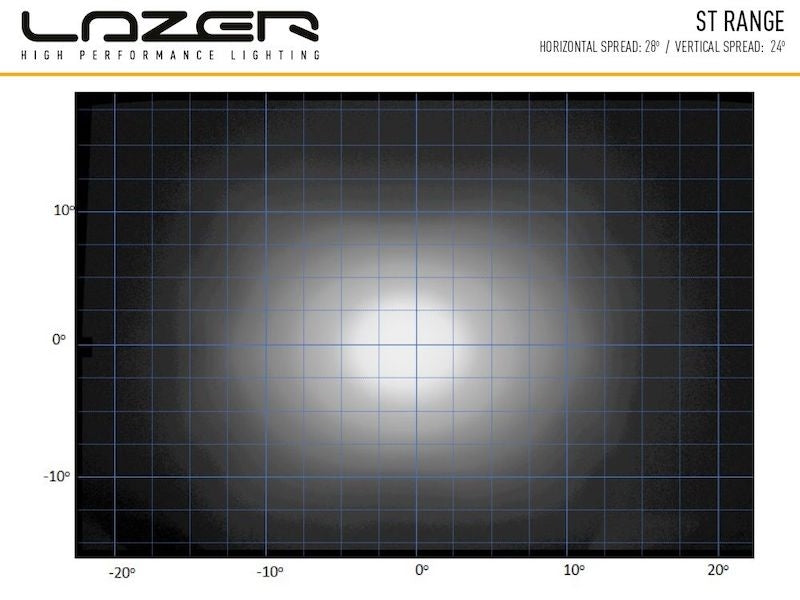

  • Horizontal / Vertical Beam Angle: 40° / 25°
  • 0.25 lx Line: 393m
  • 0.5 lx Line: 278m
  • 1 lx Line: 196m
  • 3 lx Line: 113m

Brand:

Lazer Lamps

Manufacturer Part Number:

0002-EVO-B

Barcodes:

5060404991620
