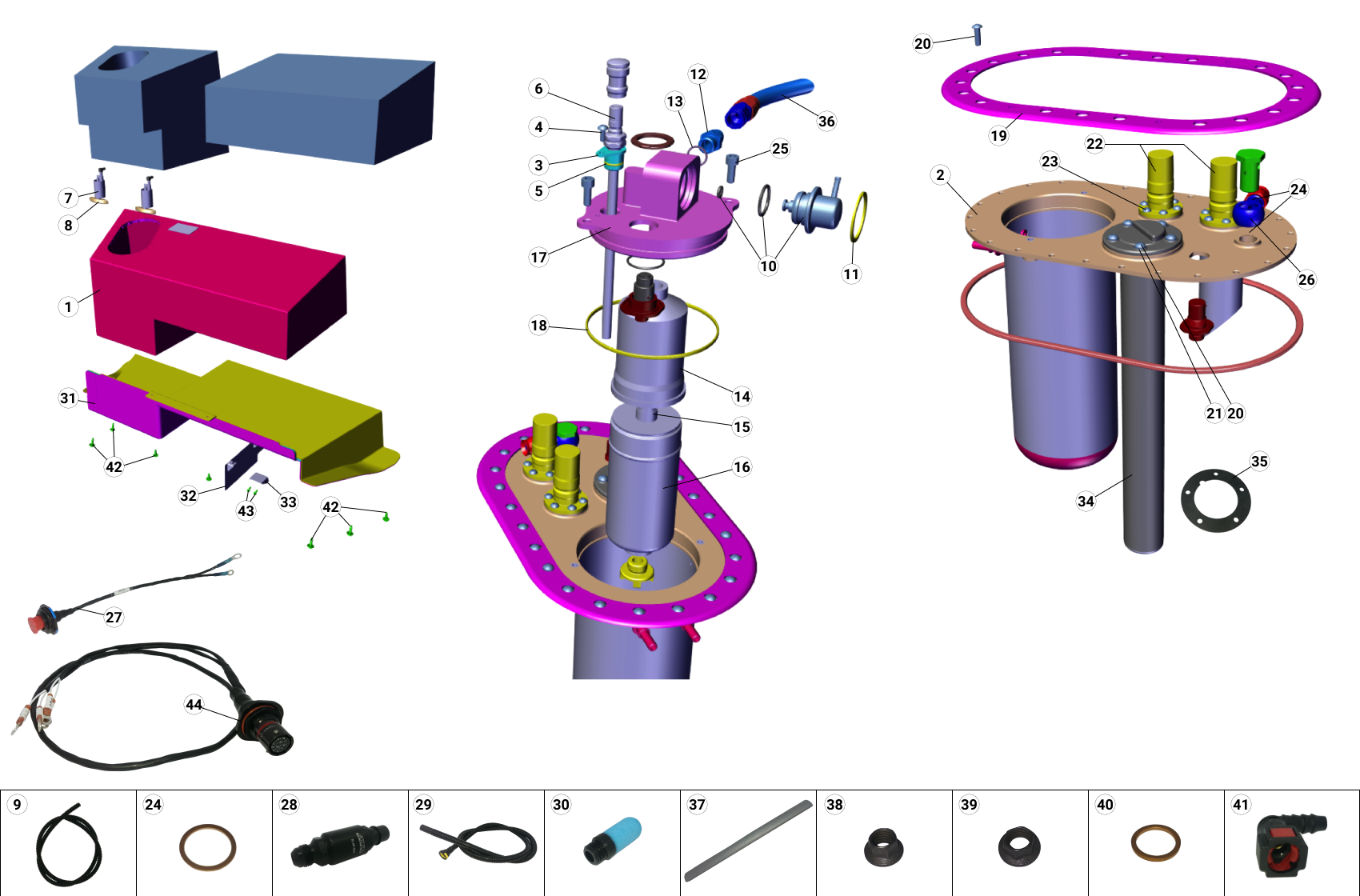

T4A - Fuel Tank

T4A - Fuel Tank

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

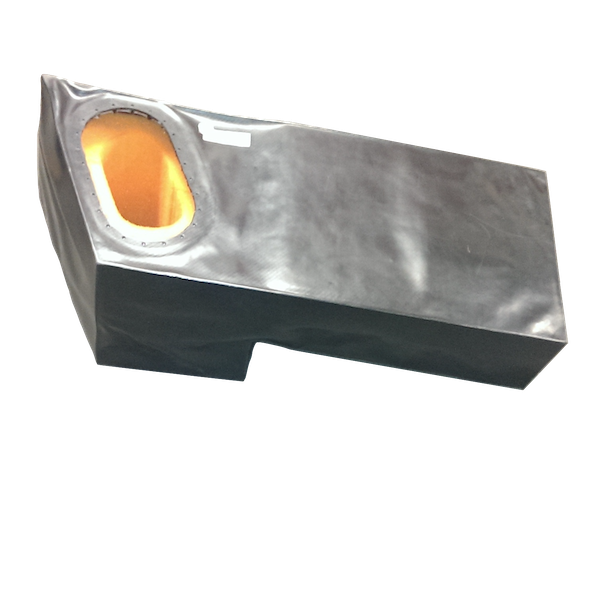

Fuel tank

3T4A24921C

1

€2299.00 €2827.77
2

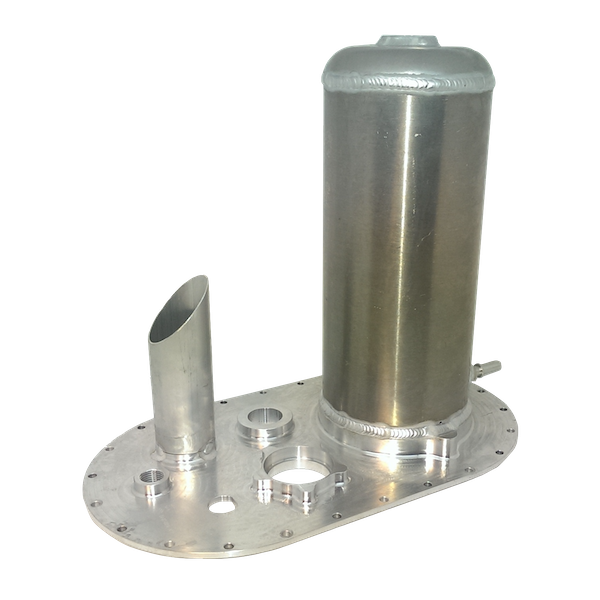

Catch tank

3T4A18030G

1

€666.70 €820.04
3

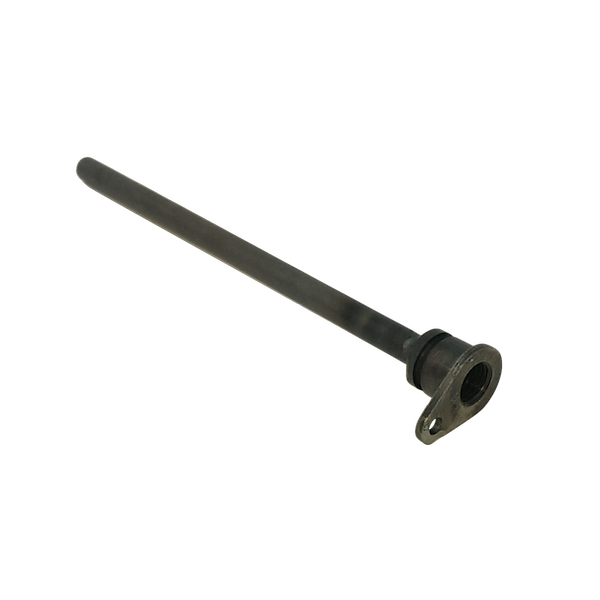

Plunger

3T4A24442B

1

€114.76 €141.15
4

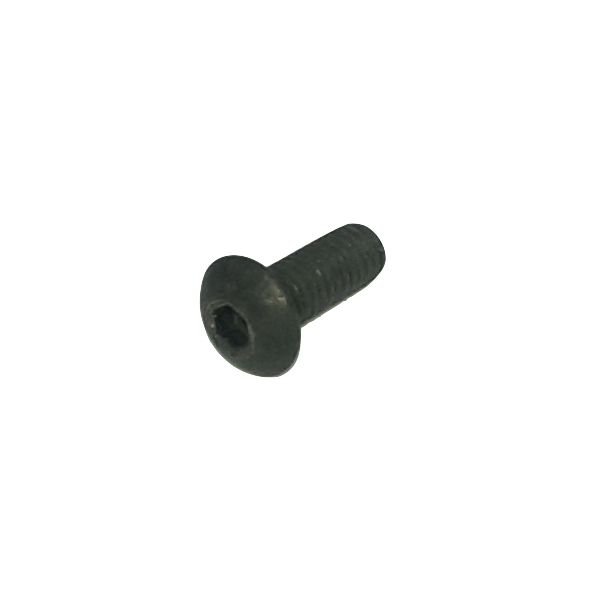

Screw M4 x 10

PS82652A10

1

€0.31 €0.38
5

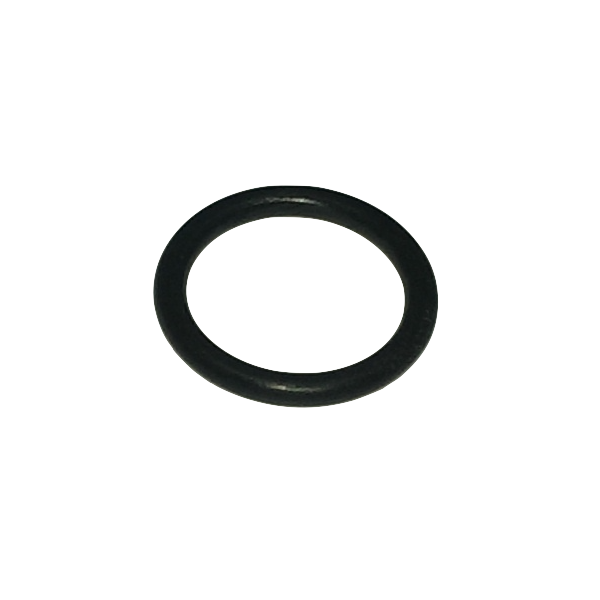

O-Ring

PS77590A10

1

€0.15 €0.18
6
Stäubli SPT05 Coupling - JKV dash 4

PS73274A10

1

€178.57 €219.64
7
Booster pump

3T4A40572A

€79.20 €97.42
8
Booster pump filter

PS05502A10

€38.10 €46.86
9
Flexible convulte pipe 1m

PS69792A10

1

€82.28 €101.20
10
Pressure regulator

3T4A21496A

1

€551.25 €678.04
11
AI26 Retaining Ring

PS72582A10

1

€0.94 €1.16
12
Coupling dash 6 M14x150 M/M convex

PS73554A10

1

€22.65 €27.86
13
Copper seal 14x20x1.5

PS81052A10

1

€2.93 €3.60
14
Fuel filter

3T4A27604A

1

€70.88 €87.18
16
Low pressure fuel pump

PS02508A10

1

€633.60 €779.33
17

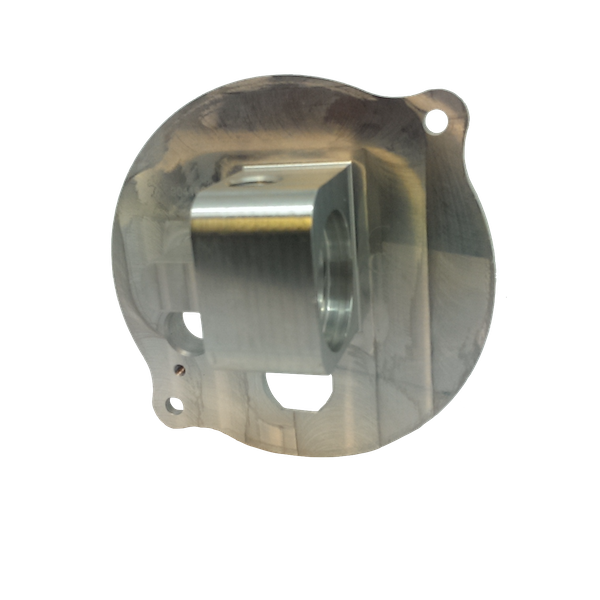

Catch tank cover

3T4A18031C

1

€205.91 €253.27
18

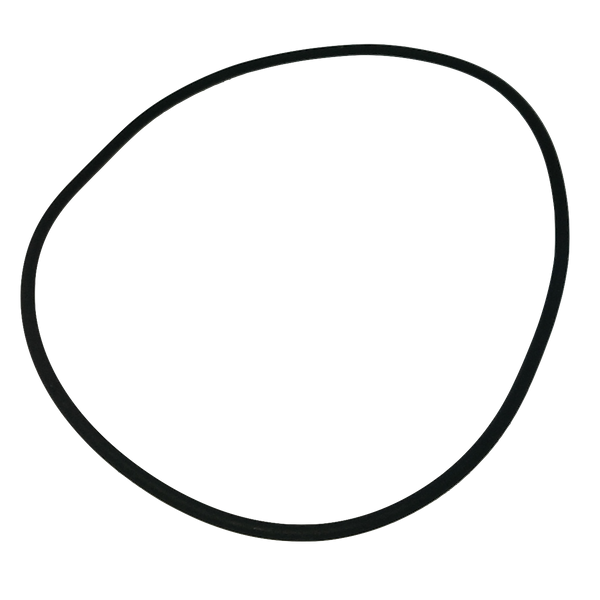

O-Ring

PS77976A10

1

€5.30 €6.52
19

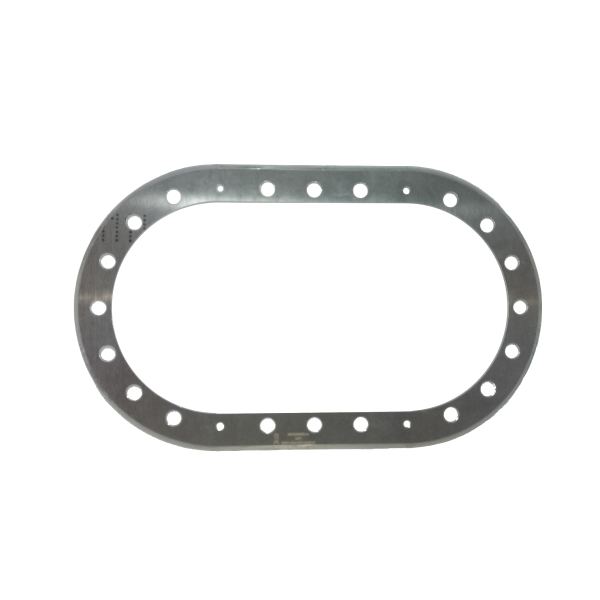

Packing joint

3T4A26260A

1

€100.30 €123.37
20

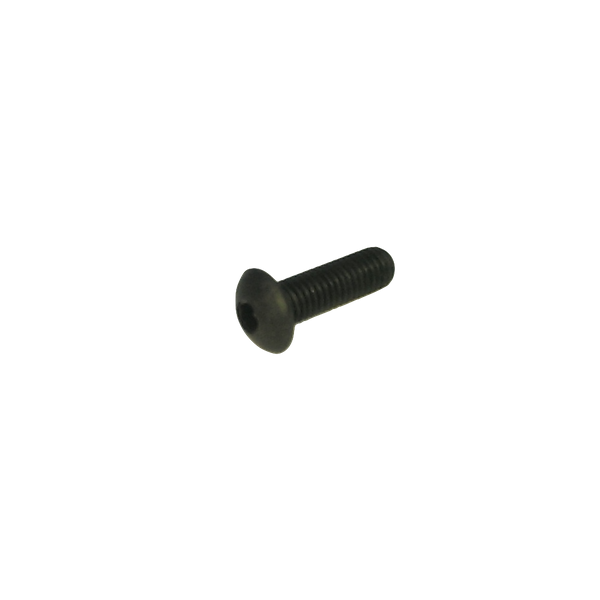

M5 Screw

PS82658A10

5

€0.22 €0.27
21
Washer Ø5x10-1

PS86044A10

4

€0.71 €0.87
22
Fuel tank sealing butt

3T4A27115A

2

€235.17 €289.26
23
M4 Screw

PS82653A10

12

€0.40 €0.49
24

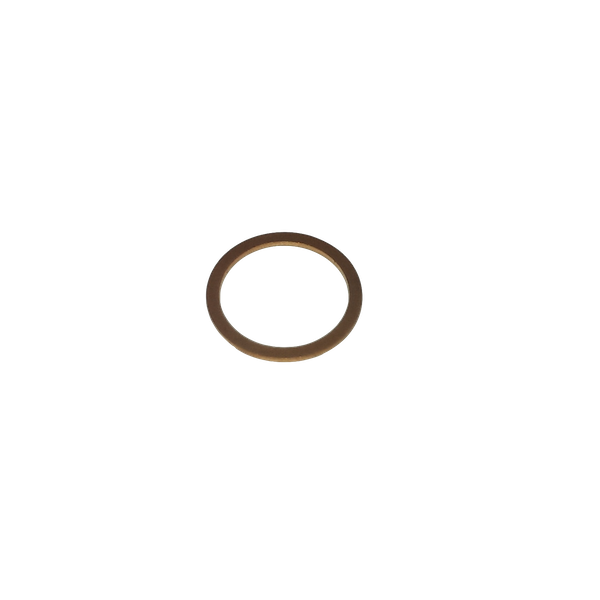

Copper Seal D16

PS81568A10

2

€2.07 €2.55
25
Screw M6-16

PS82690A10

2

€0.67 €0.82
26
Fuel tank to venting valve vent hose

3T4A64745A

1

€113.63 €139.76
27
Fuel pump loom

3Z9S24806A

1

€543.75 €668.81
28
Venting valve

3T4A64744A

1

€933.60 €1148.33
29
Vent valve to filter venting hose

3T4A64746A

1

€186.00 €228.78
30
Fuel tank disgassing filter

3T4A64747A

1

€8.08 €9.94
31

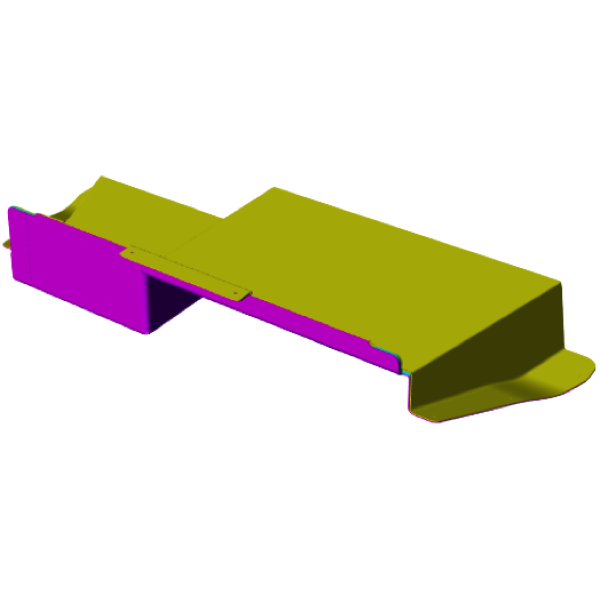

Fuel tank case

3T4A24922F

1

€1712.62 €2106.52
32

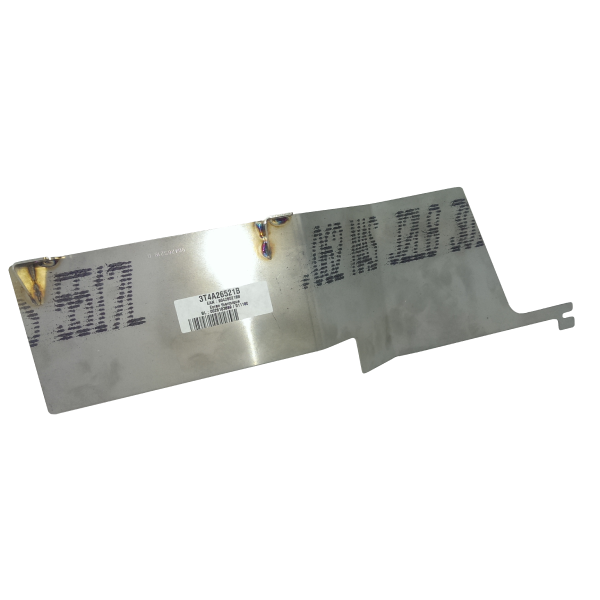

Heat shield

3T4A26521B

1

€147.18 €181.03
33

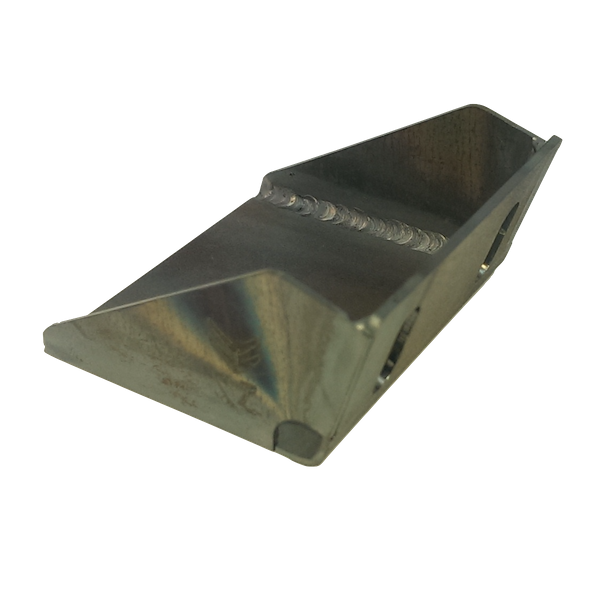

Fuel tank case square

3T4A25753A

1

€52.81 €64.96
34

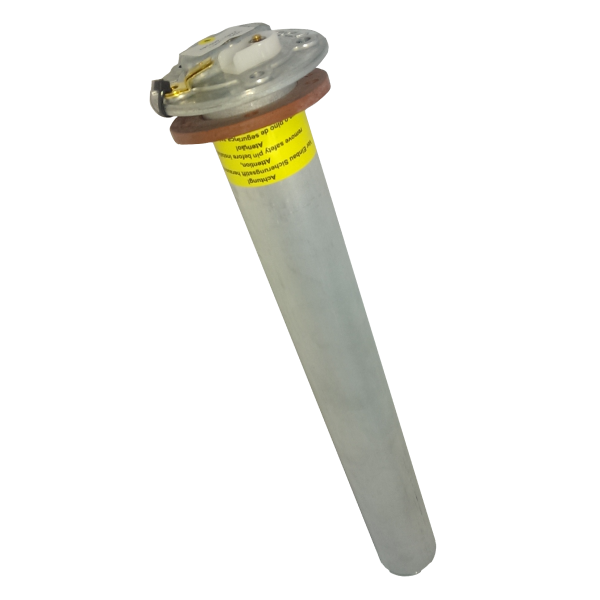

Gauge

3T4A24932A

1

€111.75 €137.45
35

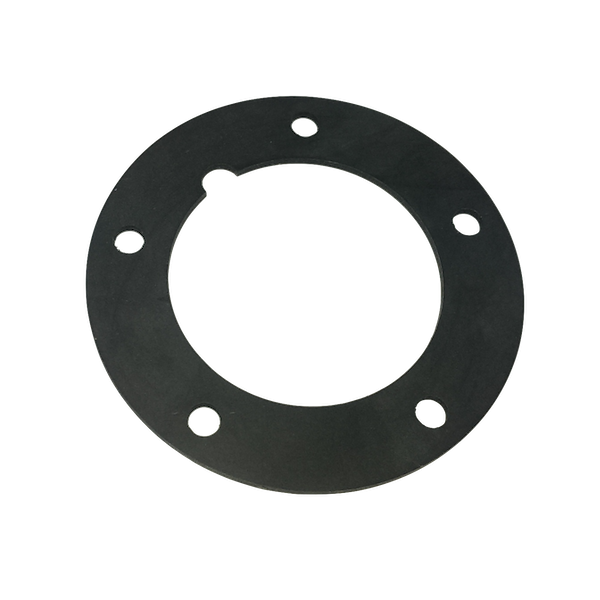

Gauge seal

RC1515614B

1

€11.21 €13.79
36

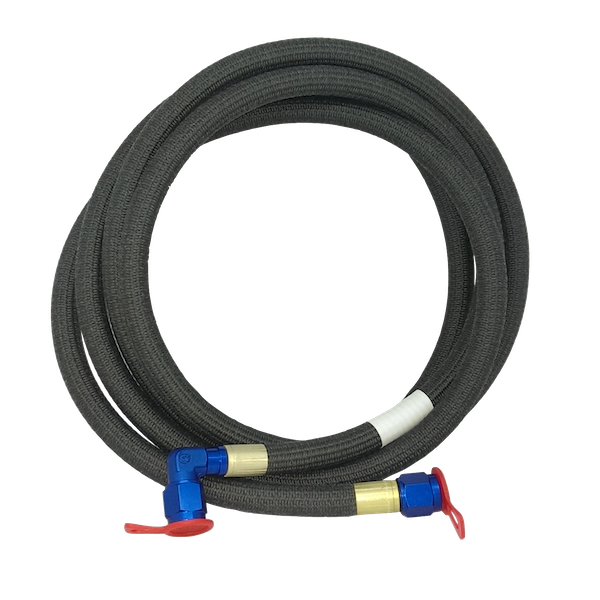

Fuel pipe buffer box to engine

3T4A28044A

€476.10 €585.60
37
Heat sheath Ø25x400

653830

1

€67.81 €83.41
38
Lock nut M5x80

PS74524A10

4

€0.55 €0.68
39
Collar nut M6

PS74001A10

1

€7.61 €9.36
40

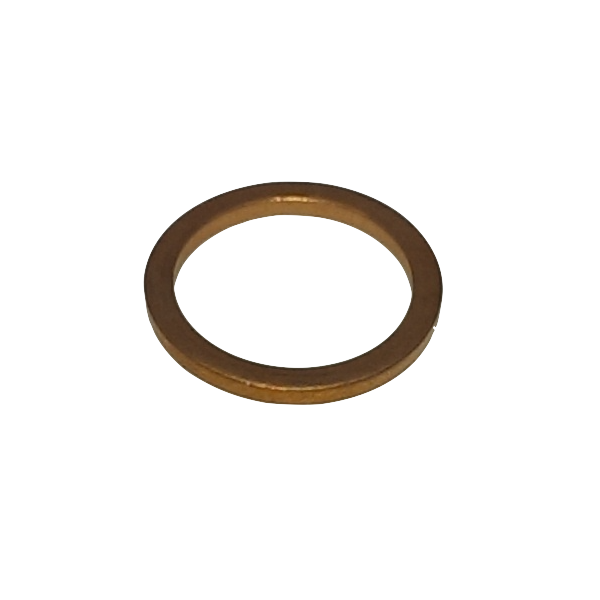

Copper seal D14

PS81018A10

1

€1.13 €1.39
41
90° coupling Ø8 with fir Ø10

PS73419A10

2

€12.00 €14.76
42
Self Tap Screw M6 x 30

623006

6

€2.57 €3.16
43
Collar screw M6-16

6925W6

2

€2.62 €3.22
44
Booster pump harness

3Z9S24808D

1

€384.68 €473.16
45
grommet 21MM

DC7012272

1

€1.79 €2.20
46
Screw ULS M5x15 cl.12.9

PS85116A10

24

€0.71 €0.87
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
