Tractive Hydraulic Slave Cylinder Mount

Tractive Hydraulic Slave Cylinder Mount

CSM-TRACTIVE

€68.00 €83.64
Sale Sold out
  • Feature Icon Tractive 4 Bolt Pattern
  • Feature Icon Suited for AP CP6859 Slave Cylinder

Optional Extras

In stock
View full details

Tractive Hydraulic Slave Cylinder Mount

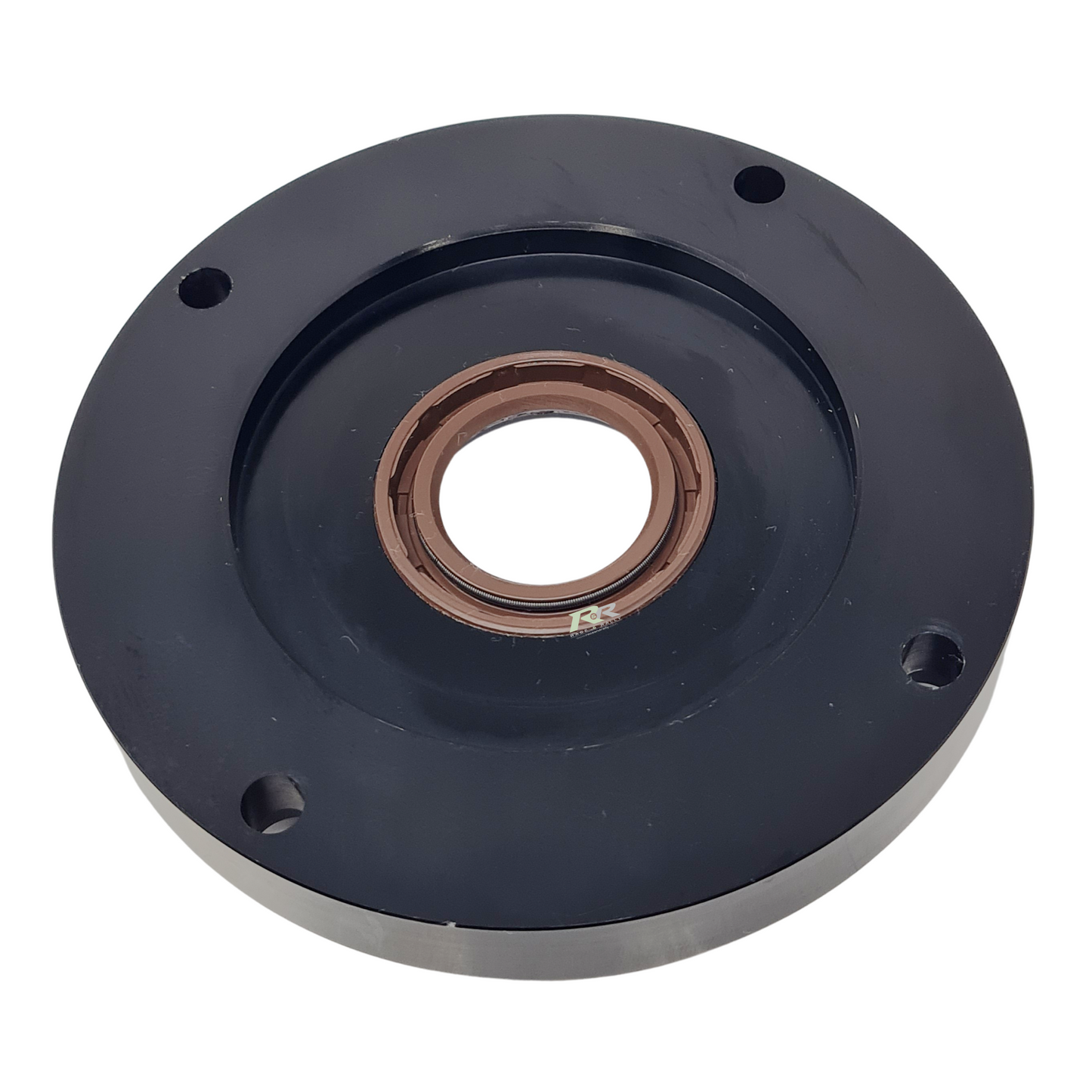

RandR designed, a concentric slave cylinder mount designed to fit Tractive gearboxes in conjunction with the AP Concentric slave cylinder model CP6859 to complete the ultimate release bearing assembly.

Technical Specifications:

  • Gearbox Mounting:
    • Direct to Tractive
    • 4-bolt fixing (100mm PCD)
  • Compatible Slave Cylinder (sold separately):
    • CP6859 Family
    • CP6859-54 recommend for MK1 & MK2 Escorts with AP Racing clutches
  • Depth:
    • From gearbox mounting face to slave cylinder face: 23mm
  • Supplied with input shaft seal fitted

Fully compatible with RandR concentric slave cylinder spacers available in 6mm, 9mm, and 15mm thicknesses

**Please note: this mount fitted with the CP6859-54 (18mm stroke) slave cylinder amounts to 75mm (Bearing face to Gearbox Face) total height when full retracted.

**Please note: this mount fitted with the CP6859-1254 (slimline - 12mm stroke) slave cylinder amounts to 67mm (Bearing face to Gearbox Face) total height when full retracted.
