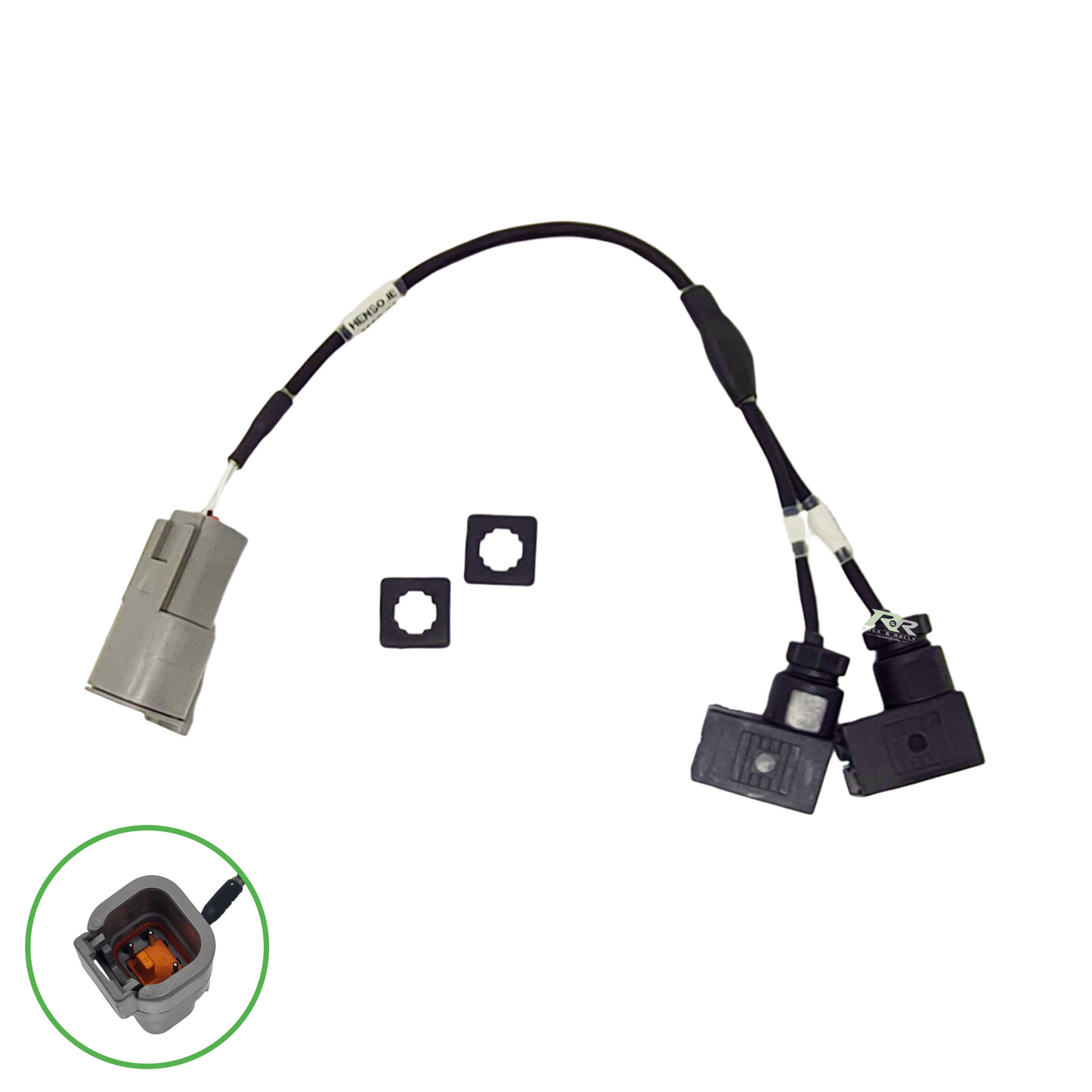

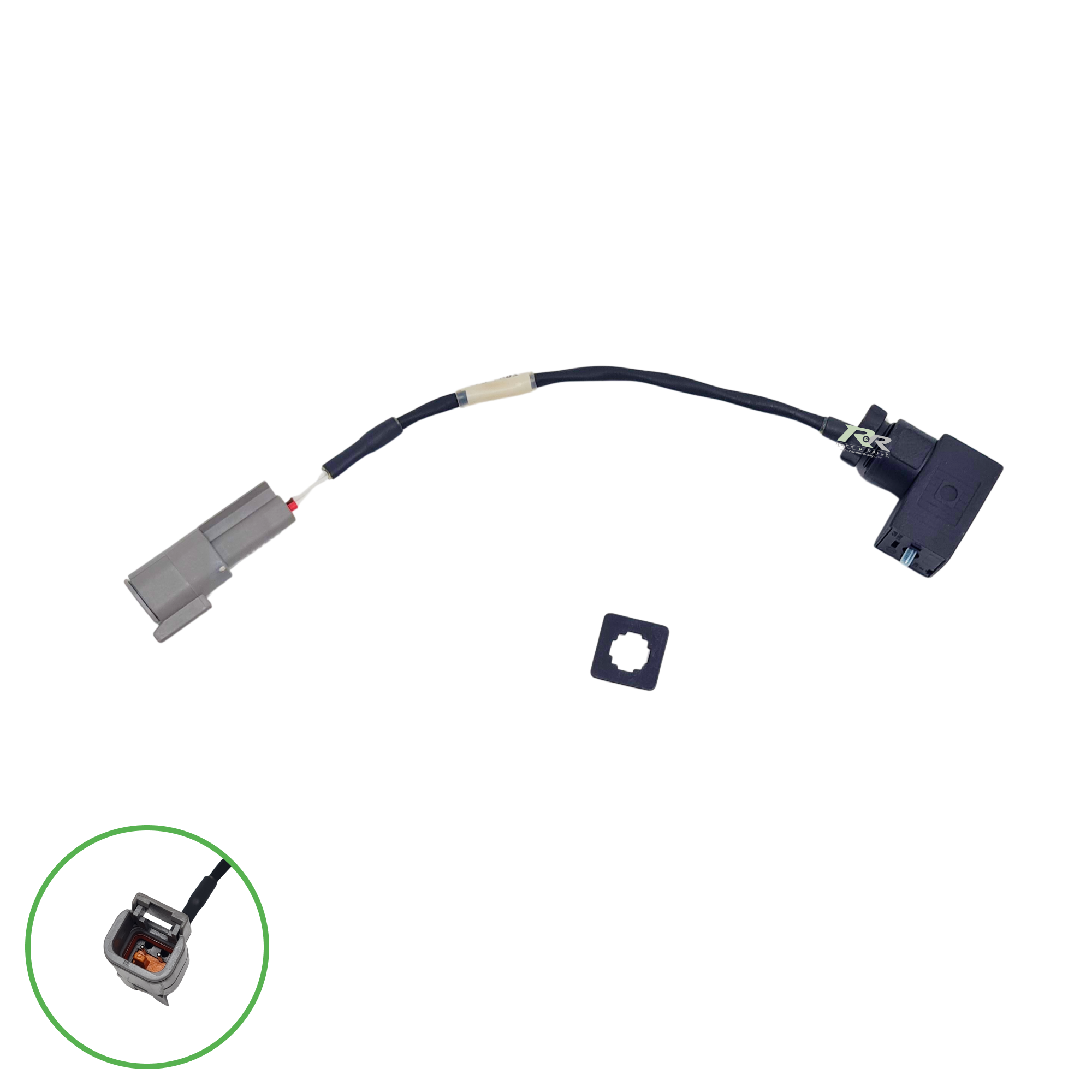

Valve Block Wiring Harness

• Compatible with our Hi-Flow valve block range:
  • 2-way Valve Block
  • 3-way Valve Block

• Manufactured from Raychem spec-55 wire with DR25 sleeving
• Terminated to Deutsch DTM connector and solenoid-specific connecter plugs

Wiring:

• Single Block
  • Pin 1 - 12v supply
  • Pin 2 - Signal
• Twin Block
  • Pin 1 - 12v supply
  • Pin 2 - Up-shift
  • Pin 3 - Down-shift
  • Pin 4 - N/A
• Triple Block
  • Pin 1 - 12v supply
  • Pin 2 - Up-shift
  • Pin 3 - Down-shift
  • Pin 4 - N/A
