Setrab

Setrab oil coolers for engine oil, transmission, differential and other fluid circuits, from the ProLine STD range in full and half widths to the low-profile ProLine SLM Slimline. Each cooler is offered in a choice of row counts to suit your cooling needs and the space available, with M22 port adaptors to convert to -06, -08, -10 or -12 JIC fittings.

Setrab Oil Coolers

Setrab oil coolers are built for vehicles where oil temperature needs controlling under sustained load, from cars to motorcycles. Every cooler is pressure and leak tested using a helium-based process before it leaves the factory. Here’s what to look for:

  • A wide range of uses: engine oil, transmission oil, clutch, brakes, differential and power steering
  • Three widths: ProLine STD Full Width (330mm), Half Width (210mm) and the low-profile ProLine SLM 141
  • A choice of row counts, from compact 6 and 7-row cores up to 50 rows
  • Aluminium alloy construction, rated for a working pressure of up to 10 bar and temperatures from -40°C to 150°C on the ProLine STD range
  • M22 port adaptors to convert to -06, -08, -10 or -12 JIC, each with a sealing ring included

Choosing the Right Setrab Oil Cooler

Cooler

Width

Depth

Rows Available

Best For

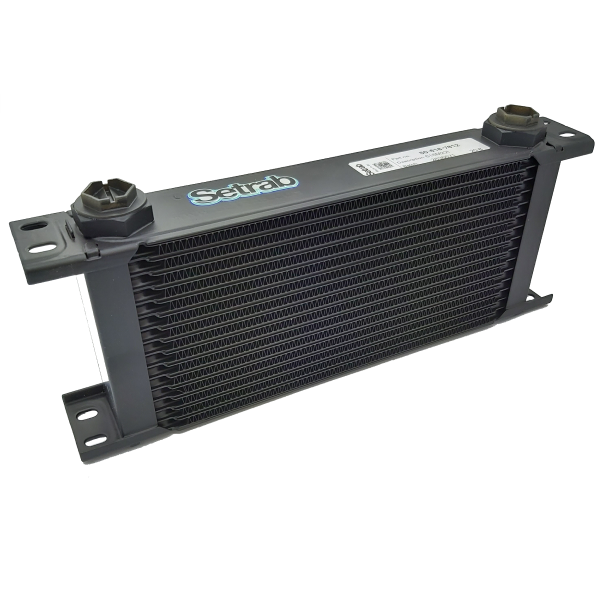

ProLine STD Full Width

330mm

50mm

7, 10, 13, 16, 19, 25, 34, 40, 44 or 50

Engine, transmission and other fluid circuits where there’s room for a full-width core

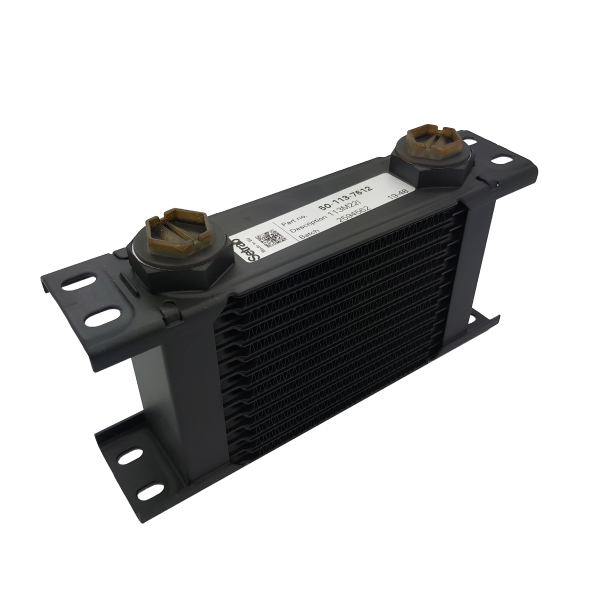

ProLine STD Half Width

210mm

50mm

7, 10, 13, 16, 19, 25 or 50

The same applications in a narrower space. Also recommended by 3MO for the ETV-R gearbox

ProLine SLM 141

141mm core

40mm

6, 10, or 14

Transmissions, rear axles and motorcycles, where packaging space is restricted


Fitting a Setrab Oil Cooler

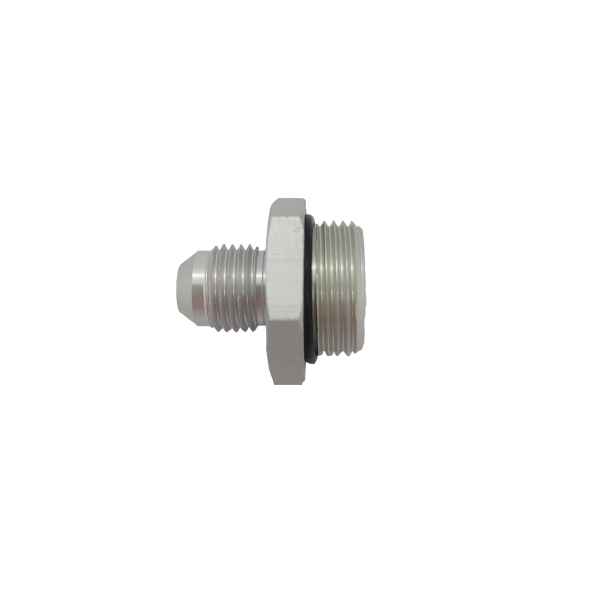

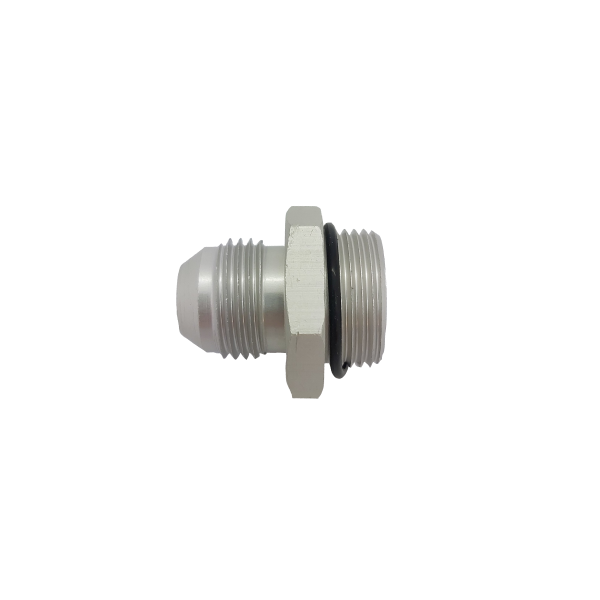

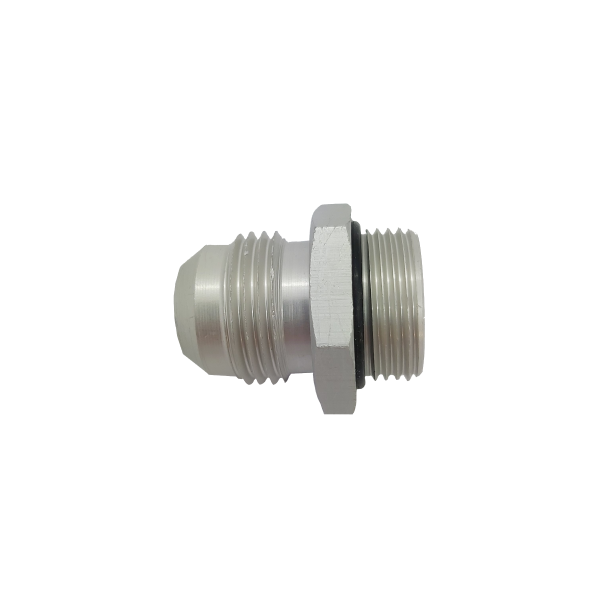

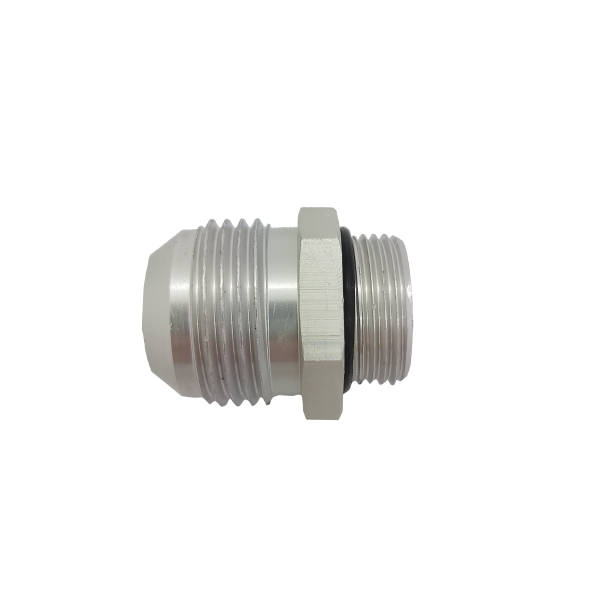

ProLine STD coolers have two M22 ports. To connect them to braided hose, Setrab’s aluminium alloy port adaptors convert each M22 port to -06, -08, -10 or -12 JIC/UNF, with a sealing ring included for a leak-tight fit. Don’t exceed 40Nm when tightening connections on the cooler.

ProLine STD Technical Specifications

  • Working pressure: 0 to 10 bar, dynamic
  • Maximum pressure: 12 bar
  • Burst pressure: 37 bar
  • Working temperature: -40°C to 150°C
  • Corrosion endurance: 20 days to SWAAT G85-94 A3
  • Material: aluminium alloys

Frequently Asked Questions

How many rows do I need?

More rows give you a taller core with more cooling surface, so the right size depends on how much heat you need to remove and how much space you have to mount it. Check the height of each row option on the product page against your mounting space, and get in touch if you’re unsure which size suits your engine or gearbox.

Can I use Setrab adaptors with Goodridge hose?

Yes. Setrab’s adaptors convert the cooler’s M22 ports to -06, -08, -10 or -12 JIC, so Goodridge 236 series hose fittings connect directly to them with no extra adaptor needed. If space above the cooler is tight, a slimline high-flow banjo adaptor is also available, in the same -06 to -12 sizes at just 26mm high. As Ireland’s only official Goodridge G-Tech centre, we can build the hose to run to your cooler, or you can assemble it yourself using our step-by-step guide.

How to mount your Setrab oil cooler?

We stock rubber mounts for fitting an oil cooler, available as a single mount (OCRM-1) or double mount (OCRM-2). Rubber mounts help isolate the cooler from vibration, and the right option depends on your cooler and where you’re mounting it. Get in touch if you’re unsure which suits your installation.
