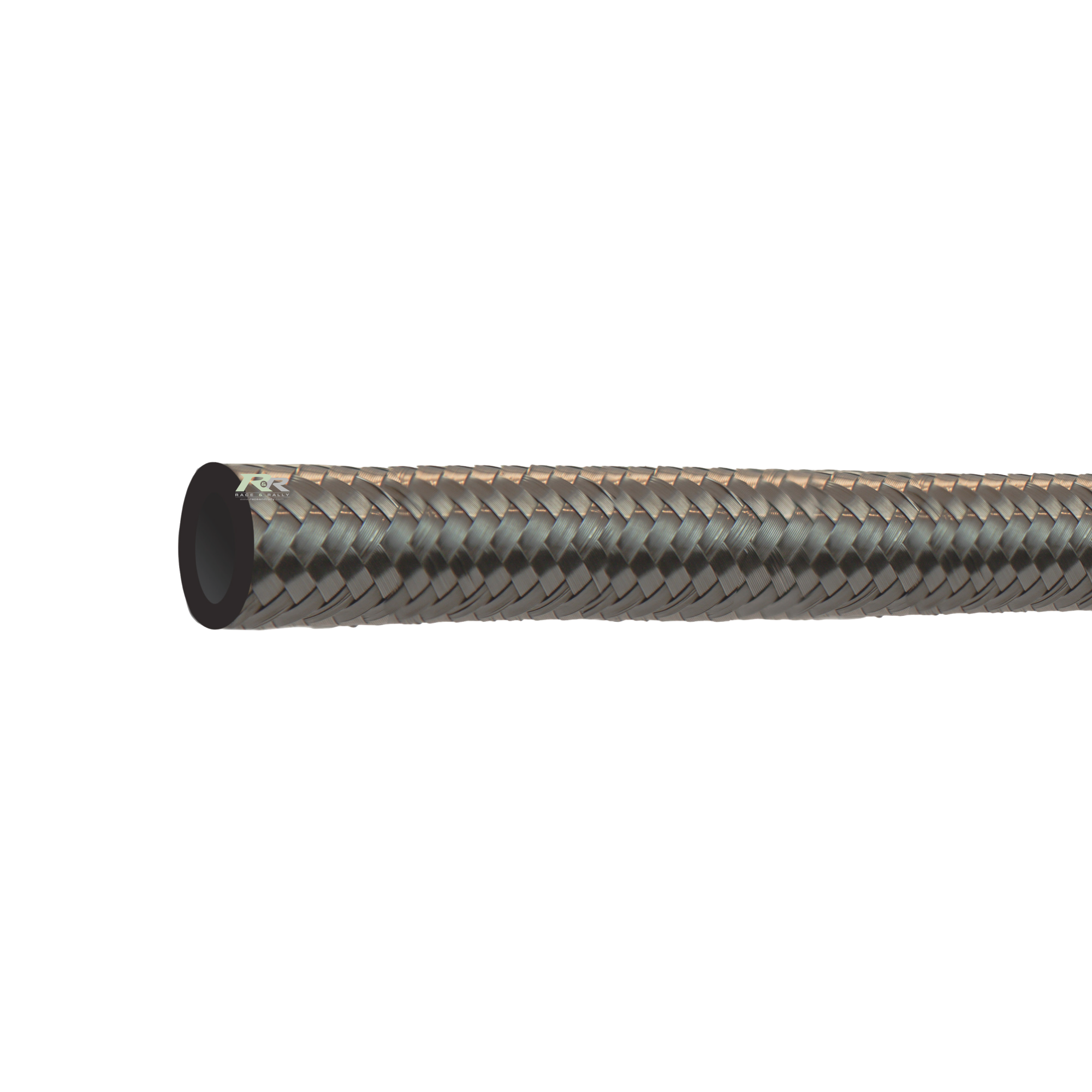

• Goodridge 200 Series braided nitrile rubber-lined hose showing braided exterior and reinforced rubber lining.
1 1

200 Series Braided Nitrile Hose

200 Series Braided Nitrile Hose

200-04

€37.10 €45.63
Sale Sold out
  • Feature Icon 200 Series
  • Feature Icon Rubber Lined
  • Feature Icon Stainless Steel Braid
  • Feature Icon *Sold per Metre*
Hose Dash Size

Out of stock, expected in 1-3 days from order

View full details

Goodridge 200 Series Braided Nitrile Hose is the premier stainless steel braided nitrile hose. Designed to Goodridge's exacting specifications and exclusively manufactured for Goodridge, this hose has been supplied to motorsport racing champions for many years.

This 200 series Hose is designed for use with a wide range of re-usable aluminium hose ends and provides essential protection and resistance to high pressure, temperature, vibration, fire risks and chafing. It is constructed of a seamless synthetic CPE inner with an integral stainless steel braid and a high tensile stainless steel outer braid. 200 Series hose has the highest corrosion and fire resistance threshold of any stainless braided nitrile hose available.

**Please Note: Not to be used for fuel use inside a cockpit. Please refer to 600 Series, 910 Series G-Line, 811 Series G-Line  or G-Line Ultra hoses for use with 'in cockpit' plumbing applications that require FIA Homologation

Construction:

  • Elastomer inner tube
  • Partial stainless steel wire inner braid
  • Full stainless steel outer braid reinforcement

Temperature Range:

  • Continuous operating temperature from -65°F to +302°F (-40°C to +150°C)

Applications

  • Synthetic lubricants
  • Fuels
  • Oils
  • Coolants
  • Water
  • Alcohols including methanol and nitromethane

Compatiable Fittings

  • 1136 Series Fittings
  • 236 Series Fittings
  • 336 Series Fittings
  • 2776 Series Fittings
  • 936 Hose Finishers

Part Numbers (sold per Metre)

Dash Size Part Number Max Bore Size Outside Diameter Working Pressure Burst Pressure Weight
(Kg/m)		 Min. Bend Radius
04 200-04 5.40mm 11.20mm 1000 PSI 6000 PSI 0.179 50.80mm
06 200-06 8.70mm 14.20mm 1000 PSI 6000 PSI 0.208 63.50mm
08 200-08 11.10mm 17.10mm 1000 PSI 5000 PSI 0.250 88.90mm
10 200-10 14.20mm 20.80mm 1000 PSI 5000 PSI 0.327 101.60mm
12 200-12 17.40mm 24.40mm 1000 PSI 3750 PSI 0.402 114.30mm
16 200-16 22.20mm 30.50mm 750 PSI 2500 PSI 0.610 139.70mm



Brand Goodridge
Option SKU Barcode
Dash 4 200-04
Dash 6 200-06
Dash 8 200-08
Dash 10 200-10
Dash 12 200-12
Dash 16 200-16


Established in 1969, Goodridge has evolved into a globally renowned manufacturer of performance fluid transfer systems.
For over 55 years, original equipment manufacturers, high-level racing teams and privateers have utilised Goodridge products, whether through the company's consultancy-based 'design and build approach' or through its range of 'off-the-shelf' performance plumbing products.

Why choose Goodridge
We provide bespoke systems and an extensive range of off-the-shelf products to high-end customers in the automotive, industrial and defence and aerospace sectors. Our product range covers the full spectrum of fluid transfer systems, including battery cooling for electric vehicles. Our off-the-shelf product range also serves a strong aftermarket for performance and racing components.

Race and Rally is the official Goodridge distributor for Ireland and Northern Ireland
