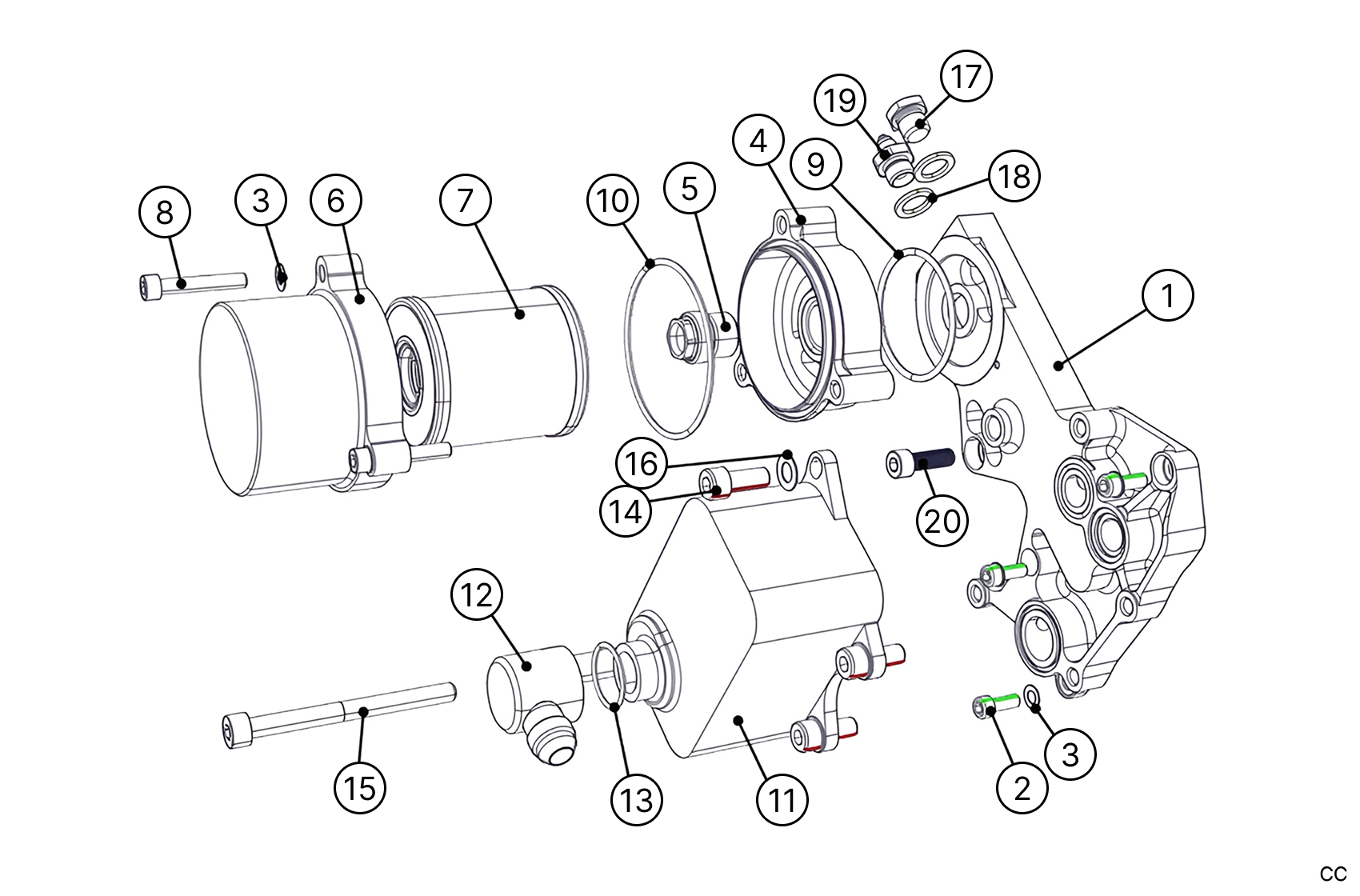

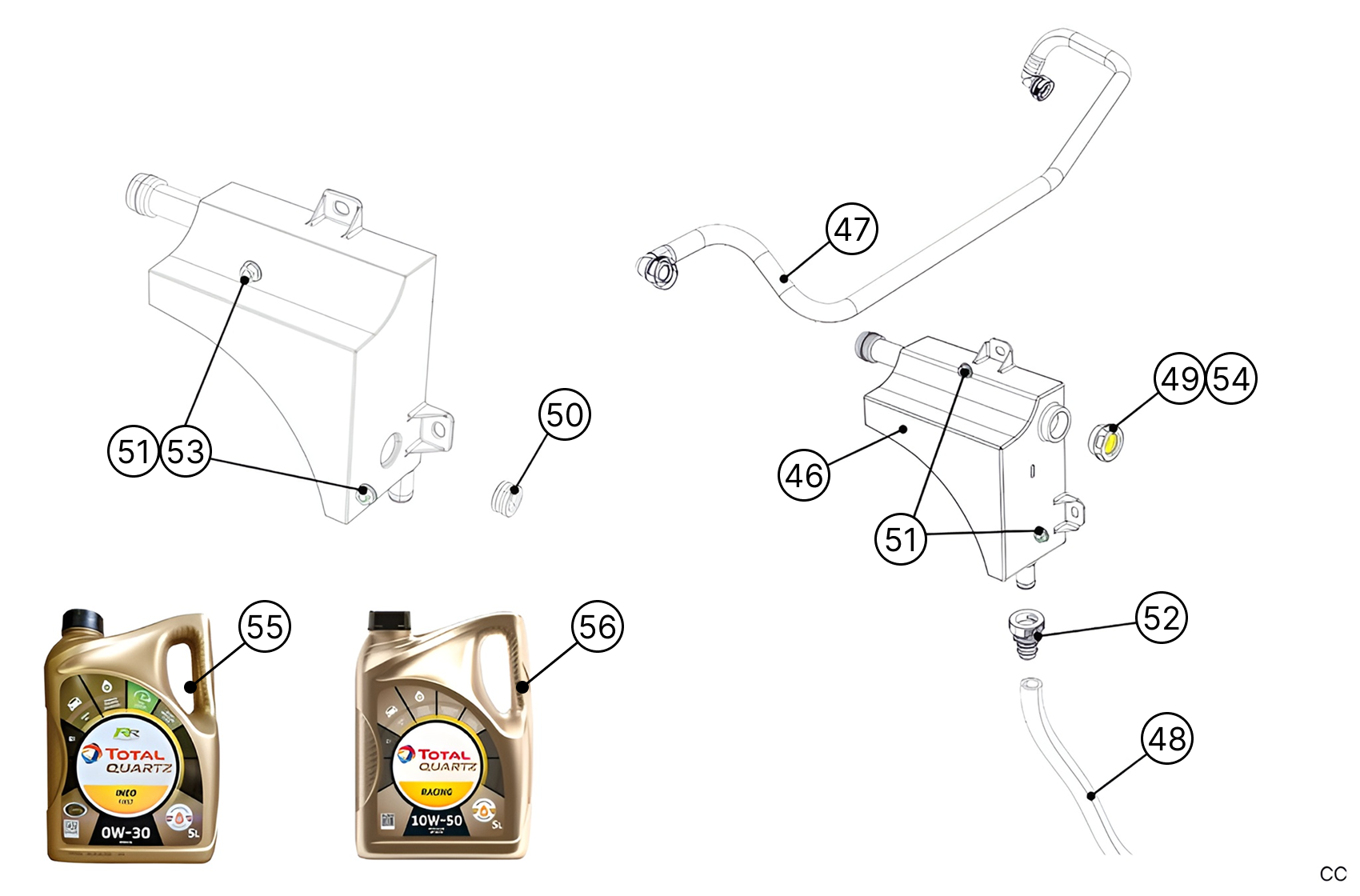

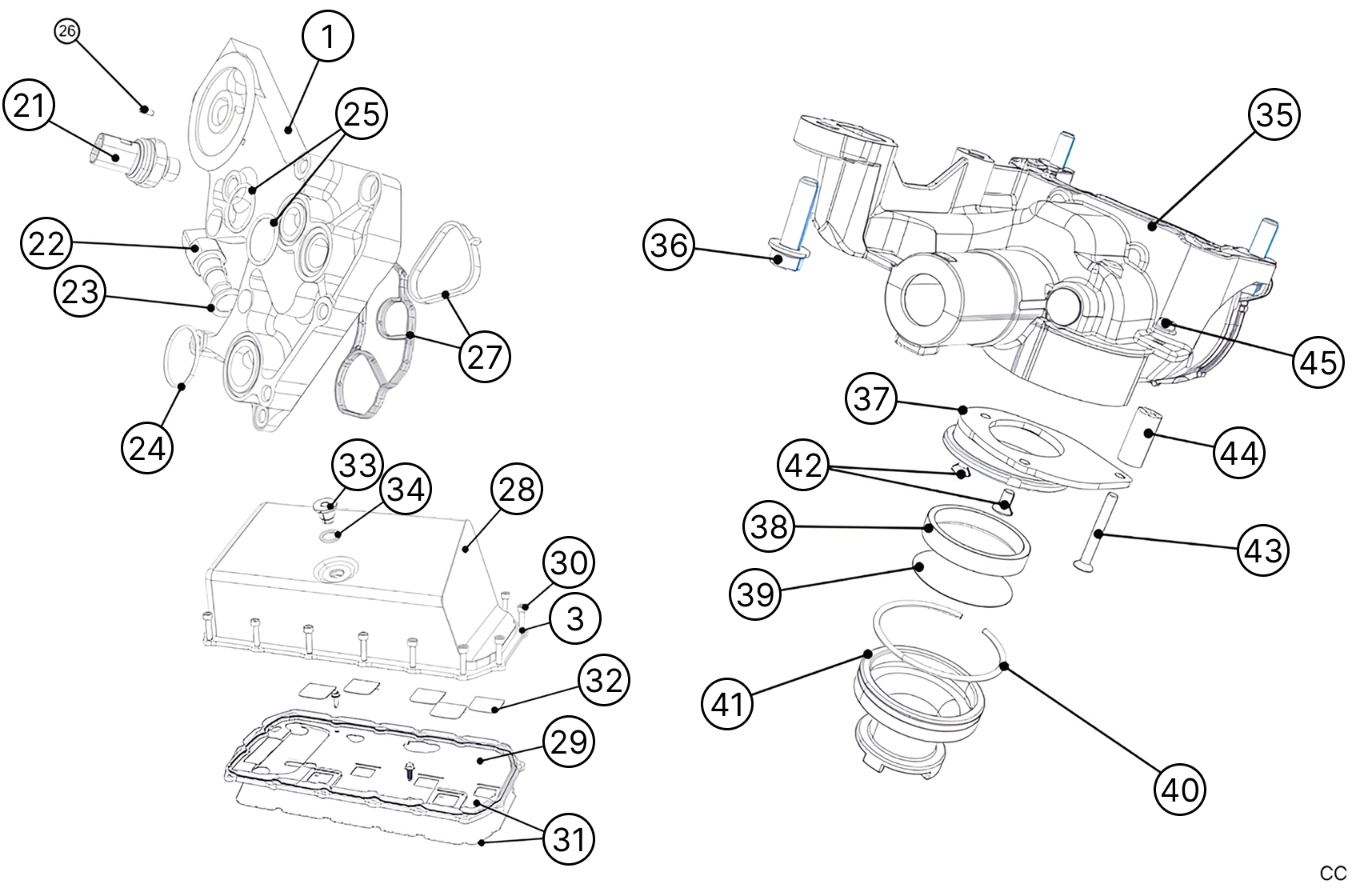

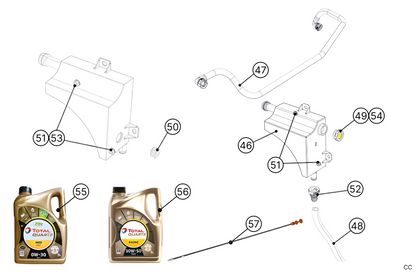

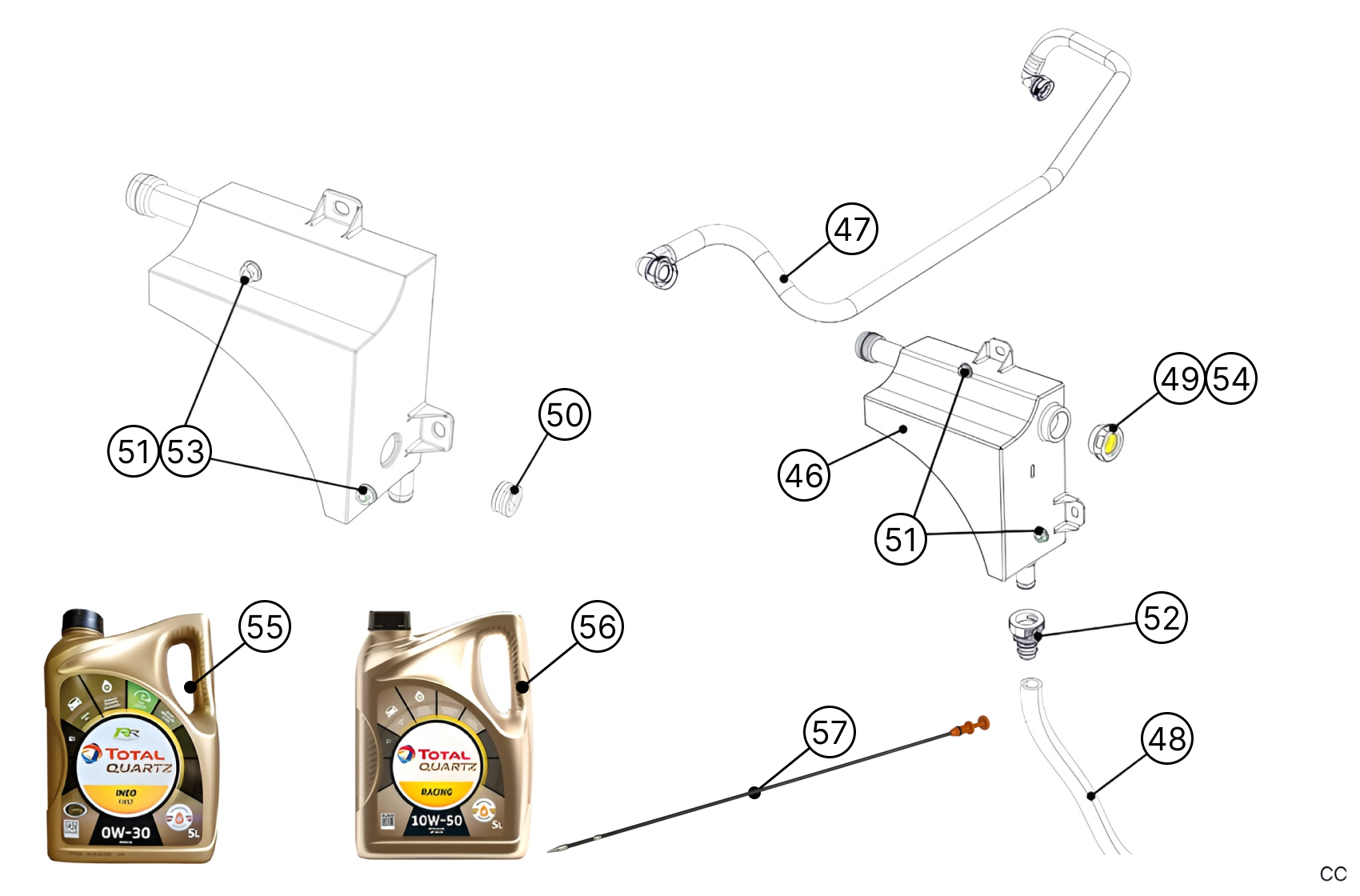

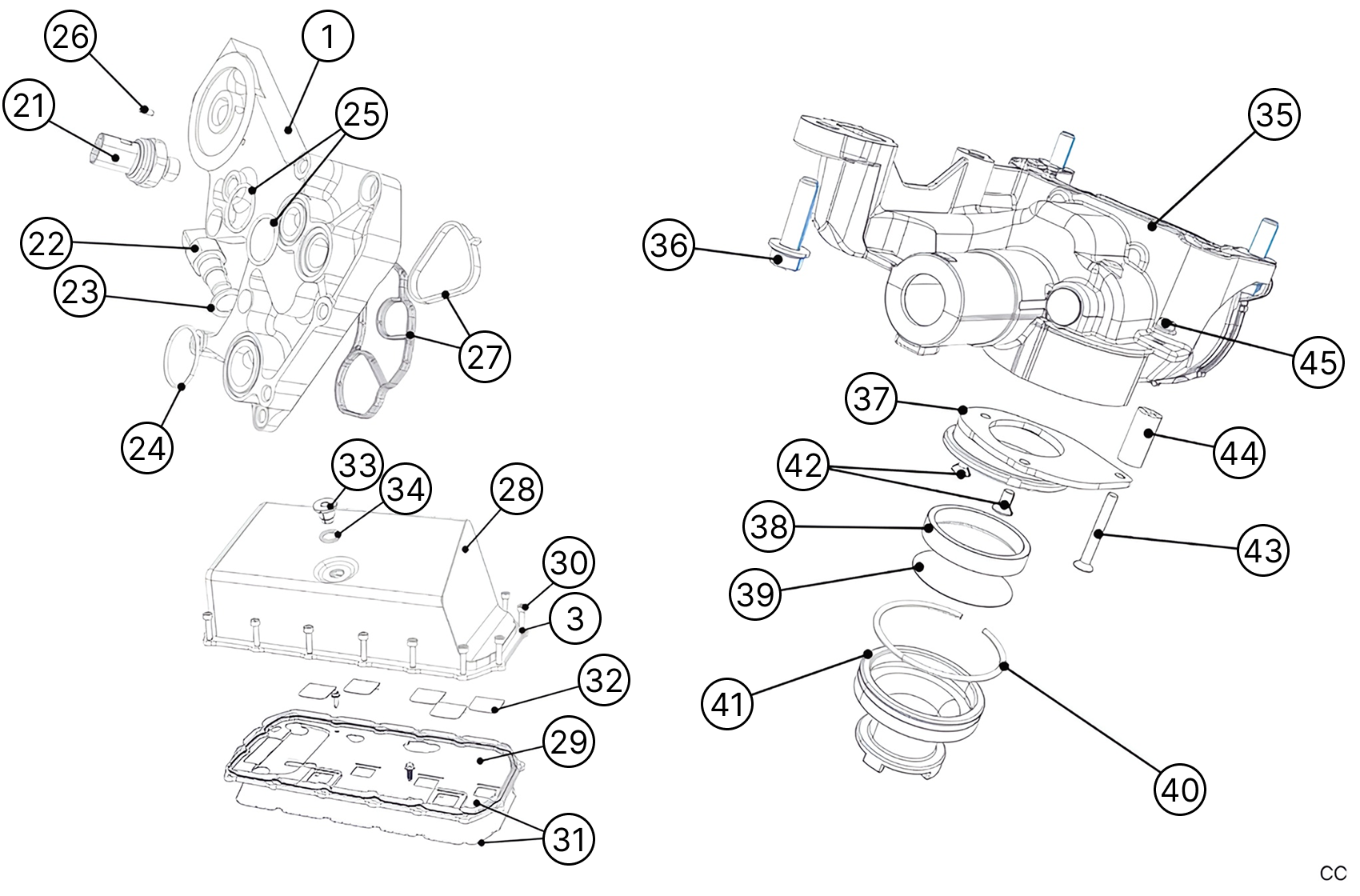

A15 - Engine Lubrication

A15 - Engine Lubrication

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Engine Oil Exchanger Mount

904472738C

1

€886.40 €1090.27
2
Socket screw M6x16

691306

3

€2.38 €2.93
3

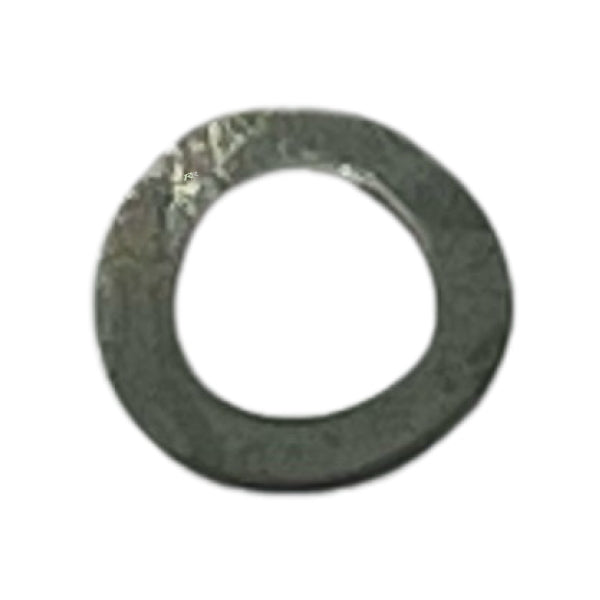

Onduflex washer 6 type A

PS86004A10

22

€2.23 €2.74
4
Oil filter support

0A1527487A

1

€214.40 €263.71
5

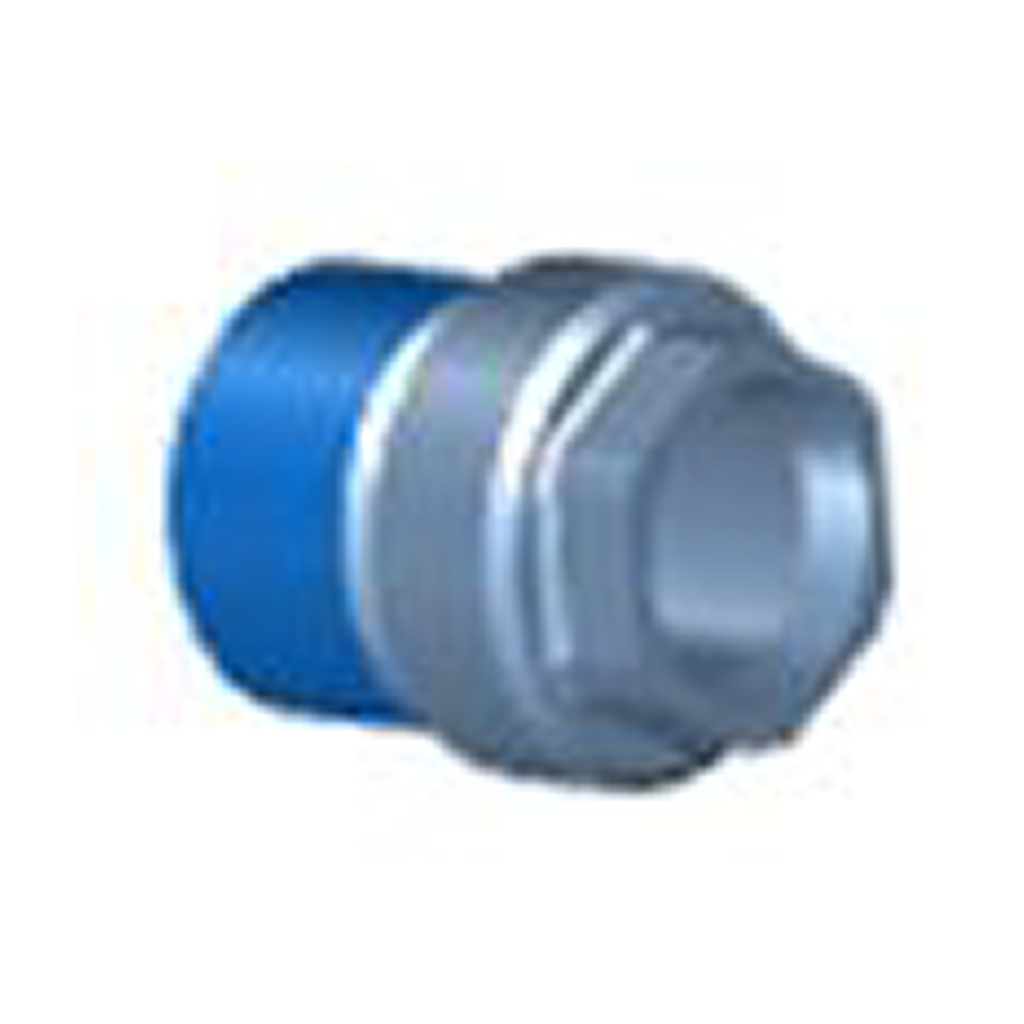

Oil filter housing screw

0A1527574B

1

€87.68 €107.85
6
Oil filter housing

0A1526877C

1

€156.70 €192.74
7
Oil filter

9818914980

1

€22.48 €27.65
8
Screw CHC M6x35 cl.12.9

PS82038A10

3

€0.36 €0.44
9
O'Ring ø57,5x3 FKM 80SH

PS77835A10

1

€4.24 €5.22
10
O'Ring Ø76x2,5 NBR 70sh

PS77052A10

1

€0.71 €0.87
11

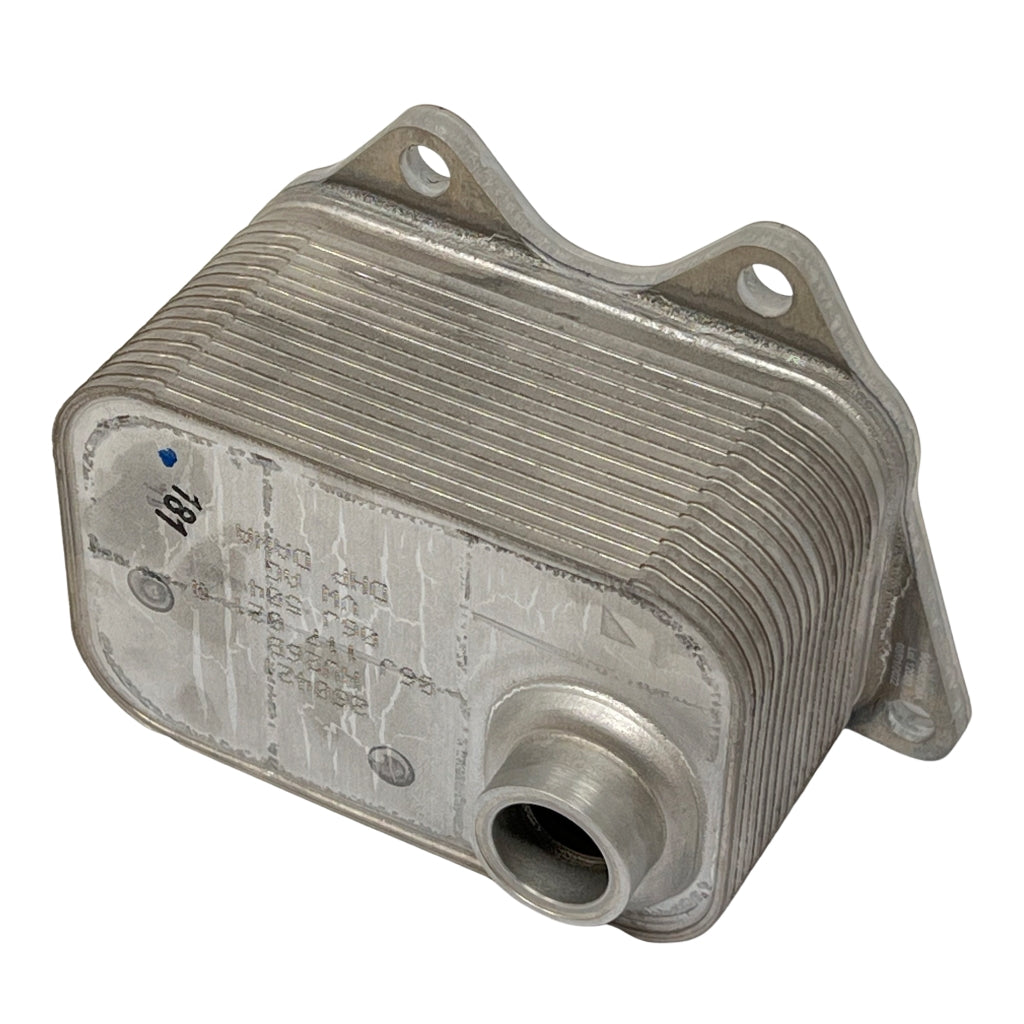

Engine oil cooler

904638738A

1

€825.28 €1015.09
12

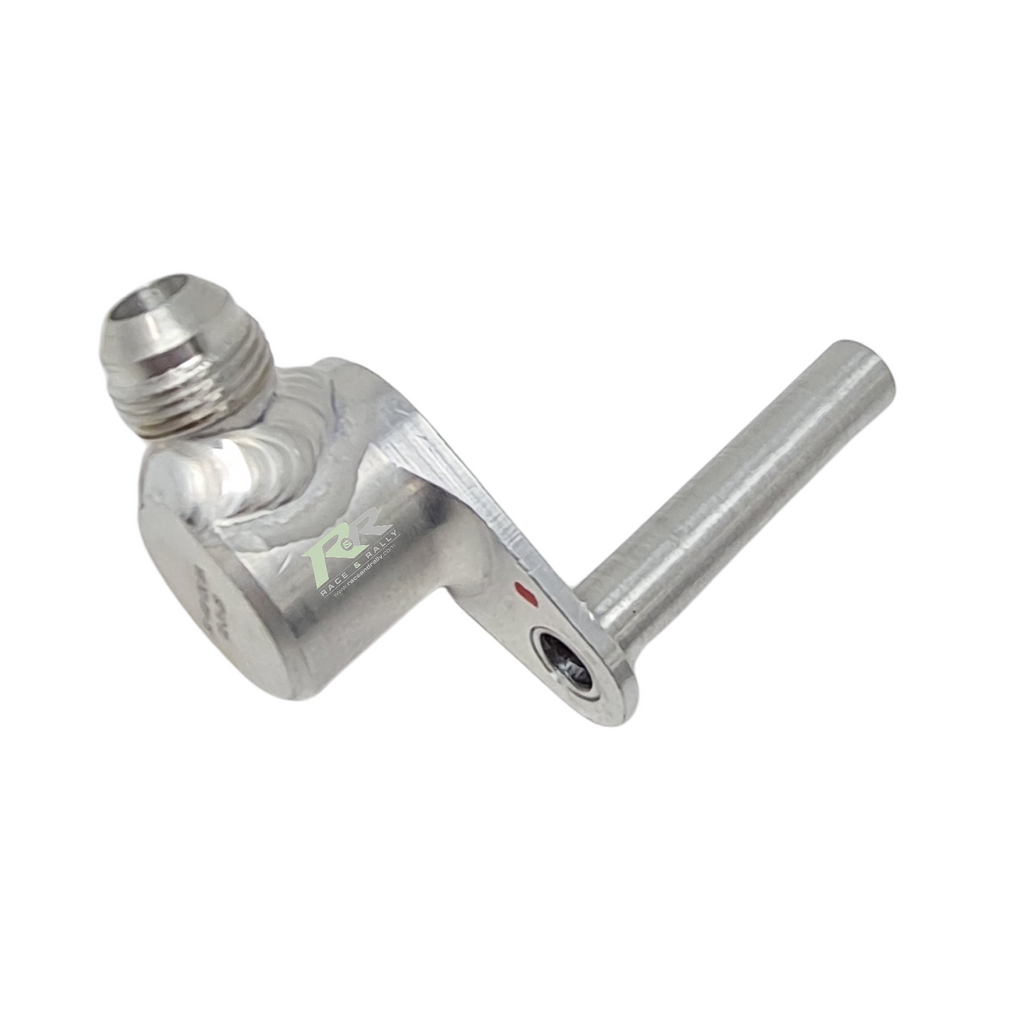

Heat exchanger exit adaptator

904484308A

1

€291.20 €358.18
13

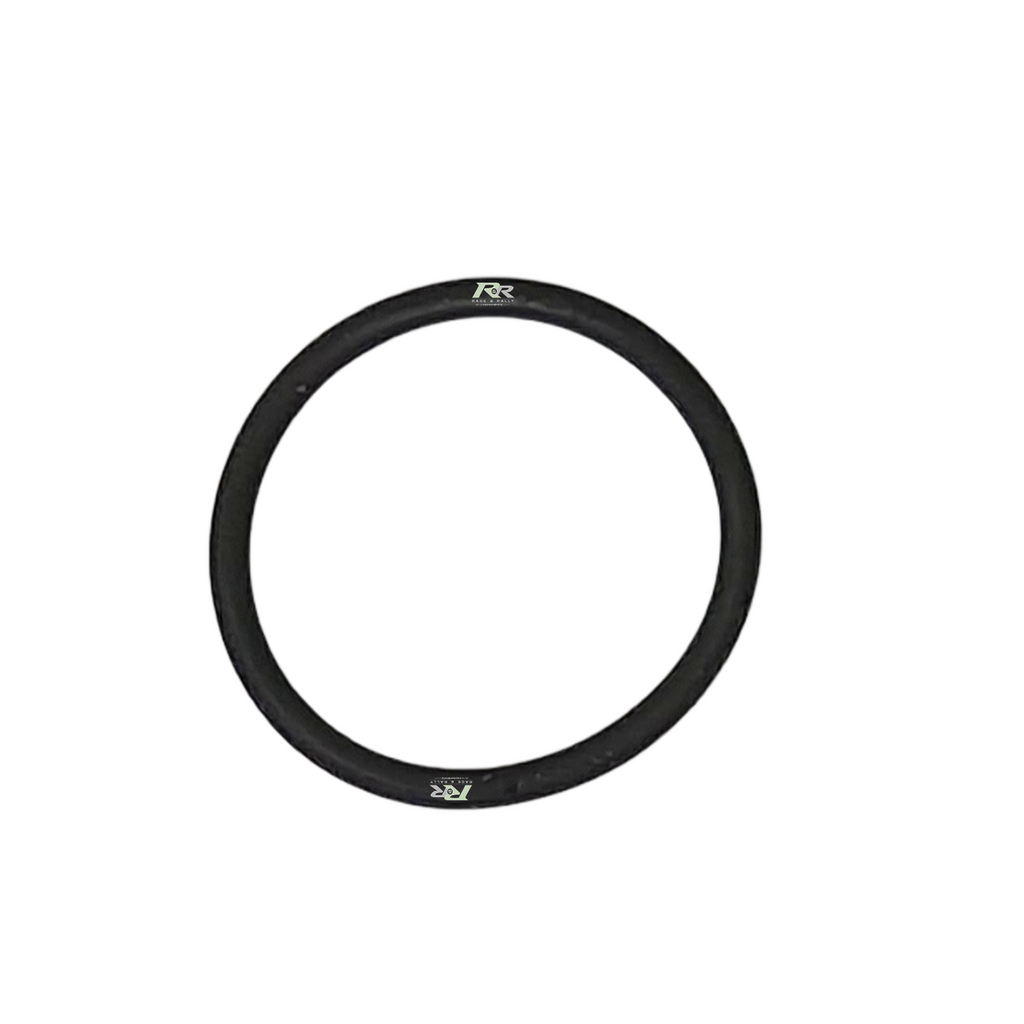

O'Ring ø25x2 FKM 80 Sh

PS77317A10

1

€1.46 €1.80
14
Screw M8x125-20

422822

3

€1.73 €2.13
15

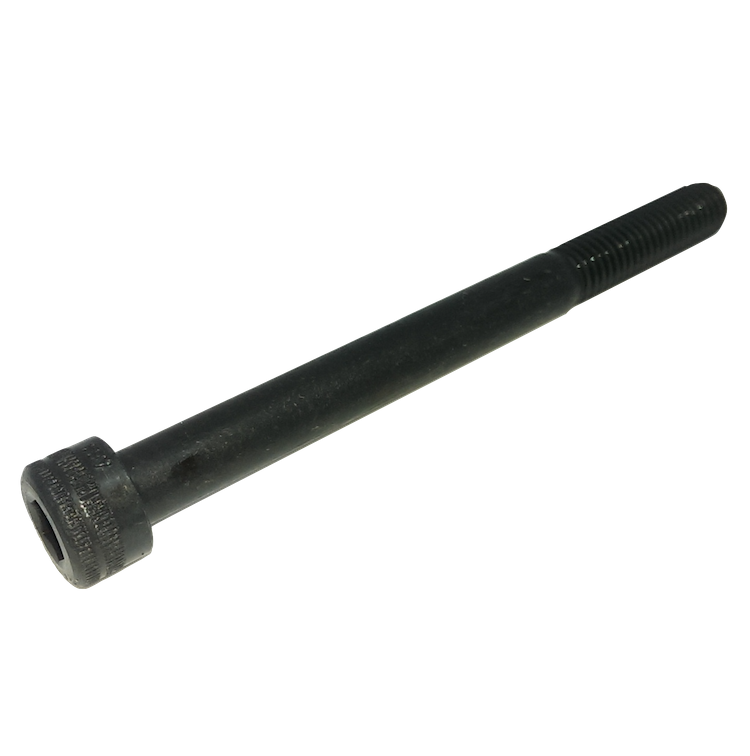

Screw M8x90

PS82137A10

1

€1.42 €1.75
16

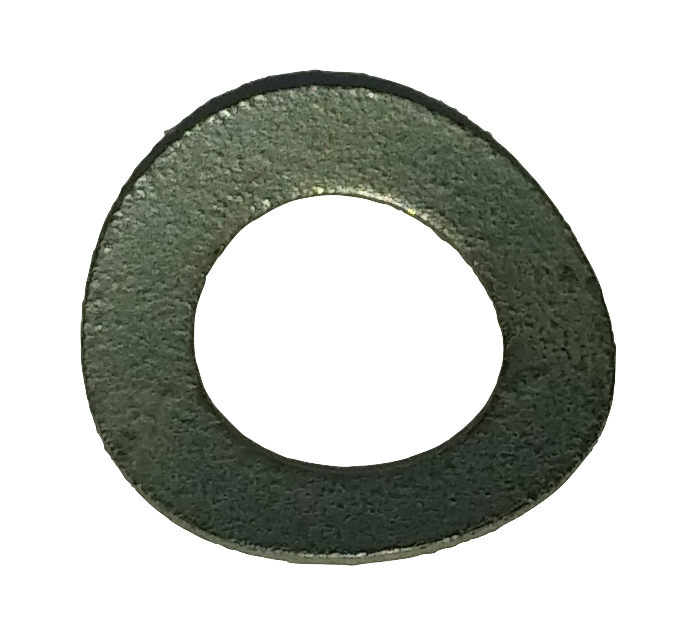

Spring Washer Ø8

PS86510A10

4

€0.09 €0.11
17
Plug 14x150 Male

PS741145A10

1

€15.78 €19.41
18

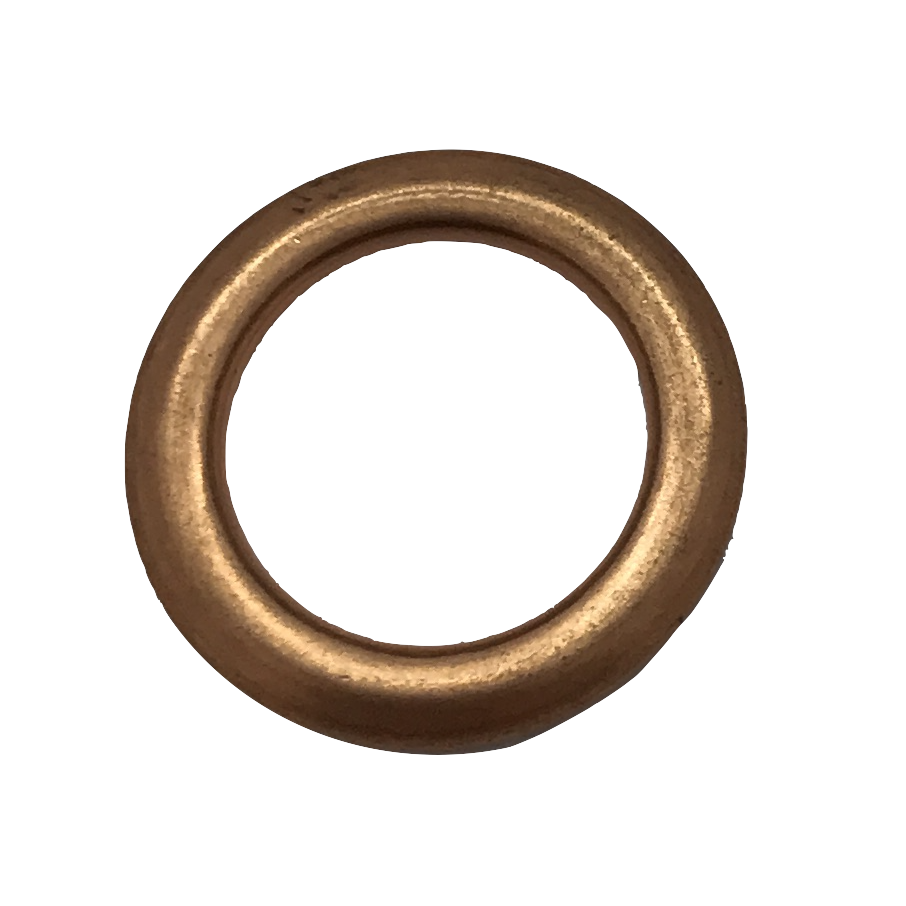

Copper Seal 14X21-2

031327

3

€2.32 €2.85
19
Adaptor M14x1.5 Dash3 M/M

ST04100005

1

€13.54 €16.65
20
Screw M8 L25

PS82091A10

1

€0.78 €0.96
21

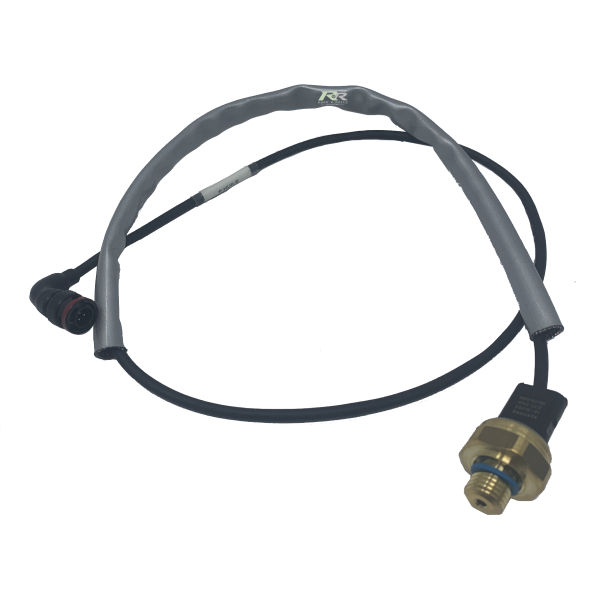

C3 Rally 2 Engine Oil Pressure Sensor Cable B6 R5

904476868B

1

€297.64 €366.10
22

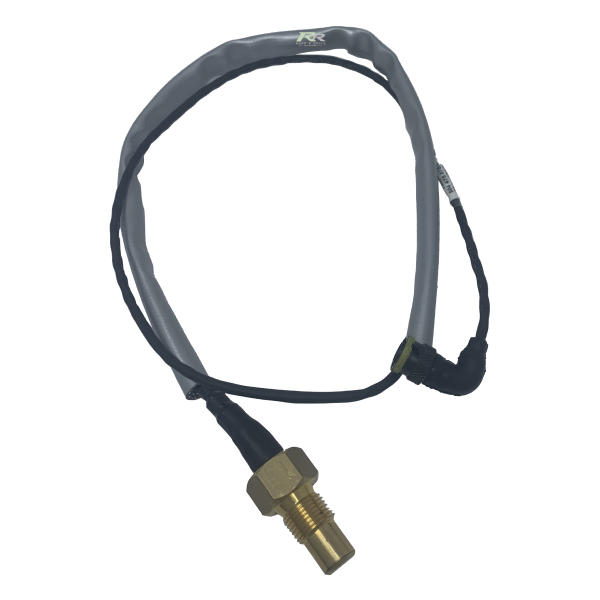

C3 Rally 2 Oil Temperature Sensor with Cable

904476878C

1

€466.20 €573.43
23

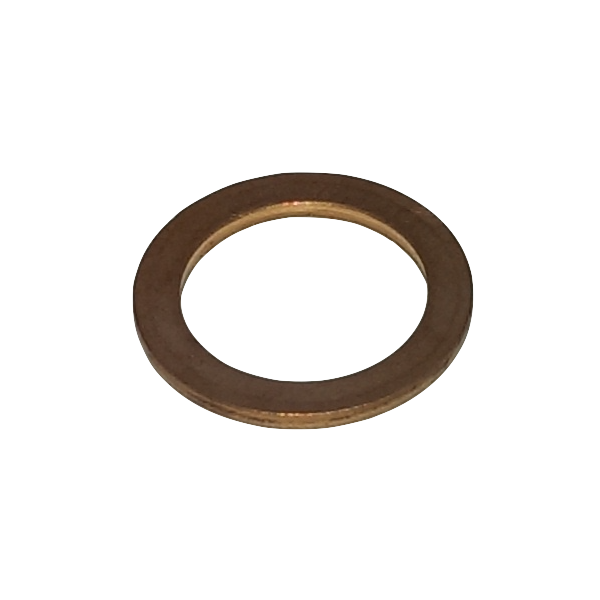

Copper seal 14x20x1.5

PS81052A10

1

€3.12 €3.84
24
O'Ring Ø28x2

PS77027A10

1

€0.80 €0.98
25
O'Ring Ø25x2 FKM 80 Sh

PS77852A10

2

€1.35 €1.66
26
Cylindrical pin ø3x8 m6 BN857

PS78646A10

1

€1.16 €1.43
27

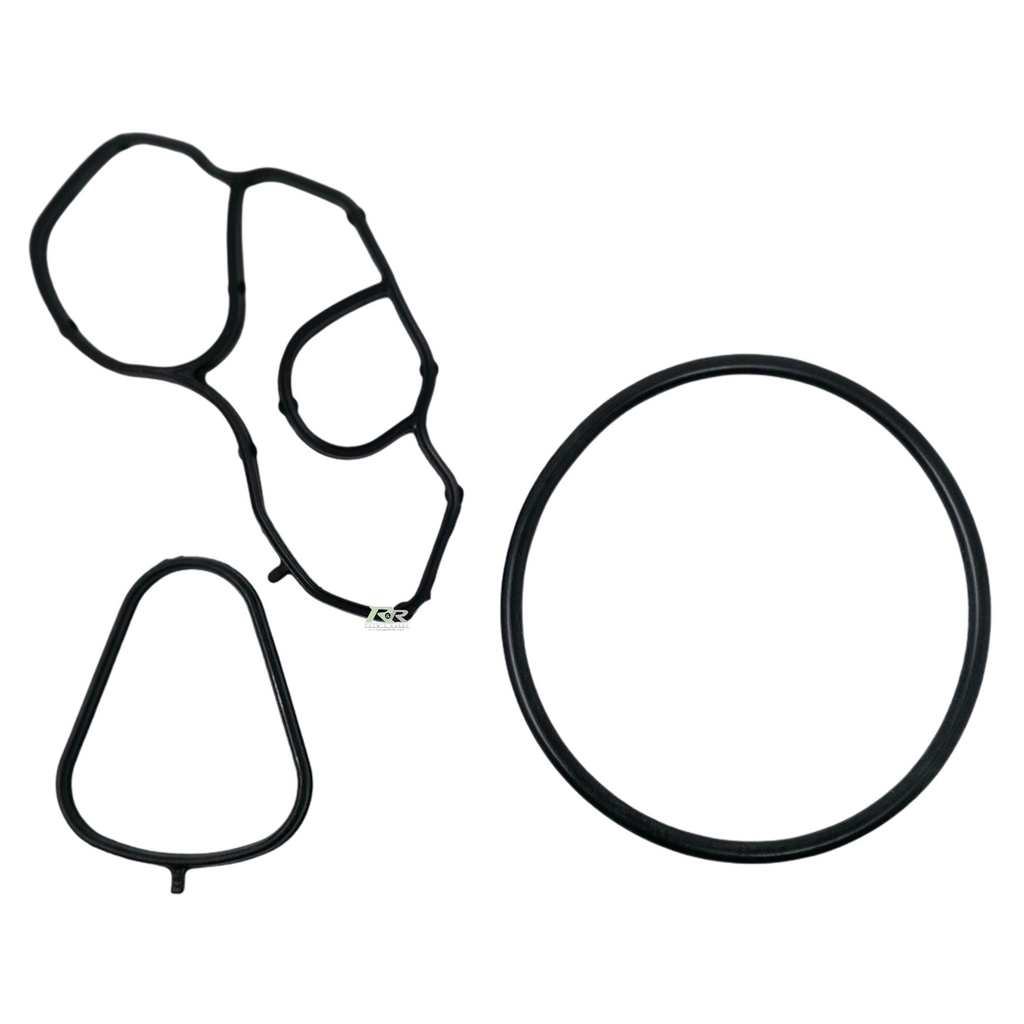

Seal Kit

1613571980

1

€29.30 €36.04
28

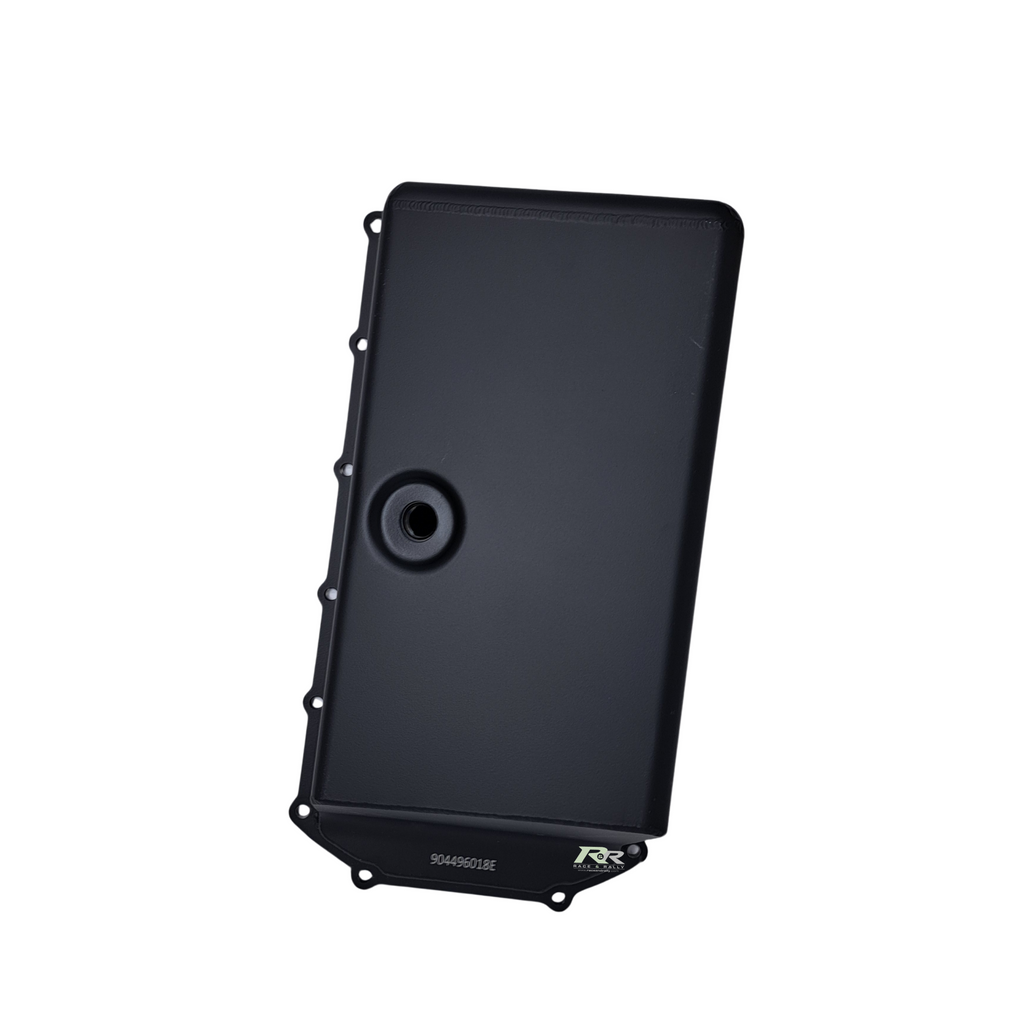

Oil Sump

904496018E

1

€812.25 €999.07
29
Oil Breather Plate

904476998B

1

€704.00 €865.92
30
M6x25 Bolt

PS82017A10

16

€0.53 €0.65
31

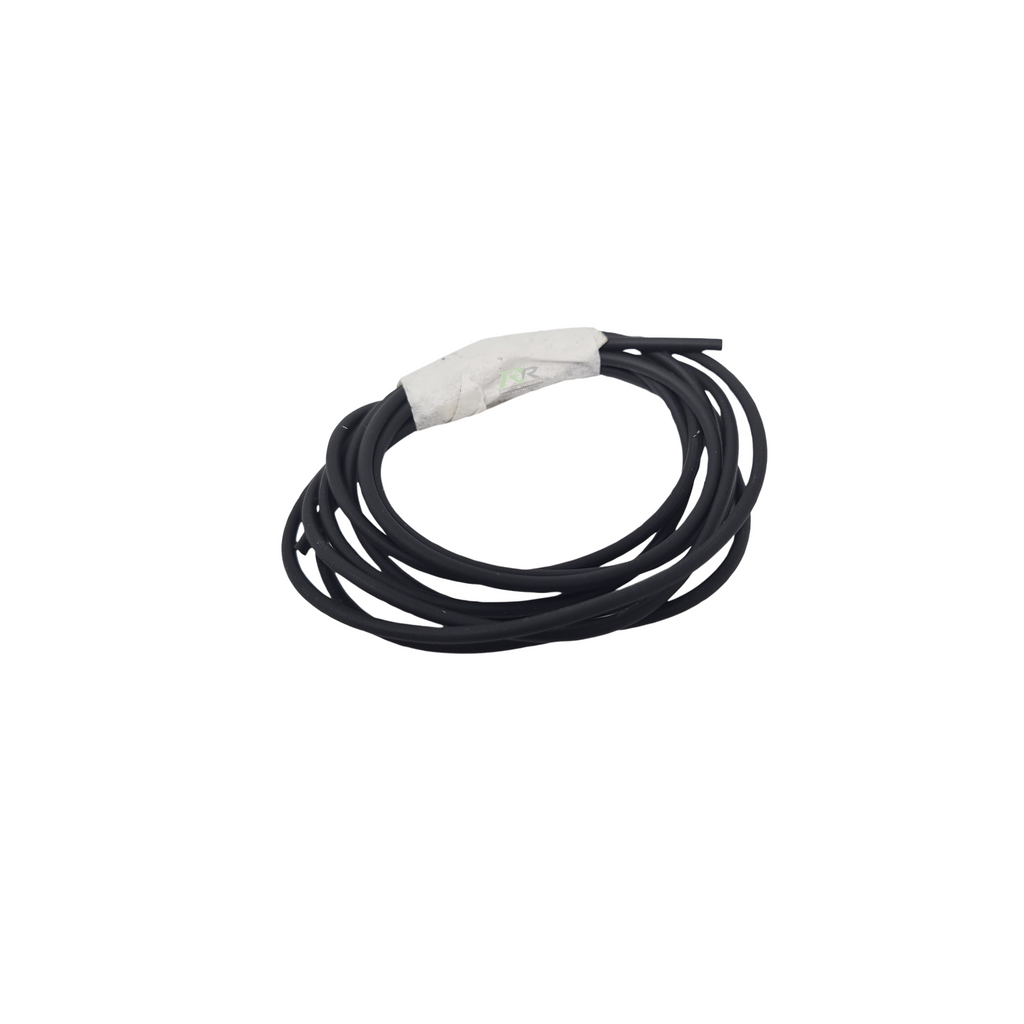

Sump Seal

PS77919A10

2

€20.33 €25.01
32
Oil Sump Valve

619026-02

5

€17.70 €21.77
33

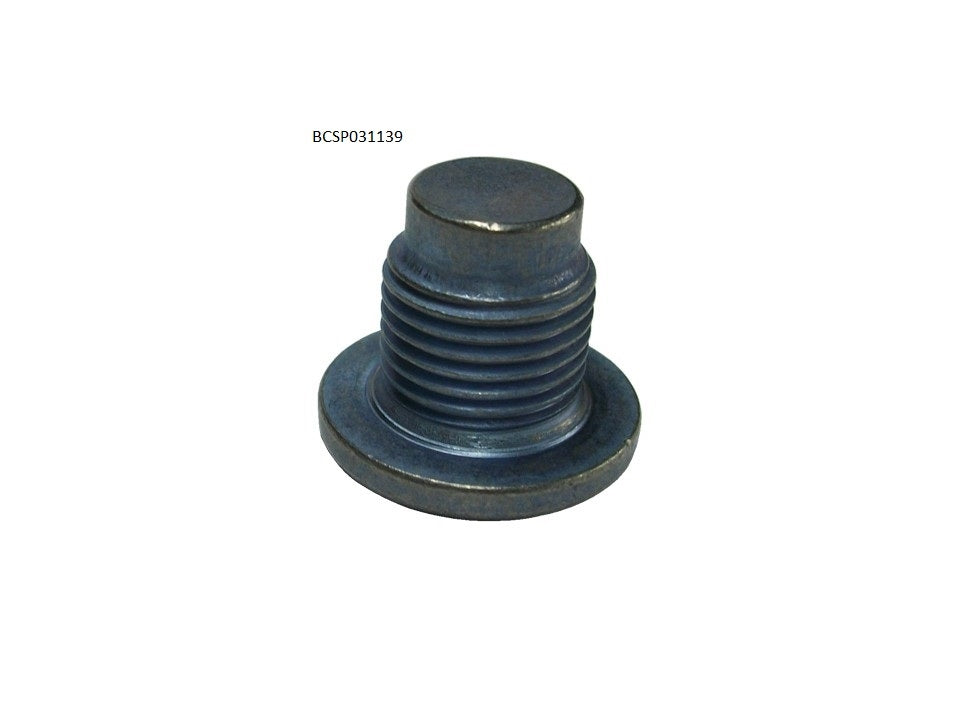

Drain Plug M16x1.5

31139

1

€1.75 €2.15
34
Copper seal Ø16.5x22x1.5

PS81564A10

1

€1.62 €1.99
35
Oil Pump

904498448B

1

€222.54 €273.72
36
Screw with base M8x28

1011-30

3

€1.27 €1.56
37
Suction Sleeve Mount

904484988A

1

€249.60 €307.01
38
Suction Screen Spacer

904477208A

1

€37.82 €46.52
39

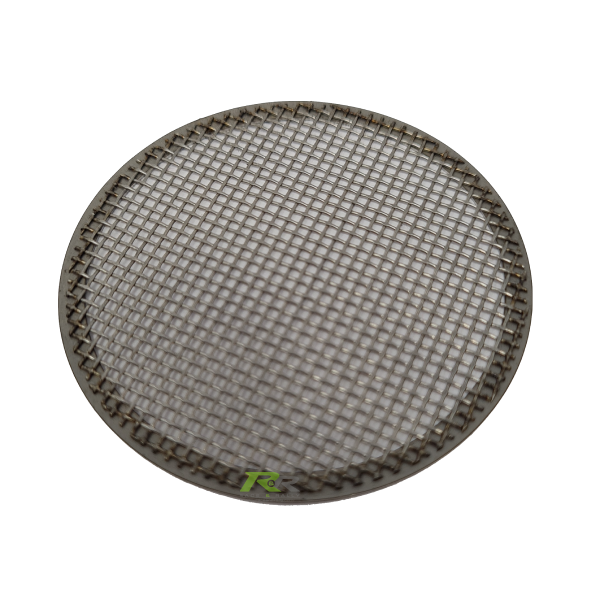

Circular sieve

0A1570620A

1

€48.61 €59.79
40
Retaining ring Ø70

CS060151ST

1

€2.76 €3.39
41

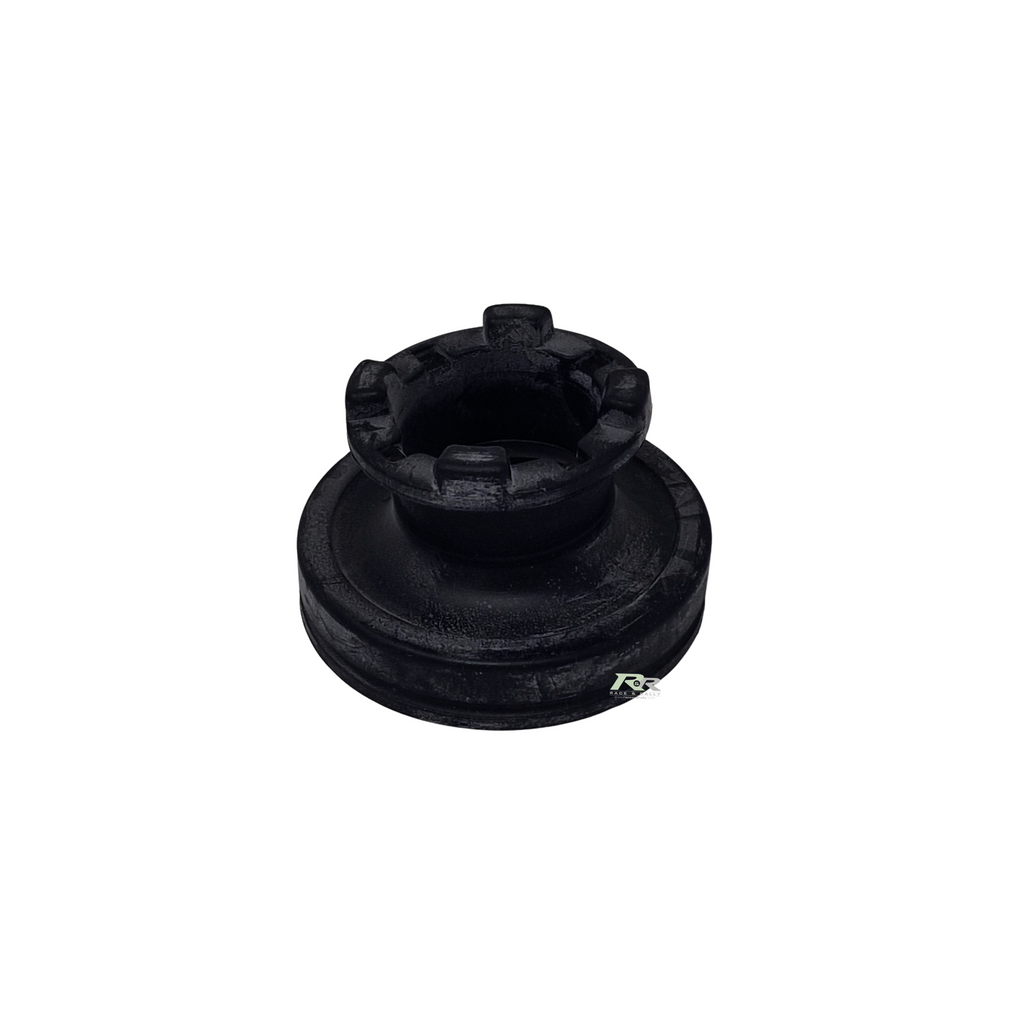

Strainer

0A1570622A

1

€69.44 €85.41
42

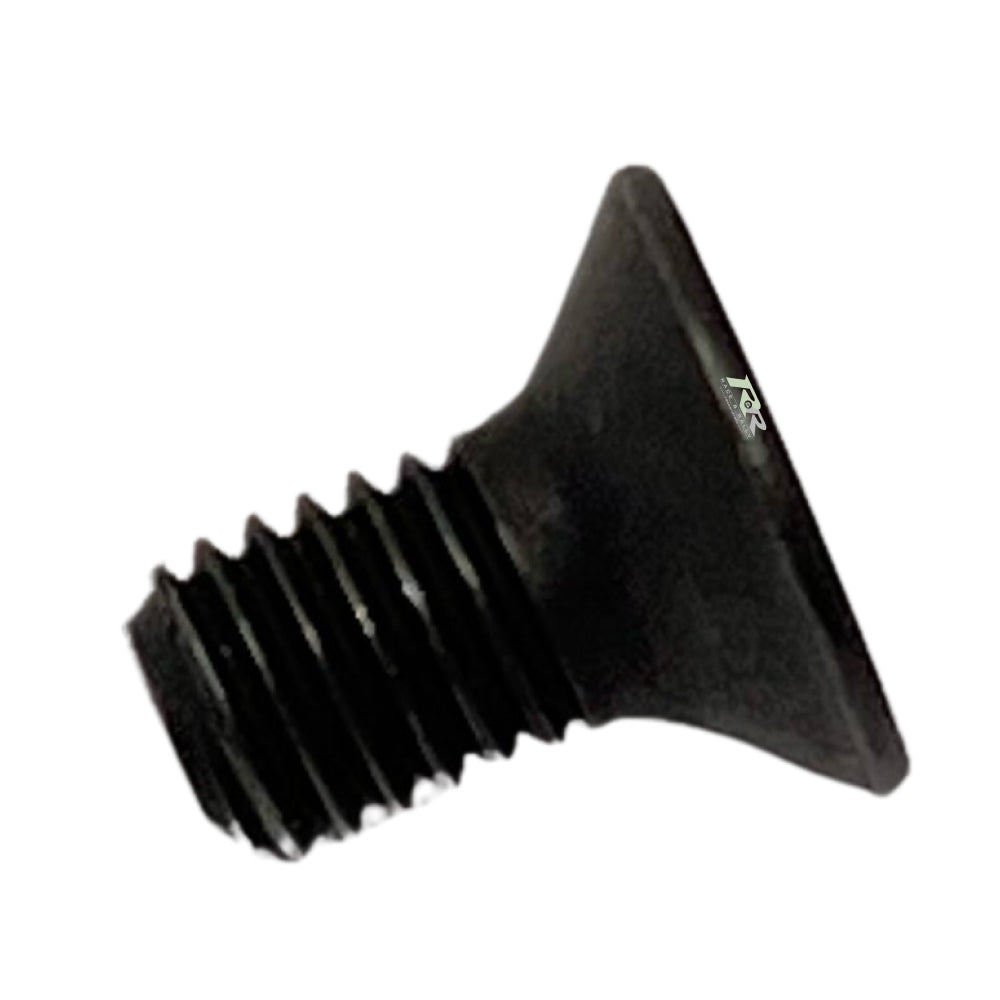

M5 x 10 FHC Screw

PS82699A10

2

€0.53 €0.65
43
Screw FHC 90° M5x80 L40 CL12.9

PS85562A10

1

€2.11 €2.60
44
Oil Strainer Spacer

0A1563489B

1

€25.91 €31.87
45
Nut with base M5x5x8

6936-67

1

€1.36 €1.67
46

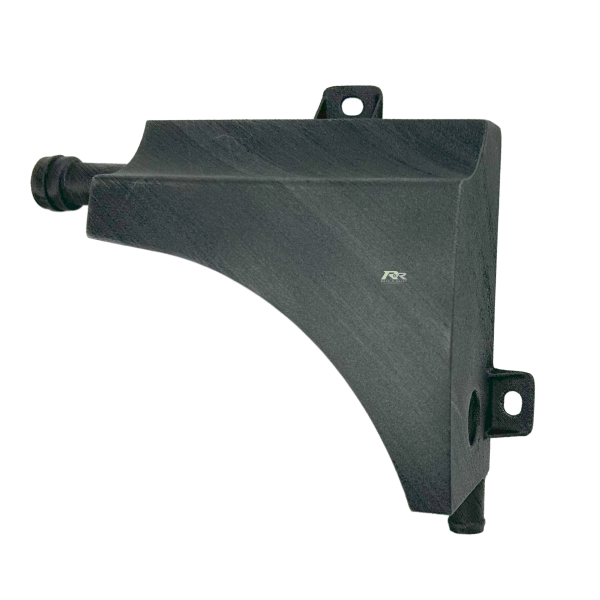

Engine oil catch tank

904848738A

1

€435.07 €535.14
47

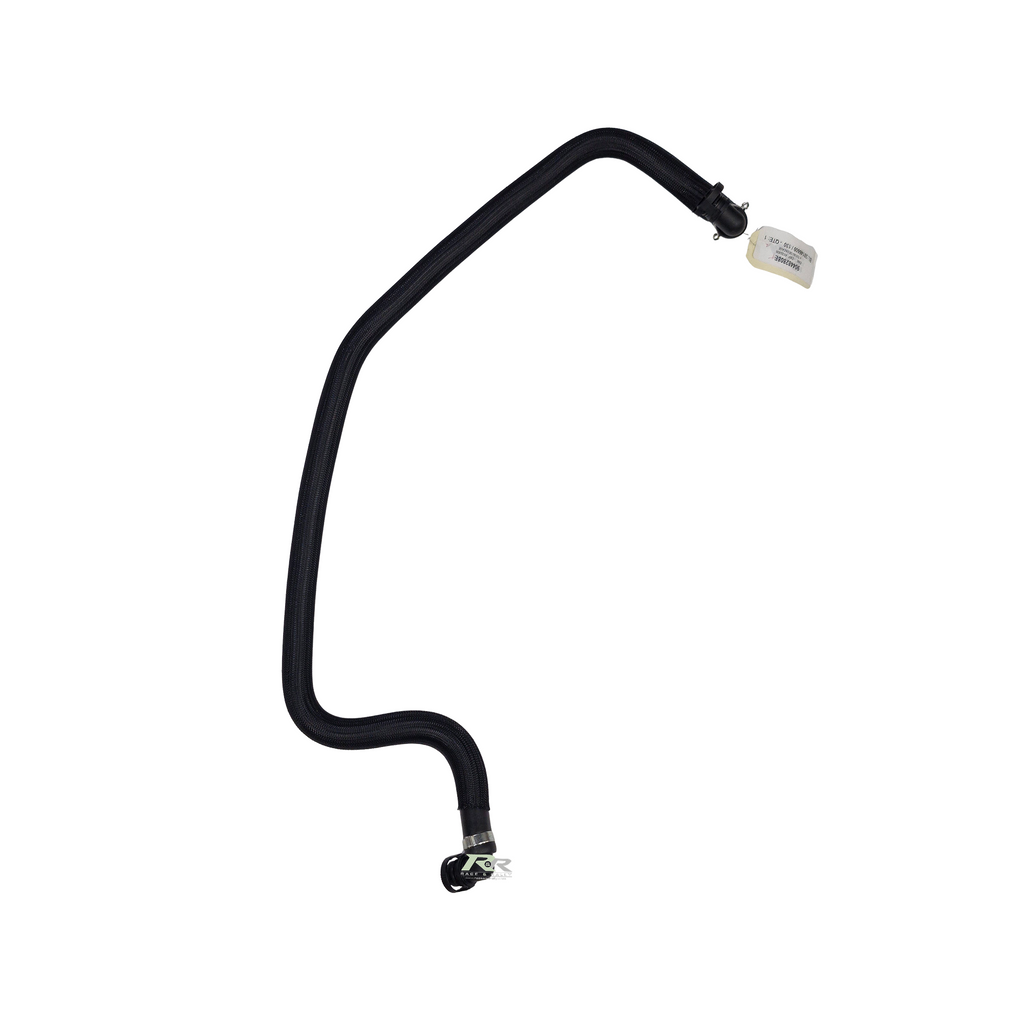

Degassing Pipe

904482808E

1

€100.93 €124.14
48

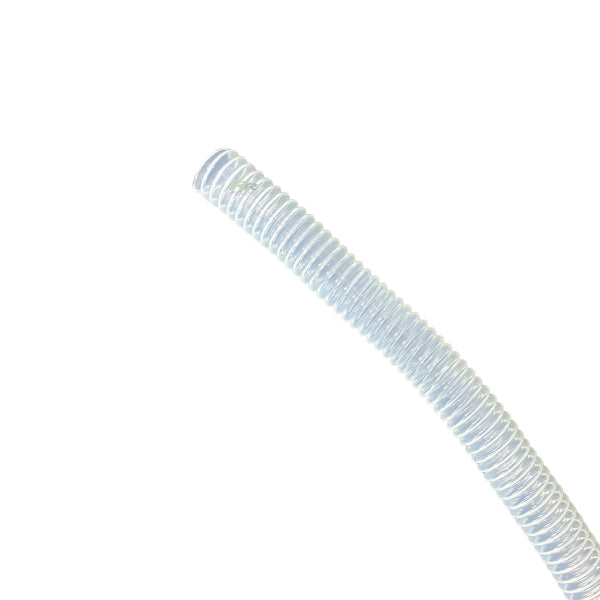

Flexible hose Ø15.6

PS69789A10

1

€104.20 €128.17
49

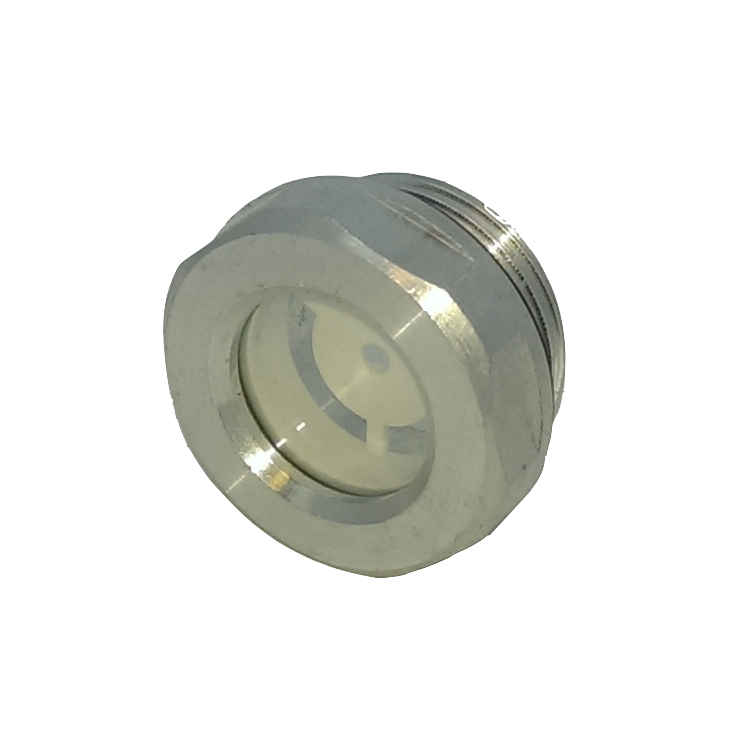

Oil Level Indicator (Alu 180°C 3/4)

90344293-A

1

€54.84 €67.45
50

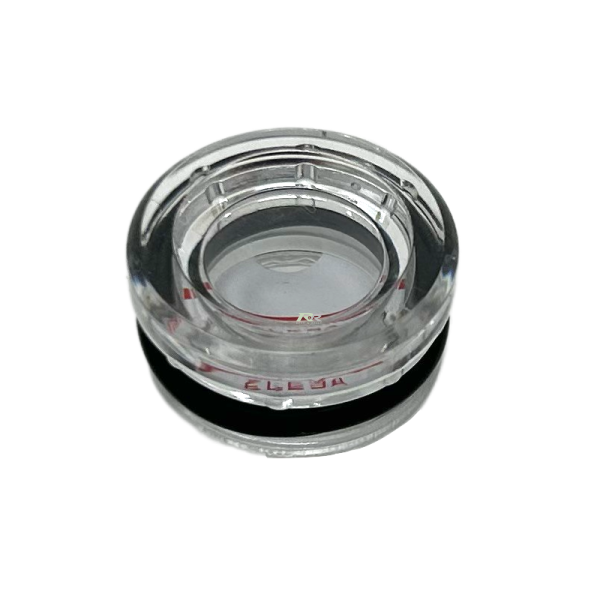

Ø20 Level indicator for catch tank ref 904848738A

904849518A

1

€15.26 €18.77
51

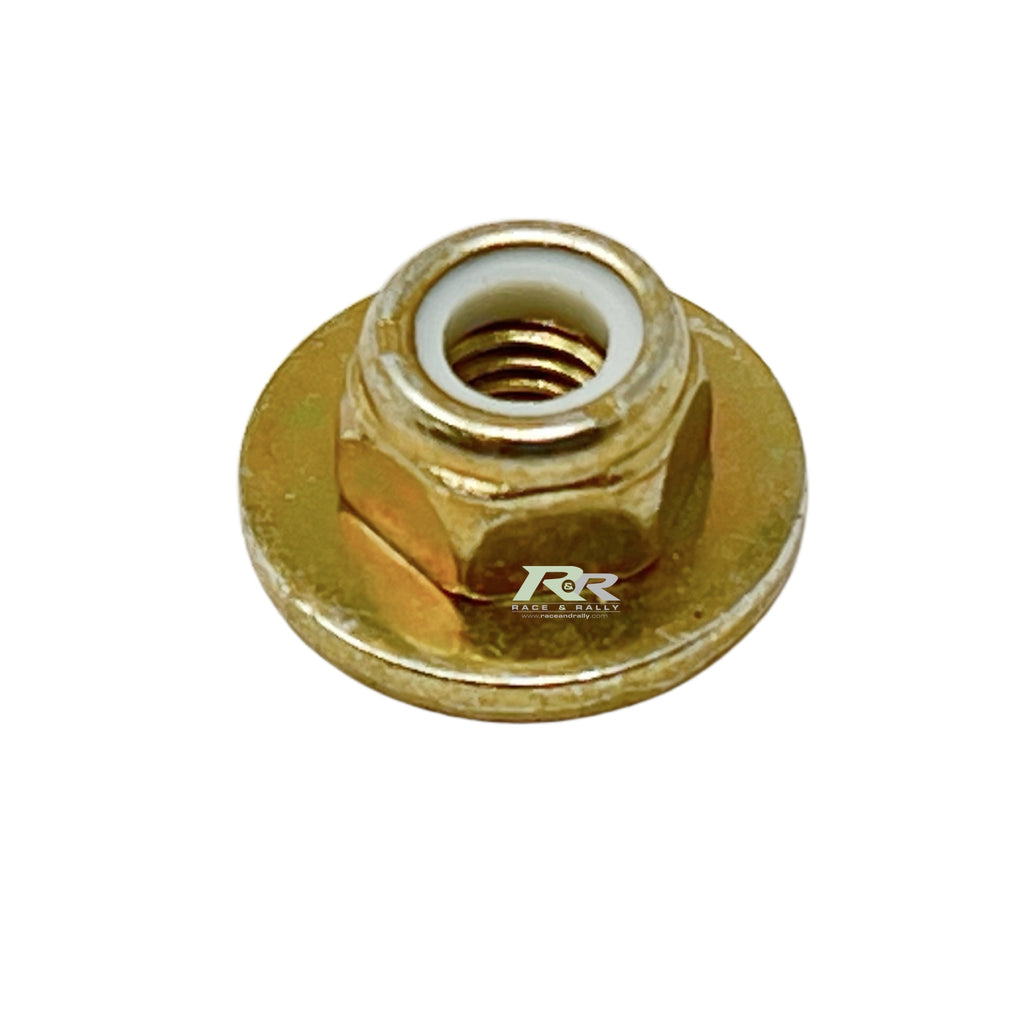

NUT WITH BASE M6x9x16

6936A9

2

€1.33 €1.64
52

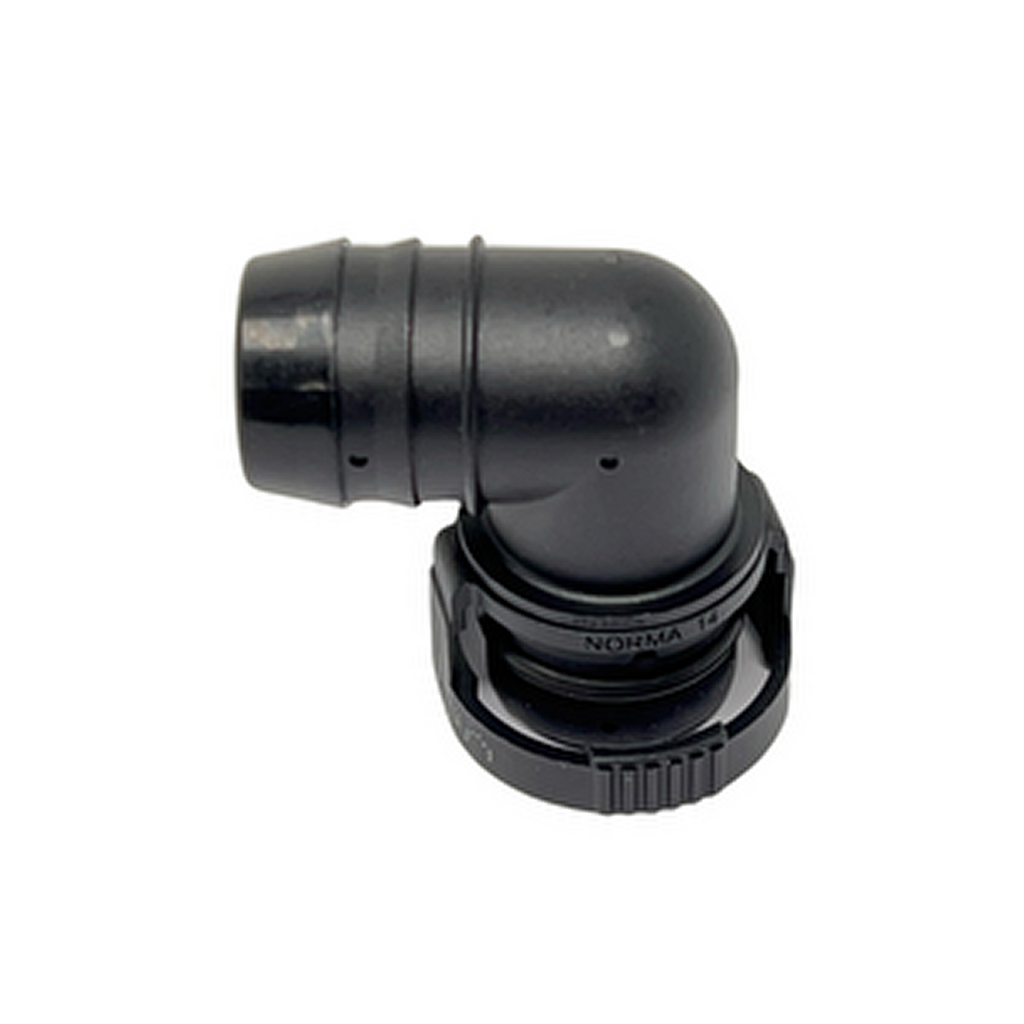

Snap-on Elbow

PS73143A10

1

€2.59 €3.19
53
Washer Ø6x22-1.5

694737

2

€0.86 €1.06
54
Copper seal 14x20x1.5

PS81052A10

1

€3.12 €3.84
55
Total QUARTZ INEO First 0W30 Engine Oil - 5L

LGBPPR0340

2

€77.14 €94.88
56

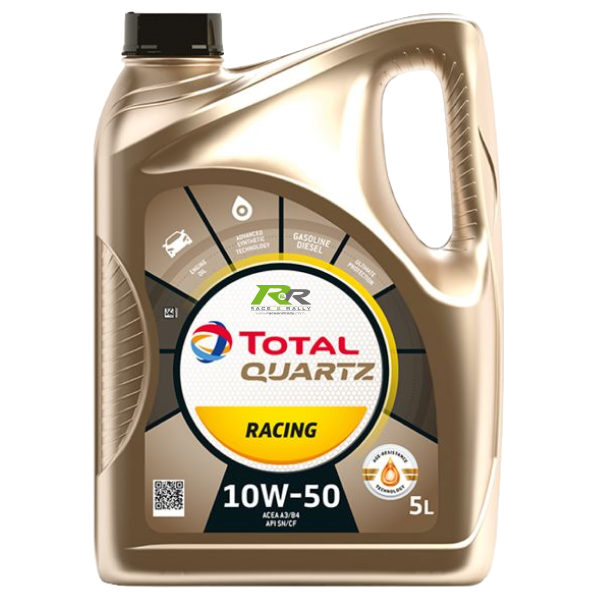

Total QUARTZ Racing 10W50 Engine Oil - 5L

0AXXQUARTZ

1

€50.40 €61.99
57
Dipstick

9830779180

1

€21.63 €26.60
