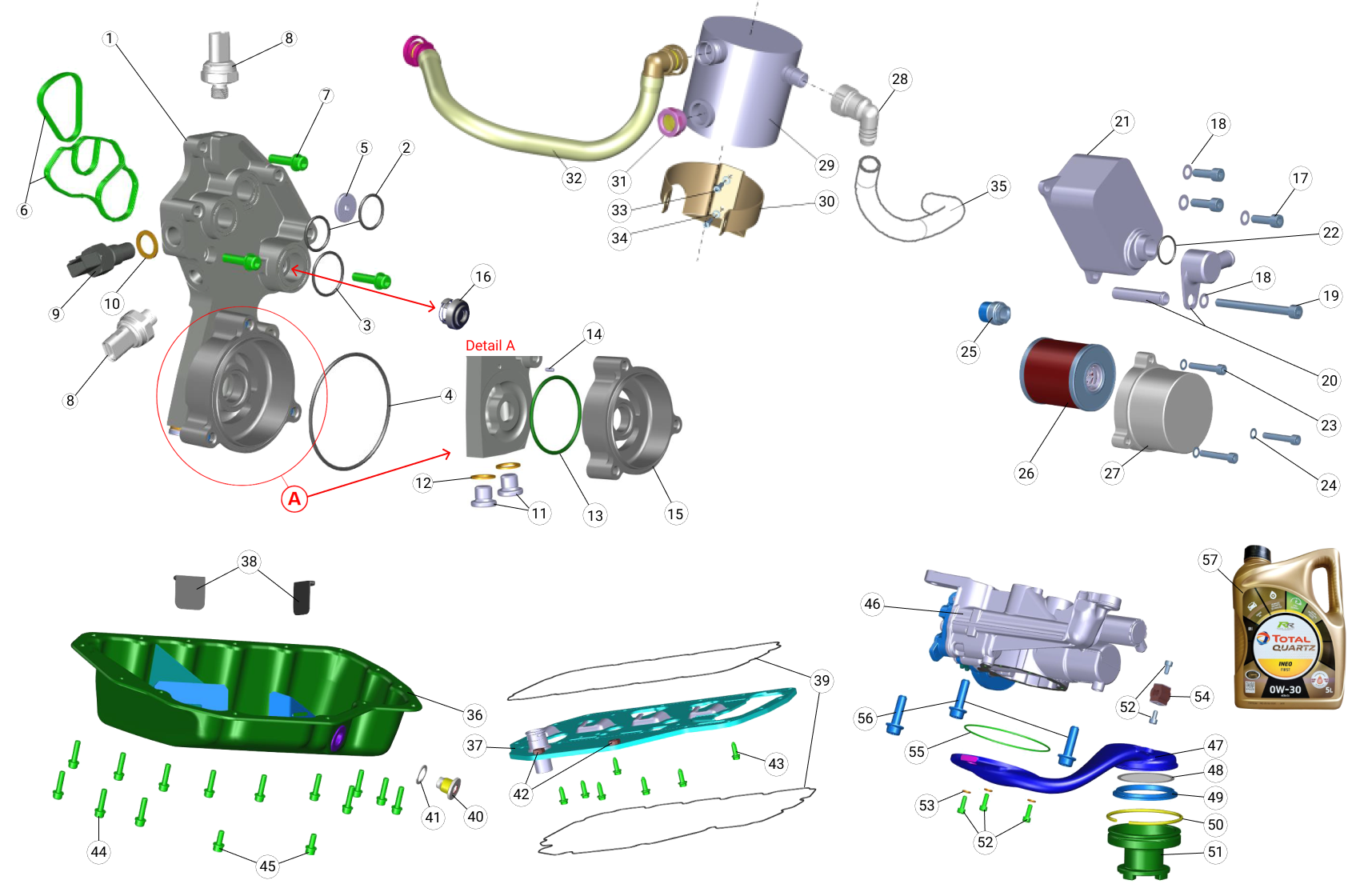

A15 - Lubrication

A15 - Lubrication

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Oil cooler plate

0B1324474E

1

€809.94 €996.23
1

Sold Out

2
O'Ring Ø25x2 FKM 80 Sh

PS77852A10

2

€1.35 €1.66
3
O'Ring Ø28x2

PS77027A10

1

€0.23 €0.28
4
O'Ring Ø76x2,5 NBR 70sh

PS77052A10

1

€0.71 €0.87
5
Metered shim ø5mm

0A1527057B

1

€13.28 €16.33
6
Seal kit for oil cooler plate

0B1364271A

1

€7.03 €8.65
7
Screw M8x125-20

422822

3

€1.73 €2.13
8
Oil Pressure Sensor

9802152780

1

€54.18 €66.64
9
Short T° Oil Sensor

3Z9J82159B

2

€93.35 €114.82
10
Copper washer Ø14,2x20x1

PS81572A10

1

€2.80 €3.44
11

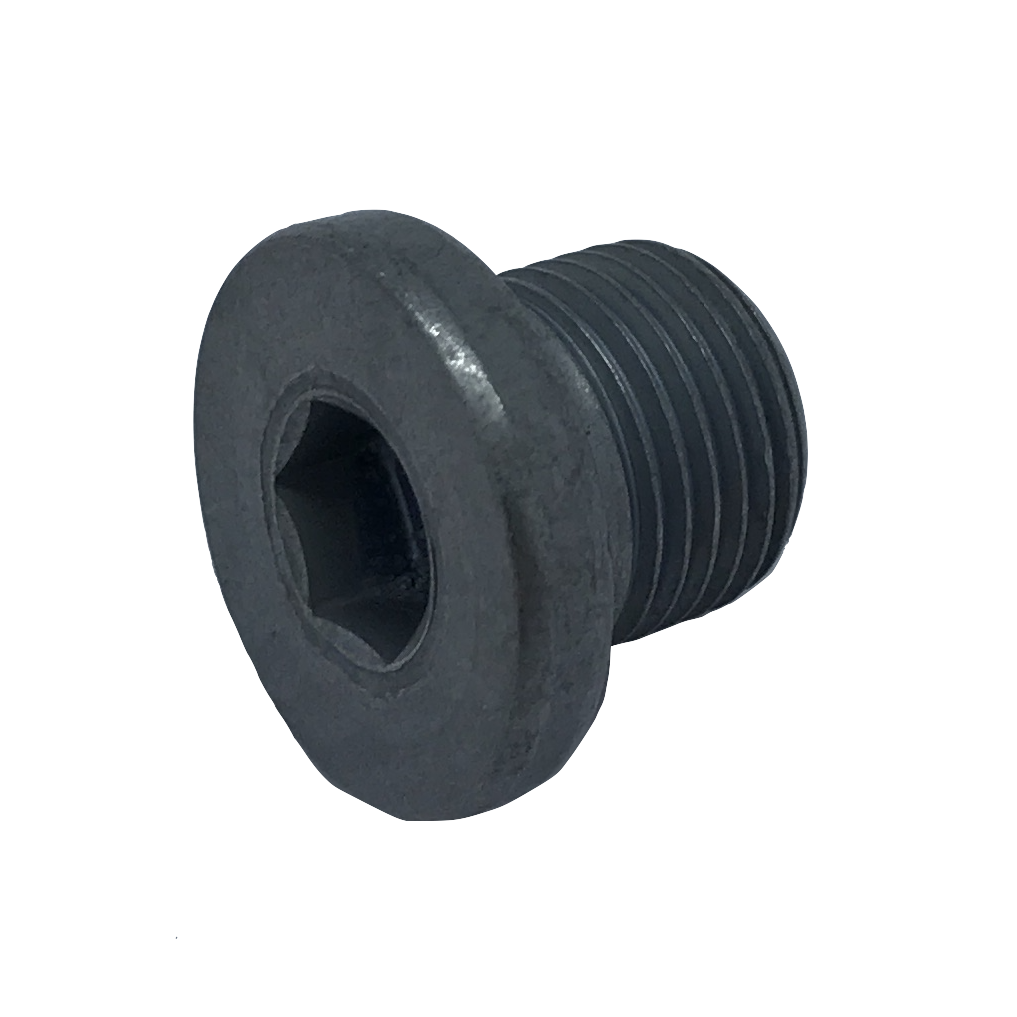

Engine oil cap M14x125

031138

2

€3.04 €3.74
12
Copper Seal 14X21-2

031327

2

€4.32 €5.31
13
O'Ring ø57,5x3 FKM 80SH

PS77835A10

1

€4.24 €5.22
14
Cylindrical pin ø3x8 m6 BN857

PS78646A10

1

€1.09 €1.34
15
Oil filter support

0A1527487A

1

€221.10 €271.95
16
Anti return valve

0A1543546A

1

€20.91 €25.72
17
Screw M8 L25

PS82091A10

5

€0.78 €0.96
18
Spring Washer Ø8

PS86510A10

€0.09 €0.11
19
Screw M8x90

PS82137A10

1

€1.42 €1.75
20

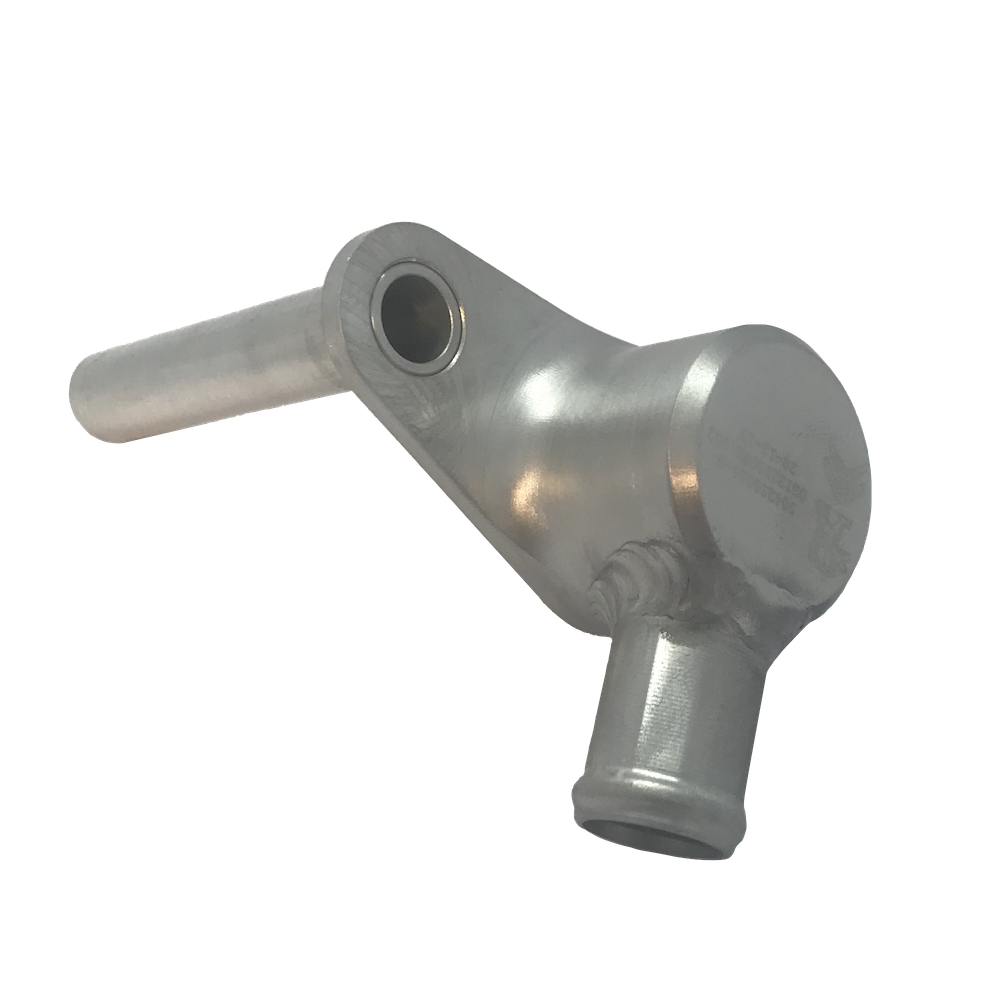

Welded modine oulet

0B1325508B

1

€179.80 €221.15
21
Engine oil cooler

904638738A

1

€825.28 €1015.09
22
O'Ring ø25x2 FKM 80 Sh

PS77317A10

1

€1.46 €1.80
23
Screw CHC M6x35 cl.12.9

PS82038A10

3

€0.68 €0.84
24
Onduflex washer 6 type A

PS86004A10

3

€0.09 €0.11
25
Oil filter housing screw

0A1527574B

1

€57.42 €70.63
26
Oil filter

9818914980

1

€22.48 €27.65
27
Oil filter housing

0A1526877C

1

€161.60 €198.77
28

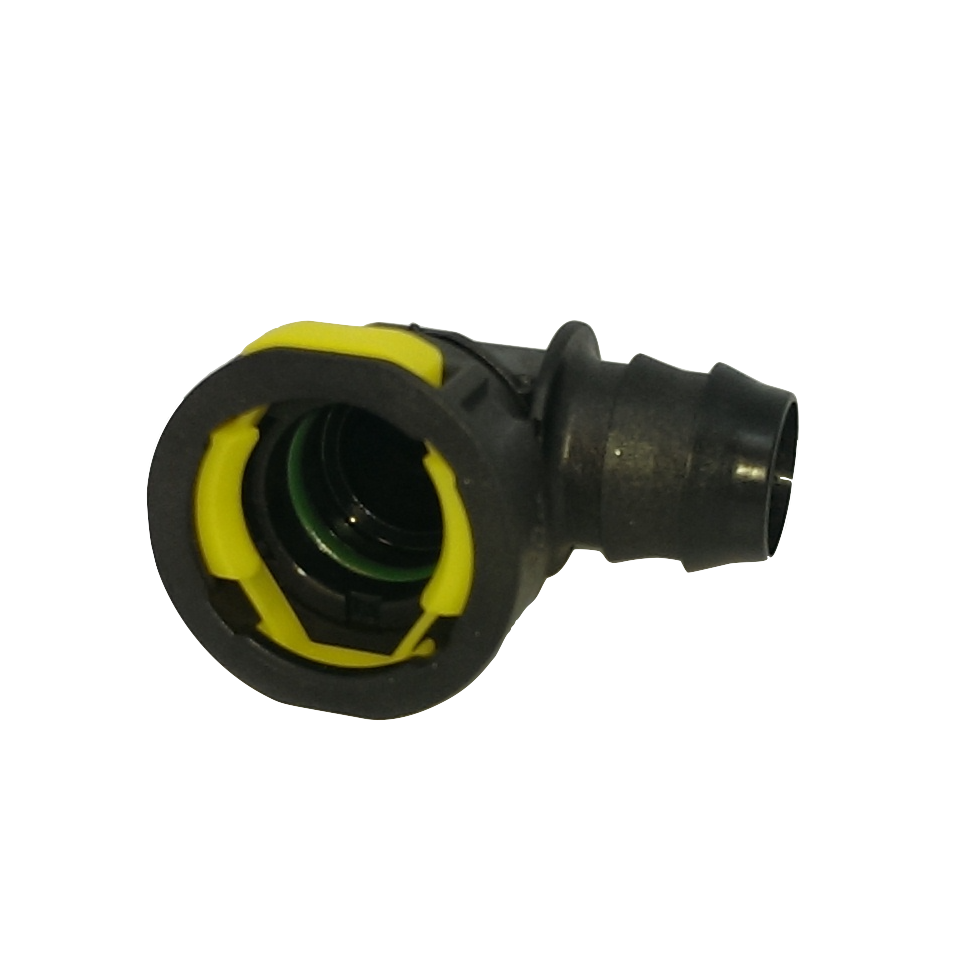

90° Coupling

PS73421A10

1

€12.40 €15.25
29

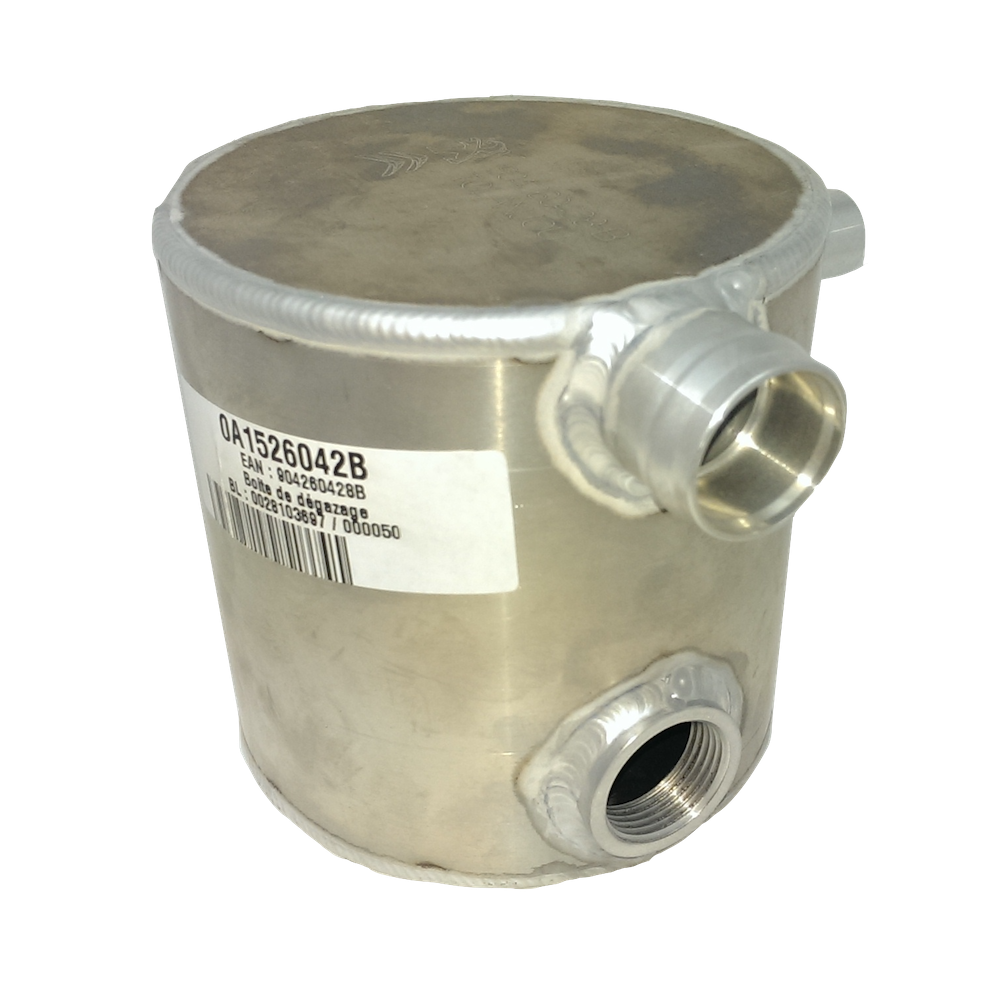

Degassing Box

0A1526042B

1

€256.65 €315.68
30

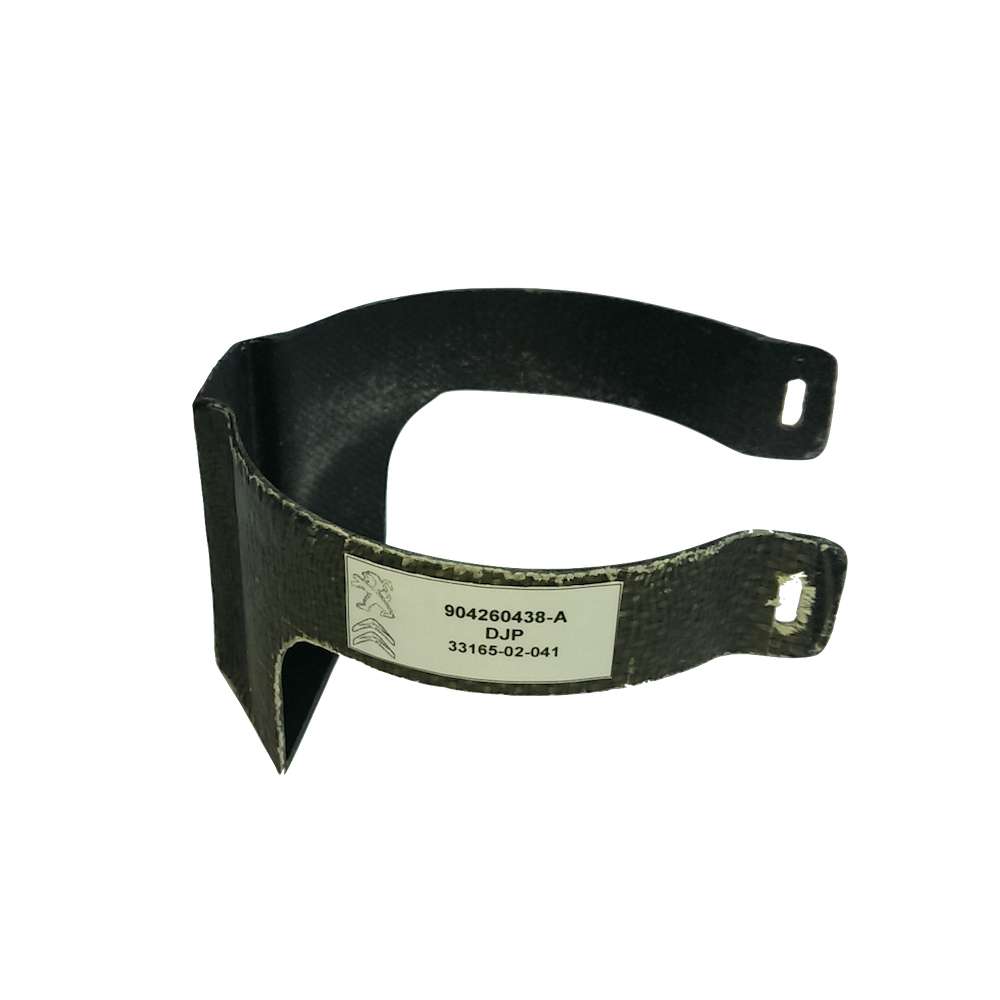

Degassing box support

0A1526043A

1

€183.49 €225.69
31
Oil Level Indicator (Alu 180°C 3/4)

90344293-A

1

€54.84 €67.45
32

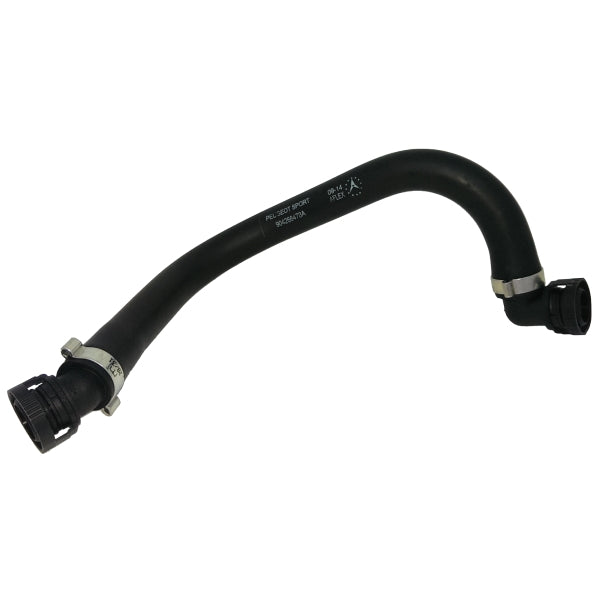

Degassing Pipe - No Longer Available

0A1526647A

1

Sold Out

€13.78 €16.95
33
Screw M5x15

PS82118A10

2

€0.28 €0.34
34
Washer Ø5x10-1

PS86044A10

24

€0.71 €0.87
35
Flexible hose Ø15.6

PS69789A10

1

€104.20 €128.17
36

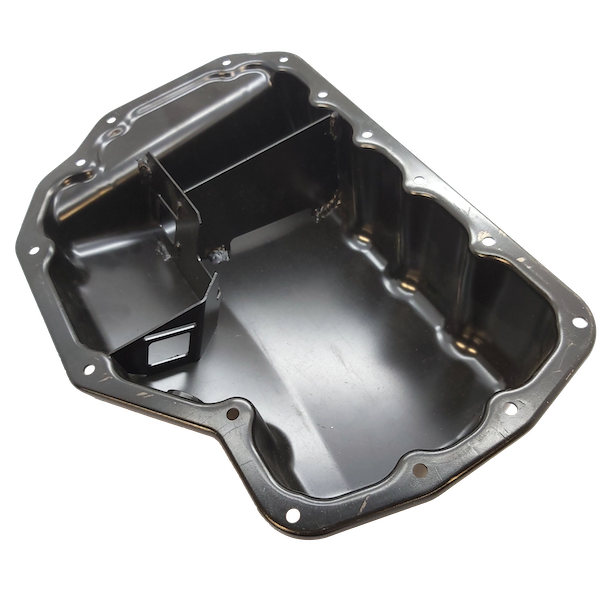

Engine Sump Pan R5

0A1526296B

1

€525.00 €645.75
40
Drain Plug M16x1.5

31139

1

€2.26 €2.78
41
Joint Ø16x22x2

0313-38

1

€1.37 €1.69
43
Screw m6

0307-13

€0.18 €0.22
44
Screw M6x25

6913-P4

4

€1.63 €2.00
46

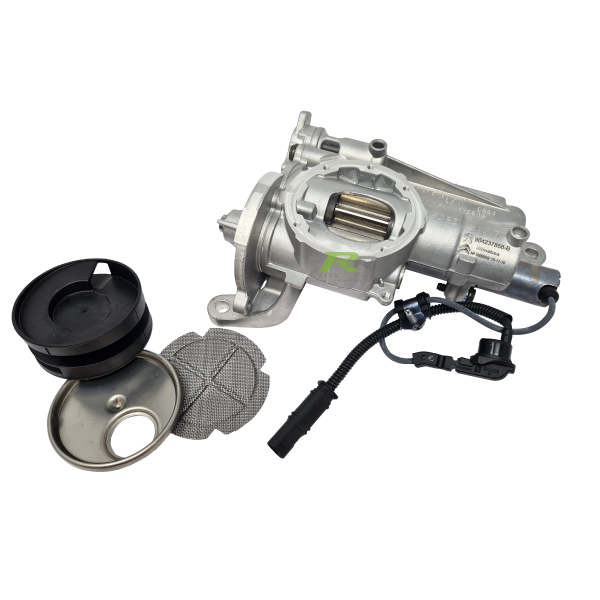

Oil pump modified

0A1523785B

1

€150.27 €184.83
48
Circular sieve

0A1570620A

1

€48.61 €59.79
49

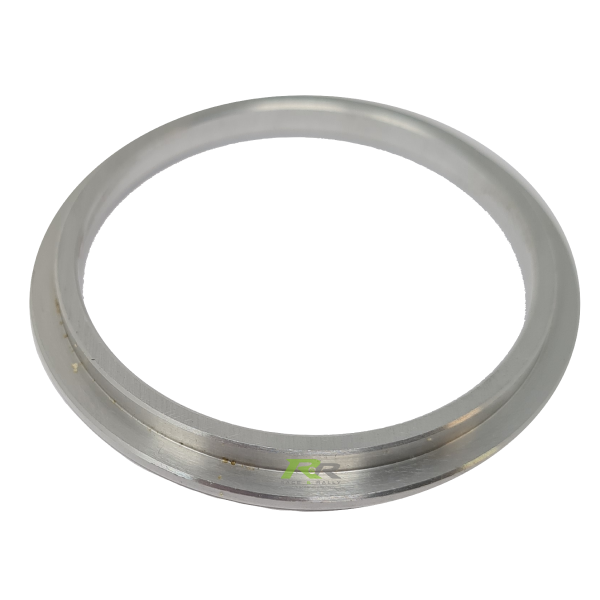

Washer sieve

0A1523728A

1

€12.18 €14.98
52
M4x100 FHC Screw

PS82032A10

5

€0.25 €0.31
53
Spring Washer Ø4 type A

PS86002A10

8

€0.05 €0.06
55
Oil Pump seal 78x1.5 NBR 70SH

CS360339ST

1

€0.60 €0.74
56
Screw with base M8x28

1011-30

3

€1.27 €1.56
57
Total QUARTZ INEO First 0W30 Engine Oil - 5L

LGBPPR0340

€77.14 €94.88
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
