AP 15" Honda EG/EK Front Brake Kit - CP6720 Caliper - Ø304x28mm Floating Discs

AP 15" Honda EG/EK Front Brake Kit - CP6720 Caliper - Ø304x28mm Floating Discs

AP6720-304-28-GA-EGEK

€3294.38 €4052.09 €3045.00 €3745.35
Sale Sold out
  • Feature Icon 15" Brake Kit
  • Feature Icon CP6720 S2000 Calipers
  • Feature Icon Ø304mm x 28mm Floating Brakes
  • Feature Icon 'Float in the Bell'
  • Feature Icon Brake Pads Sold Separetely
Disc Face Type

Optional Extras

Out of stock, expected in 5-7 days from order

View full details

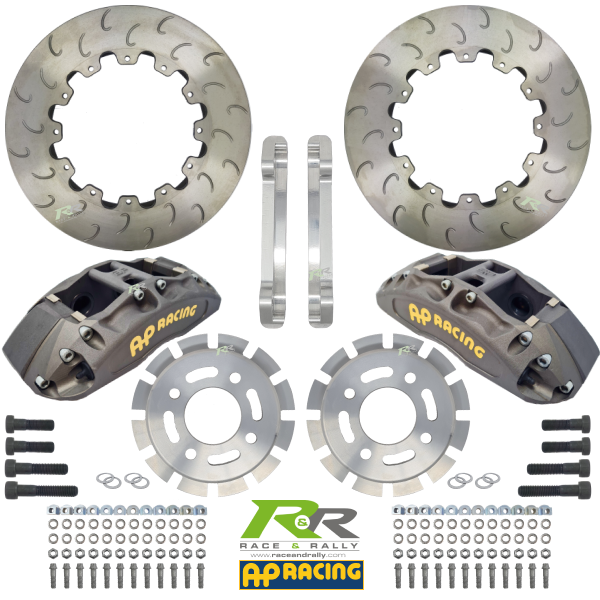

RandR designed Honda Civic EG and EK 15" brake kit. The kit is complete with 4-pot AP Racing S2000 Calipers (CP67200), Ø304 x 28mm AP Racing brake discs and all required hardware for mounting to standard Civic EG/EK sturt and hub setup.

NOTE: Fitment only on cars with hubs measuring 65mm from hub face to Caliper mount. See Diagram below:

Applications:

  • 15" Wheels
  • Honda Civic EG
  • Honda Civic EK

Kit Contents:

 Description

Specifications

Part Number

QTY

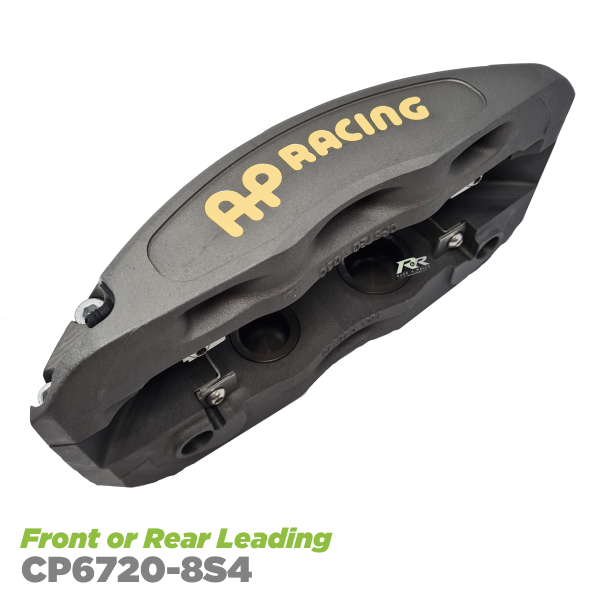

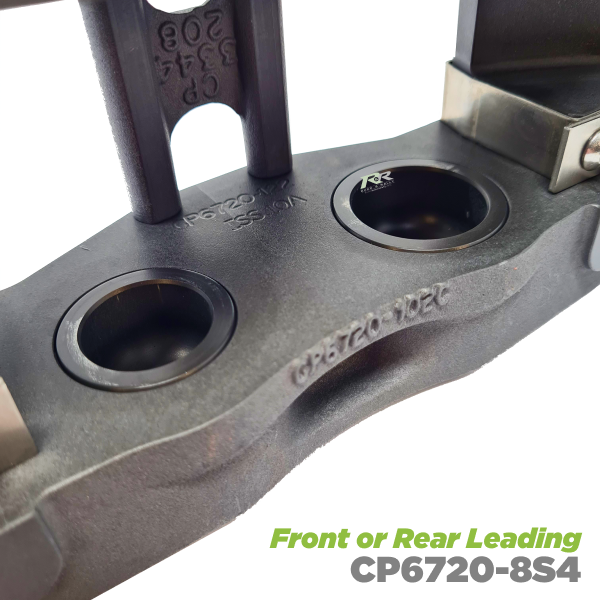

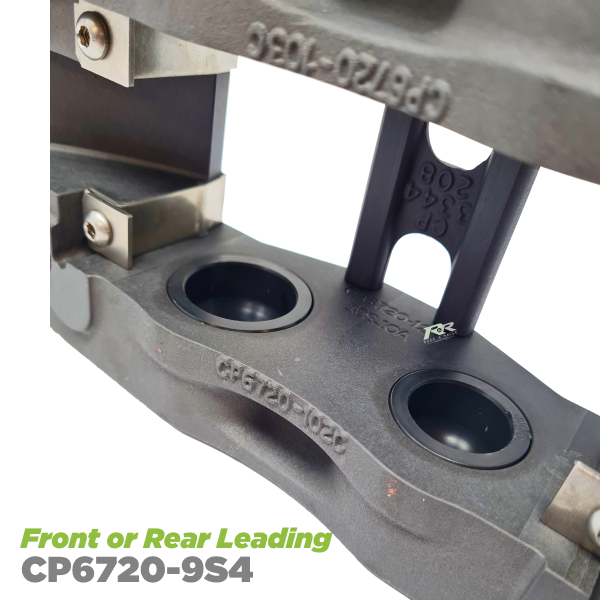

Brake Caliper 4-Piston S2000 Caliper CP6720-8S4
CP6720-9S4 		1
1

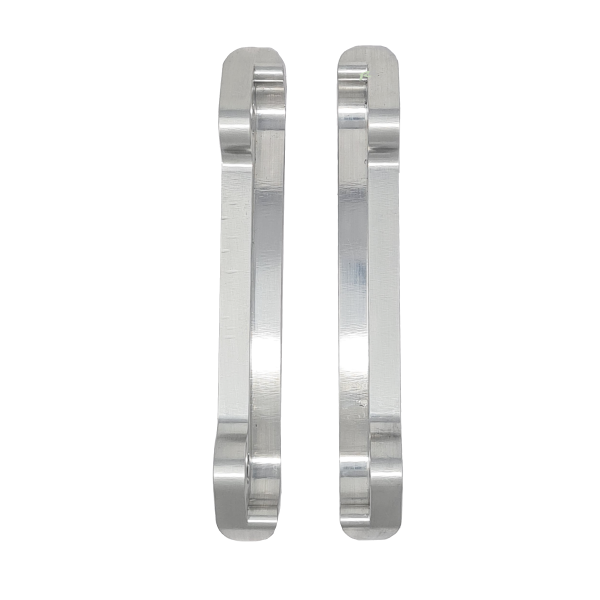

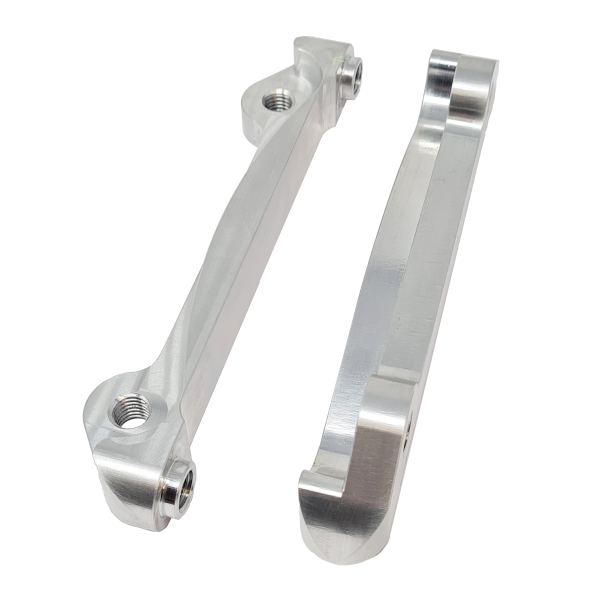

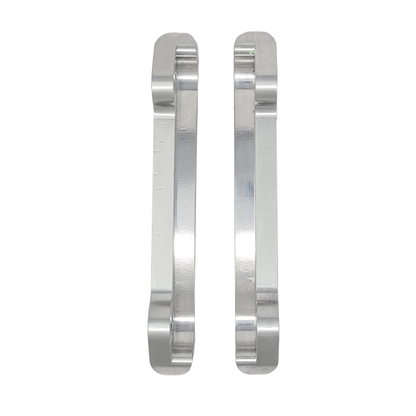

Brake Caliper Mounting Bracket EG / EK (pair) RCR-6720-304-28-EG-EK 1
Brake Disc
Ø304 x 28mm		 'J' Hooked - RHS
'J' Hooked - LHS		 CP3580-2572GA
CP3580-2573GA 		1
1

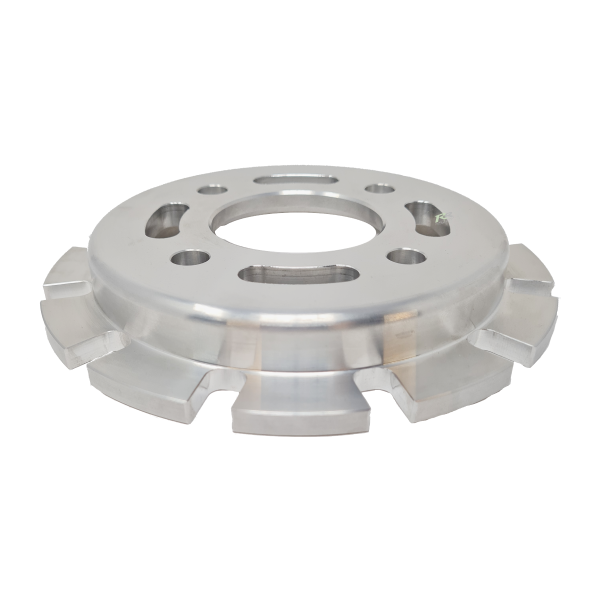

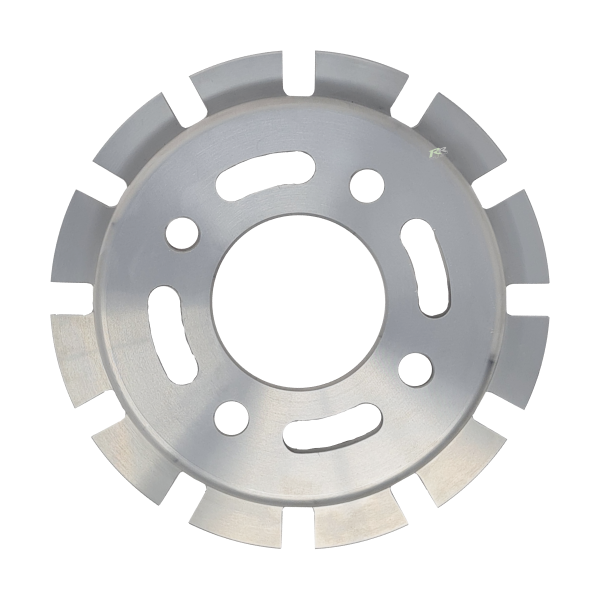

Brake Disc Bell EG / EK RBR-304-12B-177-EG-EK 2
Brake Disc Bolt Mounting Kit Pack of 12 Bobbins CP4015-101K12 2
Caliper Mounting Bolts M12 x 1.75 - 30mm
M12 x 1.75 - 45mm		 RNR1030-M1230
RNR1030-M1245		 4
4
Caliper Mounting Washers M12 Schnorr Washer RNR1016-M12 8


Brake Pads (sold separetely)

Pad Shape CP3215D50
CP3215D50 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 57.4cm²
Pad Depth 50.3mm
Thickness 16.8mm



Applications:


Make Model Year
Honda Civic EG
Honda Civic EK
Brand RandR
Option SKU Barcode
GA - 'J' Hook Design AP6720-304-28-GA-EGEK
