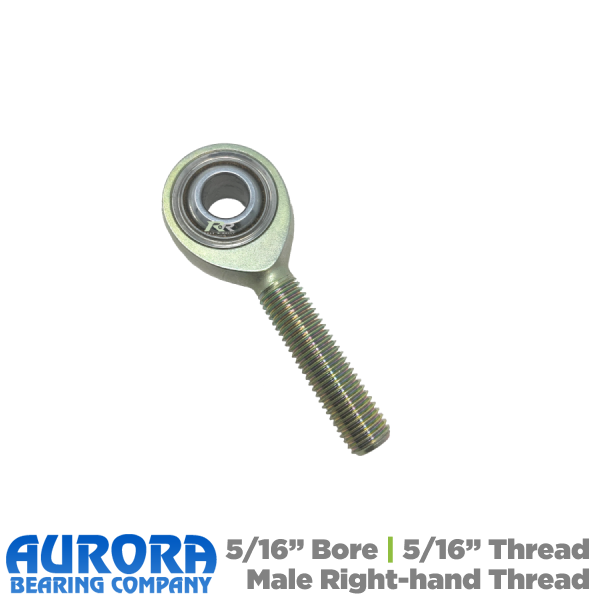

TECHNICAL SPECIFICATIONS:

• Bore Size: 5/16"
• Thread Size: 5/16" x 24
• Ball Width: 11.099mm | 7/16" | 0.437"
• Body Head Width: 8.306mm | 5/16" | 0.327"
• Body Head Diameter: 22.86mm | 29/32" | 0.900"
• Thread Length: 30.149mm | 1.316" | 1.187"
• End of Thread to Centre of Bearing: 47.625mm | 1.7/8" | 1.875"
• Misalignment Angle: 14°
• Ultimate Radial Static Load Capacity: 8,330 lbs
• Material: Carbon Steel
• Body - 4340 Steel, heat-treated, protective coated for corrosion resistance.
• Race - 17-4PH Stainless Steel, heat-treated
• Ball - Alloy Steel, heat-treated and hard chrome plated.
• Bearing Type: Rod-end
• Handedness: Right-hand Thread
• Lubrication Type: PTFE (Polytetrafluoroethylene) Lined
