B12 - Radiator

B12 - Radiator

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
1

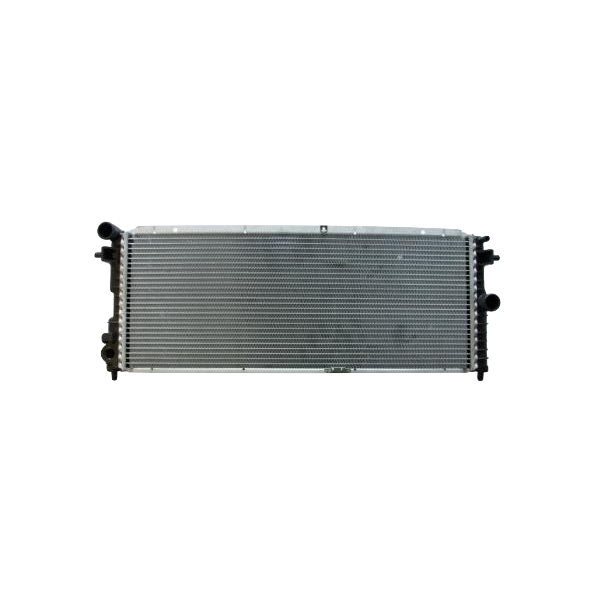

Water Radiator - 40

0B1264712A-40

1

€420.00 €516.60
2

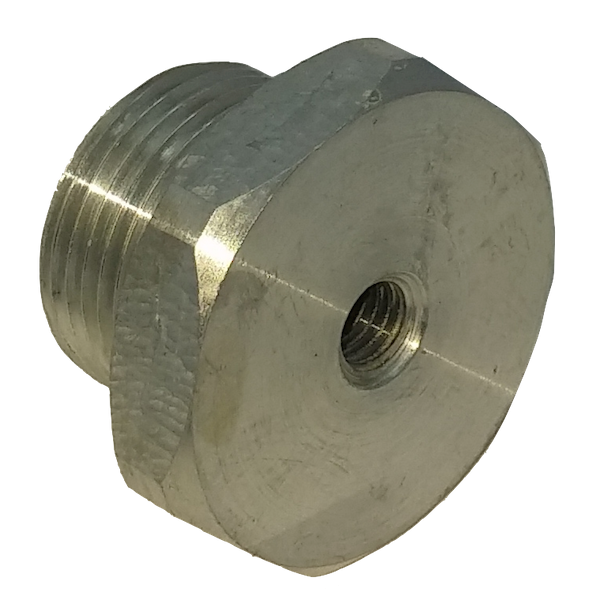

Radiator Cap

0B1261389A

1

€16.20 €19.93
3
Seal Ø22,7 x 30-2

9619862880

1

€6.33 €7.79
4

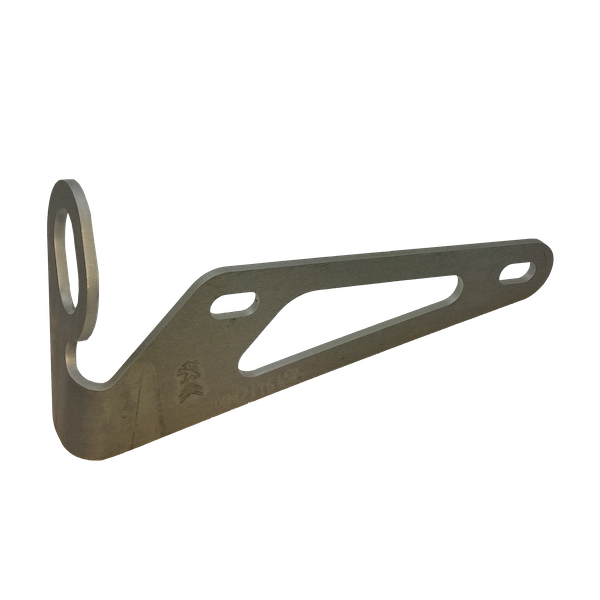

Right radiator mounting

0B1221161C

1

€28.86 €35.50
5

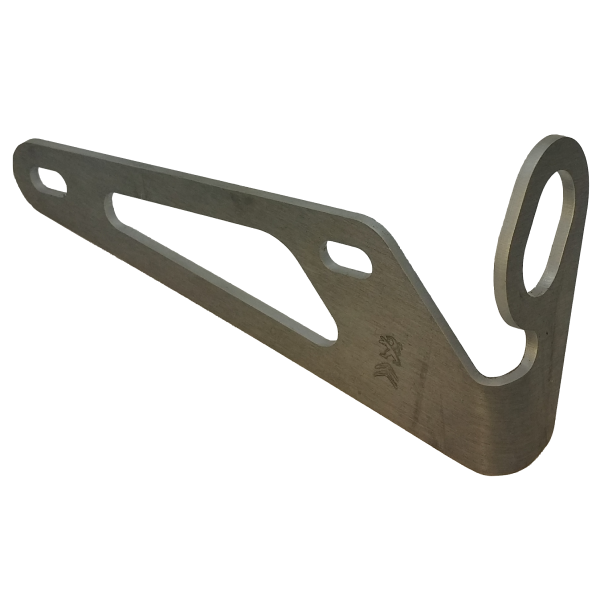

Left radiator mounting

0B1221162C

1

€33.00 €40.59
6

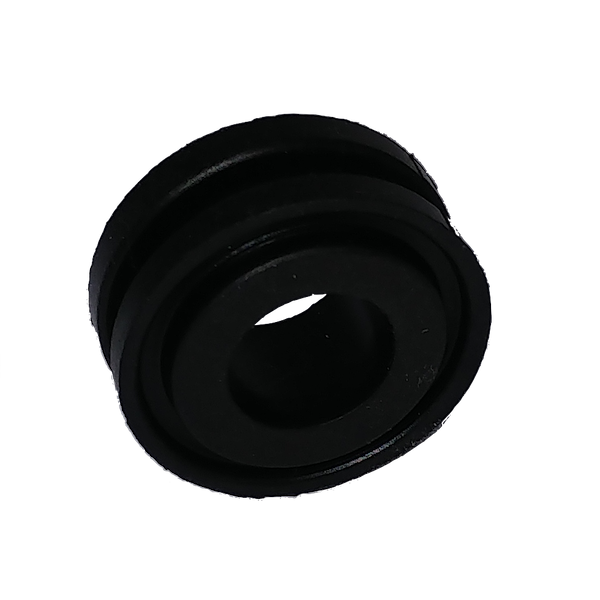

Silent Bloc Mount

0384L3

4

€5.42 €6.67
7

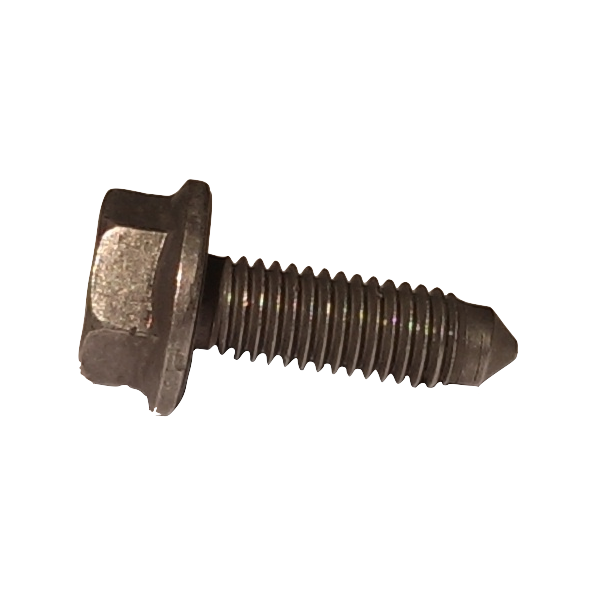

Screw with washer M8x25 cl8.8

6925P2

4

€3.03 €3.73
8

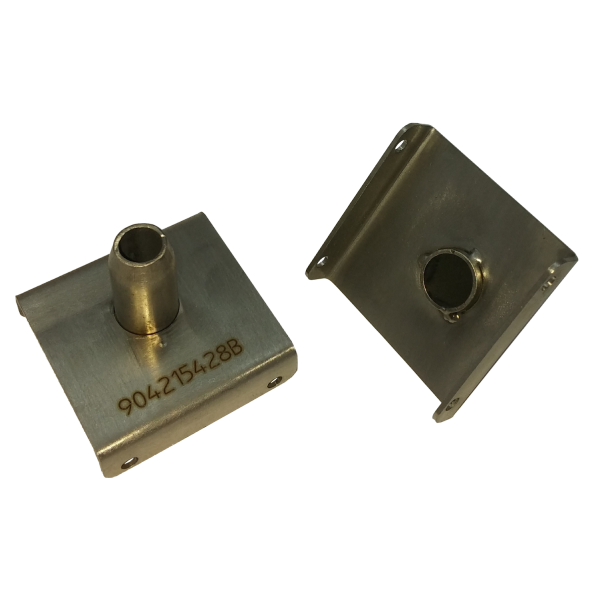

Bottom radiator mounting

0B1221542B

2

€51.24 €63.03
9

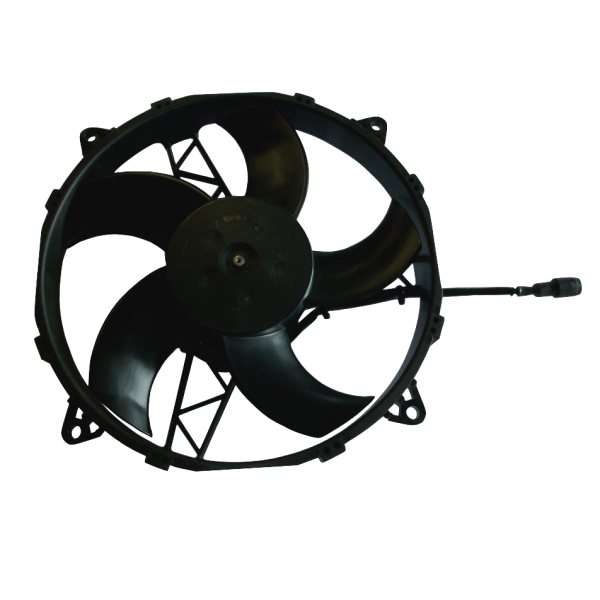

Radiator fan

0B1289527A

2

€338.76 €416.67
10

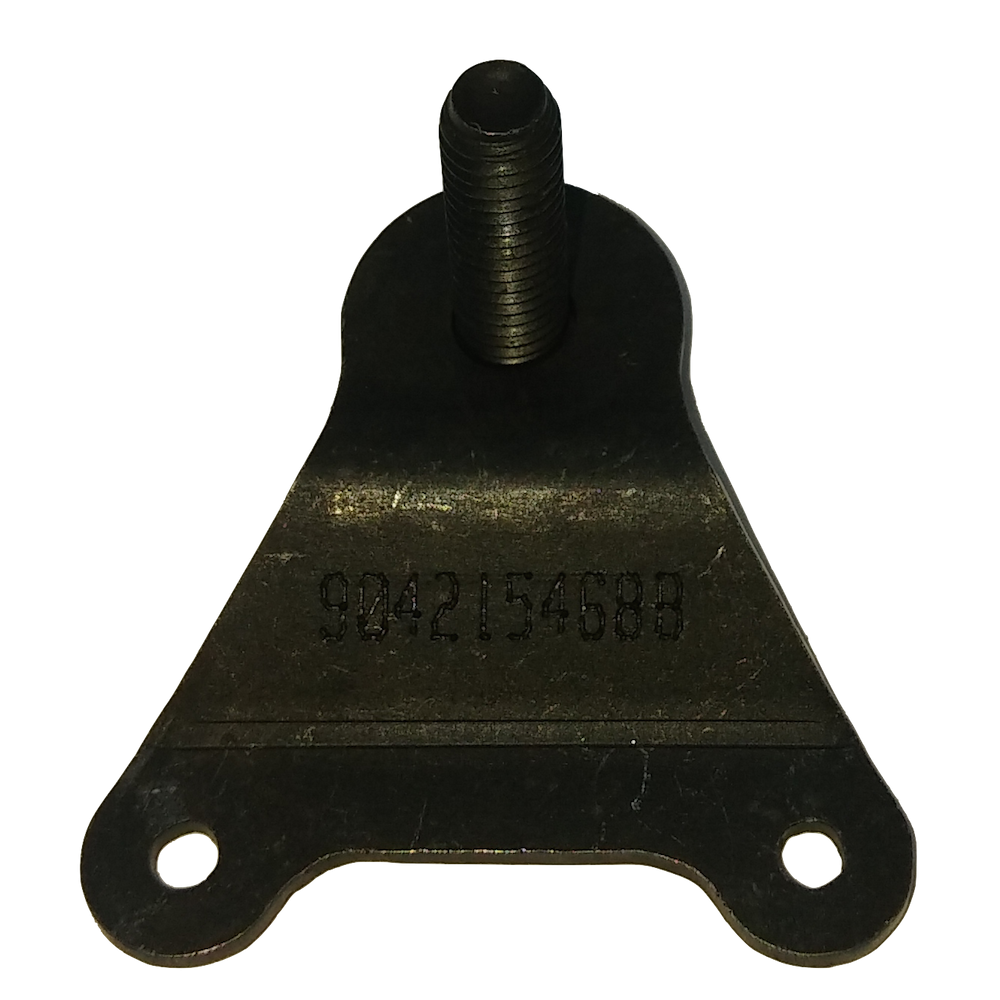

Radiator fan mounting bracket

0B1221546B

8

€15.21 €18.71
11

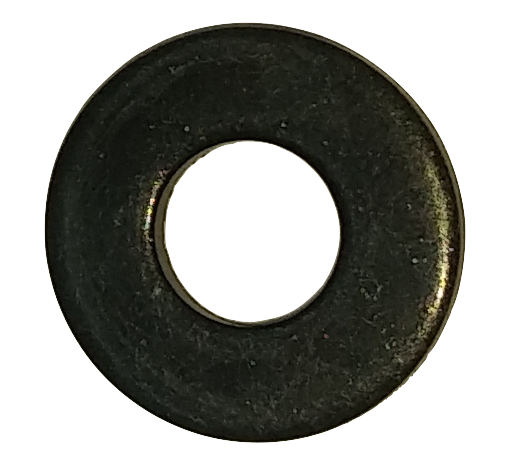

Flat washer Ø6x14x1.5

694904

8

€1.48 €1.82
12
M6 Lock Nut

693586

8

€0.37 €0.46
13
Rivet Ø3.2x8 Aluminium

6973-19

20

€0.36 €0.44
14

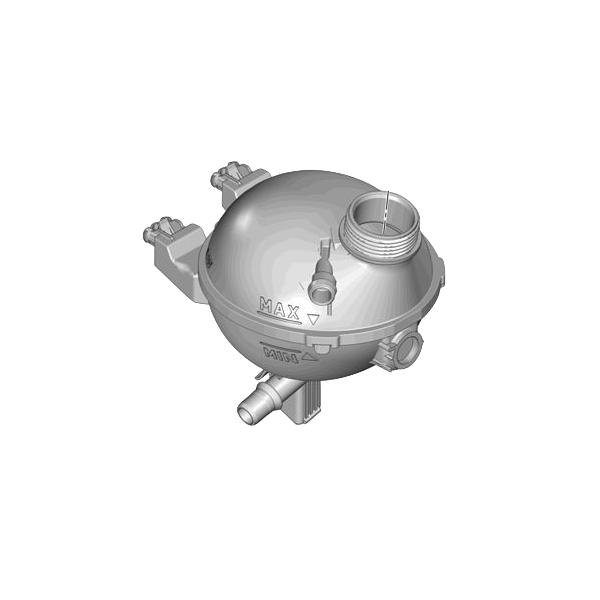

Expansion tank

9800777280

1

€30.20 €37.15
15

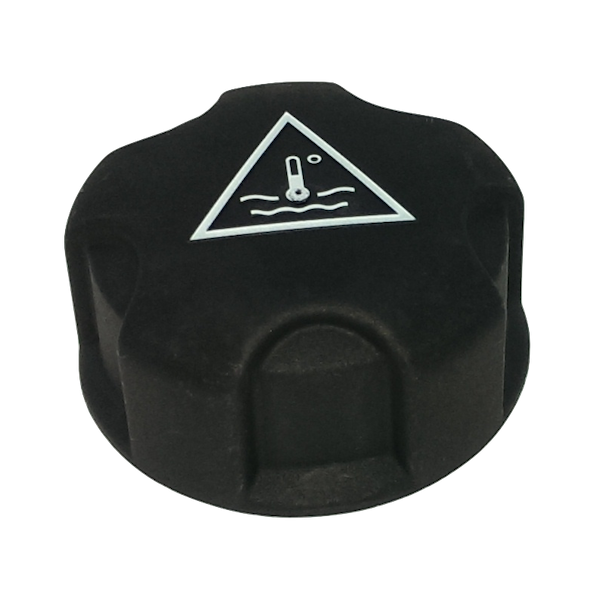

Expansion bottle cap

1692660080

1

€7.02 €8.63
16

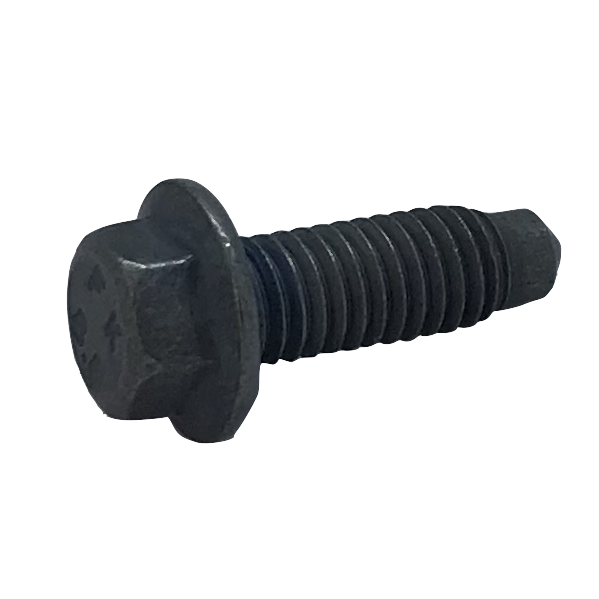

Screw M6X100-18

030713

2

€1.96 €2.41
17
Pipe for inlet water pump

0B1221223A

1

€174.30 €214.39
18

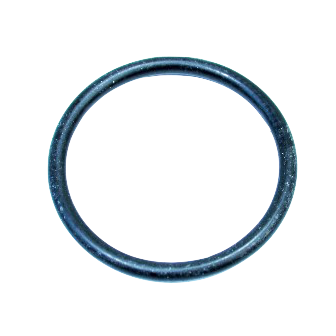

O-ring Ø35x3,35

1319N4

1

€10.39 €12.78
19
Screw M8x125-20

422822

1

€1.73 €2.13
20
Elastic washer STD Ø8x17-0.8

696213

1

€0.29 €0.36
21

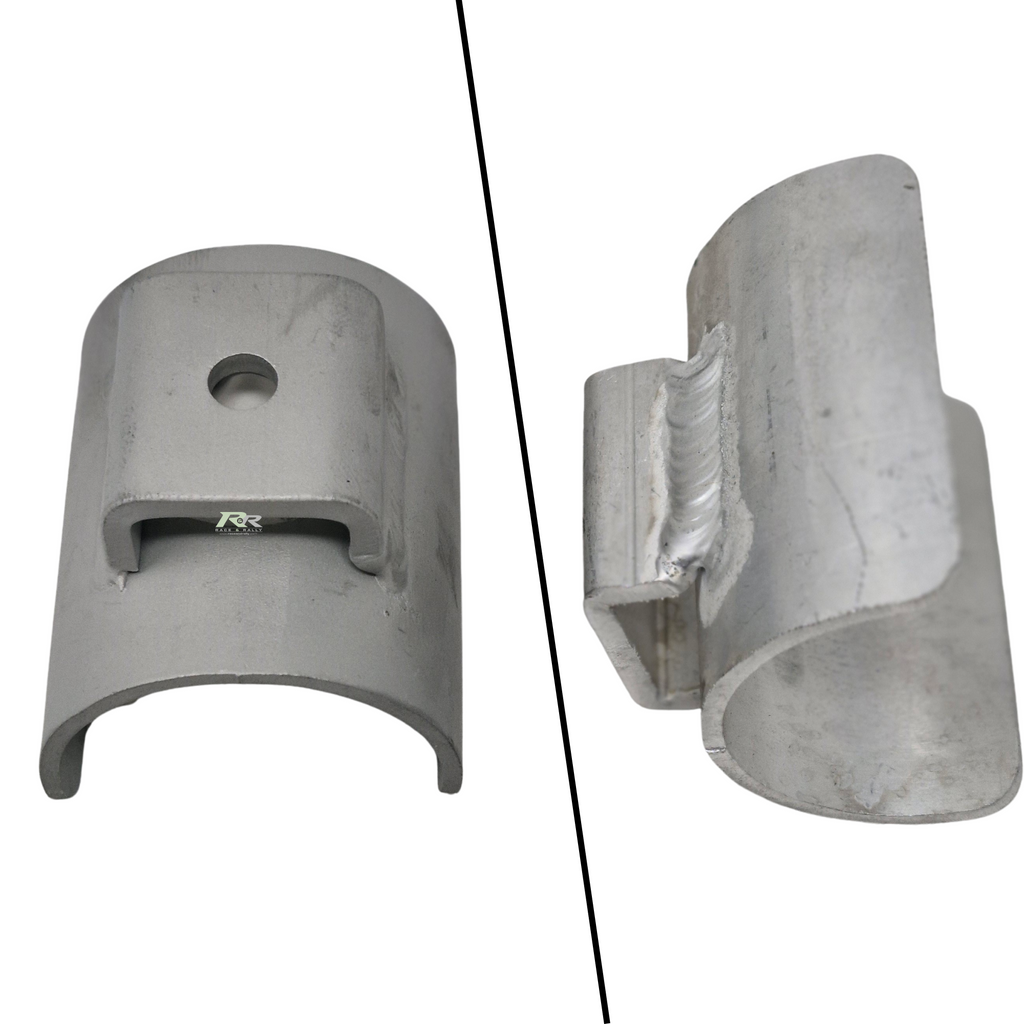

Water pump mounting on body

0B1264142A

1

€49.50 €60.89
22
Water pump hose fixing bracket

0B1264141B

1

€85.26 €104.87
23
Collar screw M6x55

6925N9

1

€1.99 €2.45
24

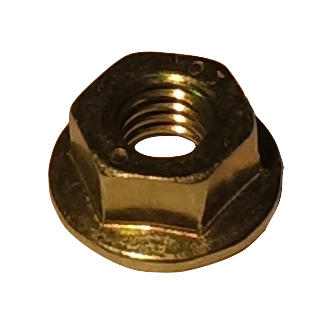

Collar nut M6

6936A0

1

€0.54 €0.66
25

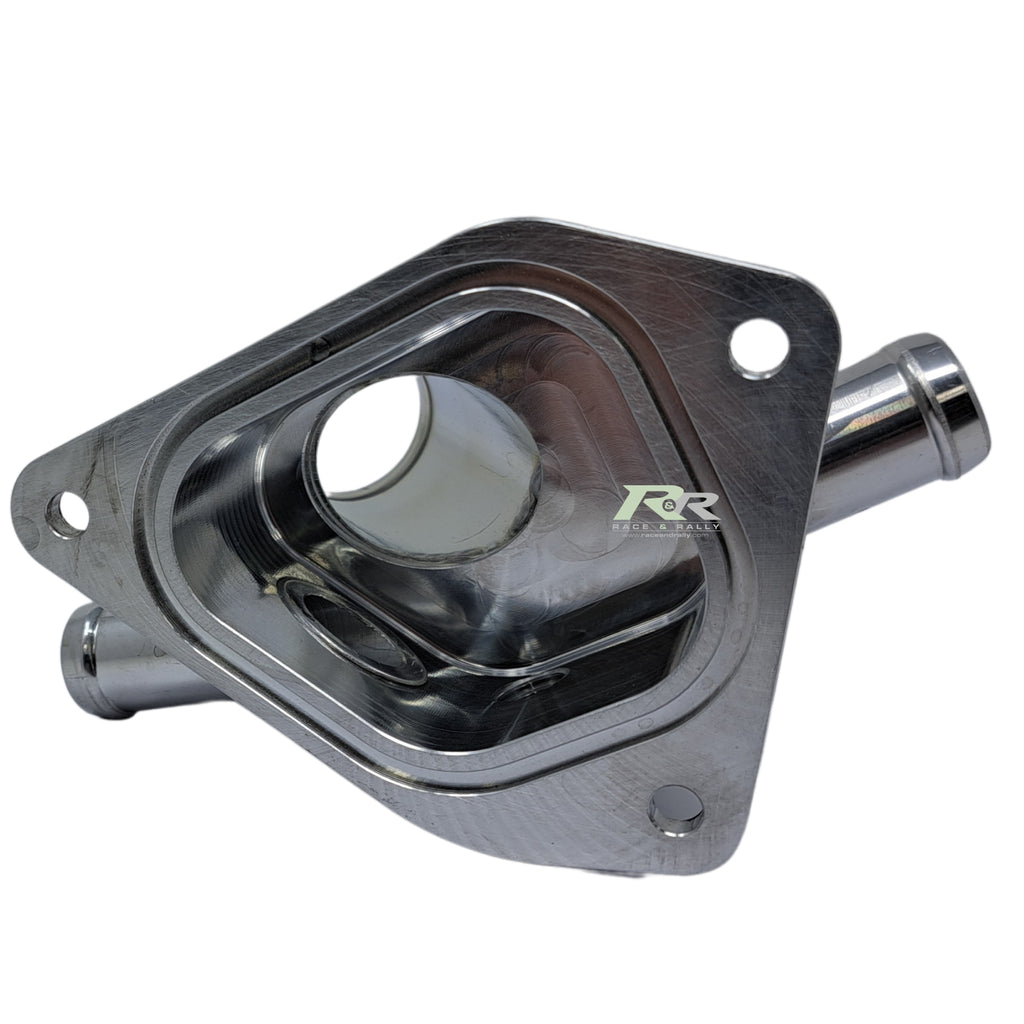

Coolant Outlet

0B1228827A

1

€201.00 €247.23
26

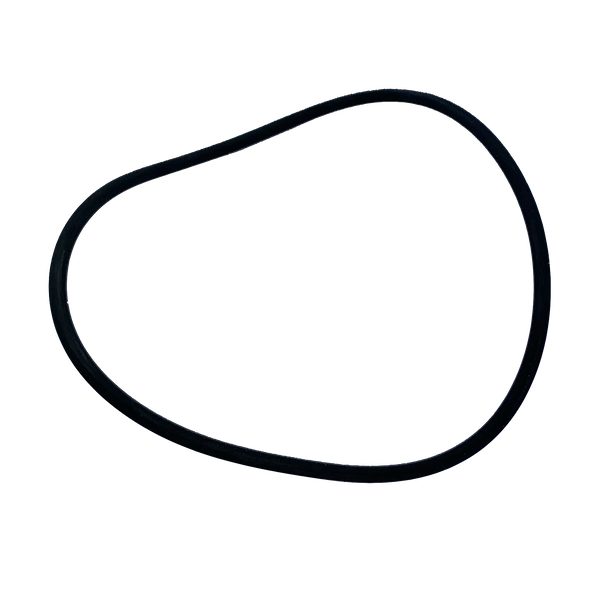

Water Outlet Manifold O-Ring

0B1264032A

1

€3.78 €4.65
27

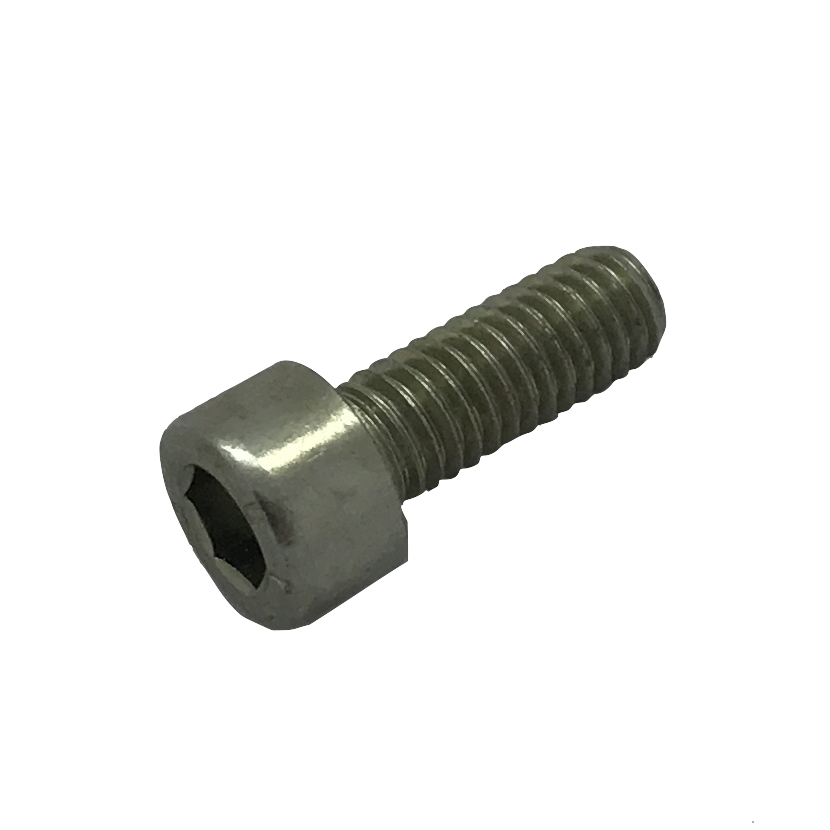

Socket screw M6x16

691306

3

€2.38 €2.93
28

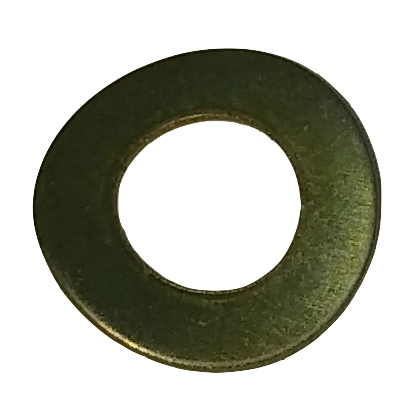

Flexible washer Ø6x12.2x0.5

6962-04

3

€0.12 €0.15
29

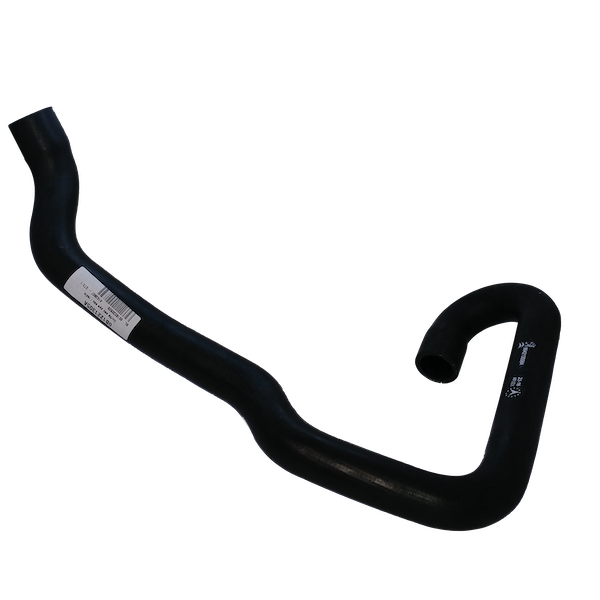

Water pipe - pump / radiator

0B1221305A

1

€50.49 €62.10
30

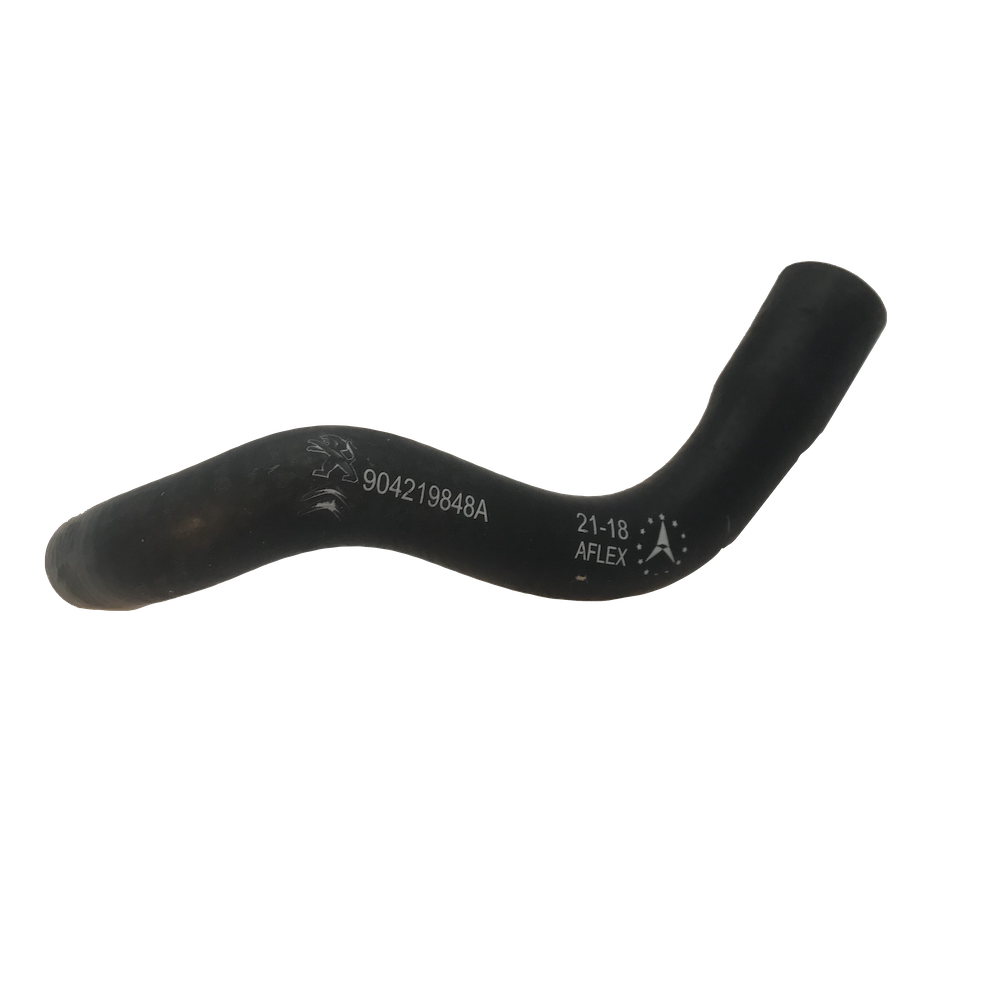

Hose - outlet / heat exchanger

0B1221984A

1

Sold Out

€30.00 €36.90
31

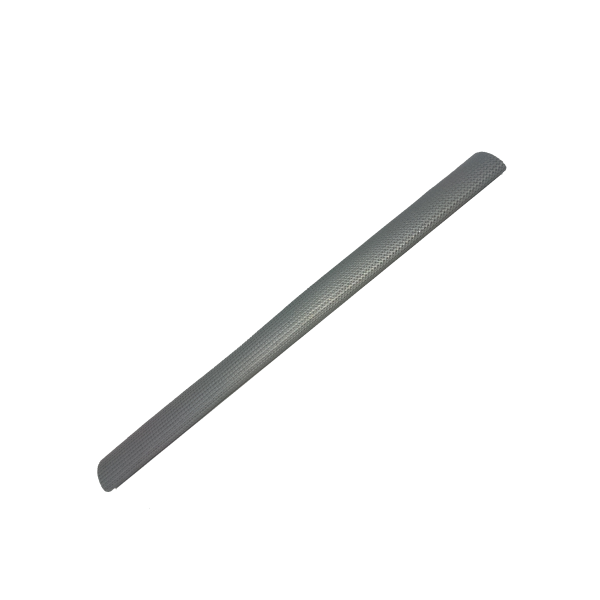

Heat sheath Ø25x400

653830

2

€67.81 €83.41
32

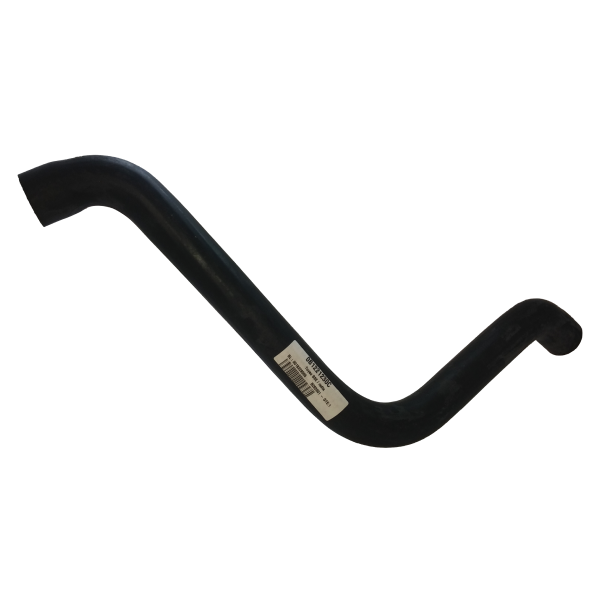

Water pipe - outlet / radiator

0B1221230C

1

€35.67 €43.87
33

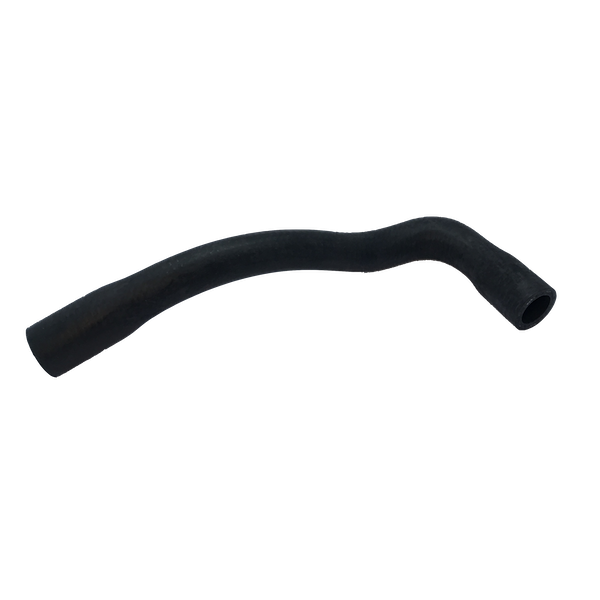

Water pump - Pump T Hose

0B1221228A

1

€15.63 €19.22
34

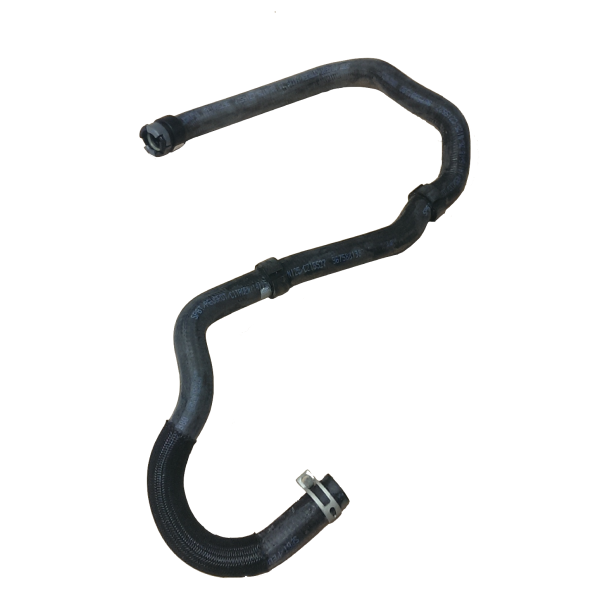

Water Pipe - Expansion bottle to radiator

1317V6

1

€39.33 €48.38
35

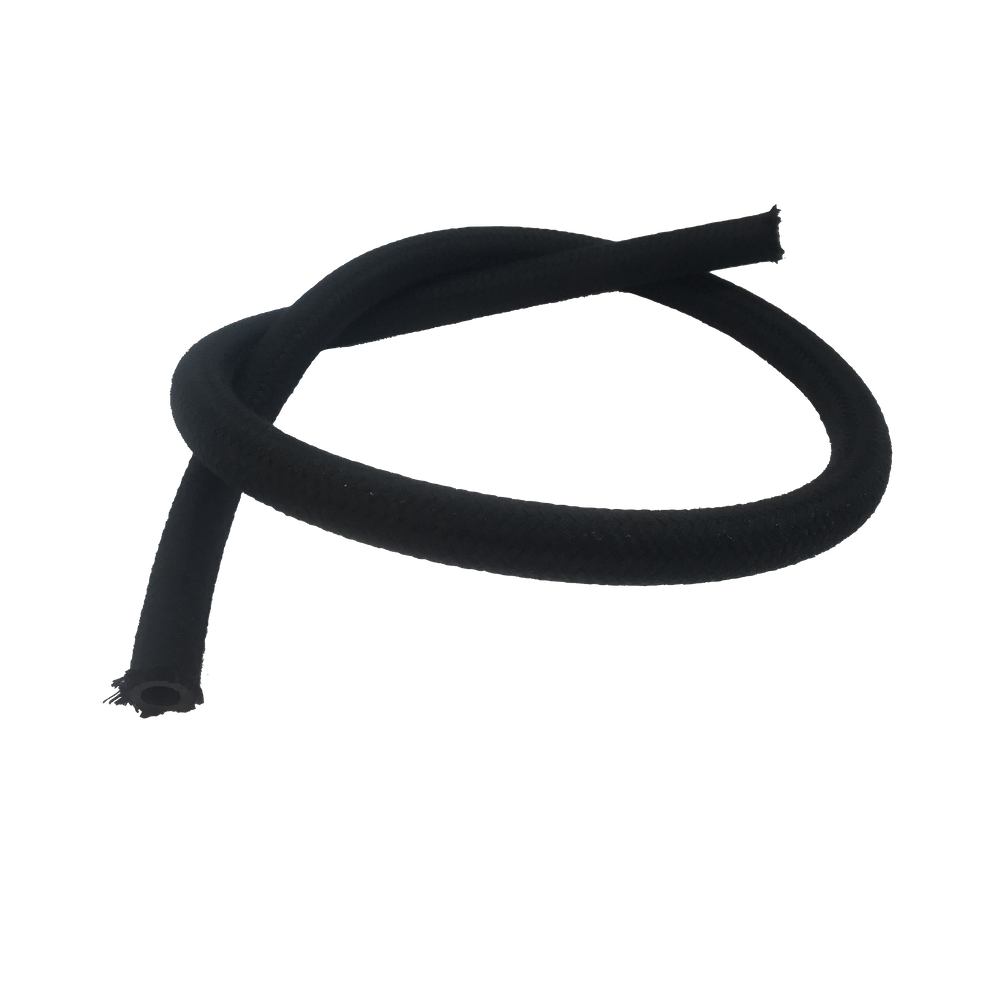

Nitrile hose Ø14x22 L1000mm

0B1264423A

1

€6.90 €8.49
36

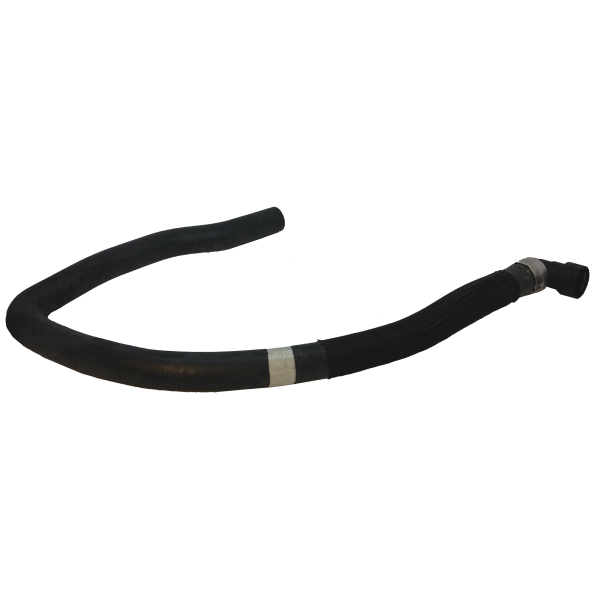

Heater water outlet hose

1341H7

1

€76.59 €94.21
37

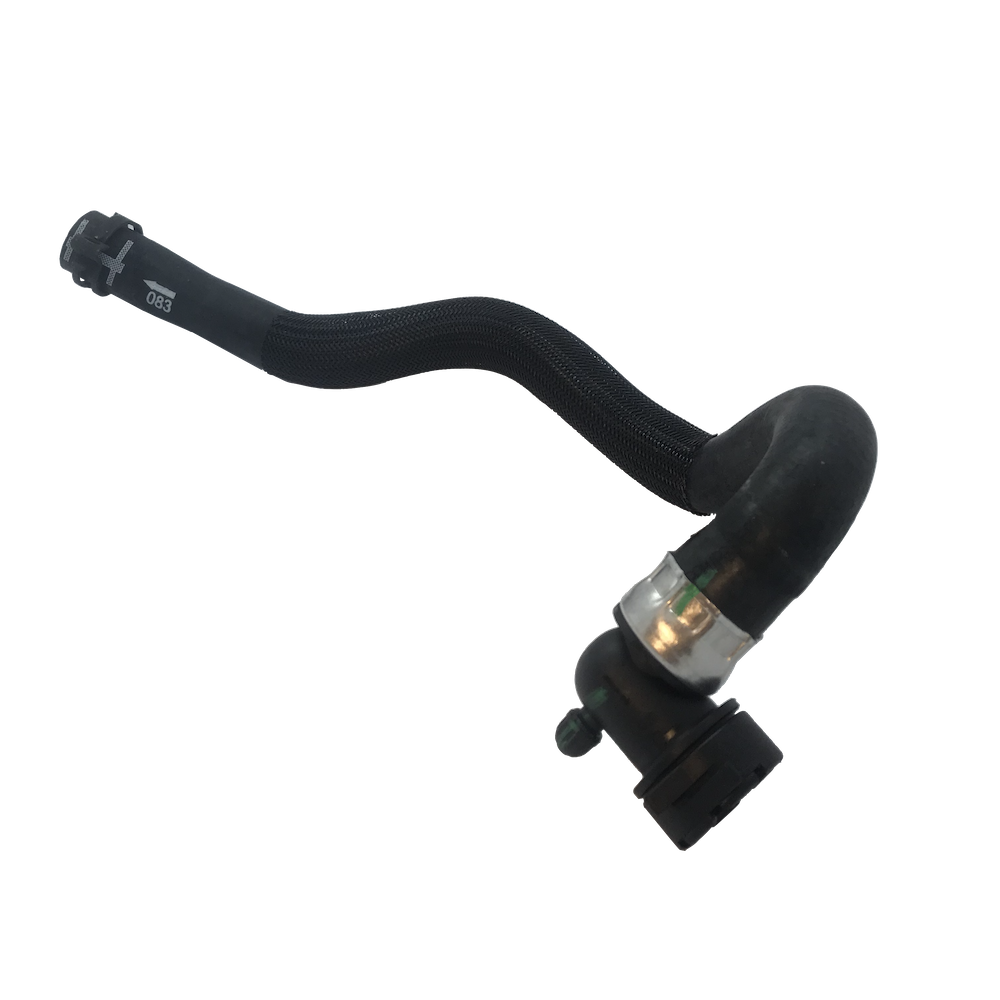

Heater water pipe

6466TZ

1

€69.31 €85.25
38

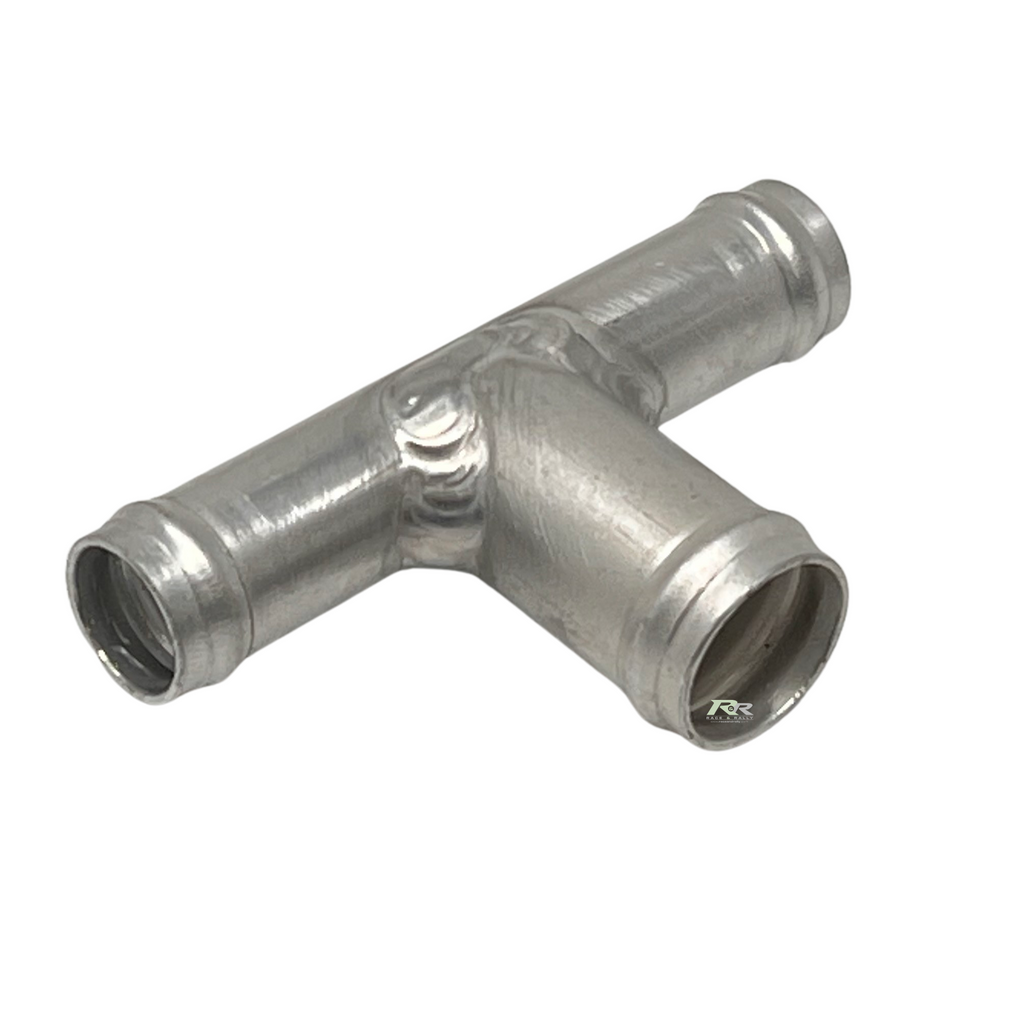

3 ways connector

0B1220115A

1

€50.40 €61.99
39

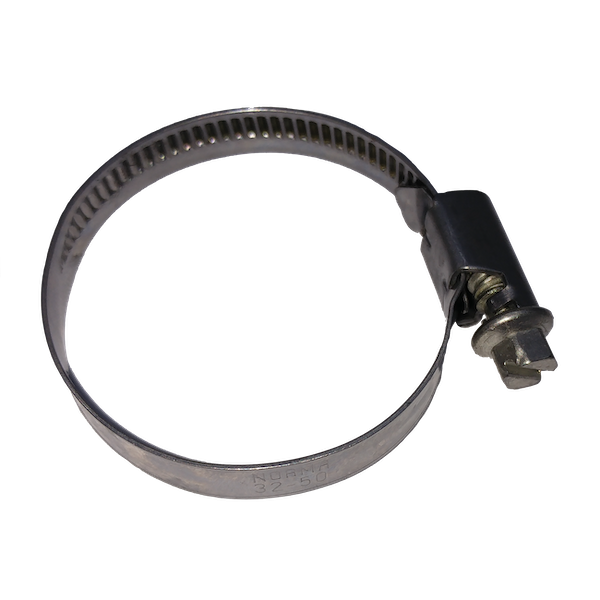

Hose Clamp Ø32-50 W9mm

1609056580

4

€0.71 €0.87
40
Metal collar Ø16-27 Th9

6981-H7

6

€0.14 €0.17
41

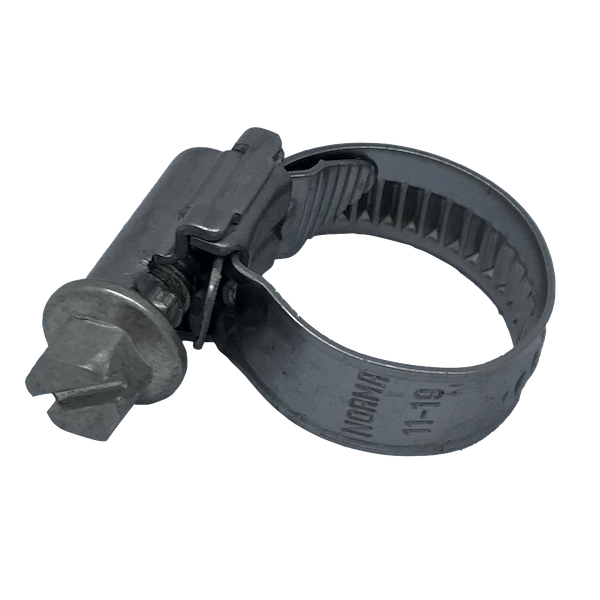

Metal Collar Ø11-19 W9mm

6981H6

3

€1.51 €1.86
42

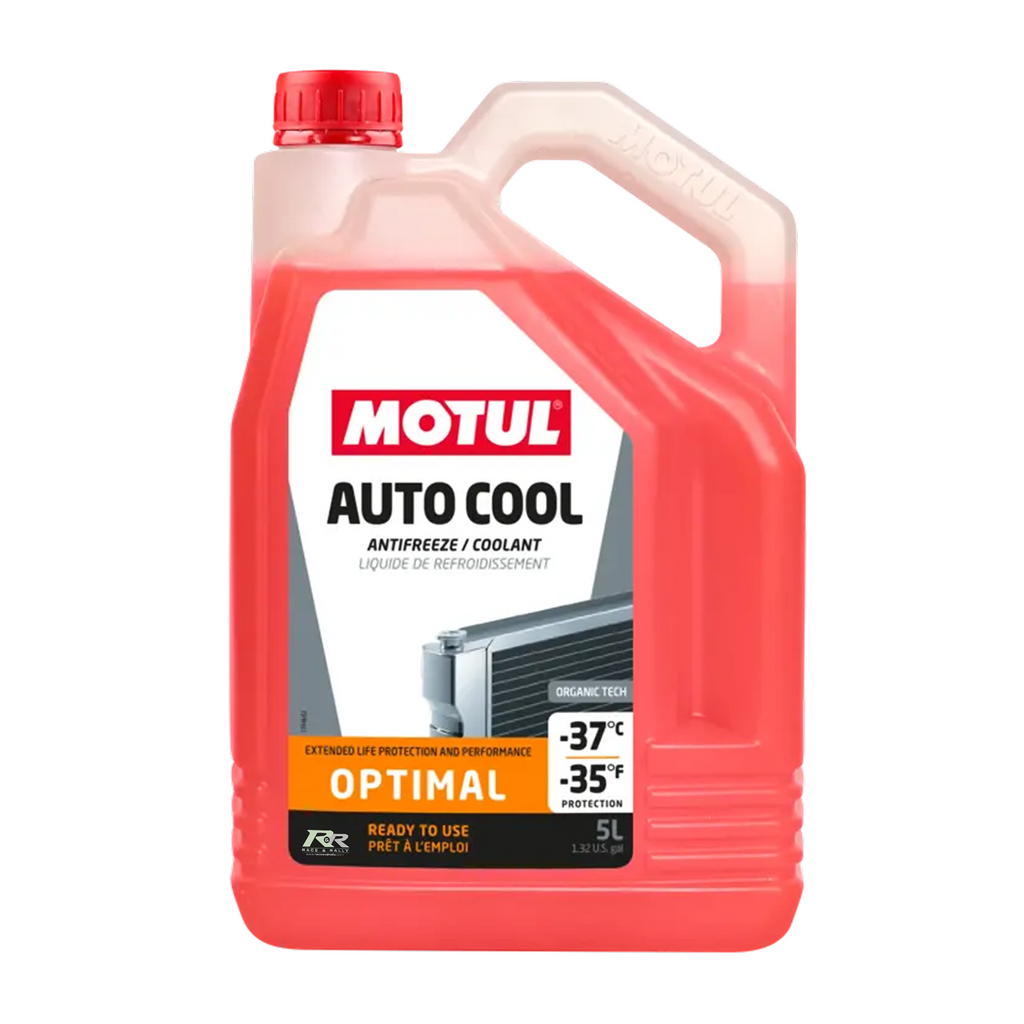

Motul Autocool Optimal Antifreeze / Coolant - Ready to Use - 37°C

112621

€29.49 €36.27
