B12 - Radiator

B12 - Radiator

View Docs

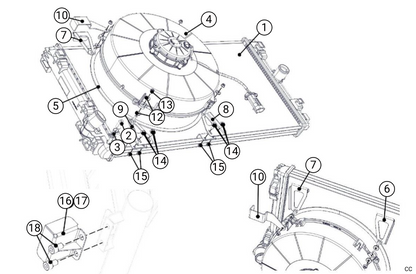

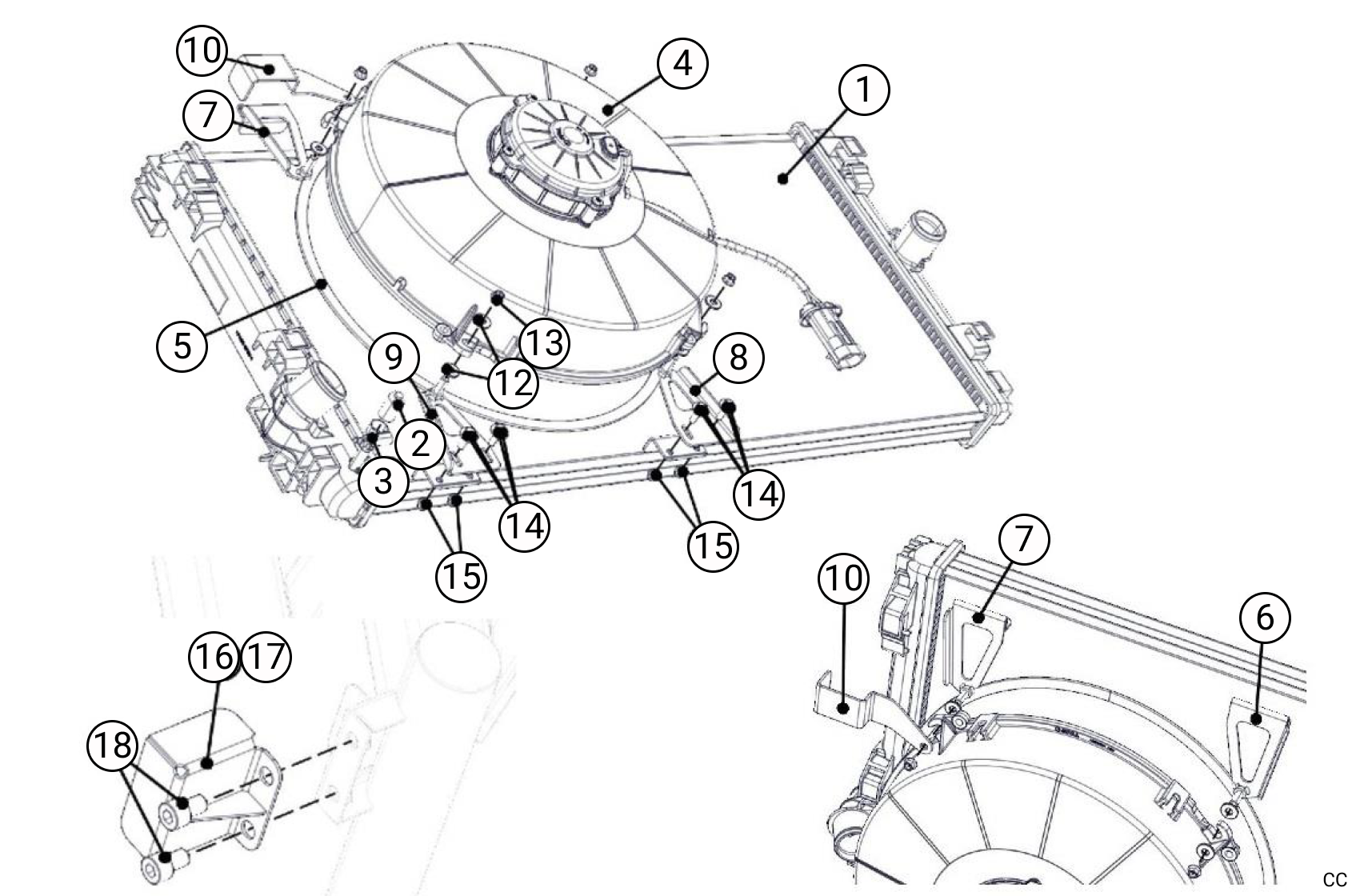

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Radiator

904669828D

1

€741.00 €911.43
2
PLUG

1414-05

1

€1.68 €2.07
3
Collar Ø9-14 ht5mm

ST01600024

1

€1.60 €1.97
4
SPAL motor fan

904448178A

1

€297.42 €365.83
5
Seal foam

1606409780

1

€38.84 €47.77
6
Right Upper Fan Unit Lug

904683228B

1

€18.44 €22.68
7
Left Upper Fan Unit Lug

904683238B

1

€17.75 €21.83
8
RH LOWER FAN UNIT LUG

904683248B

1

€12.40 €15.25
9
LH LOWER FAN UNIT LUG

904683258B

1

€12.40 €15.25
10
Left fan mounting Y plate

904684738B

1

€13.63 €16.76
10
Right fan mounting Y plate

904684728B

1

€6.82 €8.39
11
FAN UNIT LOWER FIXING HOOK

904684758B

2

€15.95 €19.62
12
Flat washer Ø6x14x1.5

694904

7

€1.51 €1.86
13
Collar nut M6

PS74001A10

4

€7.61 €9.36
14
Hex Screw M5x080-16

6923-07

4

€2.29 €2.82
15
Locking nut M5

693673

4

€0.37 €0.46
16
RIGHT RADIATOR BRACKET

904661368A

1

€35.24 €43.35
17
LEFT RADIATOR BRACKET

904661388A

1

€35.24 €43.35
18
Socket Screw M8X125-12 12.9

PS82621A10

4

€0.62 €0.76

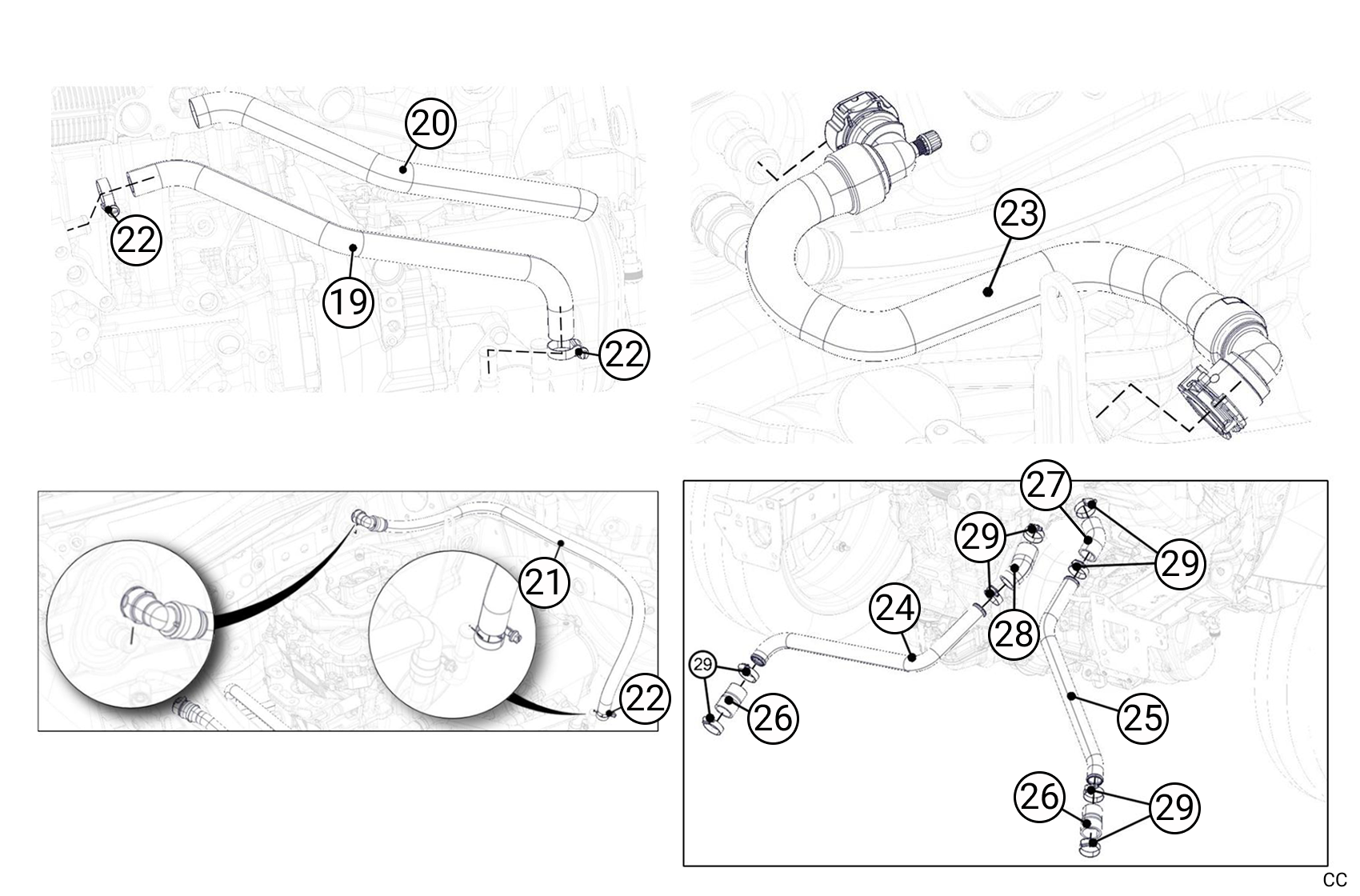

19

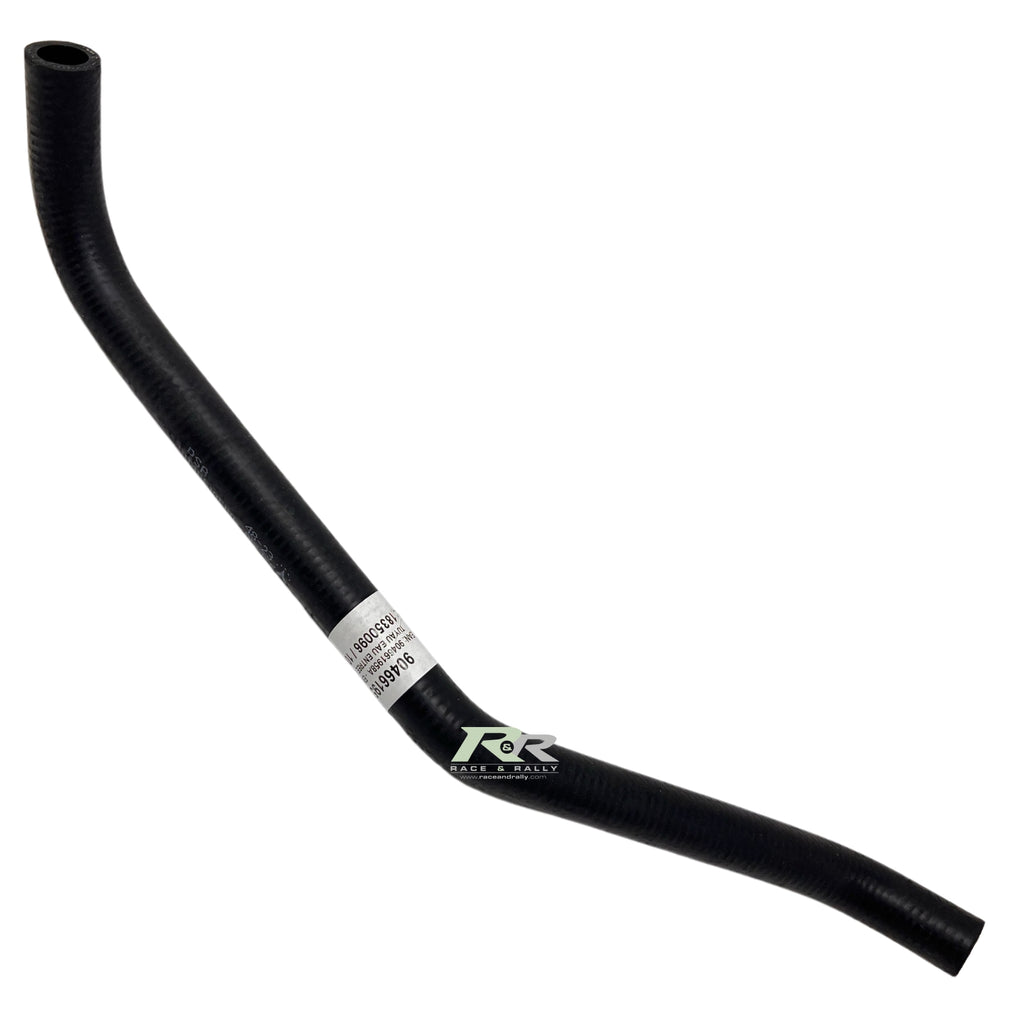

WATER HOSE INLET OIL WATER COOLER

904661958A

1

€22.94 €28.22
20
Heat sheath Ø25x400

653830

1

€67.81 €83.41
21

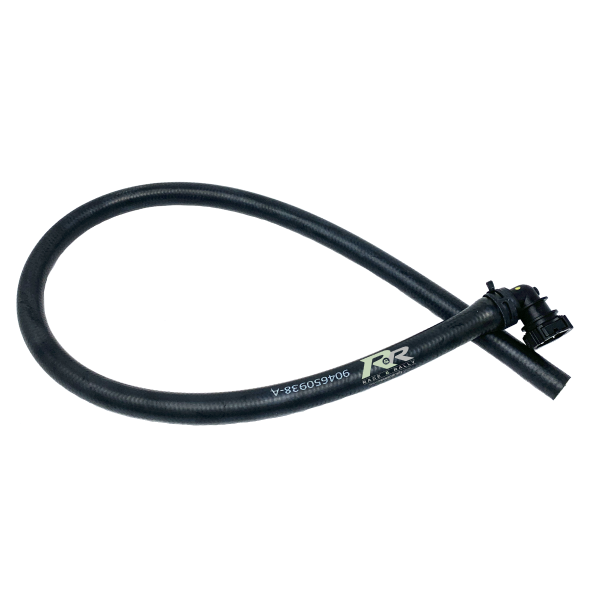

Water hose outlet oil water cooler

904650938A

1

€90.28 €111.04
22
Metal collar Ø16-27 lg9mm

6981H7

3

€1.35 €1.66
23

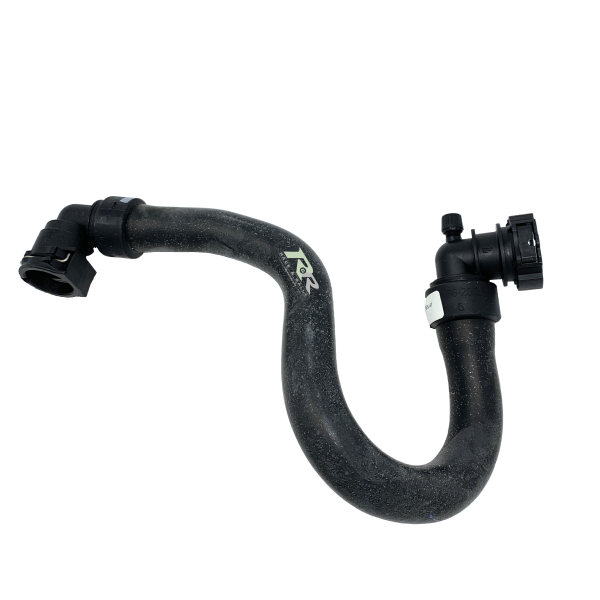

Water outlet hose

9678822580

1

€29.41 €36.17
24

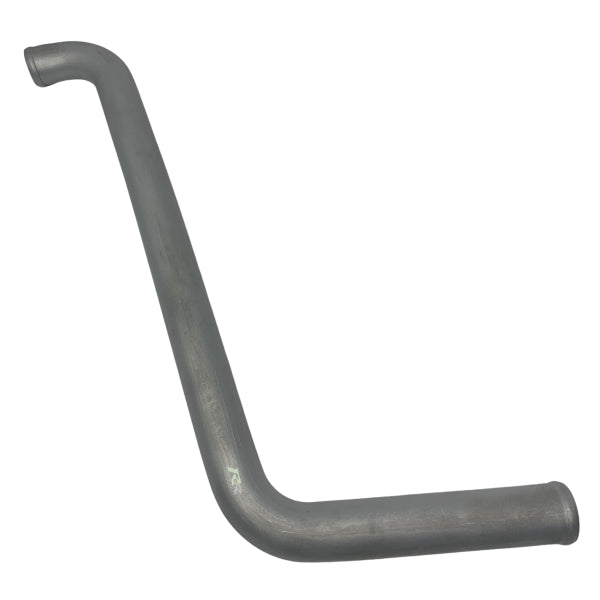

Inlet Water Pipe

904658418A

1

€136.30 €167.65
25

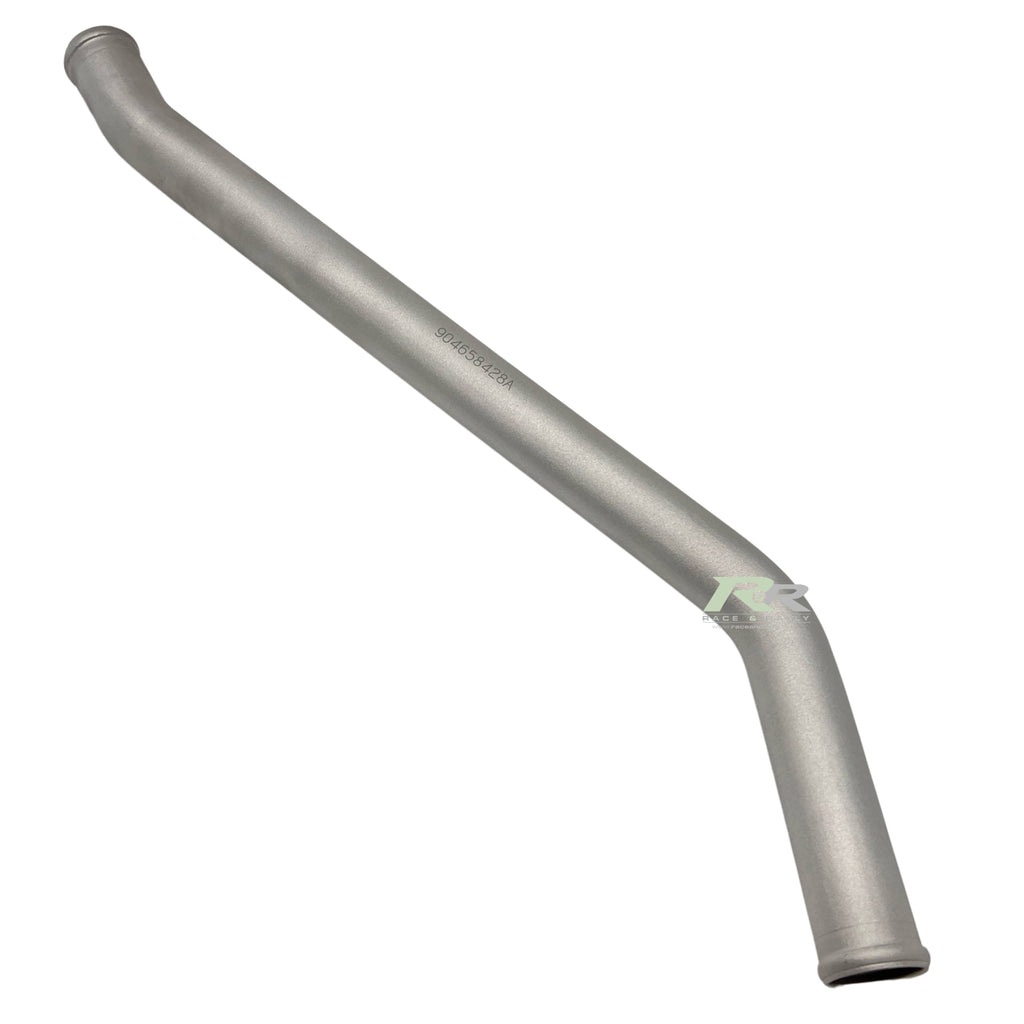

OUTLET WATER PIPE

904658428A

1

€168.20 €206.89
26

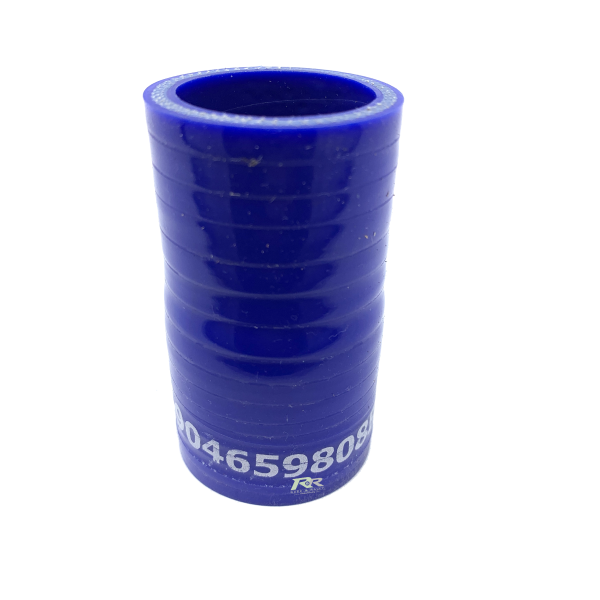

Straight Reducer Hose Ø35-Ø32

904659808B

2

€25.75 €31.67
27

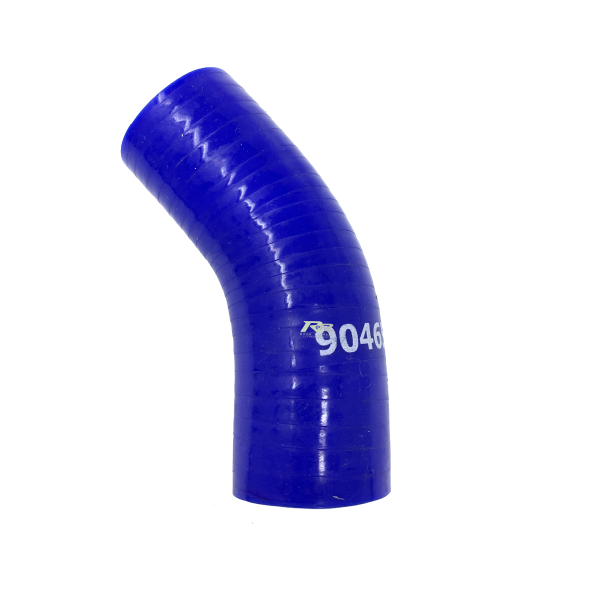

45° Elbow Ø32 Hose

904658488B

1

€32.74 €40.27
28

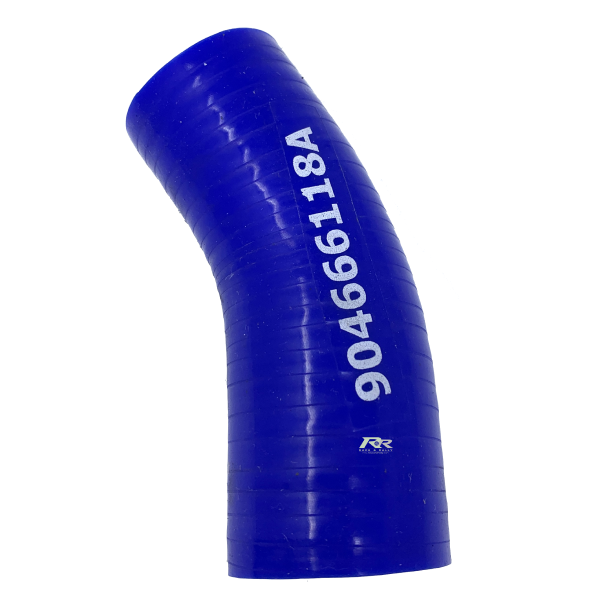

30° Elbow Ø35-32 reducer

904666118A

1

€39.24 €48.27
29

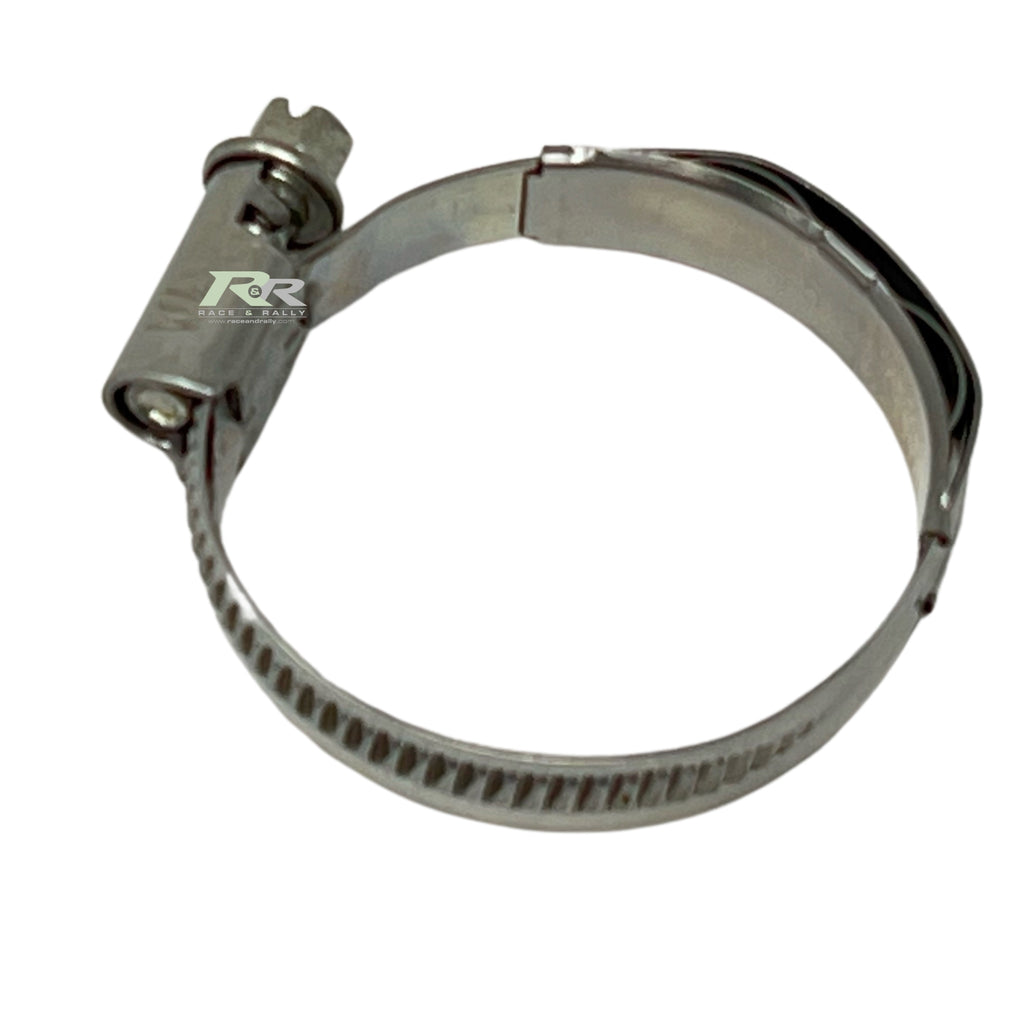

Collar W4 30-45X9

CS160085ST

8

€1.73 €2.13

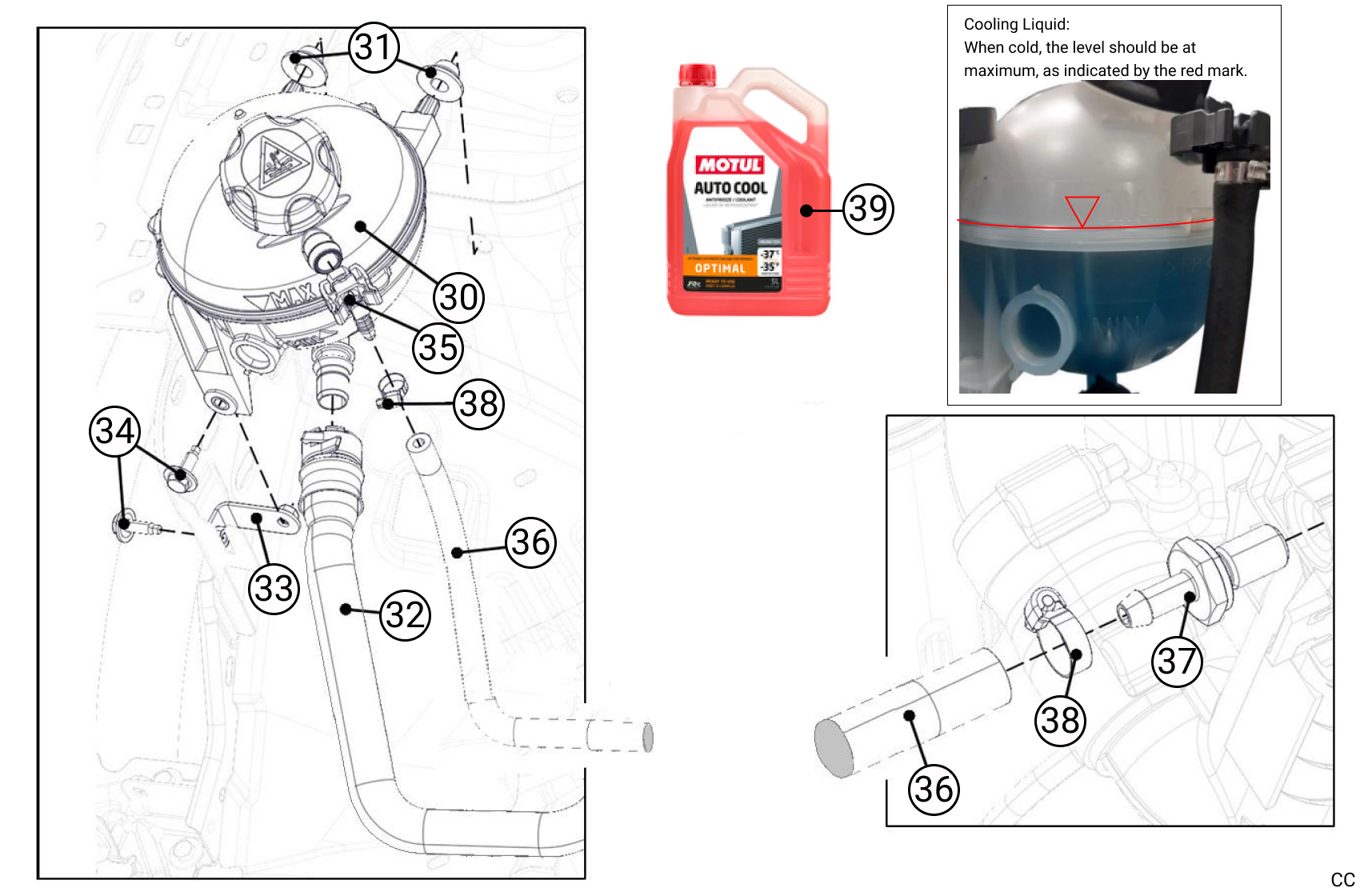

30

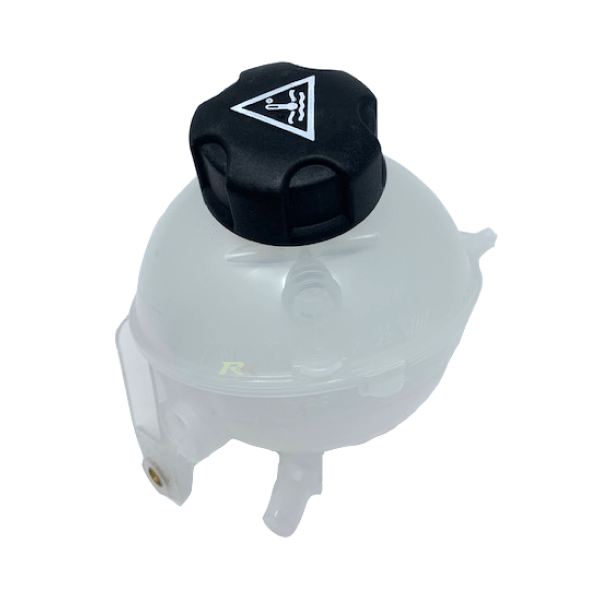

Expansion tank

1323X6

1

€39.29 €48.33
31
BAGUE 10X14,5

132705

2

€1.34 €1.65
32

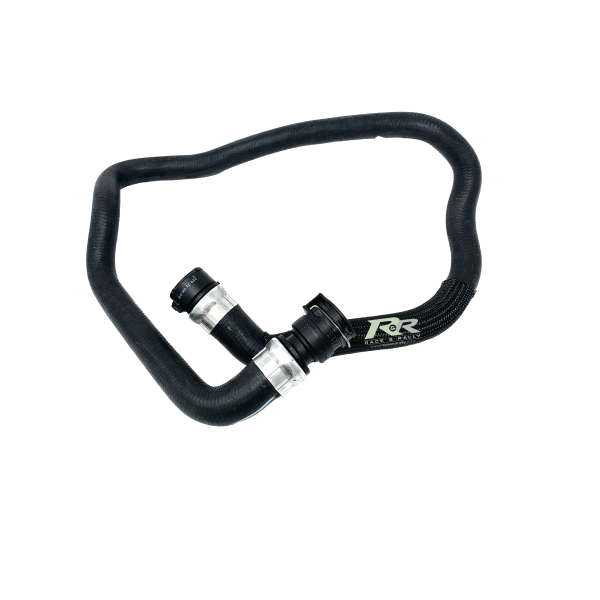

Expansion tank hose

9671349780

1

€32.63 €40.13
33
WATER BOX BRACKET

904651478A

1

€28.13 €34.60
34
Screw Hex Washer M6x100 L20

692330

2

€0.03 €0.04
35

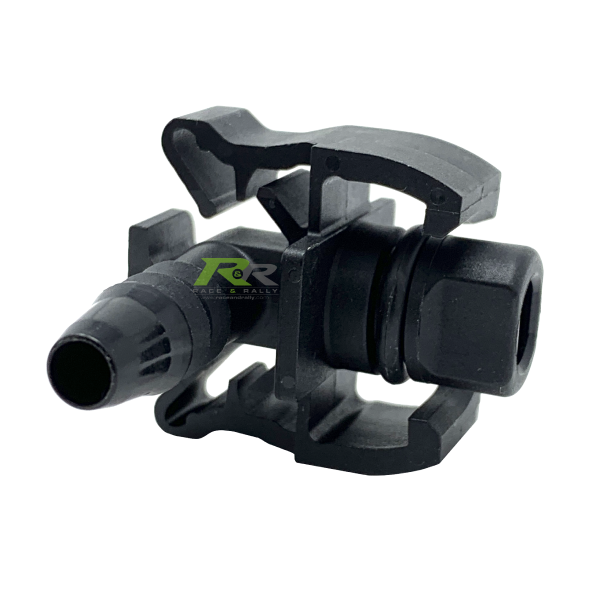

FITTING ELBOW 90 DN6 ARAYMOND

ST04100054

1

€7.50 €9.23
36

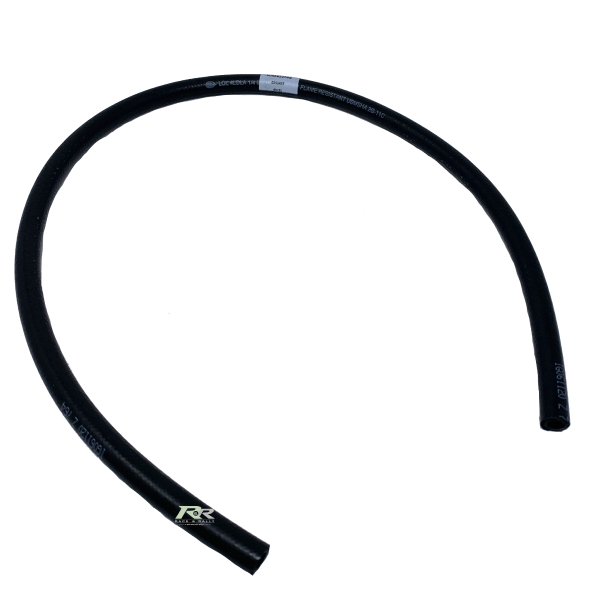

Degassing hose cooling radiator

904662278B

1

€30.33 €37.31
37
WATER RADIATOR BLEED NOZZLE

904662268B

1

€26.22 €32.25
38

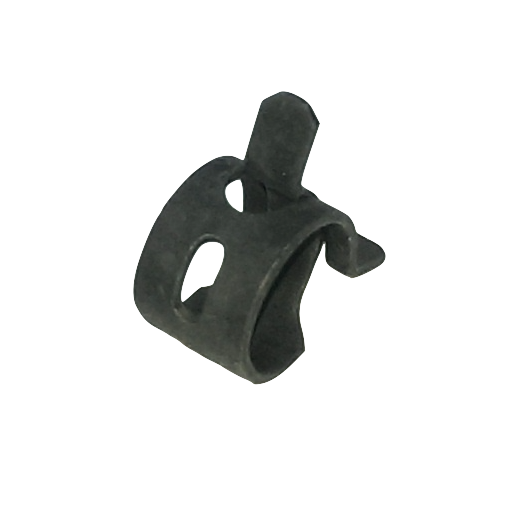

Metal Collar Ø9-14-5mm

PS91682A10

2

€0.58 €0.71
39
Motul Autocool Optimal Antifreeze / Coolant - Ready to Use - 37°C

112621

1

€28.74 €35.35
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
