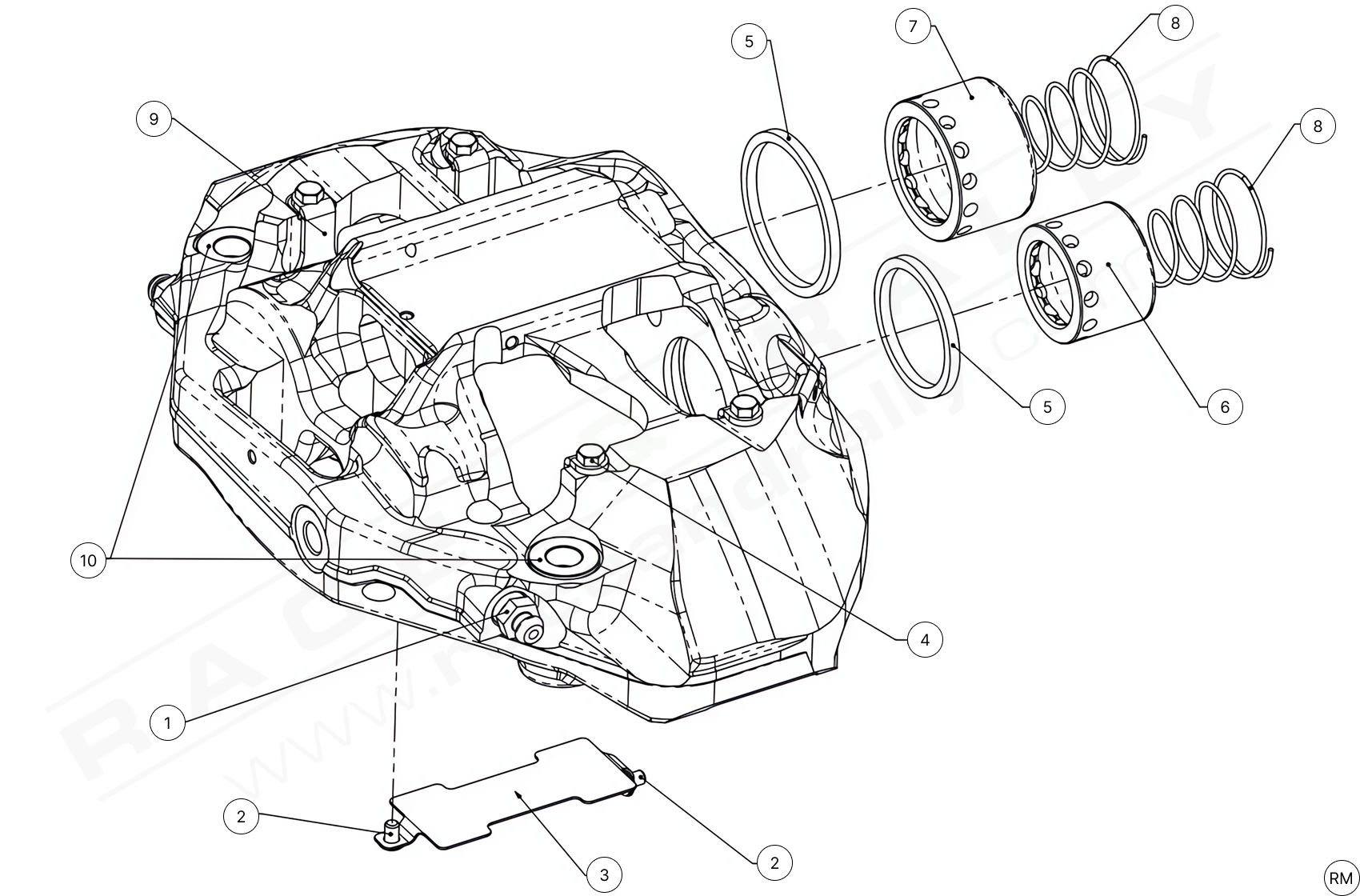

• AP Racing brake calipers exploded view diagram showing internal components and assembly details.
1 1

Brake Calipers

Brake Calipers

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
4 Piston RADi-CAL Caliper - 2x Ø34.9mm & Ø41.3mm Pistons - 180mm Centres - Threaded Inlet - RHS

CP6840-6S4L

2

€1792.64 €2204.95
1
4 Piston RADi-CAL Caliper - 2x Ø34.9mm & Ø41.3mm Pistons - 180mm Centres - Threaded Inlet - LHS

CP6840-7S4L

2

€1792.64 €2204.95
2
M4 x 0.7 Button Head Screw

CP3355-114ST

8

€0.73 €0.90
3
Pad Retainer Wearplate - CP6840

CP6820-109

4

€17.92 €22.04
4
M4 x 0.7 Hex Head Bolt

CP3215-115

16

€1.07 €1.32
5
Standard 'High' Temperature Caliper Seal Kit - Ø34.9 & Ø41.3mm

CP4518-GK

4

€40.76 €50.13
Alternative
5a
'Very' High Temperature Caliper Seal Kit - Ø34.9 & Ø41.3mm

CP8518-GK

4

€27.27 €33.54
6
Ø34.9mm Piston Stainless Steel Piston

CP6820-106

8

€59.54 €73.23
7
Ø41.3mm Stainless Steel Piston

CP6820-107

8

€59.54 €73.23
8

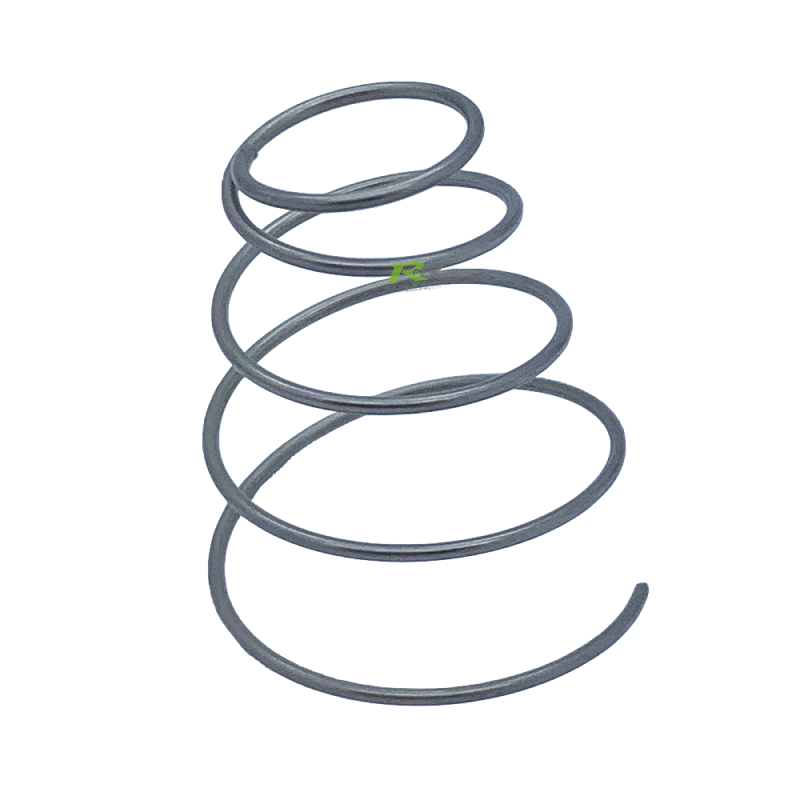

Anti-Knockback Springs for Piston Ø34.9mm and above - 4lbs Rating

CP2667-105

16

€2.90 €3.57
1
Anti-Knockback Springs for Piston Ø34.9mm and above - 4lbs Rating - Kit of 4

CP6518-4LBLL

1

€9.79 €12.04
9
Pad Wearplate - CP6840

CP6820-113

16

€8.66 €10.65
10
Stainless Steel Boss Mounting - CP6840

CP6720-162

8

€29.02 €35.69
11
O'Ring (Sealed) Bleed Screws - M10 x 1.00

CP3880-1

4

€9.33 €11.48
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.

AP Racing Brake Calipers

Compatible Vehicles:

  • Front & Rear - Ford Fiesta R5 MKI EVO
    • PLEASE NOTE:
      Inlet connection on caliper is M10x1.00, M-Sport used 'Push-in' inlet connections. R&R supply M10x1.00 inlet connections and can supply M10x1.00 Brake flexi at additional cost

Contents:

  • LHS - CP6840-7S4L - BV18110003A
  • RHS - CP6840-6S4L - BV18110004A
  • Piston Seal Kit - CP4518-GK - BV18110038A
    • High Temperature Seal Kit - CP8518-GK
