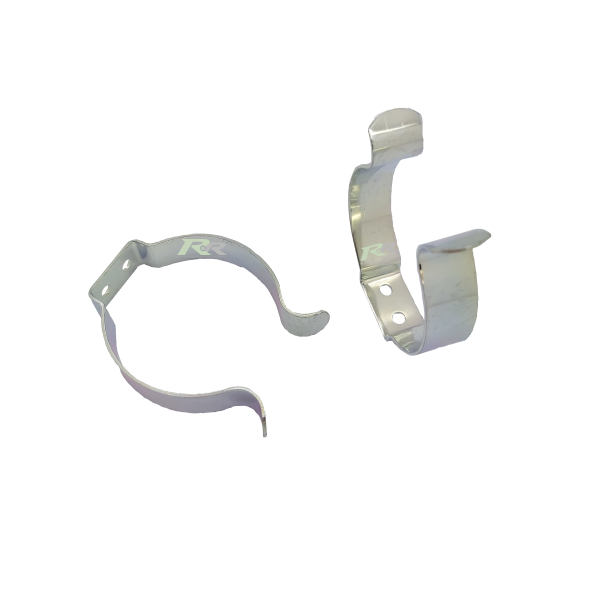

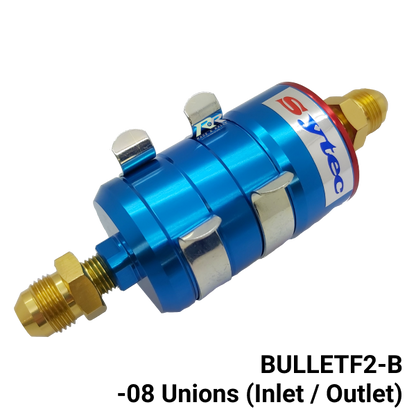

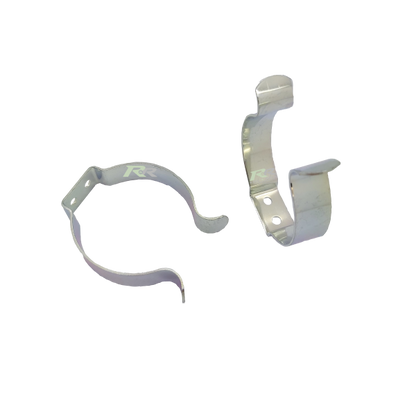

Mounting Clips x2 included

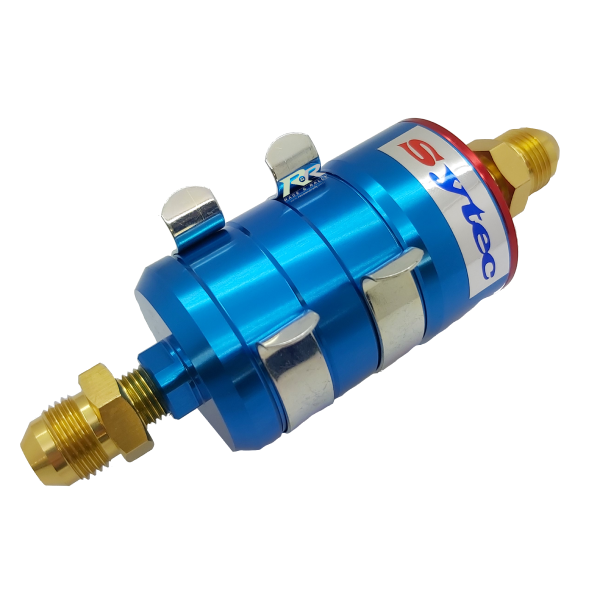

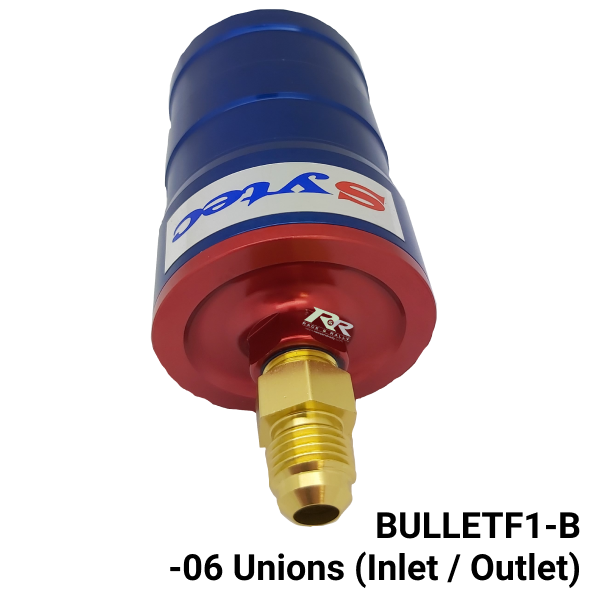

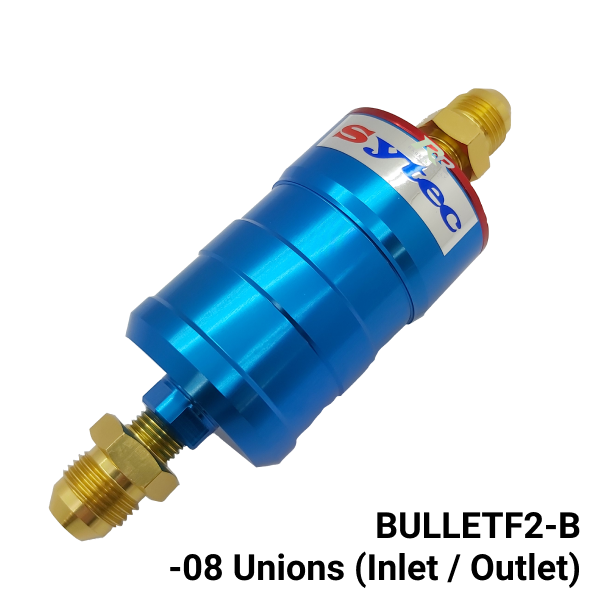

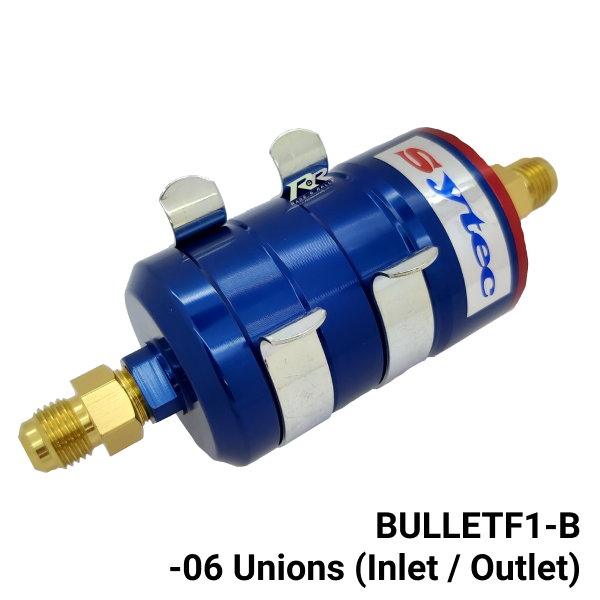

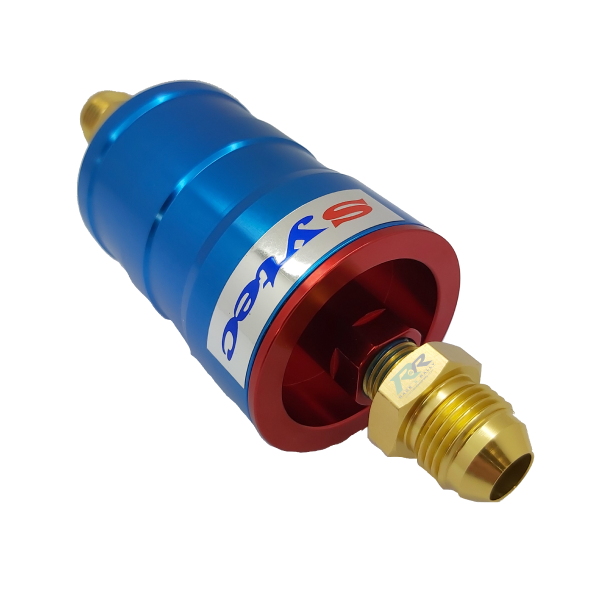

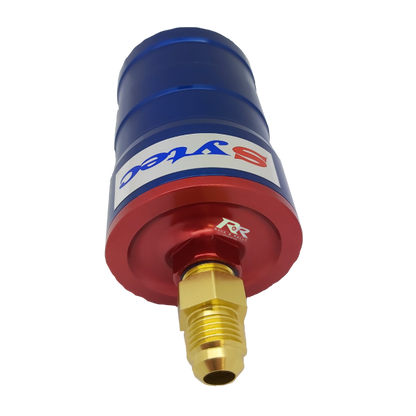

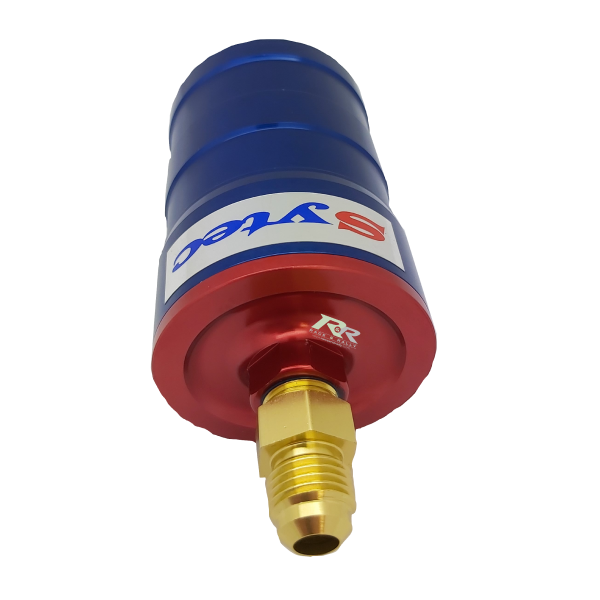

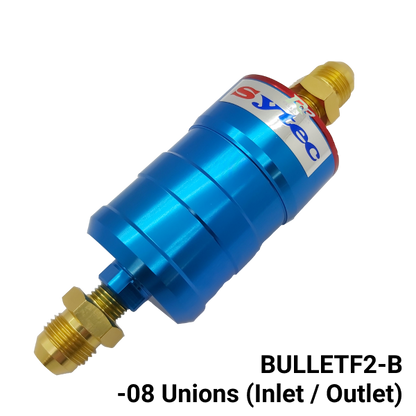

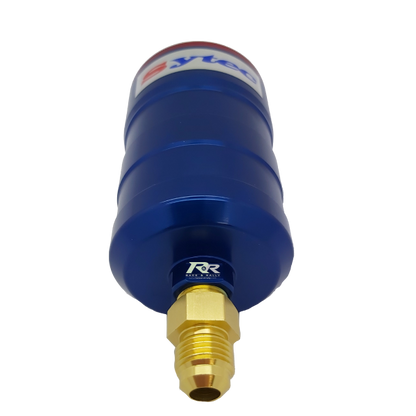

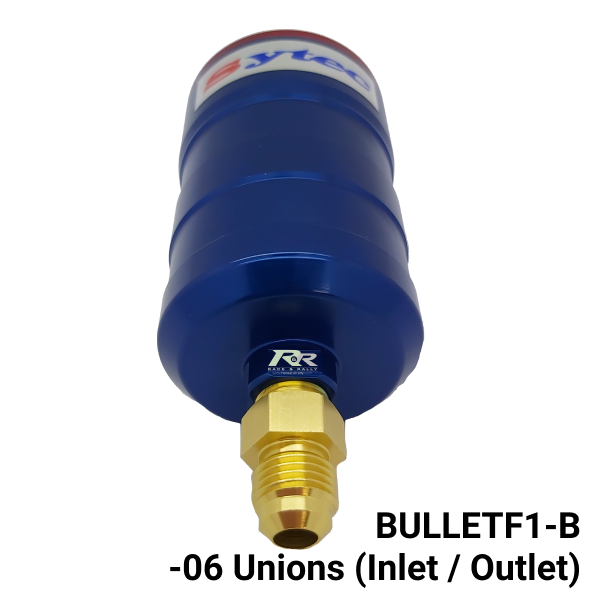

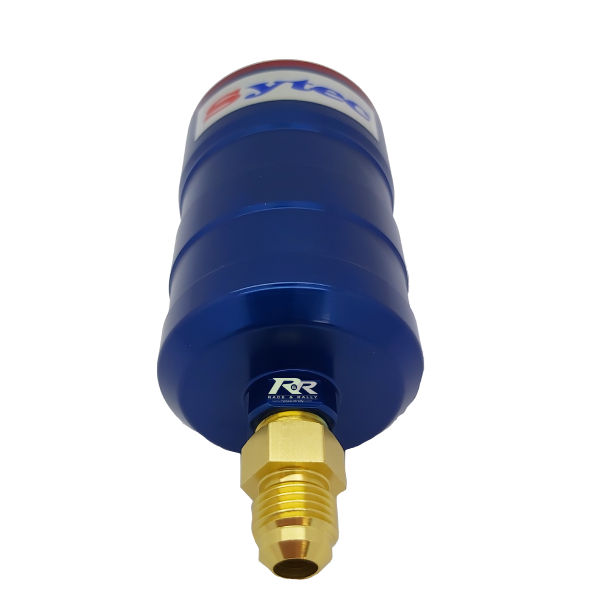

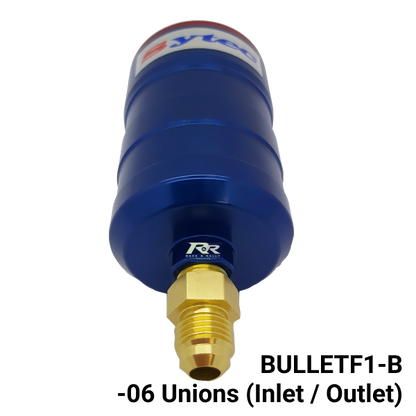

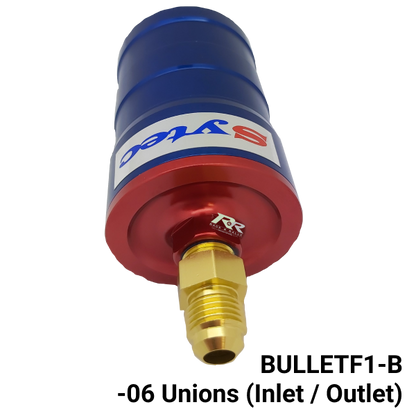

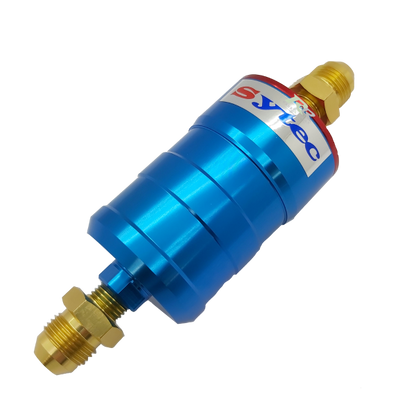

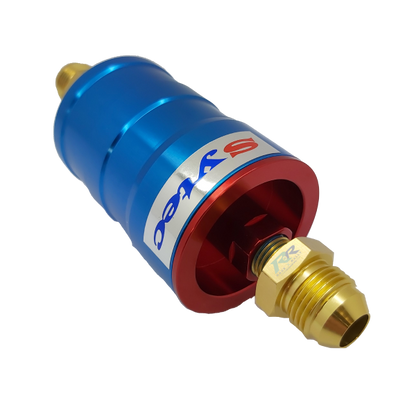

Sytec High Flow Fuel Filters are designed for in line application. These filters have a flow capacity of 500 Ltr/Hr and are capable of handling up to 10 Bar pressure. These filters are designed for use in either a Pre or Post fuel pump format and in both carburettor (Low Pressure) or fuel injection (High Pressure) fuel systems.

TECHNICAL SPECIFICATIONS

• Colour: Blue
• Body Material: Anodised Aluminium
• Seal Material: Viton
• Inlet union options: -06 or -08 JIC/UNF (Male)
• Outlet union options: -06 or -08 JIC/UNF (Male)
• Main Body Internal Thread: 1/4" NPT
• Filter Material: Paper (10 Micron)
• Optional Filter Element: Stainless Steel (55 Micron)
• Mounting Clips: Quantity 2 included
• Fuel Type: Petrol E5, E10, Diesal
• Max Flow: 500 Ltr/hr
• Max Pressure: 10 Bar
• Main body dimensions: 110x50mm
• Main body weight: 150 grams
