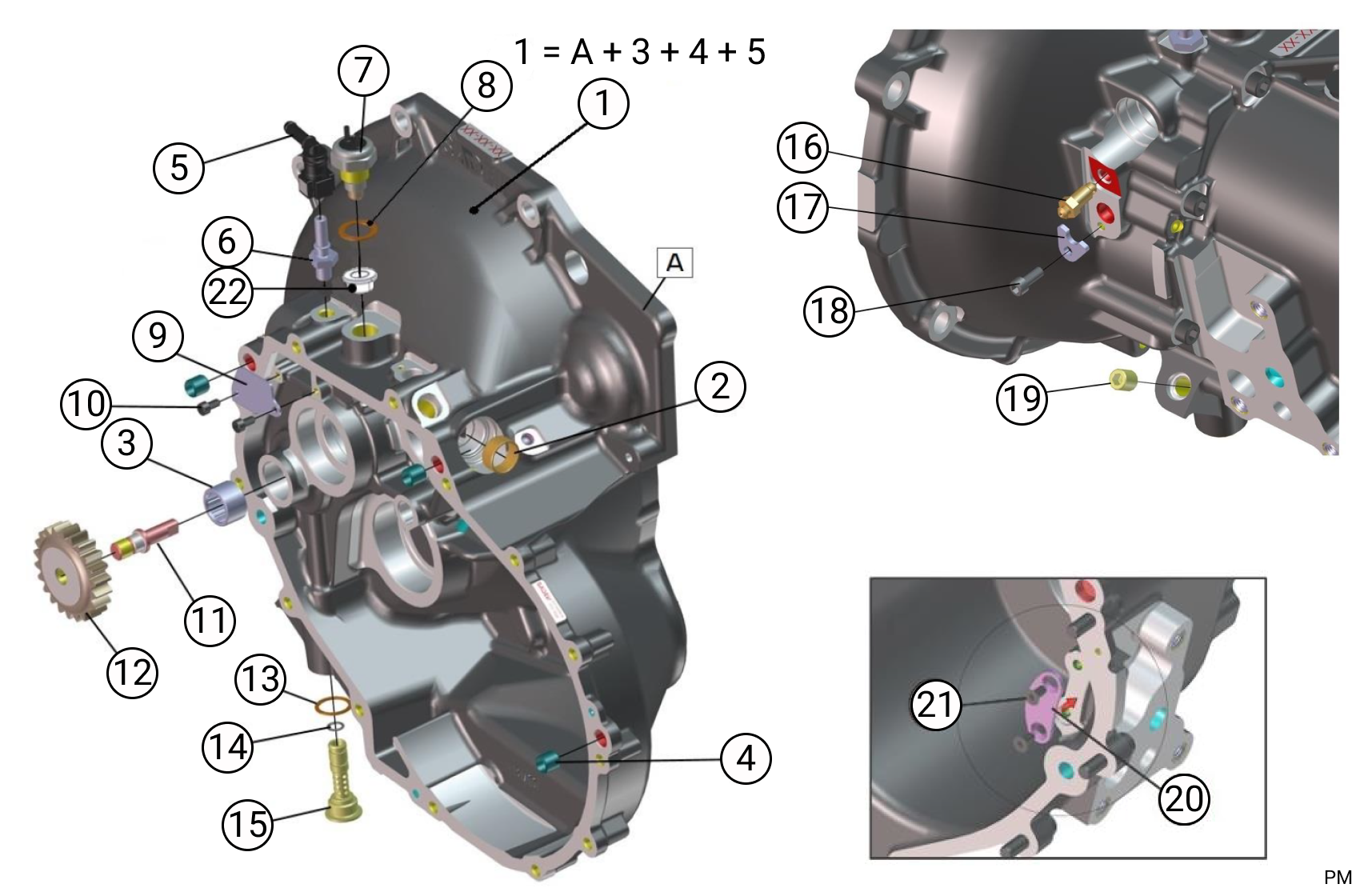

C236 - Main Housing - Ypsilon Rally 4

C236 - Main Housing - Ypsilon Rally 4

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Main Housing Assembly

F15170021

1

€3100.32 €3813.39
2
Insert

1202028

1

€8.26 €10.16
3
HK 20/16 Needle Sleeve

106021

1

€12.93 €15.90
4
Ø10x12x12 Center Pin

F9063008

3

€5.25 €6.46
5
Venting Plug

9999683

1

€4.83 €5.94
6
Breather tip

F9022106

1

€32.68 €40.20
7
Cutting Sensor

F0089071

1

€157.18 €193.33
8
Set of shim power switch

F90504171

1

€32.86 €40.42
9
Breather Deflector

F9063007

1

€20.12 €24.75
10
M5x10 cl 8.8 Chc Bolt

301059

2

€0.33 €0.41
11
Pump Axle

F9019050

1

€39.04 €48.02
12
Reverse Idler Gear (16x22x37)

F9062416

1

€217.92 €268.04
13
Copper Washer Ø19.2x24x1mm

F9037059

1

€26.44 €32.52
14
Viton O'Ring Ø8.5 x 1.5

202041

1

€1.60 €1.97
15
Strainer

F9037056

1

€215.06 €264.52
16
Bleed Nipple M10X100 C

ST04100027

1

€24.60 €30.26
17
Clamp

F1517005

1

€21.04 €25.88
18
M6x12 Cl 12.9 CHC Bolt

301468

1

€0.33 €0.41
19
M12x10 Pas De 125 HC Bolt

302079

1

€5.52 €6.79
20
Friction Plate

F9053014

1

€108.69 €133.69
21
M5x10 cl 10.9 FHC Bolt

303036

2

€0.49 €0.60
22

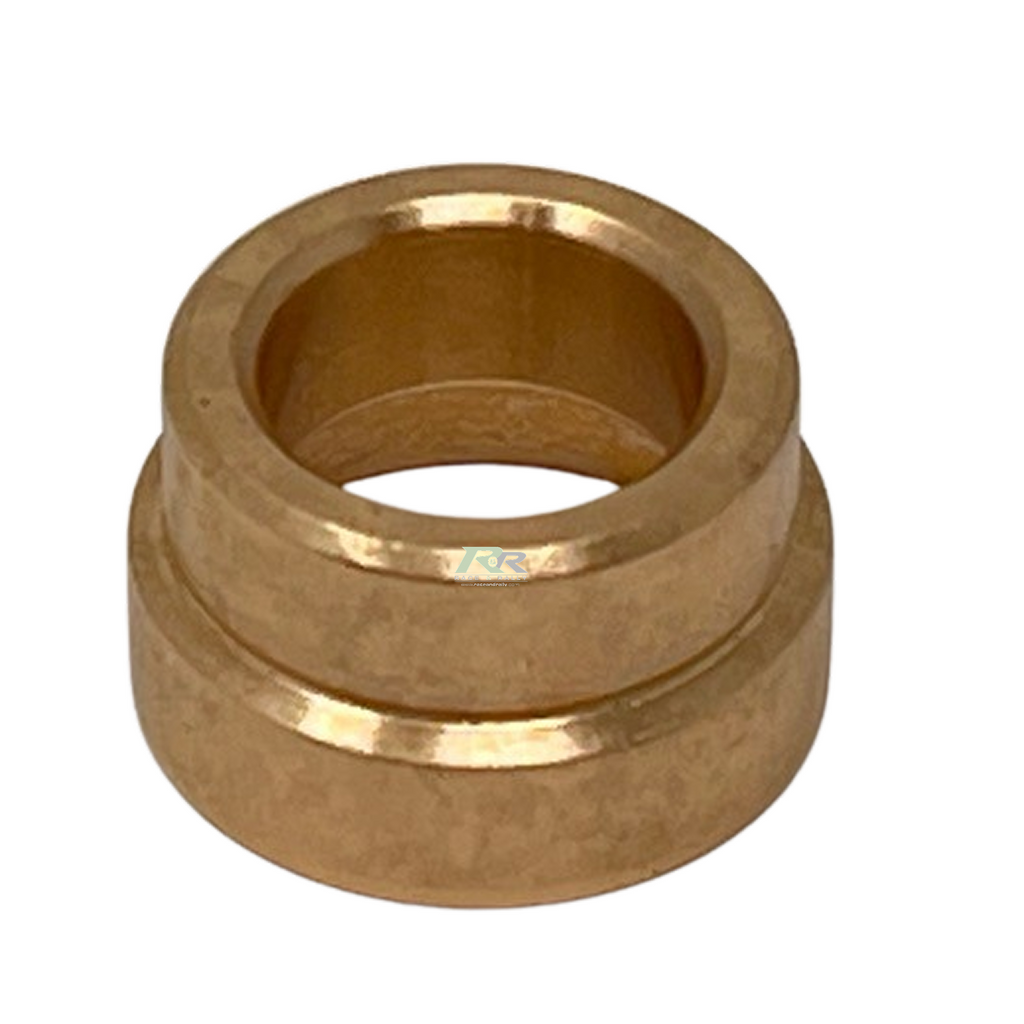

C236 - Contactor guide bushing - 22 - Ypsilon Rally 4

F9062433

1

€21.50 €26.45
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
