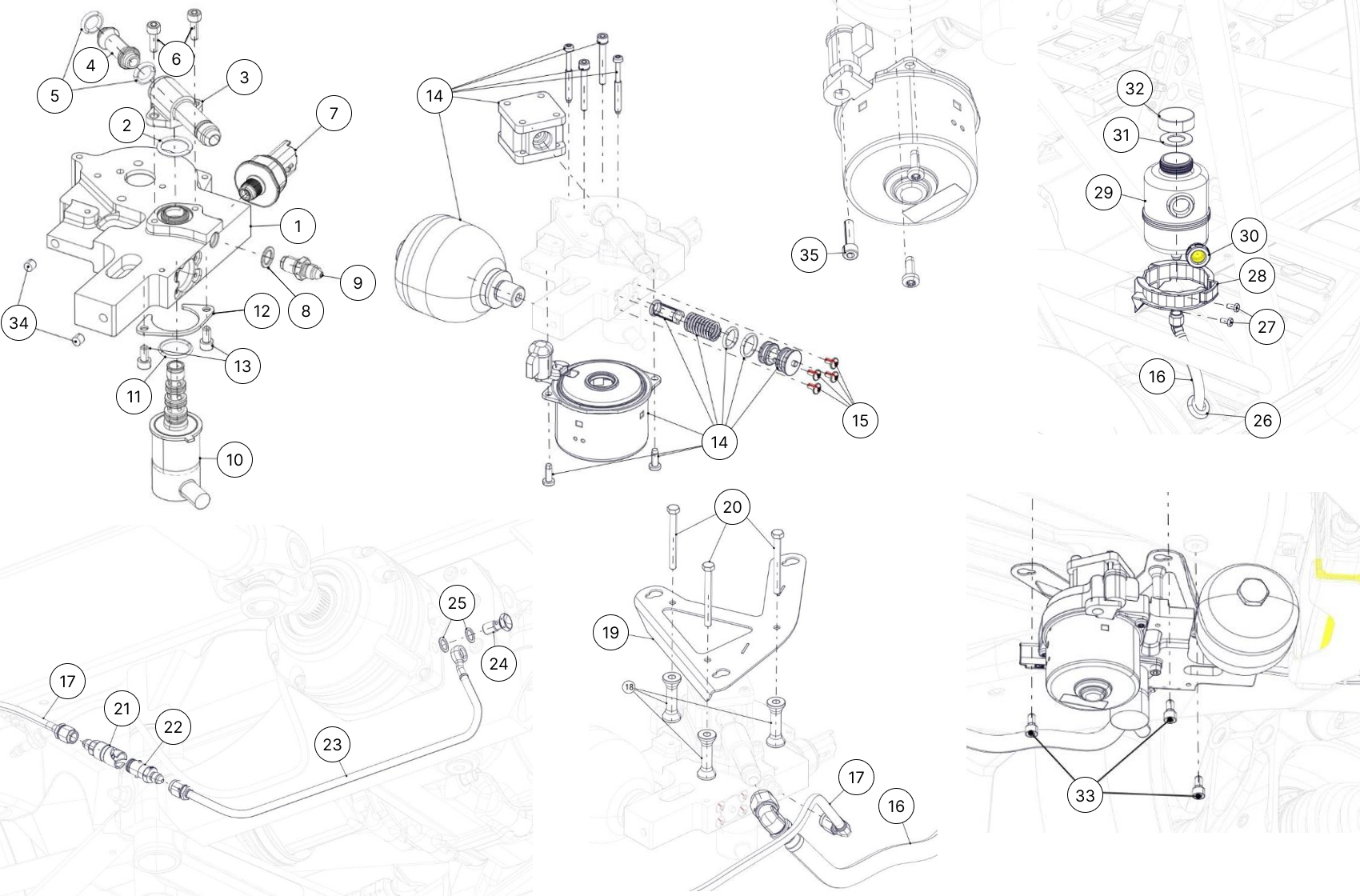

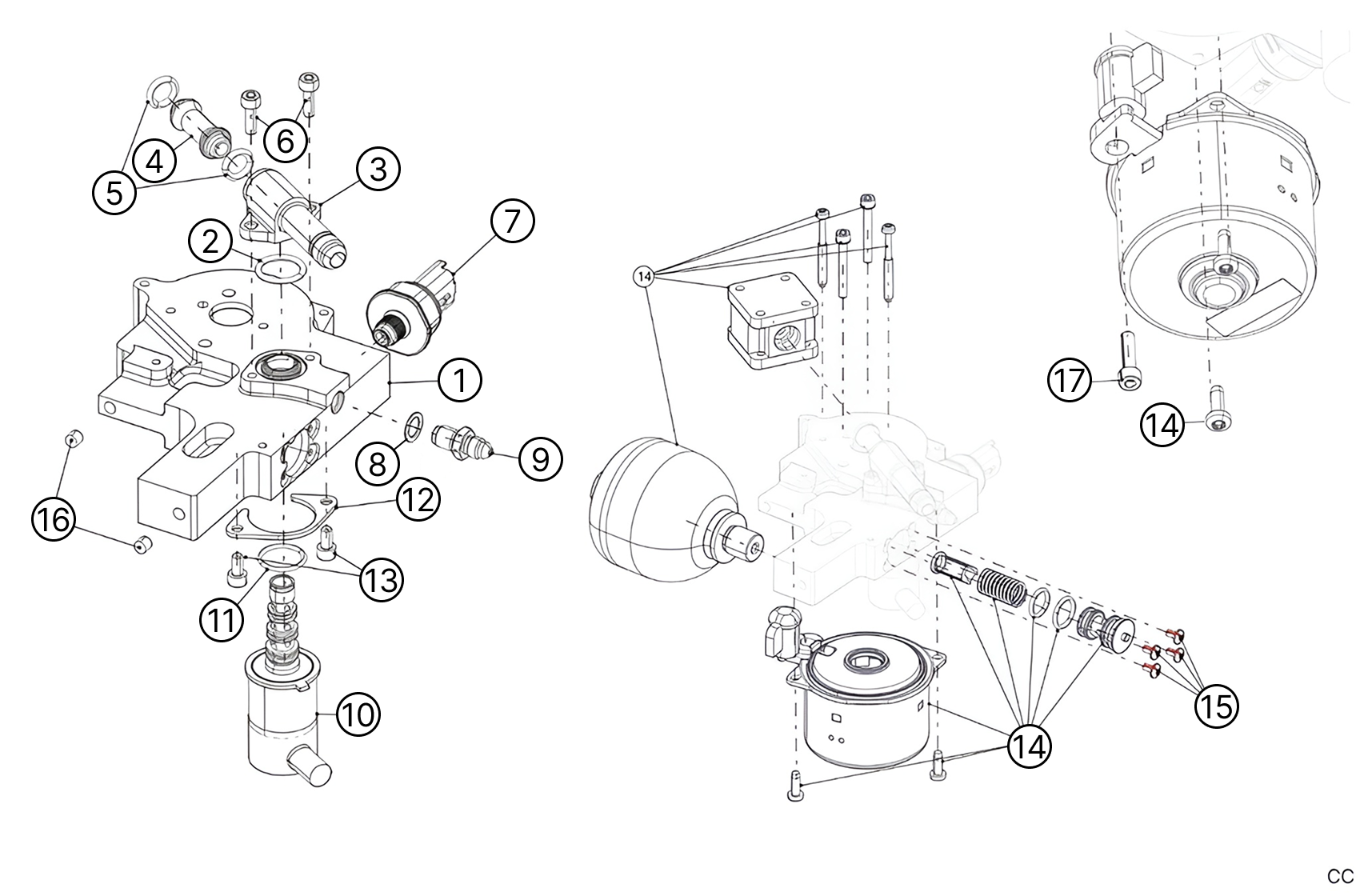

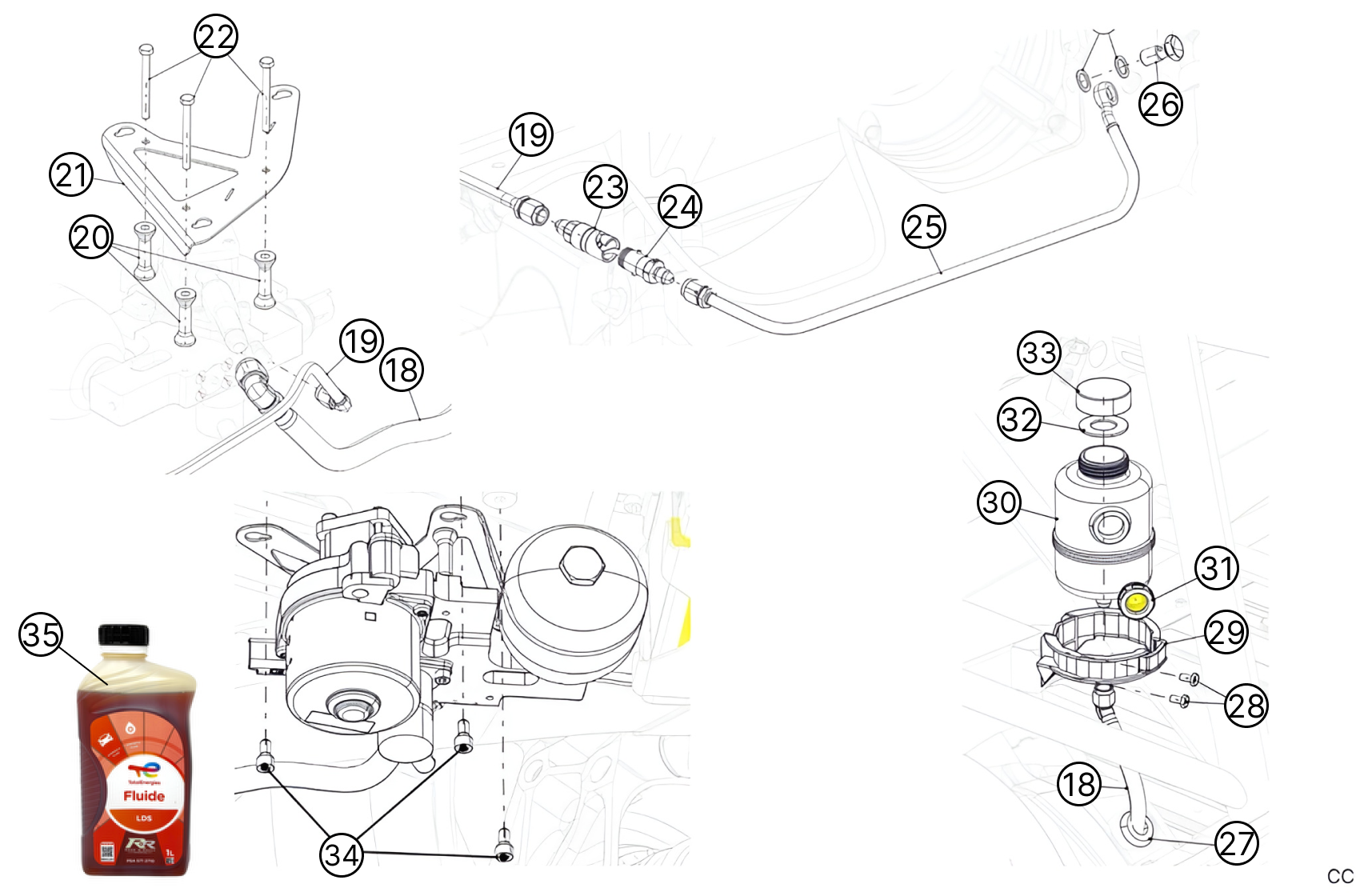

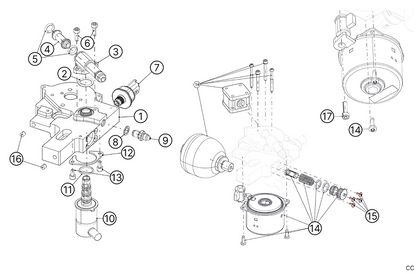

C29 - Peal

C29 - Peal

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

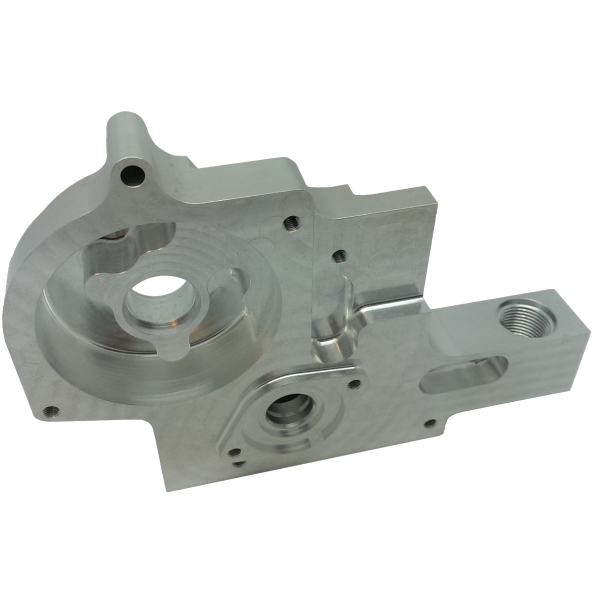

PEAL body

1C3524312C

1

€558.36 €686.78
2
O-ring Ø18x2,65

PS77042A10

1

€1.36 €1.67
3

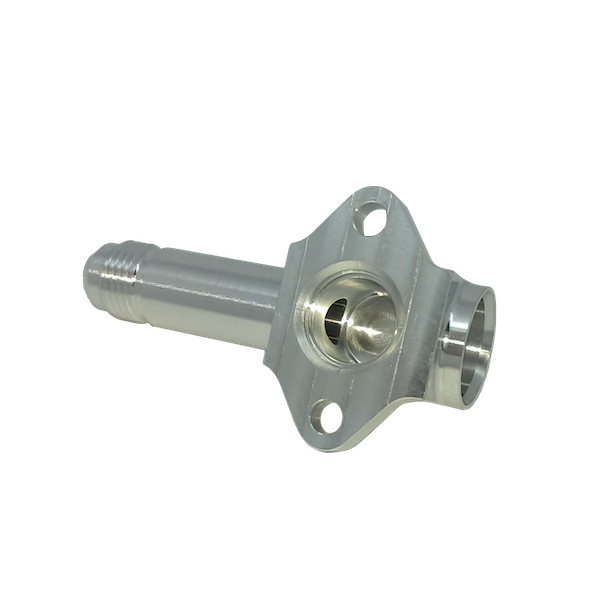

PEAL Body Return

1C3524322B

1

€179.90 €221.28
4

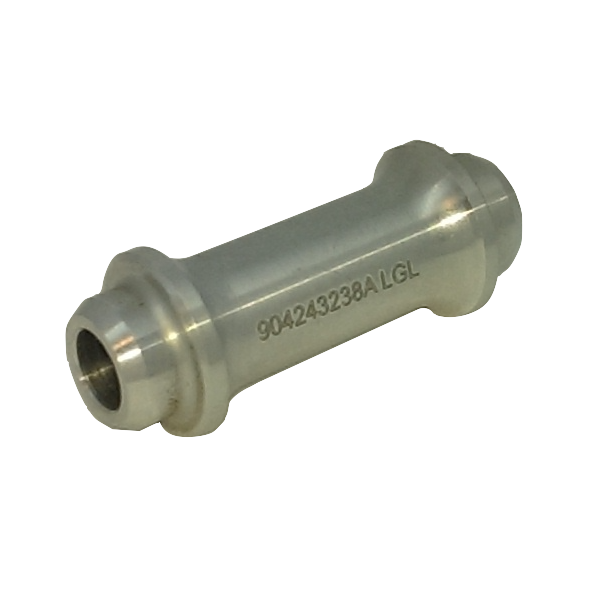

Connecting tube

1C3524323A

1

€95.46 €117.42
5
O-ring Ø10x3

PS77041A10

2

€1.44 €1.77
6
Screw M5x15

PS82118A10

2

€0.28 €0.34
7
Hydraulic Pressure Sensor

5273A2

1

€147.99 €182.03
8

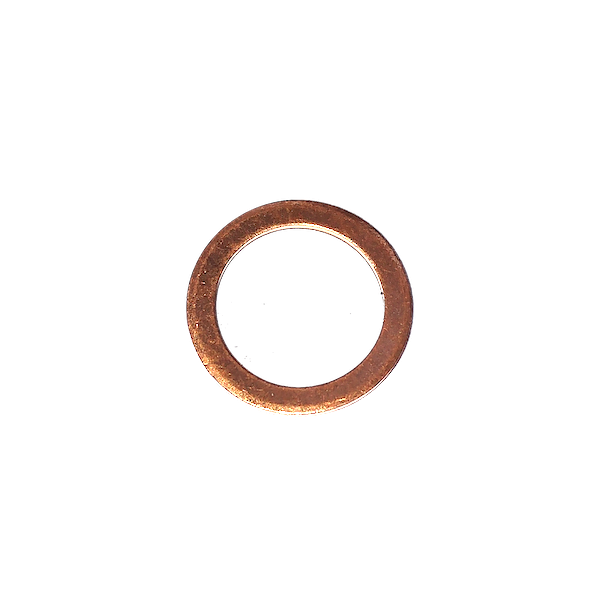

Copper Seal ø10,2x13,9x1

PS81031A10

1

€0.74 €0.91
9
Steel Adaptator Dash3 10X100 M/M

PS73385A10

1

€22.99 €28.28
10

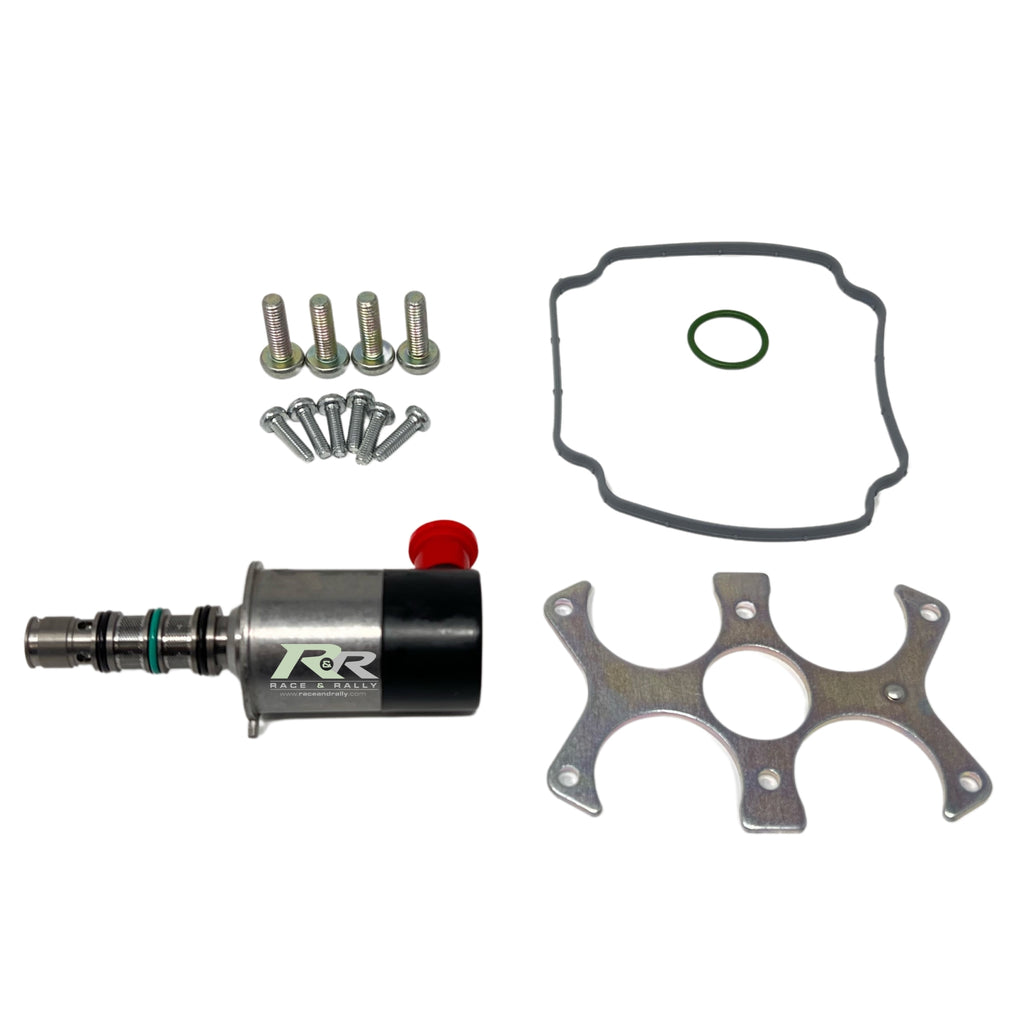

Peal Electrovalve - Old Ref - Please see DOCS for information.

904475878A

€451.65 €555.53
11
O-ring Ø18x2 FPM 80SH A

PS67152A10

1

€0.80 €0.98
12

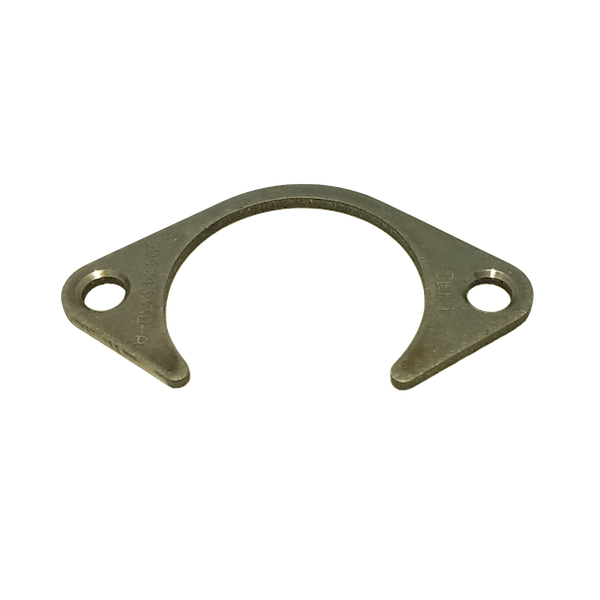

Clamp

1C3524333A

1

€76.22 €93.75
13

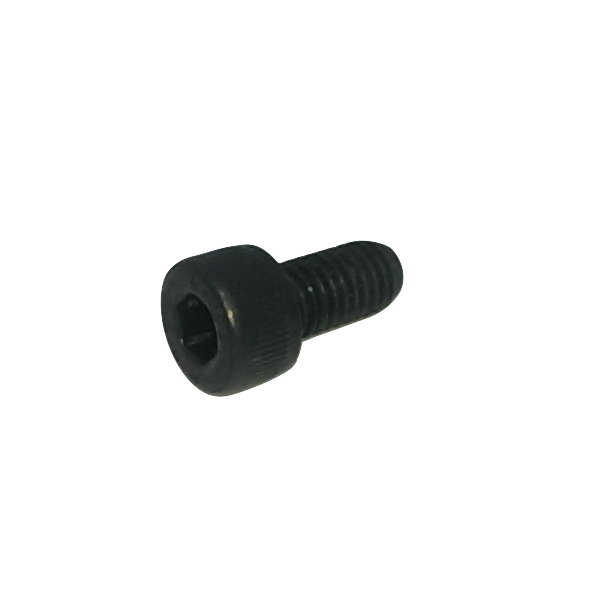

Chc screw m5x10 cl.12.9

PS82018A10

2

€0.23 €0.28
14

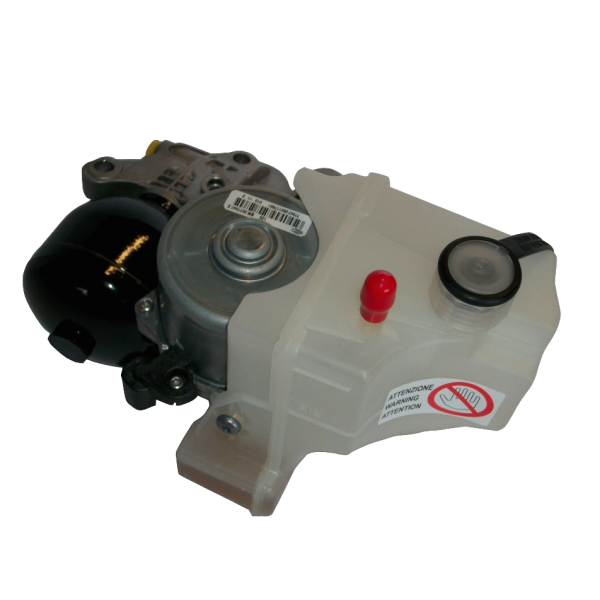

Actuator Electro-Pump

1608730380

1

€911.34 €1120.95
15
Screw STD M4x70 L8

691122

4

€0.37 €0.46
16
Expander Plug Diam 6

ST00900022

2

€51.80 €63.71
17
Screw M5x80 L25

PS82020A10

1

€0.92 €1.13
18
Peal Supply Hose

904600198B

1

€459.23 €564.85
19
Hose (Cmd Peal B)

904600178A

1

€171.71 €211.20
20
Spacer

904485758A

3

€26.52 €32.62
21
Peal Bracket

904485188A

1

€224.00 €275.52
22
Vis H Ft M5X080 L50-50

ST05500004

3

€2.72 €3.35
23

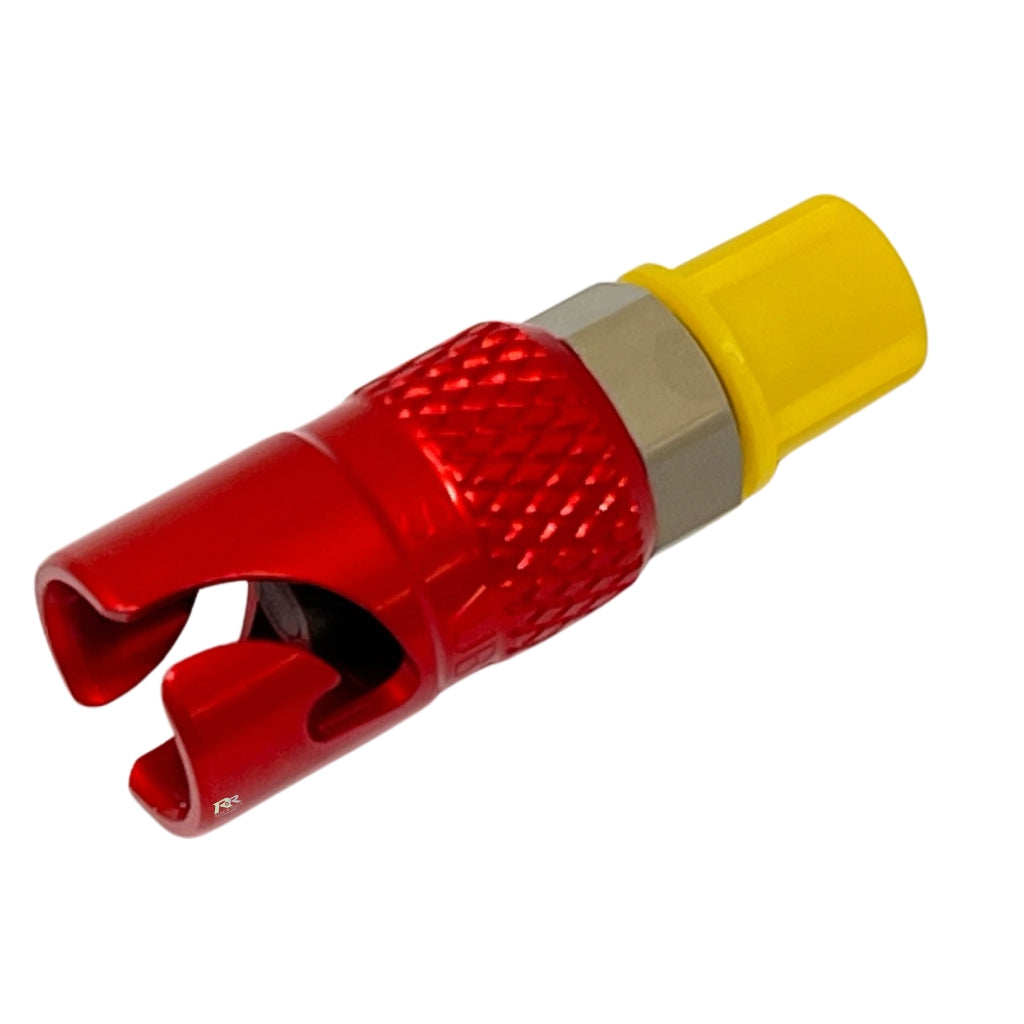

Female Coupling Sph03 Dash3 Jv Alu

PS73320A10

1

€223.33 €274.70
24

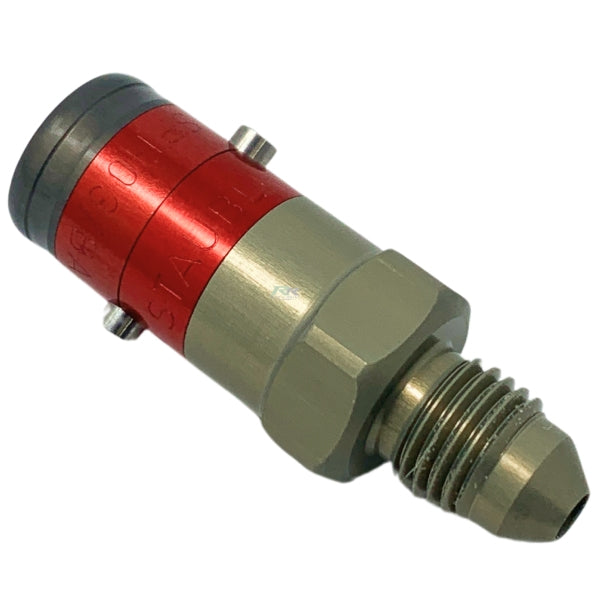

Male Coupling Sph03 Dash3 Jv Alu

PS73319A10

1

€254.04 €312.47
25

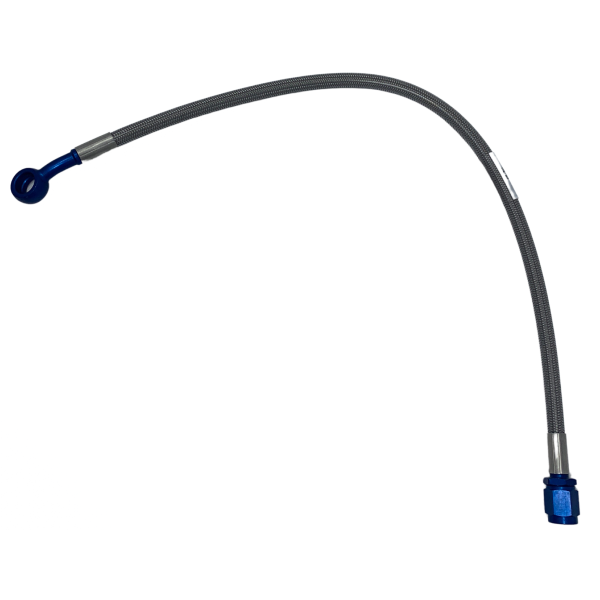

Hose (Cmd Peal A)

904600168A

1

€119.96 €147.55
26
Banjo Screw M10X100 L20

PS73763A10

1

€4.32 €5.31
26

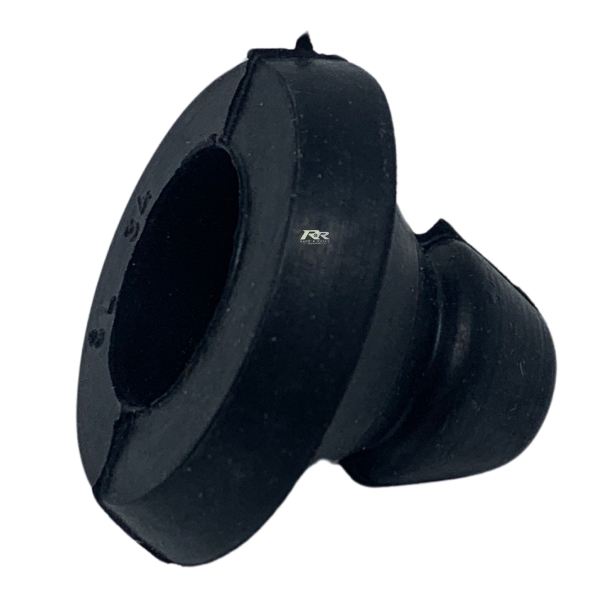

GROMMET

698778

1

€2.58 €3.17
28
Hex Screw M6-12

PS84527A10

2

€0.22 €0.27
29
Hydraulic Reservoir Mount

401896

1

€9.08 €11.17
30

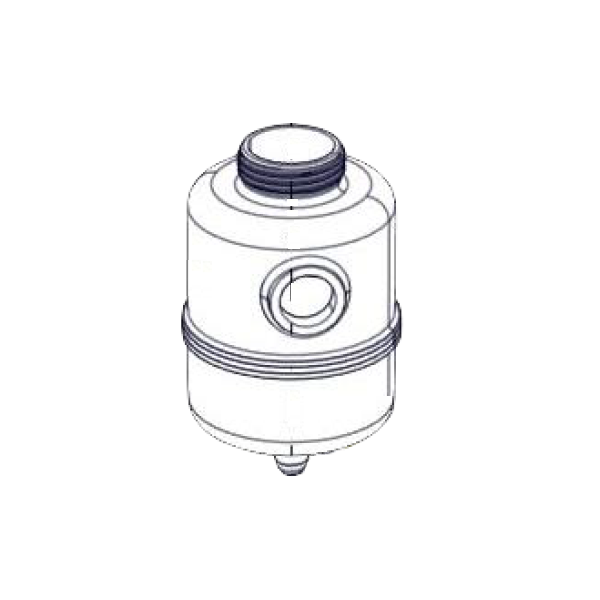

Aluminum PEAL Tank

1C3541068A

1

€364.80 €448.70
31
Oil Level Indicator (Alu 180°C 3/4)

90344293-A

1

€54.84 €67.45
32

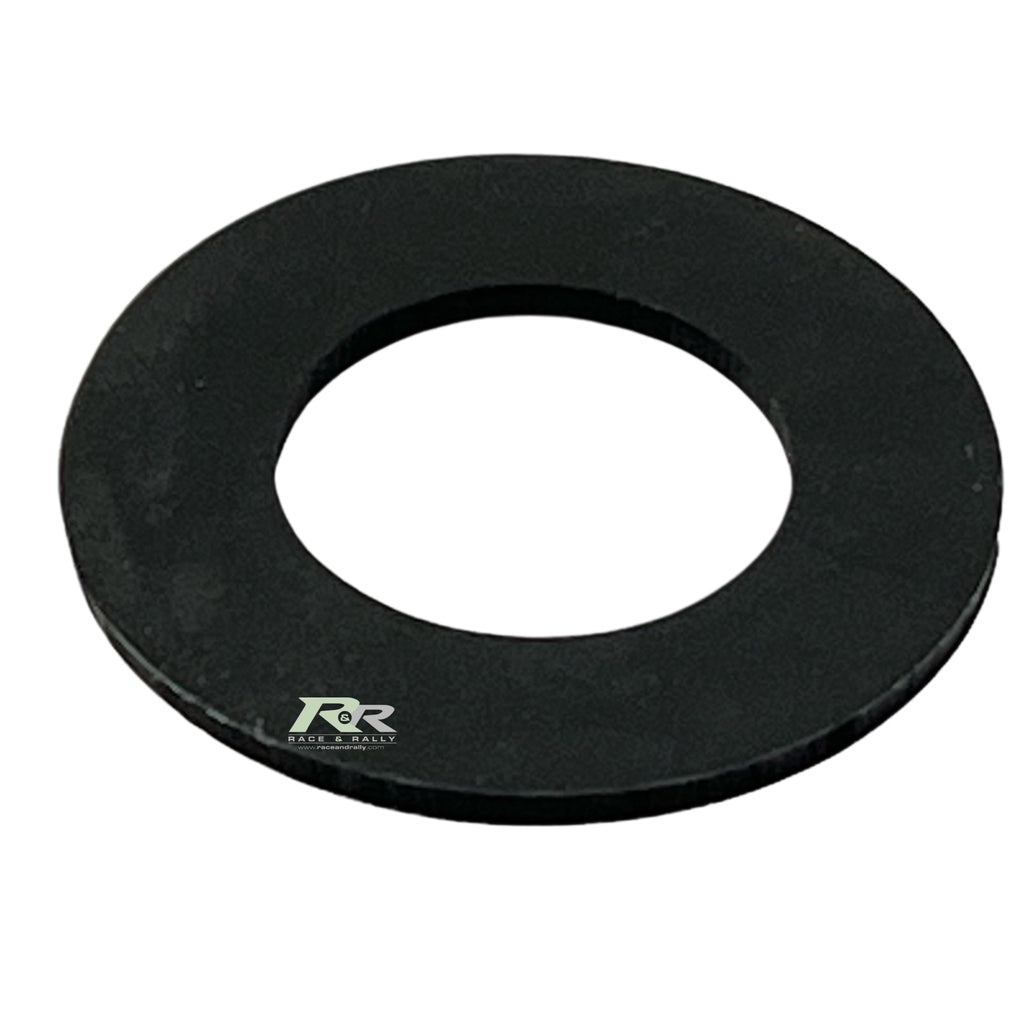

Seal for Tank Cap

1E4242411A

1

€6.31 €7.76
33

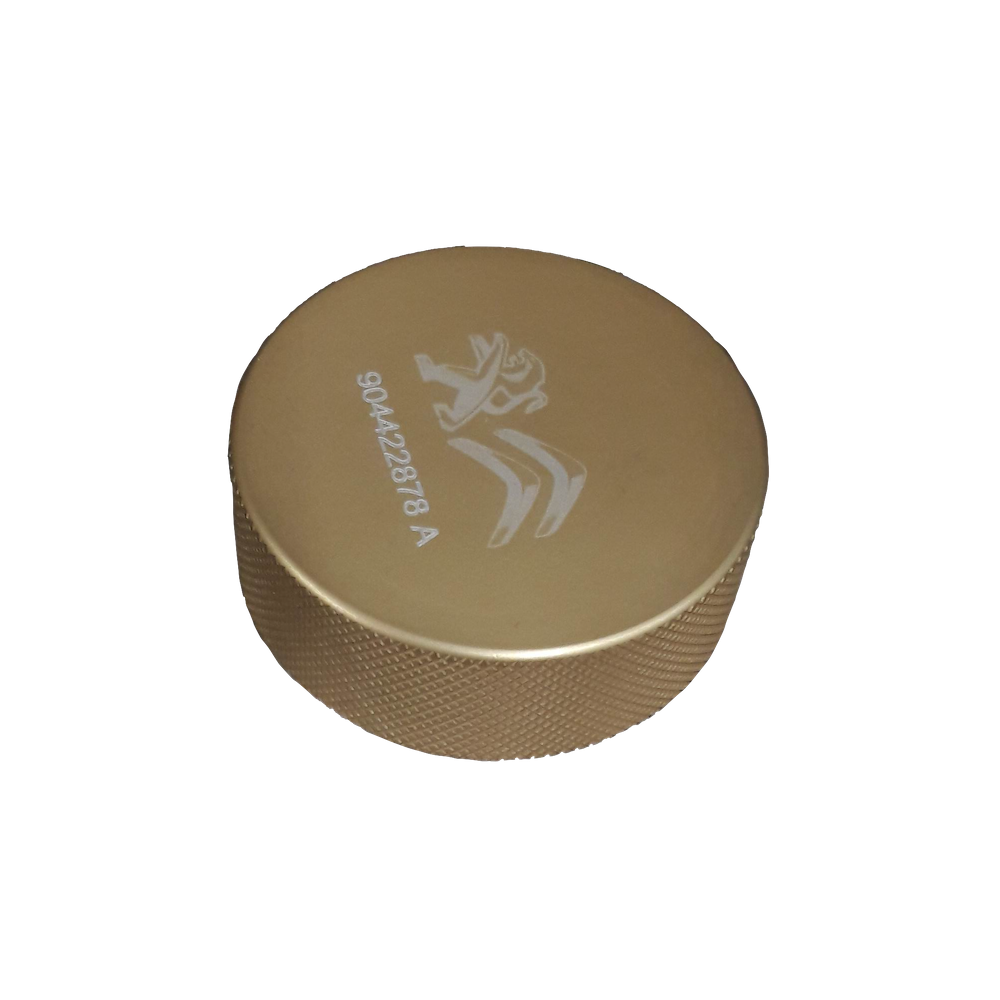

Aluminium Tank Cap

1E4242287A

1

€168.35 €207.07
34
Screw M6x12

PS82119A10

3

€0.25 €0.31
35
Total LDS Hydraulic Fluid 1L

1615099680

1

€19.80 €24.35
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
