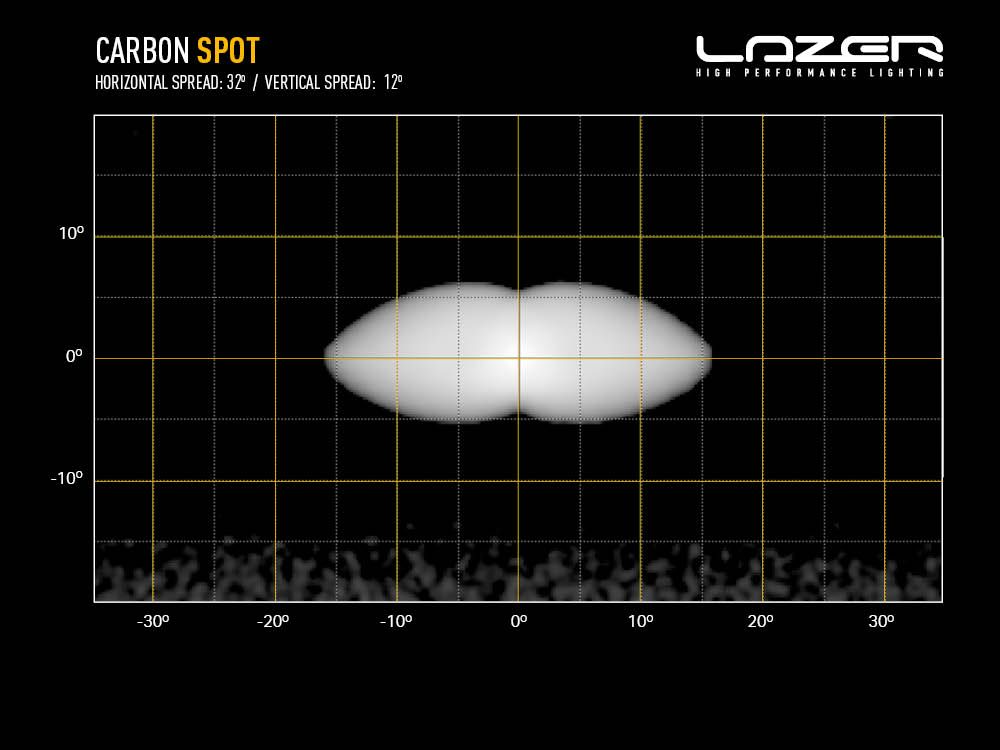

The latest generation of Carbon-2 LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products delivers more light, less weight, and greater functionality, now with the added benefits of UNECE Reg149 approval, making this a superior motorsport and on-road lighting solution. Available as ‘SPOT’ or ‘DRIVE’ beam pattern, each light can operate in three modes:

• HIGH BEAM - BOOST MODE (100% output)

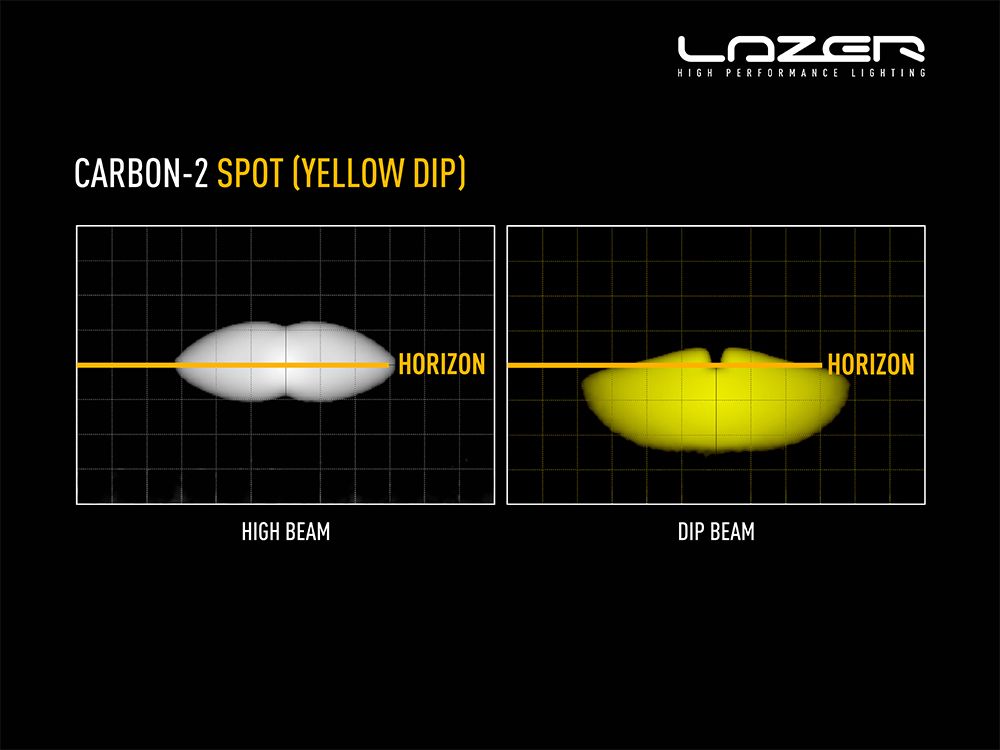

• DIP BEAM (100% output, aimed lower)
• HIGH BEAM - REDUCED OUTPUT (25% output)

Since 2025, there is the option for the colour of light on the DIP BEAM to be either white or yellow (separate products), with the yellow dip beam version lamp also featuring white and amber backlight functions. The customer can select the colour of backlight at any time after the lamp is in installed on a vehicle, by flashing the back-light on/off a pre-set number of times. The customer may switch back to the other back-light colour by repeating the sequence of on/off flashing on this function.

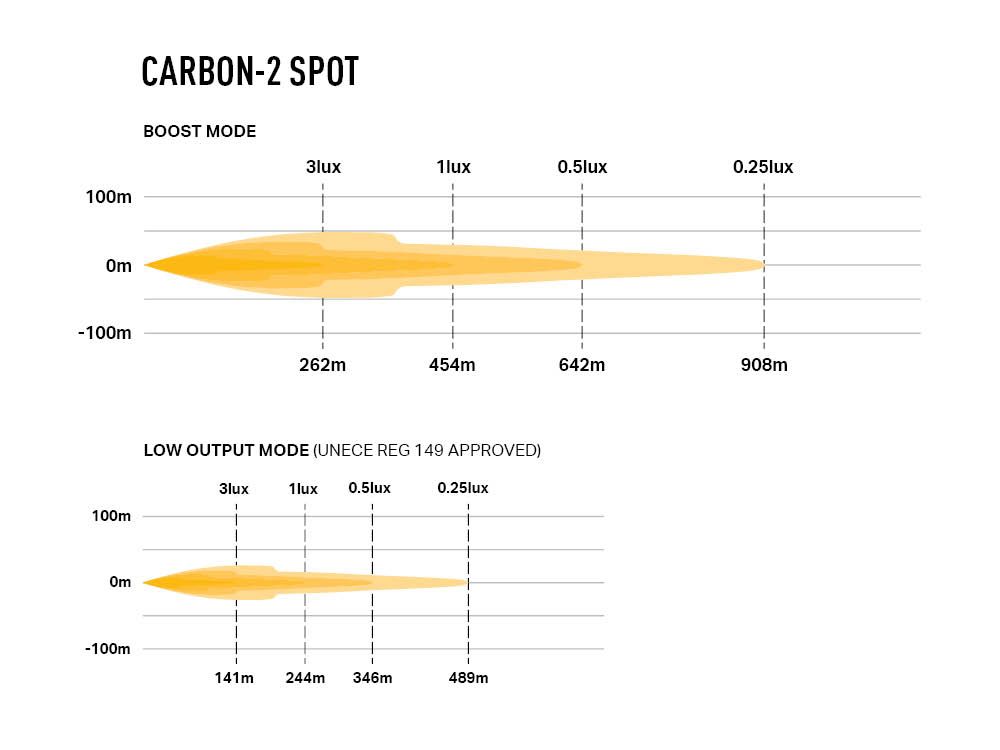

Operating in the High Beam – Boost Mode, the Carbon-2 DRIVE is compliant with UNECE R149 (Class B Driving Light) regulations for on-road high beam use. The high-intensity beam pattern of the Carbon-2 SPOT sits beyond the regulation limit, and is delivered in this high output condition. To operate the Carbon-2 SPOT at the UNECE R149 (Class RA Supplemental Driving Light) compliant light output level (25% output), the customer can ‘program’ the light by flashing the lights off/on a set number of times prior to use. A similar sequence can be used to re-activate high output / boost mode when the lamp is to be used off-road or in countries where the laws of the road permit output above UNECE R149.

The lamp housing is constructed from high-strength and heat-resistant PC-ABS material. Thermal control of the lamp is managed through a CAE-optimised anodised aluminium element, meticulously engineered to maintain full and optimal lighting performance of the LEDs. The result are products weighing just 192g each. Dynamic drive modulation within the lamps, prevents damage to the electronic components in more extreme environmental and thermal conditions.

As with all Lazer products, the Carbon-2 lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product. Additional to the lamps themselves, a range of lens covers is also available, including black and white lens covers for daytime protection.

What's Included:

• x1 Carbon-2 Spot (Yellow Dip)
• x1 Installation Instructions

Downloads:

Carbon-2 (with Yellow Dip) - Lamp Instructions - Lazer Lamps (1.28 MB)

Carbon-2 Spot (with Backlight and Yellow Dip) - Product Information Card (1.62 MB)

ECE Reg 149 - Certificate - for Carbon-2 Spot (425.15 KB)
