• Cluster Casing Assembly - Race and Rally
1 1

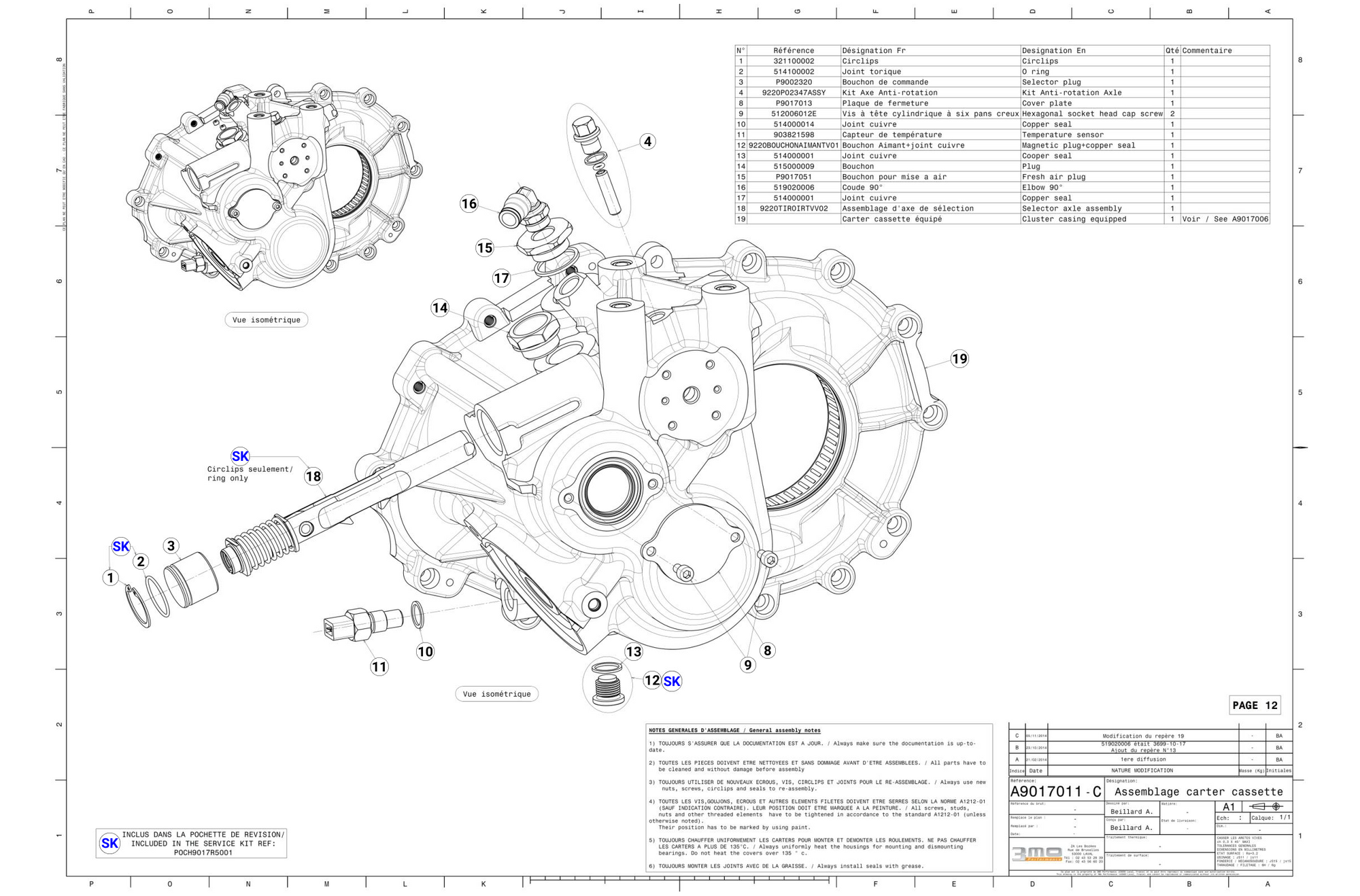

Cluster Casing Assembly

Cluster Casing Assembly

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Ø30 interior circlip

321100002

€0.31 €0.38
2
Ø26.70x1.78 O'ring

514100002

€0.44 €0.54
3
Selector plug

P9002320

€37.60 €46.25
4
EVO anti-rotation axis kit

9220P02347ASSY

€50.82 €62.51
8
Closing plate

P9017013

€6.17 €7.59
9
CHC bolt M6-12 cl.8.8

512006012E

€0.15 €0.18
10
M14 Seal

514000014

€0.66 €0.81
11
Short T° Oil Sensor

3Z9J82159B

2

€93.35 €114.82
12
Magnet Drain Plug & seal

9220BOUCHAIMANTV01

€10.88 €13.38
14
Closing cap 3/4

515000009

€7.59 €9.34
15
Vent plug

P9017051

€43.12 €53.04
16
90º Elbow fitting

519020006

€32.13 €39.52
17
Copper seal

514000001

€1.79 €2.20
18
DS3 R5 Complete Selector Shaft - +0.3

9220TIROIRTVV02

€553.80 €681.17
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
