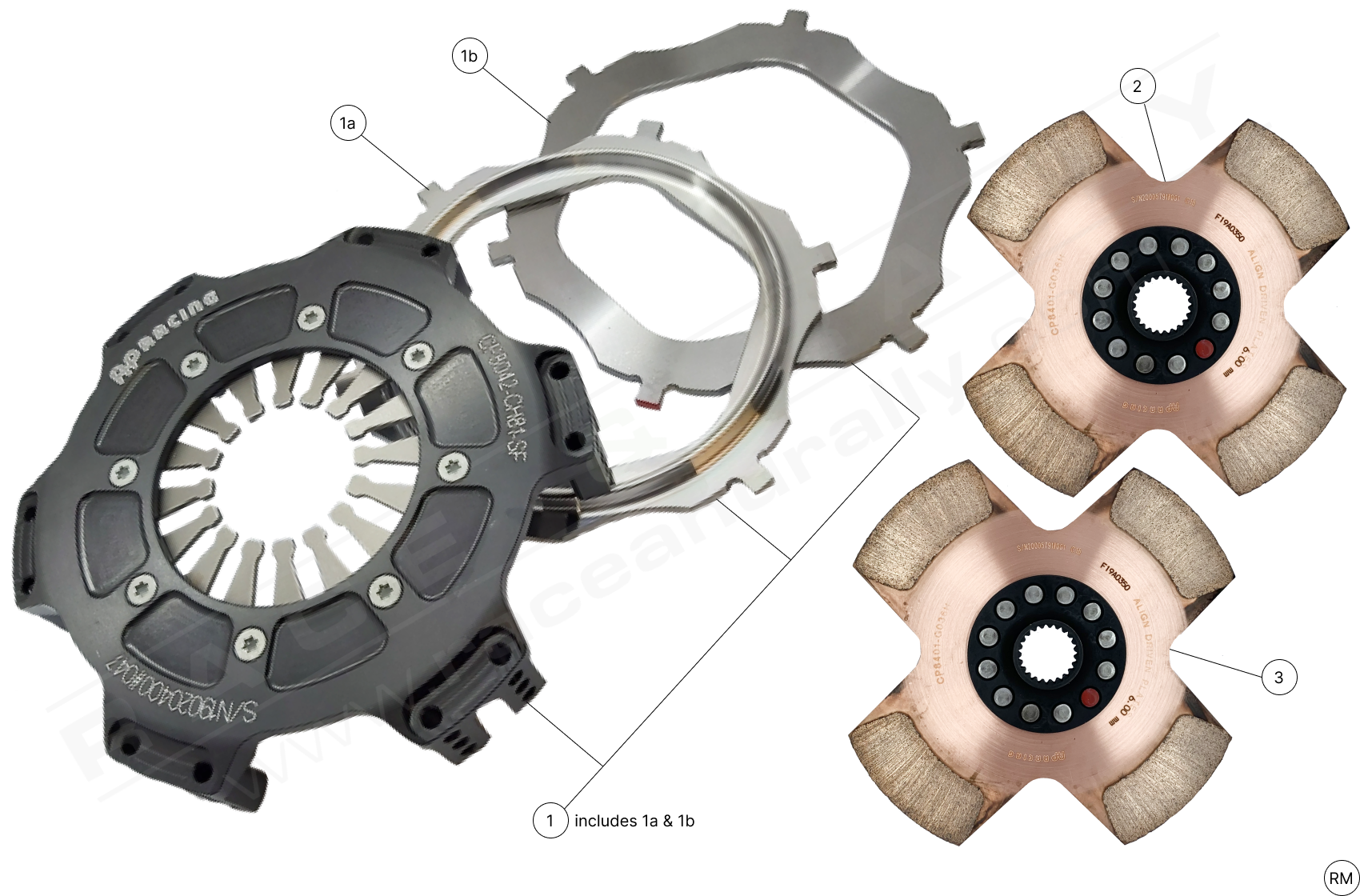

Clutch Assembly - Evo

Clutch Assembly - Evo

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

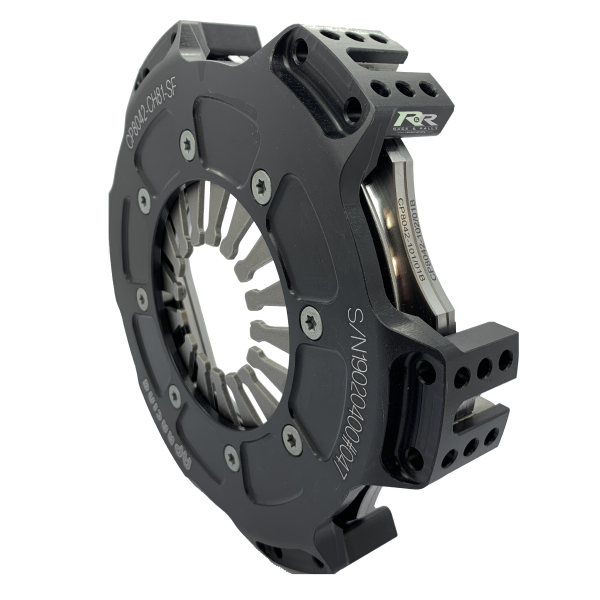

CP8042 - Ø184mm Twin Plate - 'I' Drive Cerametallic Paddle Clutch

CP8042-CH81-SF

1

€1499.40 €1844.26
Alternative
1a

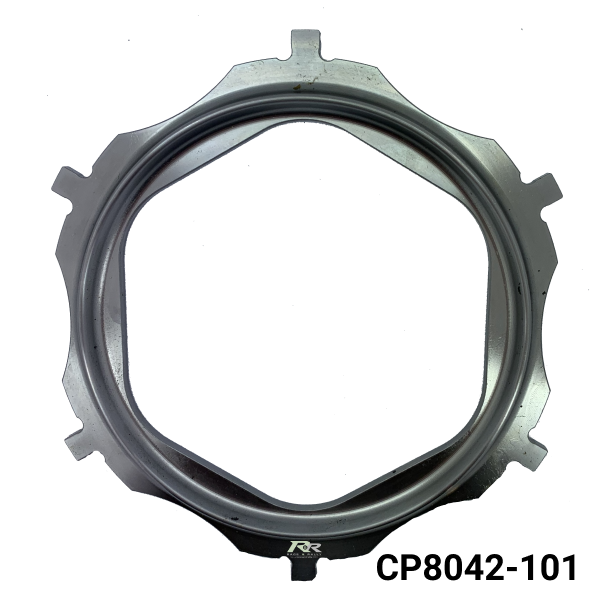

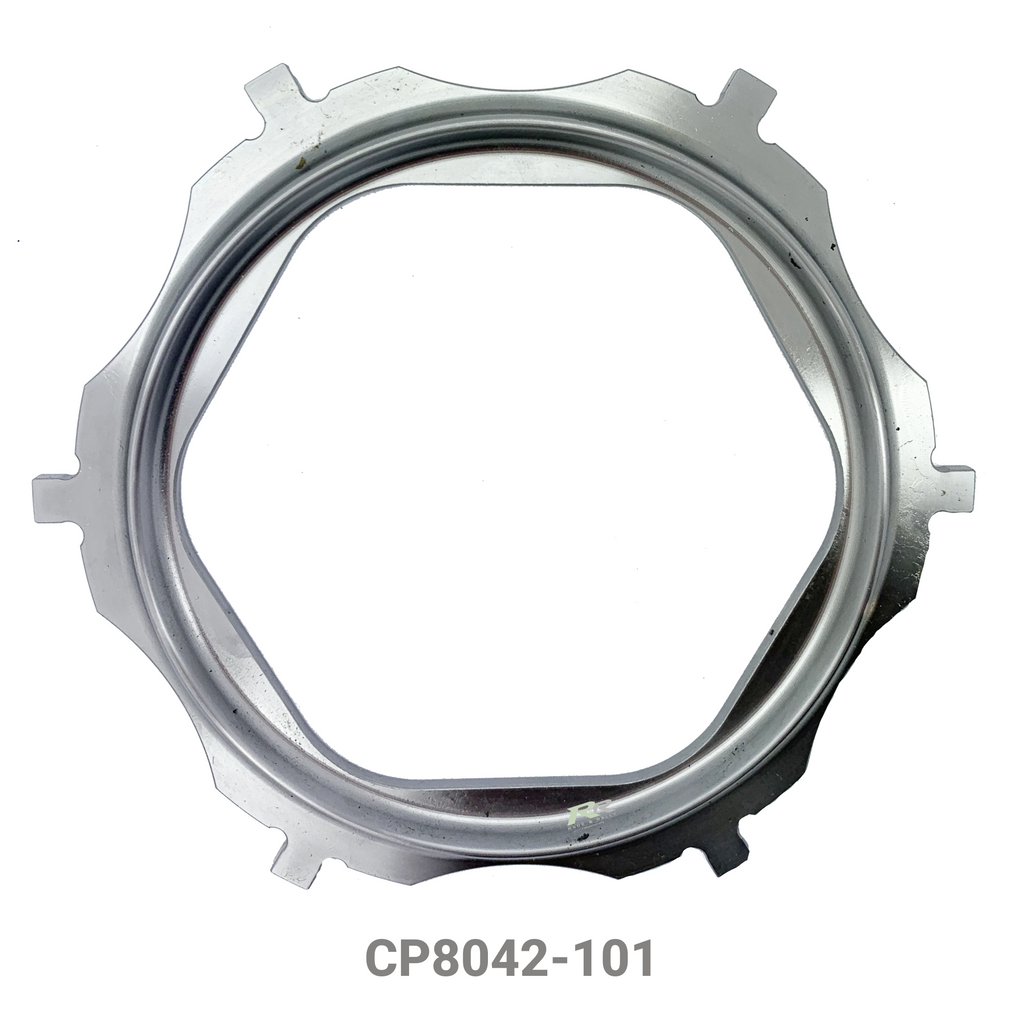

CP8042-101 - Main Pressure Plate

CP8042-101

1

€232.93 €286.50
Alternative
1b

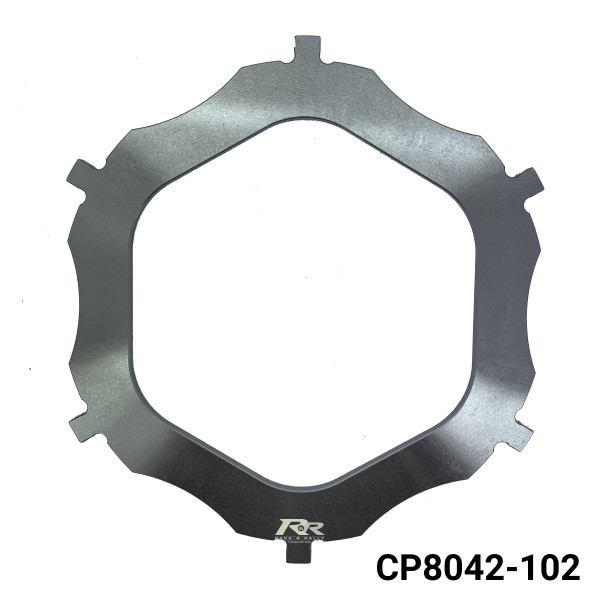

CP8042-102 - Intermediate Pressure plate

CP8042-102

1

€234.83 €288.84
2
Ø184mm x 6.00mm - 4 Paddle Bonded - 1.00"x23 Splines - 14.20mm Hub

CP8401-A036H

1

€257.36 €316.55
3
Ø184mm x 6.00mm - 4 Paddle Bonded - 1.00"x23 Splines - 9.50mm Hub

CP8401-G036H

1

€257.36 €316.55
Alternative
4

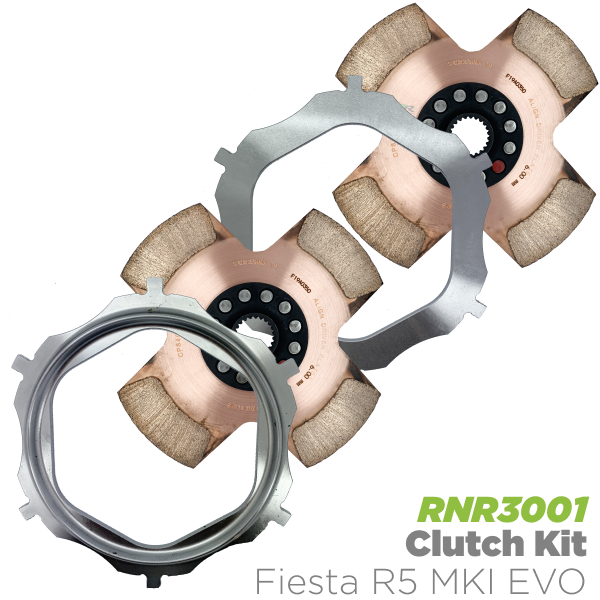

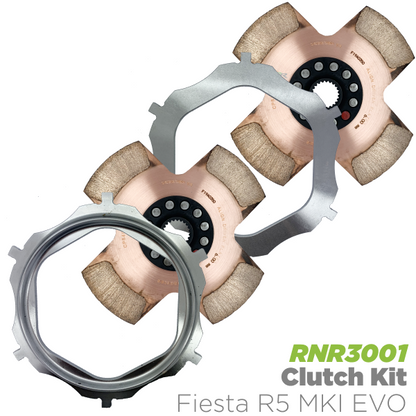

Fiesta R5 MKI EVO - AP Clutch Kit

RNR3001

1

€982.49 €1208.46
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.

AP Racing clutch assembly kit

Compatible Vehicles:

  • M-Sport Ford Fiesta R5 MKI EVO - BV26110001AZ
  • M-Sport Ford Fiesta Rally2 - BV26110001AZ

Contents:

  • Clutch Cover - CP8042-CH81-SF
    • S15110008A
    • Sub Components:
      • CP8042-101 - Main Pressure Plate BV12110277A
      • CP8042-102 - Intermediate Pressure Plate
  • Clutch Disc (Gearbox Side) - CP8401-A036H
    • S12110001A
  • Clutch Disc (Flywheel Side) - CP8401-G036H
    • S12110002A
