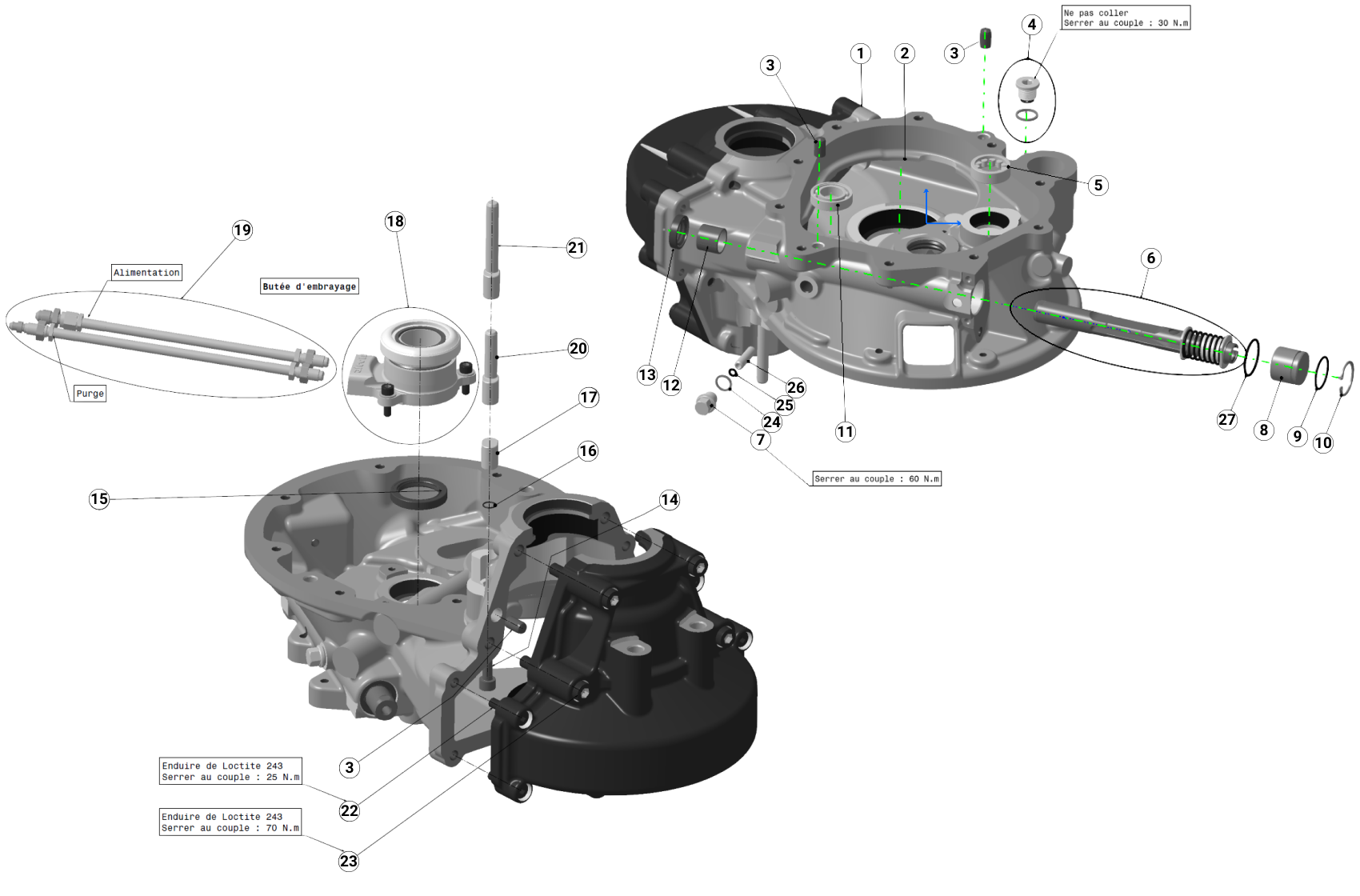

Clutch Housing Without Pump (ETV Gearbox Parts)

Clutch Housing Without Pump (ETV Gearbox Parts)

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
ETV main housing equiped (splash lubrication version)

9220P018003ASSY

1

€1407.64 €1731.40
2
Bearing

101100001

1

€78.82 €96.95
3
D10xL18 pin

513310018

2

€7.92 €9.74
4
Magnet Drain Plug & seal

9220BOUCHAIMANTV01

1

€10.88 €13.38
5
Bearing

101100005

1

€69.60 €85.61
6
TV complete selector shaft

9220TIROIRTVV01

1

€553.80 €681.17
7
Guide Plug

P9002339

1

€26.84 €33.01
8
Selector plug

P9002320

1

€37.60 €46.25
9
Ø26.70x1.78 O'ring

514100002

1

€0.44 €0.54
10
Ø30 interior circlip

321100002

1

€0.31 €0.38
11
Ball bearing

101000005

1

€27.29 €33.57
12
Bearing

102000001

1

€3.87 €4.76
13
Double lip seal - Ø20x30x7

514500002

1

€6.29 €7.74
14
CHC bolt M8-20 cl.8.8

512008020E

1

€0.56 €0.69
15
Double lip seal - 32x45x7

514600001

1

€23.05 €28.35
16
O-Ring Seal

514200006

1

€0.39 €0.48
17
Motor Fixing Plug

P9018008

1

€34.88 €42.90
18

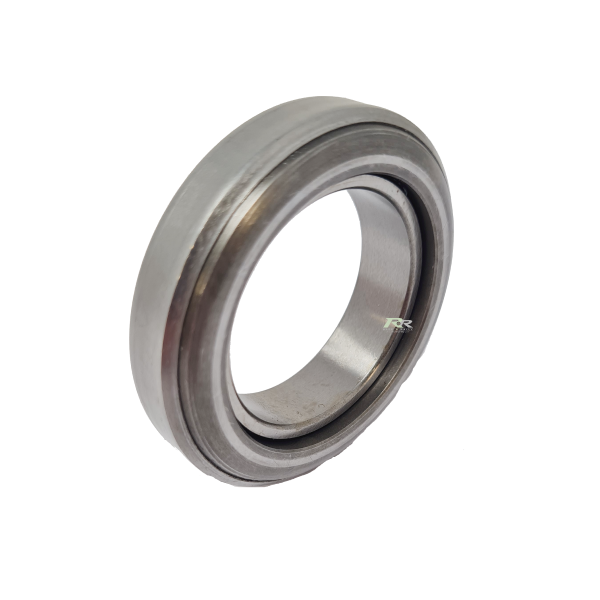

Hydraulic Release Bearing - Ø52mm

KRB5240X001

1

€129.94 €159.83
18
Complete slave cylinder with Ø52 bearing

KSA5213FX001

1

€572.59 €704.29
18

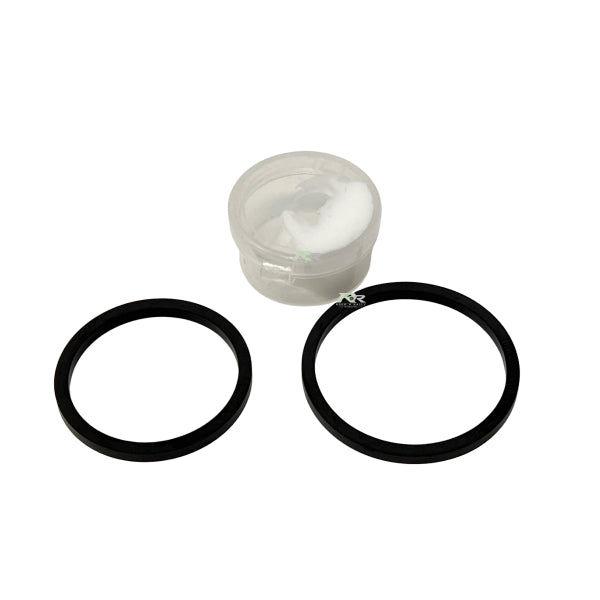

Hydraulic Slave Cylinder Seal Kit

SSK5035E601

1

€47.20 €58.06
19
Feeder tubes

519020004

1

€67.55 €83.09
20
Option: TU and F4R/F7R Stud

P9018007

1

€94.55 €116.30
21
Option: TU and F4R/F7R Long Stud

P9018015

1

€138.27 €170.07
22
CHC bolt M8-30 cl.12.9

512008030C

5

€0.82 €1.01
24
Copper Seal

514000012

1

€0.61 €0.75
25
Ø4.20 o'ring

514210009

1

€0.52 €0.64
26
Anti-rotation Axis

P9002347

1

€18.07 €22.23
27

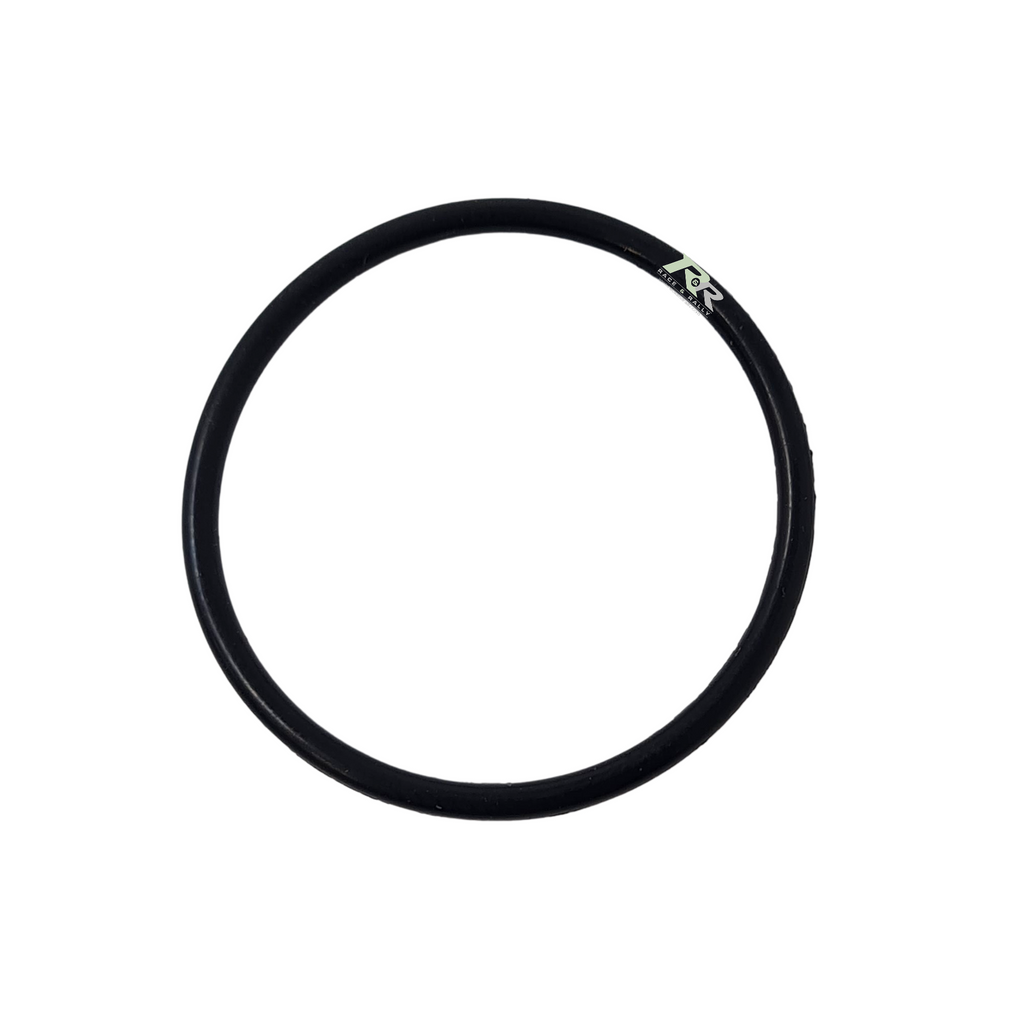

O-Ring Seal

514100031

1

€0.92 €1.13
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
