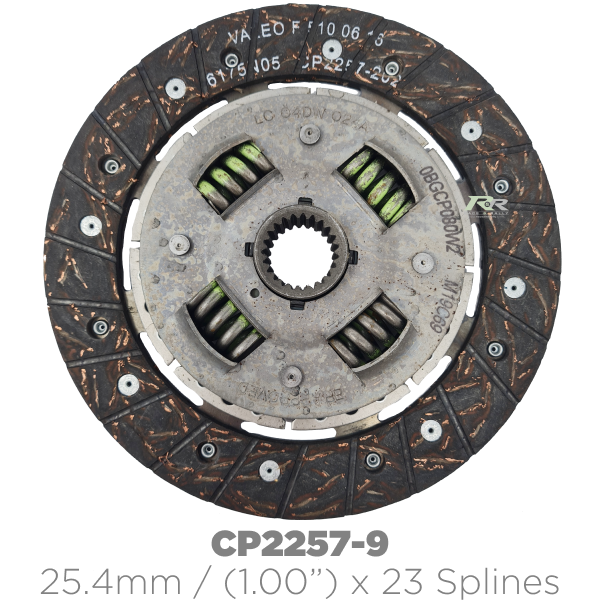

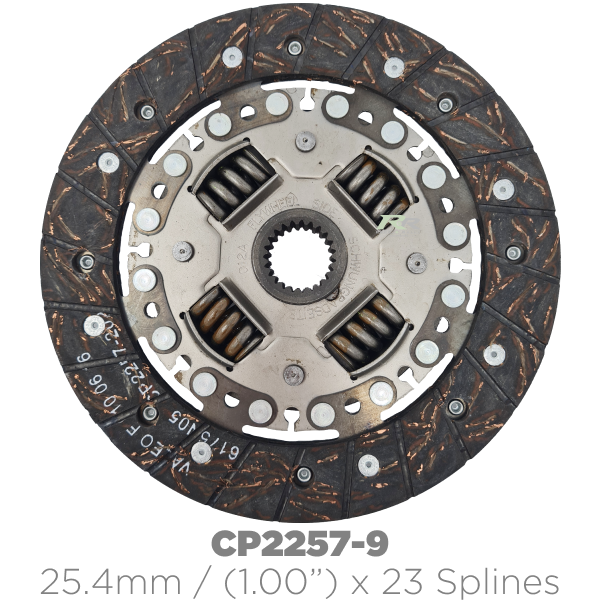

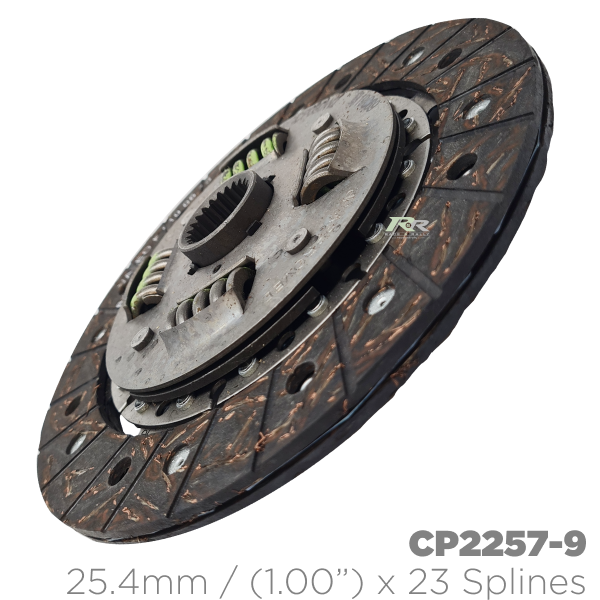

This driven plate design features an adaptor plate and retainer plate that are riveted together with shouldered stop pins. Located between them in slots in the hub flange are damper springs arranged radially around the hub center. The hub can rotate within the specific limits to compress the springs thus smoothing out any torsional fluctuations in the driveline. Damping is provided by friction washers fitted between the hub, retainer, and adaptor plate.

TECHNICAL SPECIFICATIONS:

• Organic
• Spring Centered
• Organic Non Backed design
• Ø190mm
• 7.11mm Thickness New
• Range of spline sizes available

APPLICATIONS:

• Fast Road

SPLINE DETAILS:

• CP2257-9
• 23 Splines
• Ø1.00"
• 27.80mm Hub Profile

COMPATIBLE CLUTCH ASSEMBLIES:

• CP3748
• CP3764
