AP Racing Air Jacks are designed to be both lightweight and reliable, they are used by many teams and manufacturers in Sport Cars / Touring Cars plus many other series around the world.

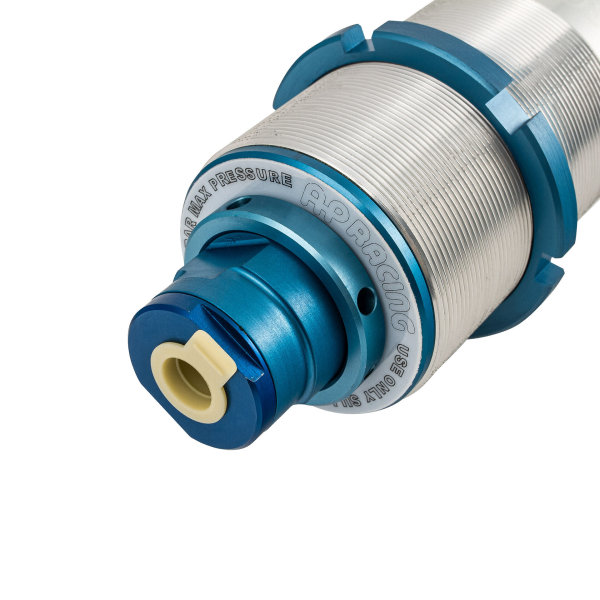

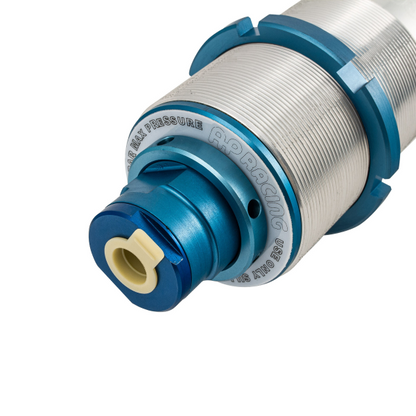

Available, with or without a built in exhaust valve which can be throttled to adjust speed of descent. A range of accessories including safety props, lances & connectors are also available.

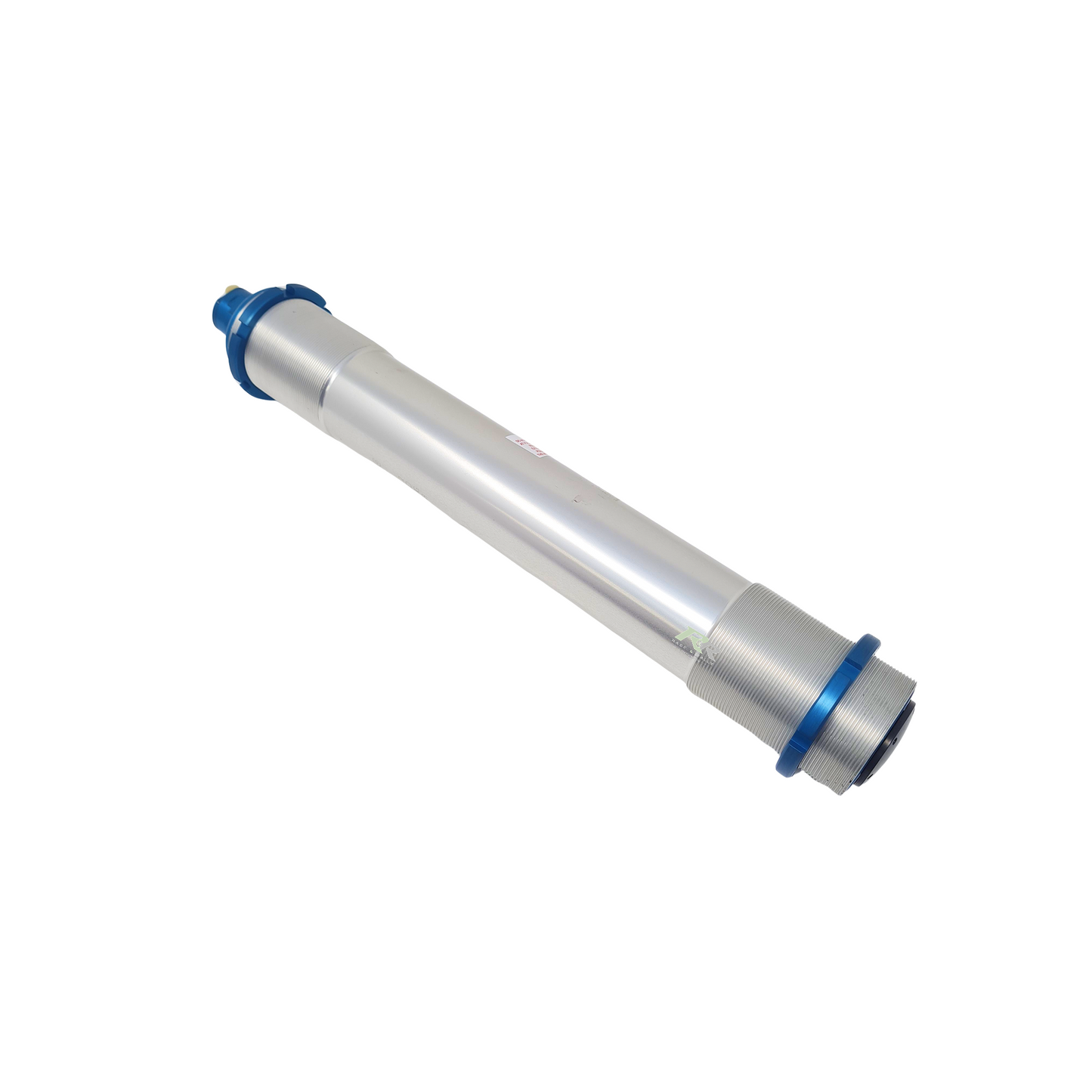

CP3985 is the "Standard" air jack that has a compression spring rather than the conventional tension return spring with an Aluminium Alloy foot. This makes the air jack faster and more efficient in operation.

• Lift Capacity: 675 Kg
• Max. Operating Pressure: 30 Bar
• Bore Size: Ø54mm
• Inlet Port: M14 x 1.5 (internal)

IMPORTANT NOTICE: Do not exceed the recommended operating pressure of 30 Bar.

Options Available:

- 150mm Stroke

• Safety Prop: CP3985-15

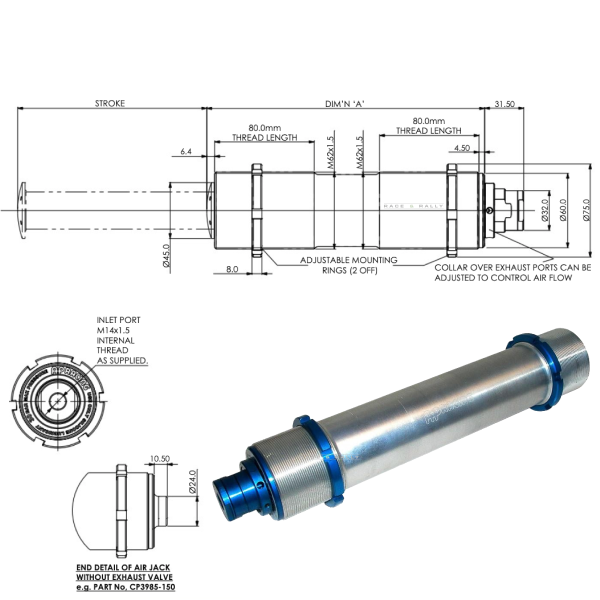

• Dimension 'A': 224mm
• Weight:
• CP3985-150 - with Aluminium foot: 0.83 Kg
• CP3985-150EV - with Aluminium foot & exhaust valve: 0.88 Kg

- 230mm Stroke

• Safety Prop: CP3985-23
• Dimension 'A': 325mm
• Weight:
• CP3985-230 - with Aluminium foot: 1.07 Kg
• CP3985-230EV - with Aluminium foot & exhaust valve: 1.12 Kg

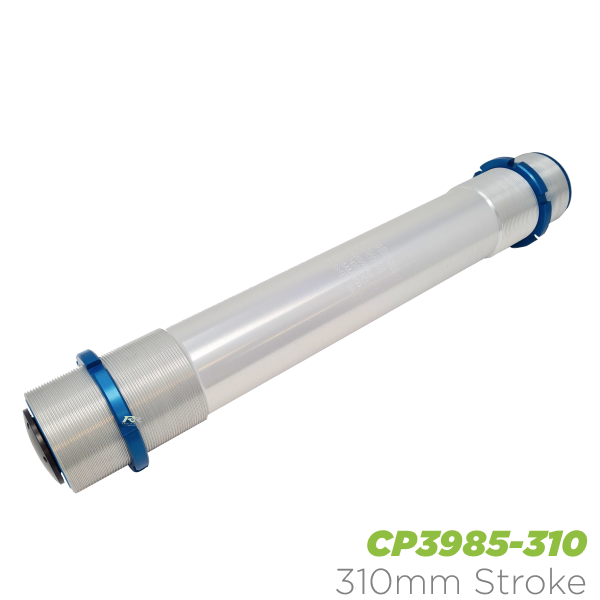

- 310mm Stroke

• Safety Prop: CP3985-31
• Dimension 'A': 425mm
• Weight:
• CP3985-310 - with Aluminium foot: 1.34 Kg

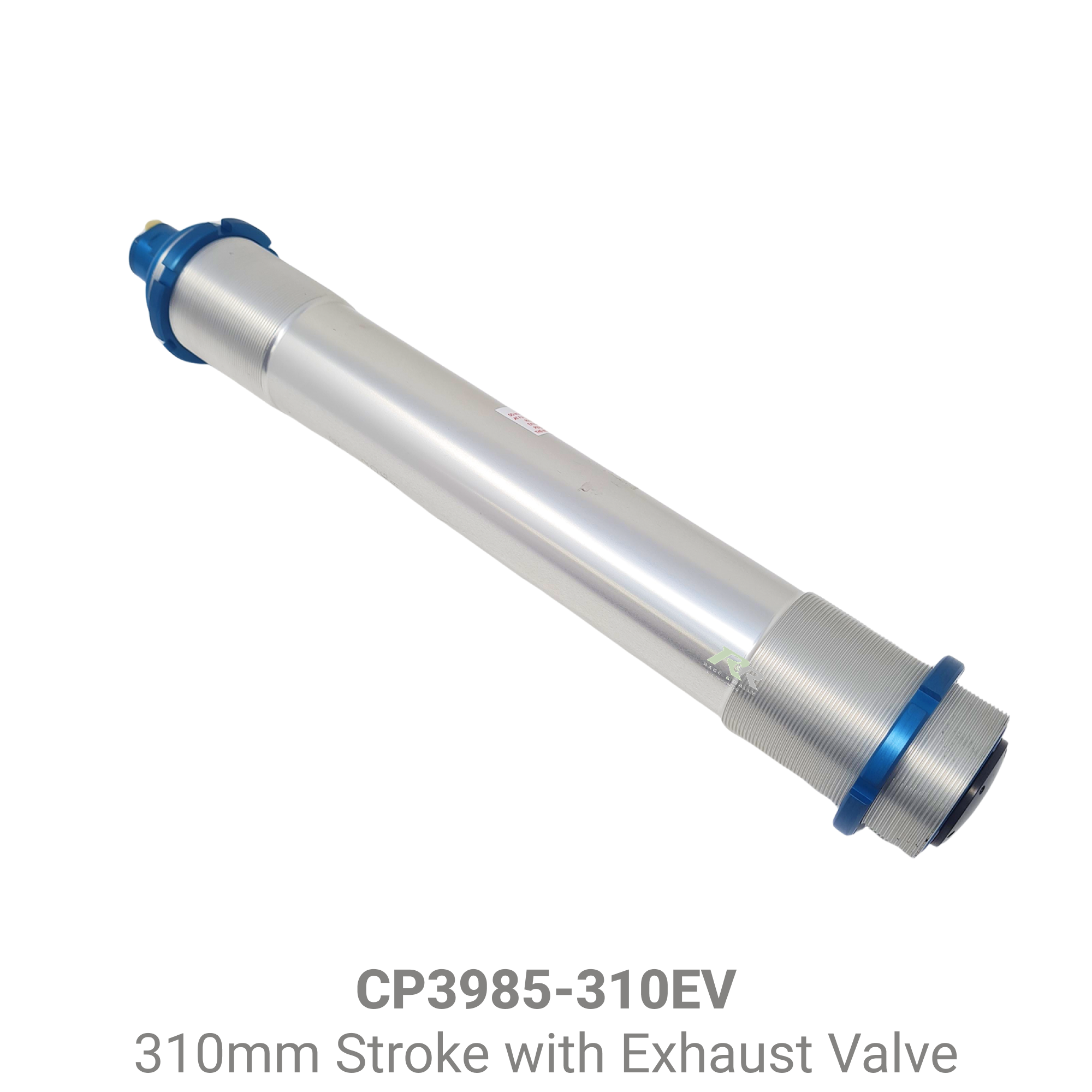

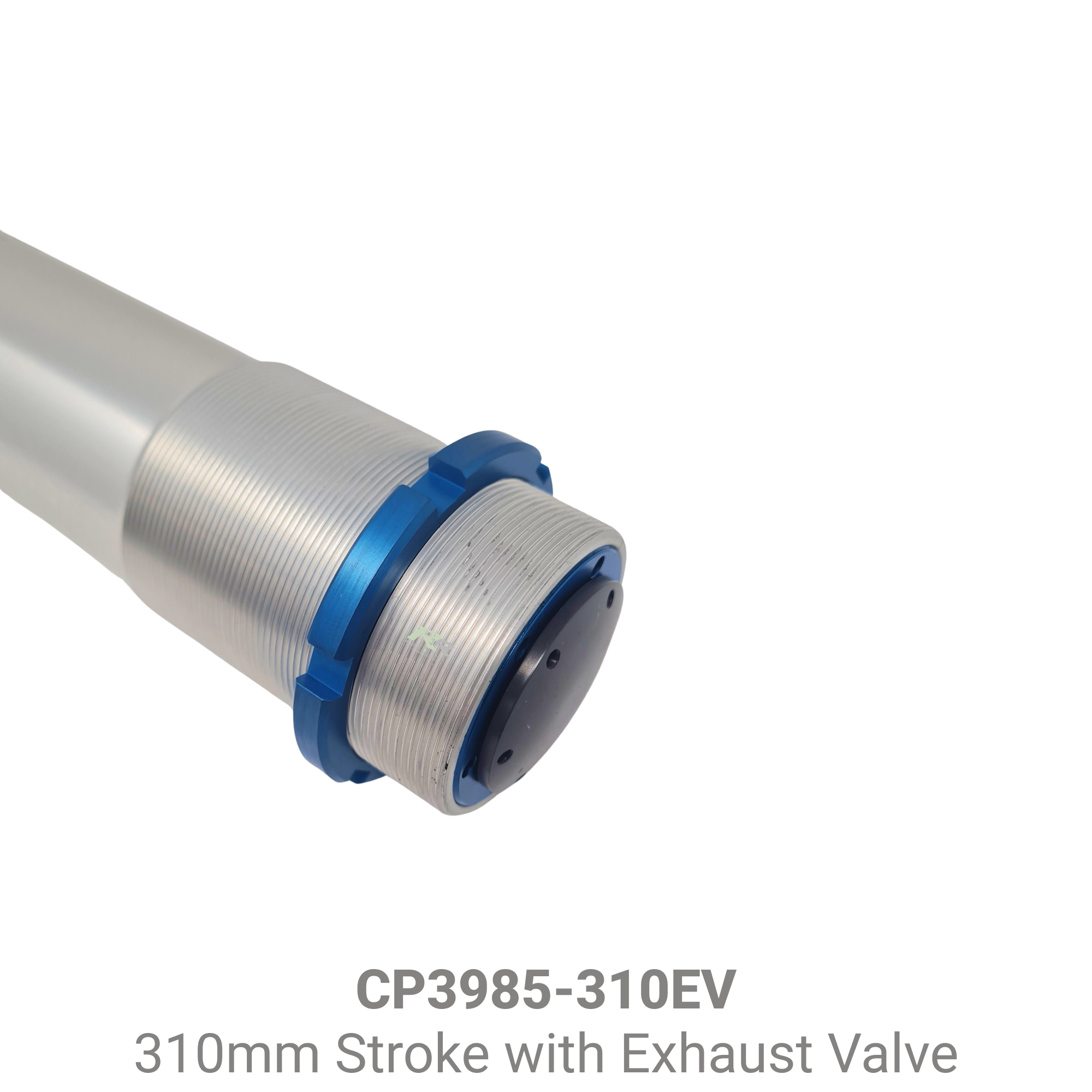

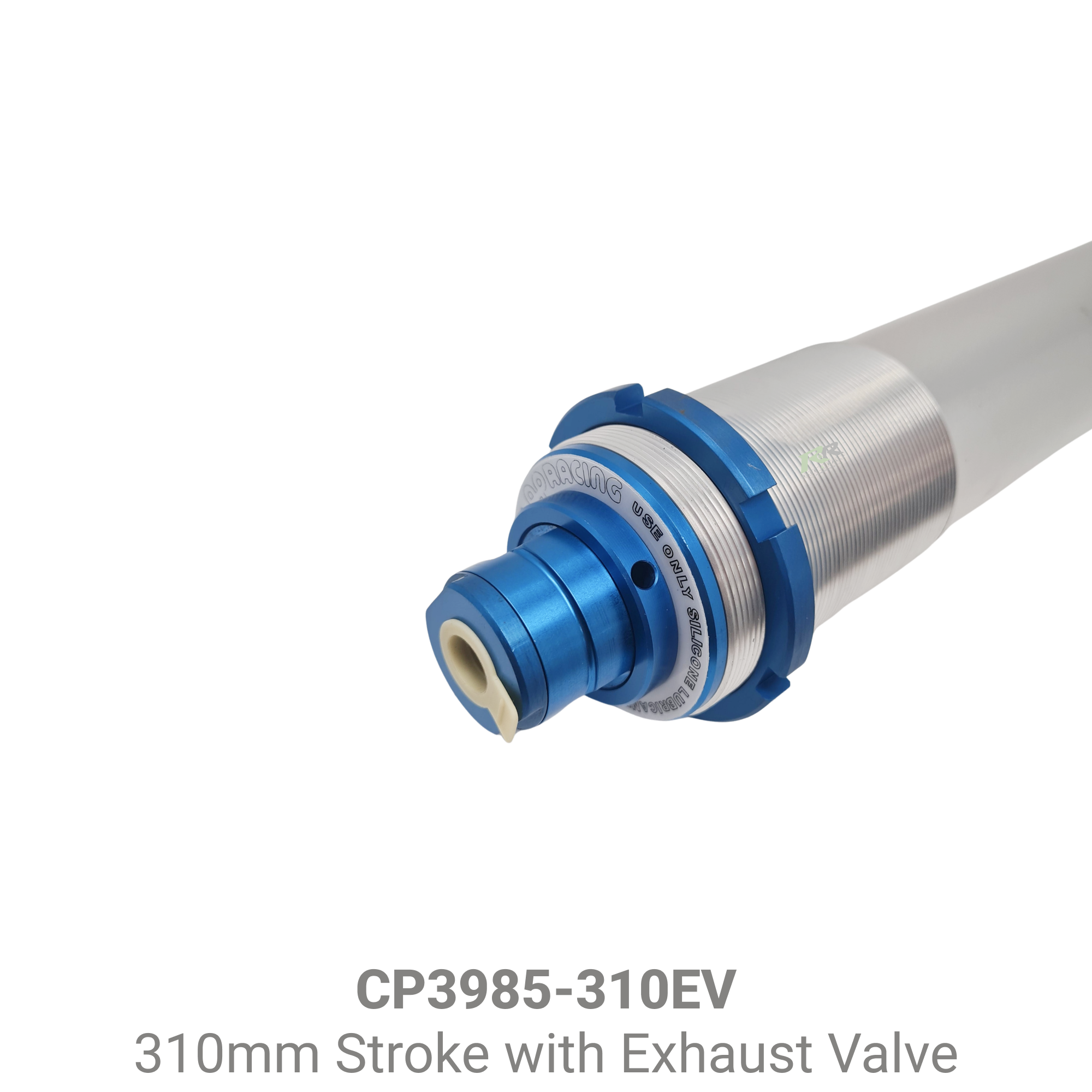

• CP3985-310EV - with Aluminium foot & exhaust valve: 1.39 Kg

Spare Parts & Accessories

• Repair Kit:
• with exhaust valve: CP3985-1RK
• without exhaust valve: CP3985-11RK
• Mounting Ring: CP2820-110
• M14 to -06 JIC/UNF adaptor: CP3985-144
• Lance: CP6116-15
• Lance Connector: CP6116-4
• Lance Valved Connector: CP6116-3
• Stainless steel foot replacement for Aluminium part: CP3985-149
• Replacement Aluminium Foot: CP3985-103
