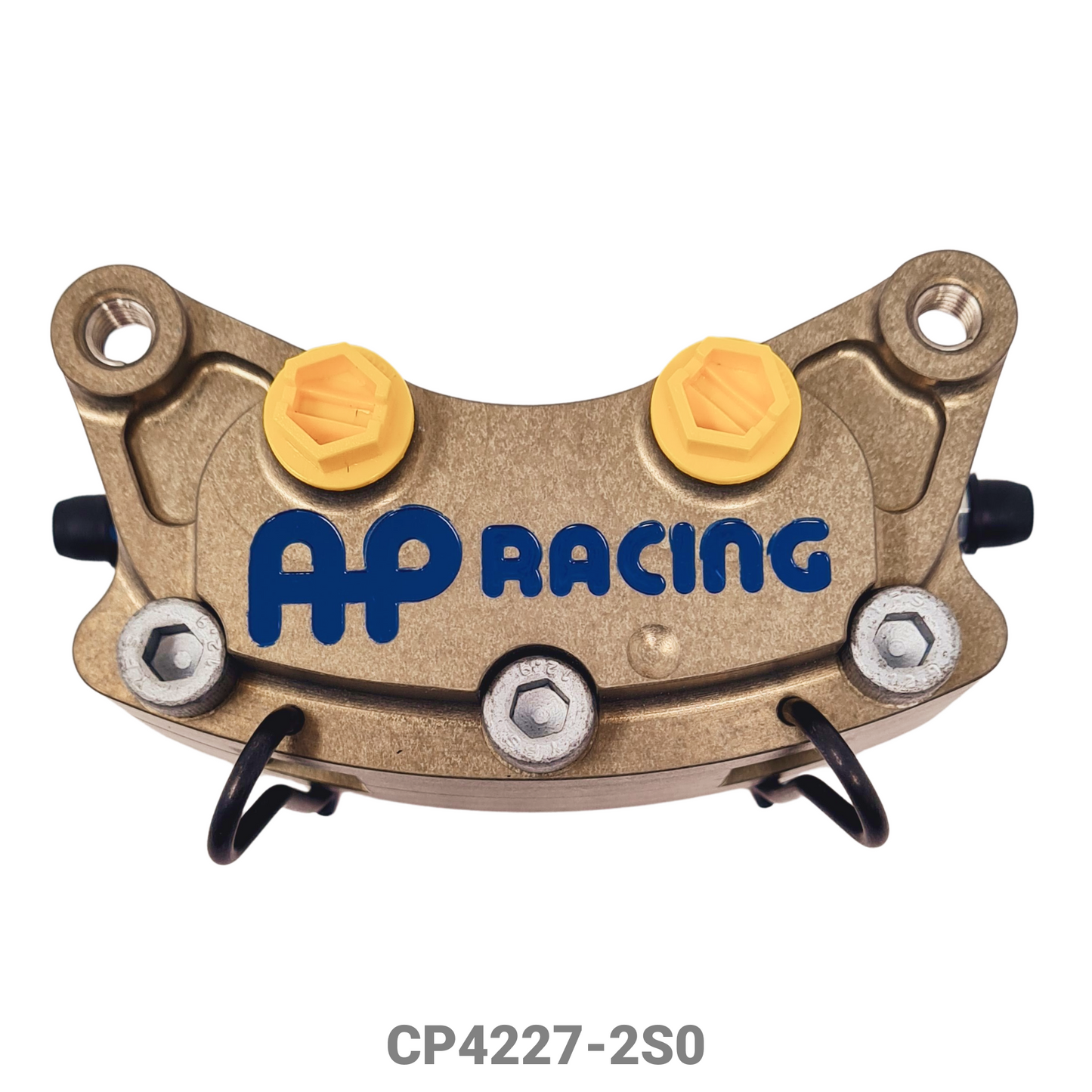

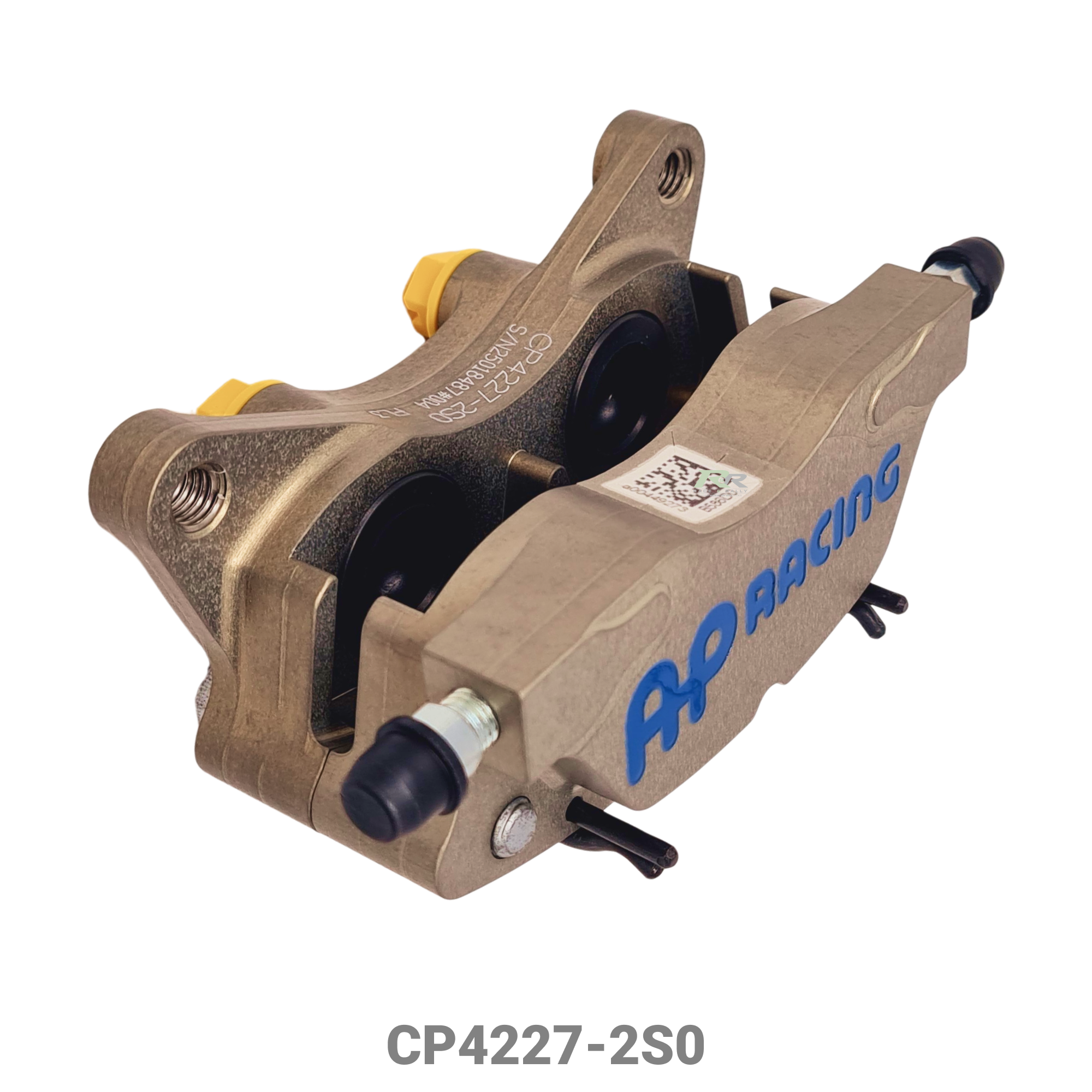

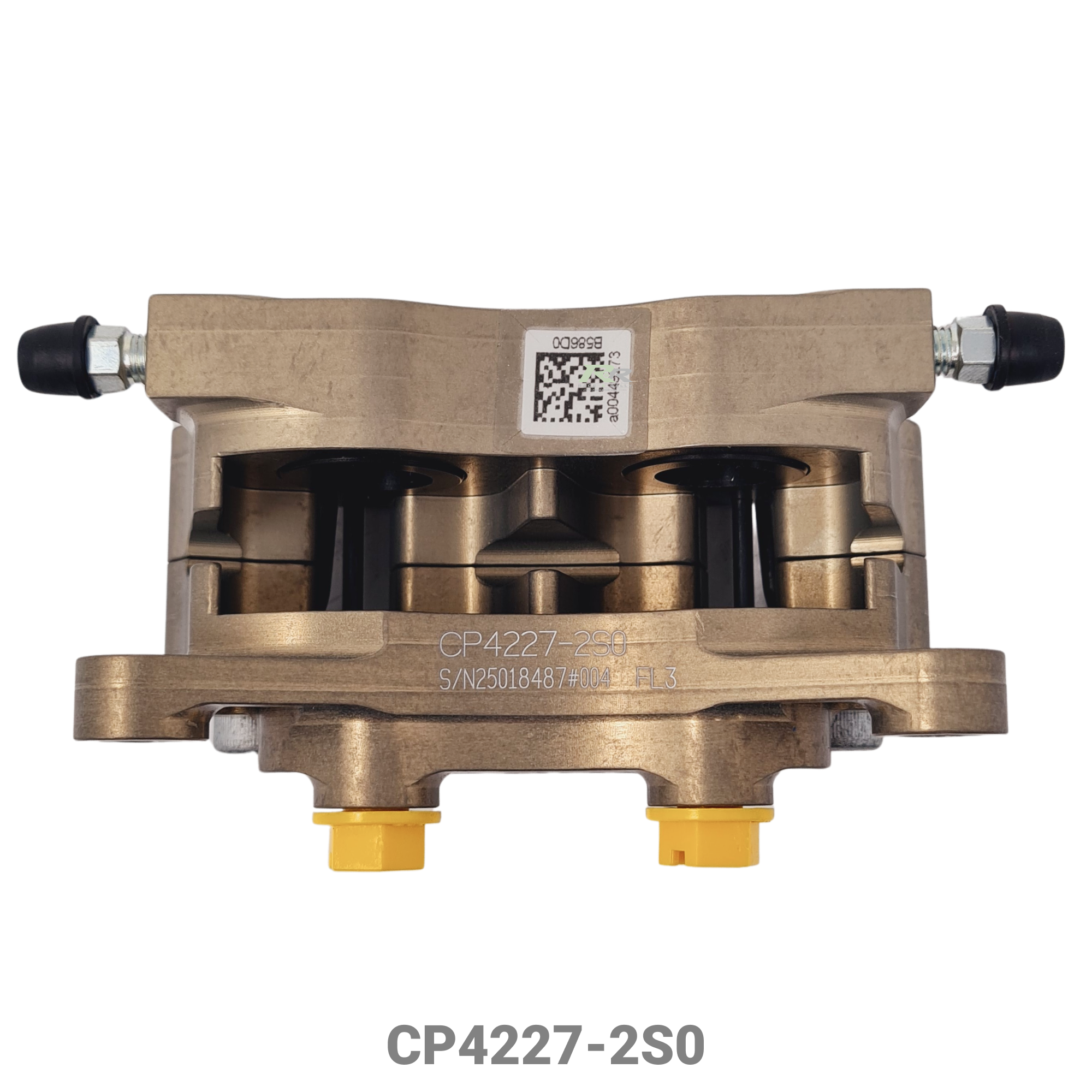

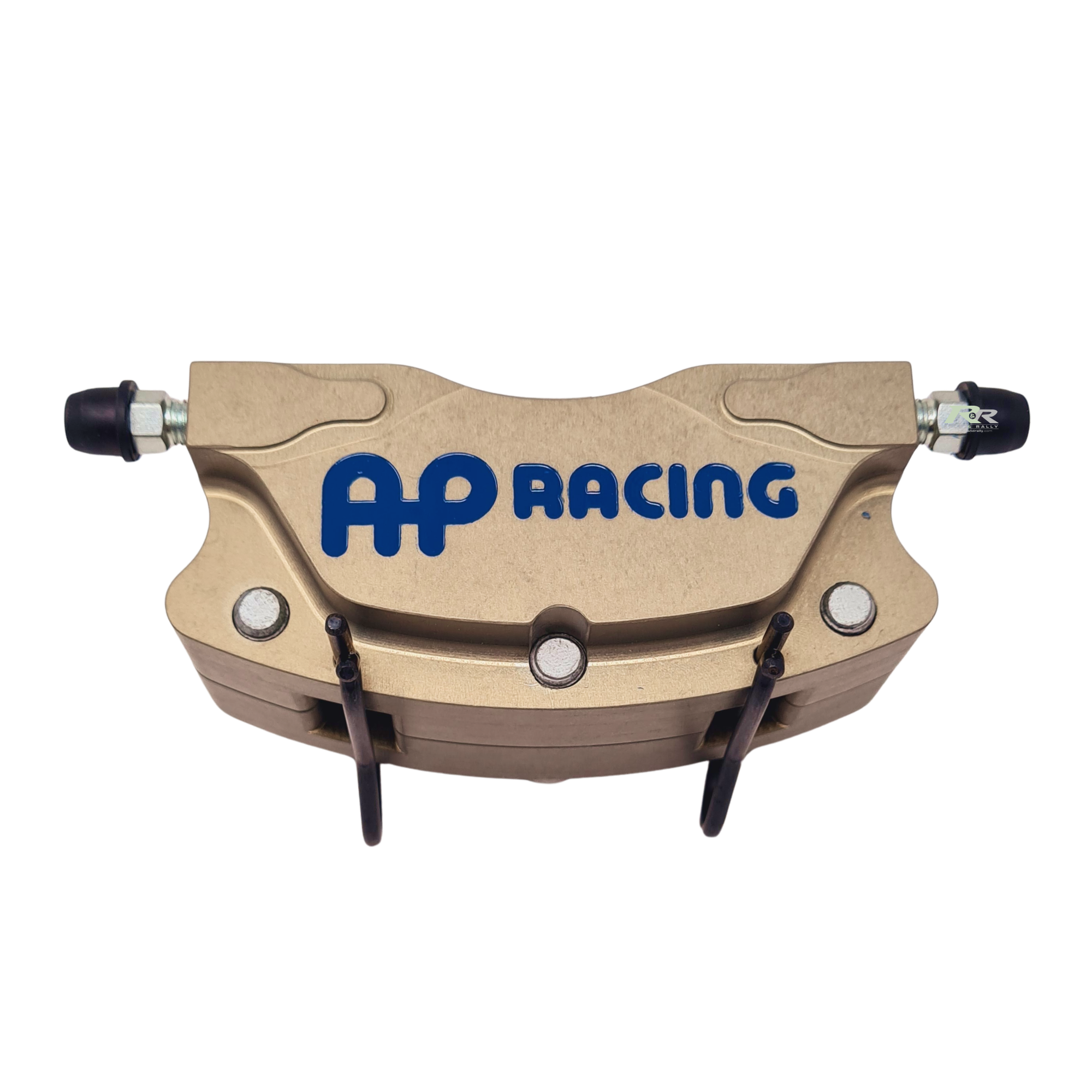

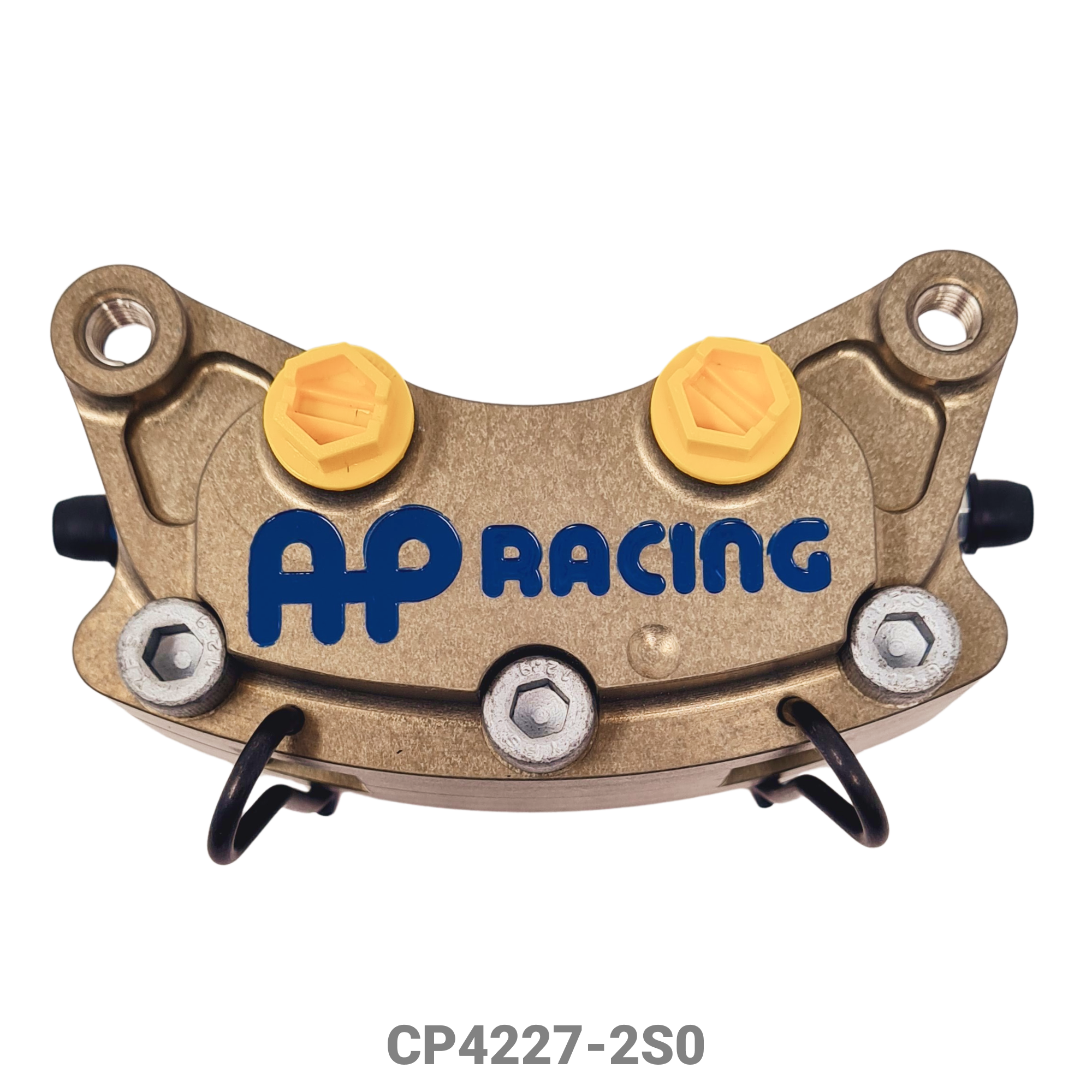

CP4227 - Dual Circuit 4 Piston Motorcycle Caliper

CP4227 - Dual Circuit 4 Piston Motorcycle Caliper

SKU:CP4227-2S0

Regular price €703.07 €864.78
Sale Sold out
  • Feature Icon 4 Piston
  • Feature Icon Dual Circuit
Piston Diameter
Caliper Hand
View Docs

Out of stock, contact for leadtime

View full details

4 Piston Dual Circuit Motorcycle Caliper
- CP4227-2S0

Applications:

  • Grand Prix
  • Superbike
  • Road

Features:

  • Dual circuit caliper designed to allow the use of both a foot and a thumb master cylinder (CP4225)
  • Aluminium alloy body and pistons
  • Machined from billet
  • Lightweight, low deflection
  • Hard anodised surface treatment

Part Numbers:

  • CP4227-2S0

Technical Specifications:

 Piston Sizes Ø25.4mm x4
Piston Area 20.2cm²
Disc Diameter Max - 220mm
Disc Thickness Max - 4.0mm
Weight (no pads) 0.5 Kg
Hydraulic Threads M10 x 1.0
Mounting Type Lug
Mounting Centres 96.0mm
Mounting Offset 26.5mm
Mounting Threads M8 x 1.25
Bleed Screw Tightening Torque 5.5Nm



Spare Parts

Pistons CP4226-103 x4
Seal Repair Kit CP4518-AA
Pad Retainer CP4226-104 x2
Bleed Screw CP4469-101



Brake Pads

Pad Shape CP4226D27
CP4226D27-RX

Pad Area 22.4cm²
Pad Depth 38.4mm
Thickness 10.5mm
Brand AP Racing
Option SKU Barcode
Ø25.4mm / Non-Handed CP4227-2S0


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
