CP4702 - M8 & 5/16" UNF Clutch Mounting Stud Series

CP4702 - M8 & 5/16" UNF Clutch Mounting Stud Series

CP4702-400MK(06)

€271.20 €333.58
Sale Sold out
  • Feature Icon M8 x 1.00 Metric Thread or 5/16" x 20 UNF Thread
  • Feature Icon Offset head flats
  • Feature Icon necked down shanks
  • Feature Icon Available in packs of 1 - 6 - 8 - 12
  • Feature Icon K-Lock Nuts included
View full details

AP Racing offer a complete range of clutch mounting studs for all of the Carbon/Carbon and Sintered/Cerametallic Race Clutches.

The stud design incorporates offset head flats for location, necked down shanks and precision ground location diameters.

**Note: All kits come complete with relevant K-lock nuts

Thread Options

  • M8 x 1.0 Metric

  • 5/16" x 24 UNF

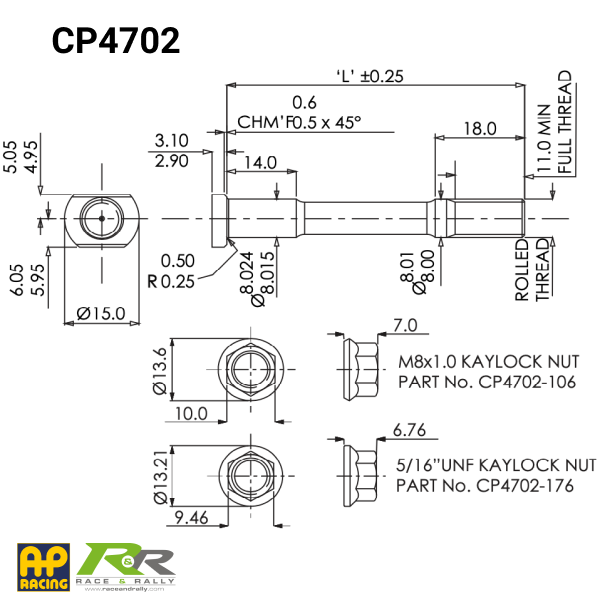

CP4702 - Schematic Drawing

CP4702

CP4702 - Part Numbers

CP4702

Brand AP Racing
Options SKU Barcode
6 / M8 x 1.0 / 40.00mm CP4702-400MK(06)
6 / M8 x 1.0 / 42.50mm CP4702-425MK(06)
6 / M8 x 1.0 / 47.50mm CP4702-475MK(06)
6 / M8 x 1.0 / 50.00mm CP4702-500MK(06)

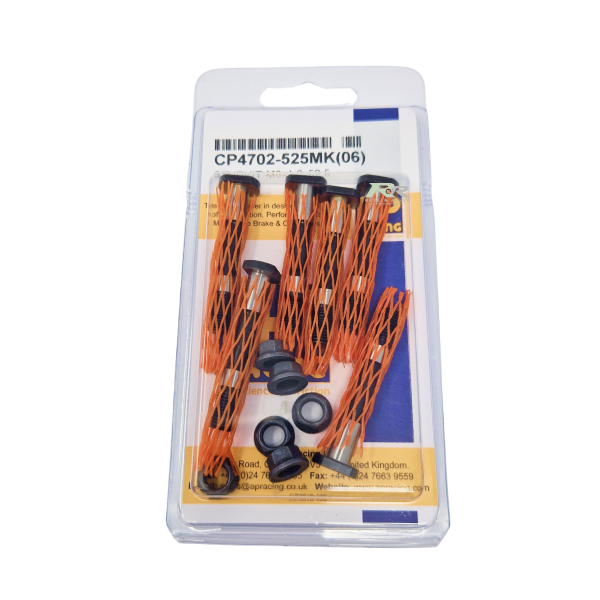

6 / M8 x 1.0 / 52.50mm CP4702-525MK(06)
6 / M8 x 1.0 / 55.00mm CP4702-550MK(06)
6 / M8 x 1.0 / 57.50mm CP4702-575MK(06)
6 / M8 x 1.0 / 60.00mm CP4702-600MK(06)
6 / M8 x 1.0 / 65.00mm CP4702-650MK(06)
6 / M8 x 1.0 / 67.50mm CP4702-675MK(06)
6 / 5/16" x 24 UNF / 40.00mm CP4702-400UK(06)
6 / 5/16" x 24 UNF / 45.00mm CP4702-450UK(06)
6 / 5/16" x 24 UNF / 47.50mm CP4702-475UK(06)
6 / 5/16" x 24 UNF / 50.00mm CP4702-500UK(06)

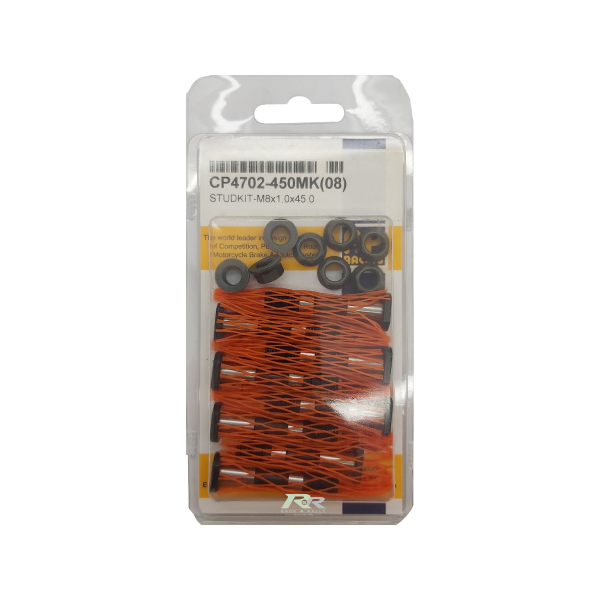

8 / M8 x 1.0 / 45.00mm CP4702-450MK(08)
8 / M8 x 1.0 / 57.50mm CP4702-575MK(08)
8 / M8 x 1.0 / 65.00mm CP4702-650MK(08)
8 / M8 x 1.0 / 67.50mm CP4702-675MK(08)
8 / M8 x 1.0 / 70.00mm CP4702-700MK(08)
12 / M8 x 1.0 / 50.00mm CP4702-500MK(12)
12 / M8 x 1.0 / 55.00mm CP4702-550MK(12)
12 / M8 x 1.0 / 60.00mm CP4702-600MK(12)
12 / M8 x 1.0 / 62.50mm CP4702-625MK(12)
12 / M8 x 1.0 / 65.00mm CP4702-650MK(12)
12 / M8 x 1.0 / 77.50mm CP4702-775MK(12)
12 / 5/16" x 24 UNF / 47.50mm CP4702-475UK(12)
12 / 5/16" x 24 UNF / 55.00mm CP4702-550UK(12)
1 (Single Pack) / M8 x 1.0 / 45.00mm CP4702-450M
1 (Single Pack) / M8 x 1.0 / 47.50mm CP4702-475M
1 (Single Pack) / M8 x 1.0 / 50.00mm CP4702-500M
1 (Single Pack) / M8 x 1.0 / 52.50mm CP4702-525M
1 (Single Pack) / M8 x 1.0 / 60.00mm CP4702-600M
1 (Single Pack) / 5/16" x 24 UNF / 42.50mm CP4702-425U
1 (Single Pack) / 5/16" x 24 UNF / 45.00mm CP4702-450U
1 (Single Pack) / 5/16" x 24 UNF / 52.50mm CP4702-525U
