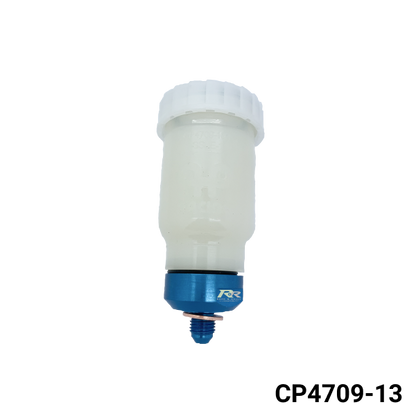

  • CP4709 - Fitted

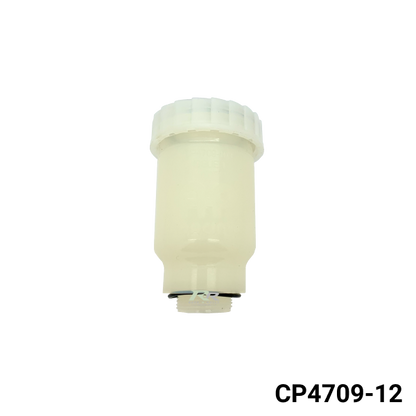

  • CP4709-12

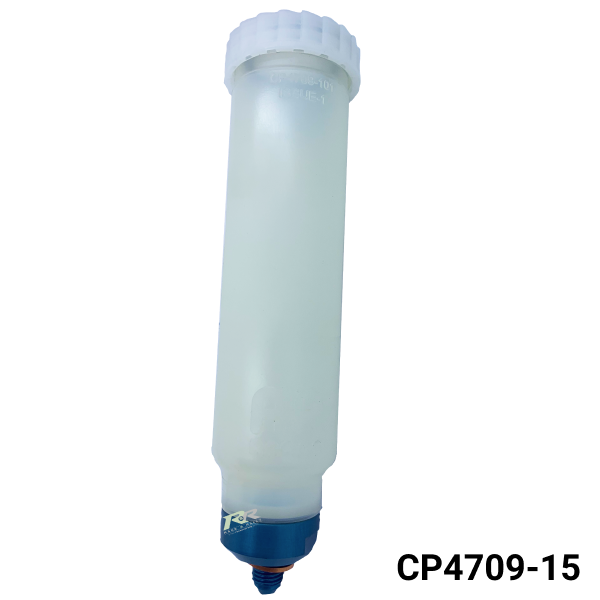

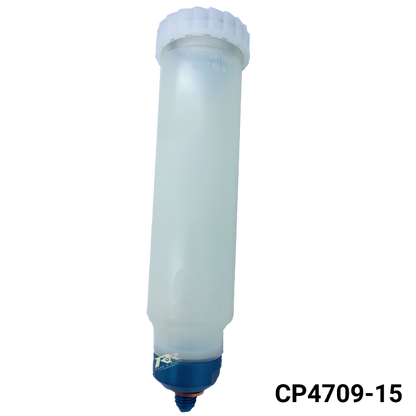

  • CP4709-15
1 5

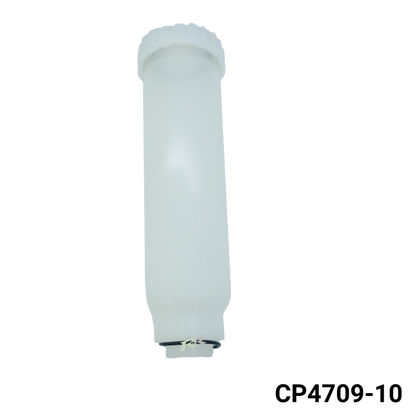

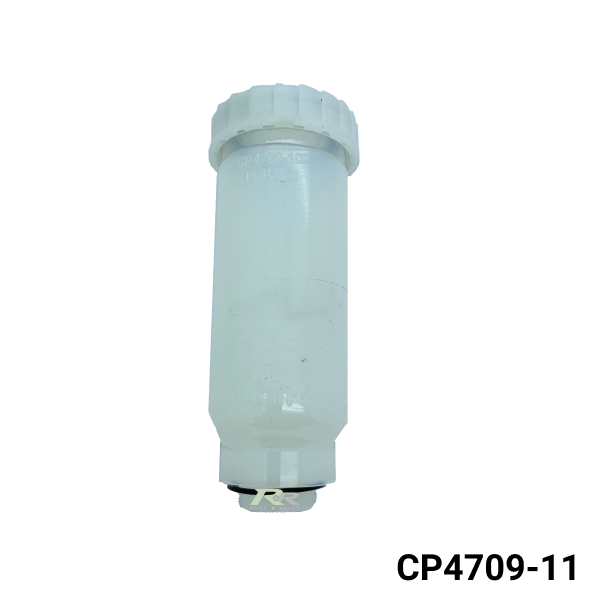

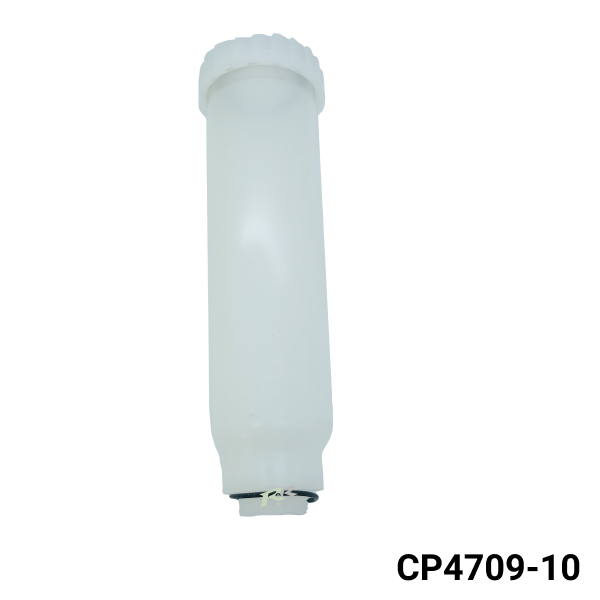

CP4709 - Small Diameter Fluid Reservoirs

CP4709 - Small Diameter Fluid Reservoirs

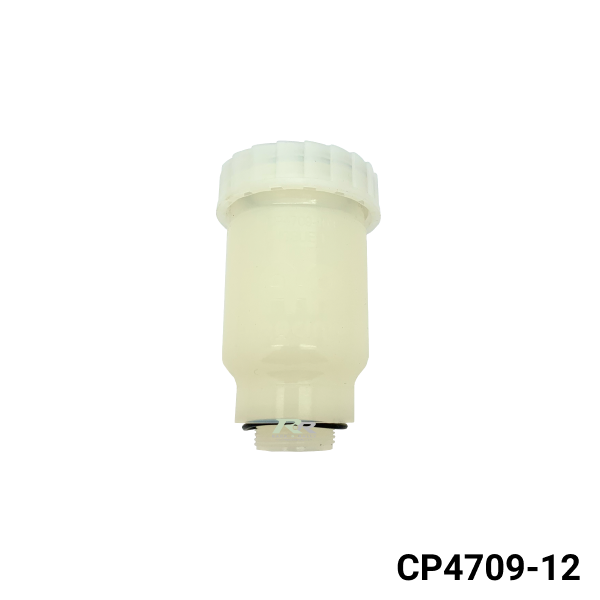

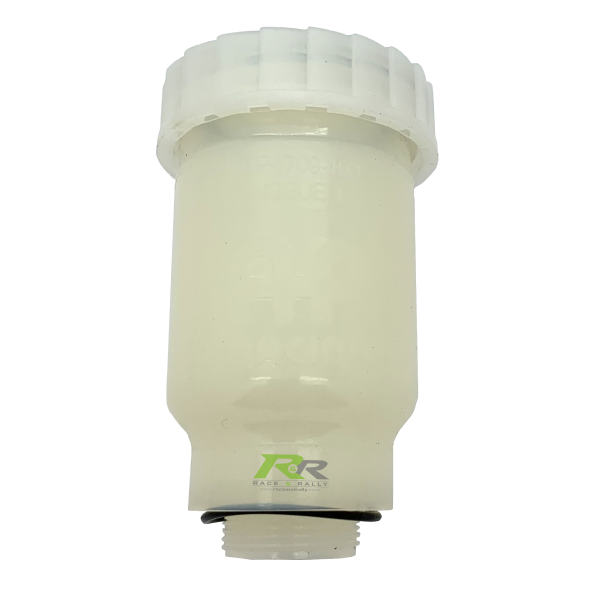

CP4709-12

€33.60 €41.33
Sale Sold out
  • Feature Icon Small Diameter
  • Feature Icon Central Outlet
  • Feature Icon O-Ring seal supplied
  • Feature Icon Remote or Direct Fit Options
Reservoir Fitment
Reservoir Volume
Thread Size

View Docs View full details

A small diameter plastic reservoir with central outlet which can be screwed directly into a master cylinder.

Features

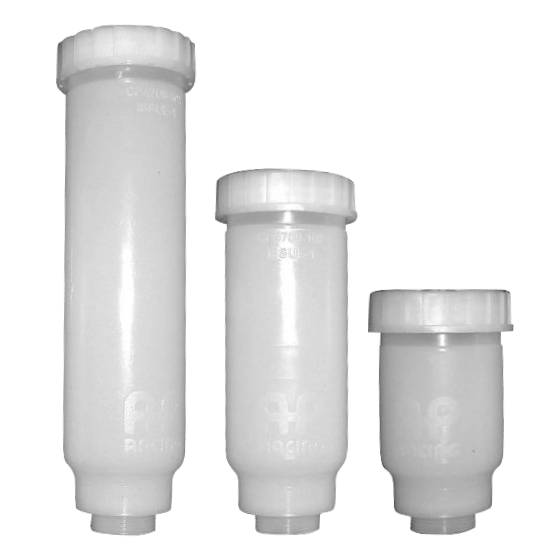

  • Available in a choice of 3 volumes
  • O'ring seal supplied
  • Remote or Direct Fit options available
  • Copper gasket supplied with all remote use reservoirs with threaded adaptors
  • Optional CP2709-156 Bellow available for medium and tall reservoirs to minimise the entry of dirt and moisture

Available ConfigurationsCP4709 - Configuration Chart

CP4709 - Configuration Chart Table

Instructions for fitting CP4709 Screw Type Reservoirs

  1. Remove and discard inlet adaptor (Blue or Gold), and copper gasket fitted to the master cylinder and clean thread. fig 1.
  2. Fit O-Ring seal supplied into groove in reservoir base. fig 2.
  3. Screw reservoir into master cylinder body until the slack is taken up, then hand tighten a further ½ to ¾ turn, this is sufficient. fig 3.

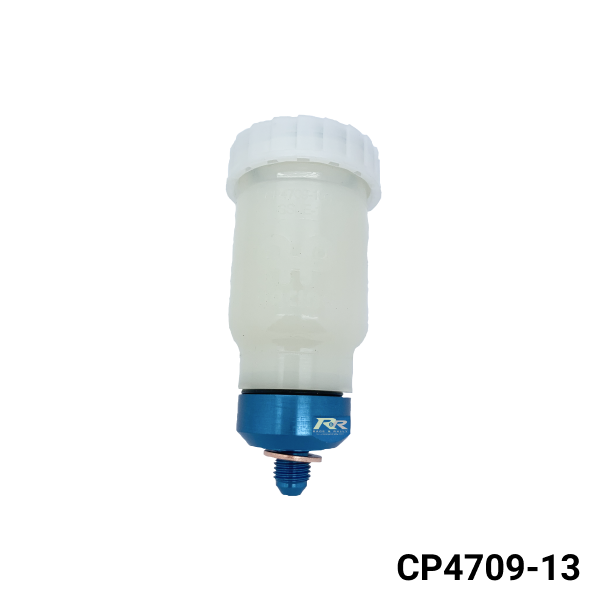

Instructions to fit Screw Fit Reservoirs

Note: Optional Reservoir Outlet Adaptors are available for remote use, part numbers details below,

Follow steps 2 & 3 above to fit the following,

CP4709-105 - 7/16" UNF Threaded Outlet Adaptor

CP4709-106 - M12x1 Metric Thread Outlet Adaptor

CP4709-107 - Push-On Type Outlet Adaptor

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland

Brand:

AP Racing

Manufacturer Part Number:

CP4709-12, CP4709-11, CP4709-10, CP4709-19, CP4709-13, CP4709-16, CP4709-20, CP4709-14, CP4709-17, CP4709-21, CP4709-15
