CP8400

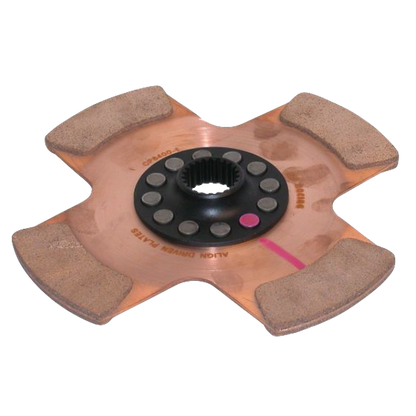

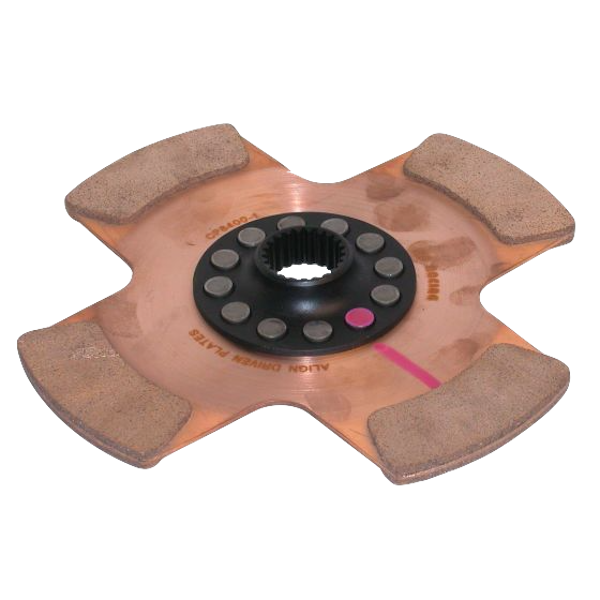

These 7.25" cerametallic drive plates have been designed primarily for Rally, Off-Road and Hillclimb applications, with a ceramic and metallic compound friction material. The friction material has been bonded to the steel drive plate and has a thick friction material depth to provide better heat management. The cerametallic material also gives a smoother engagement over the sintered material, where more clutch slip is required in order to modulate the drive.

Technical Details

• 4 Paddle
• Ø184mm // 7.25"
• 7.11mm Thickness New
• 6.68mm Thickness Worn
• Bonded Cerametallic
• Range of spline sizes available
• Various hub profiles available

Applications:

• Rally
• Hillclimb
• Off-Road
• Engines over 2 Litres

Spline Details:

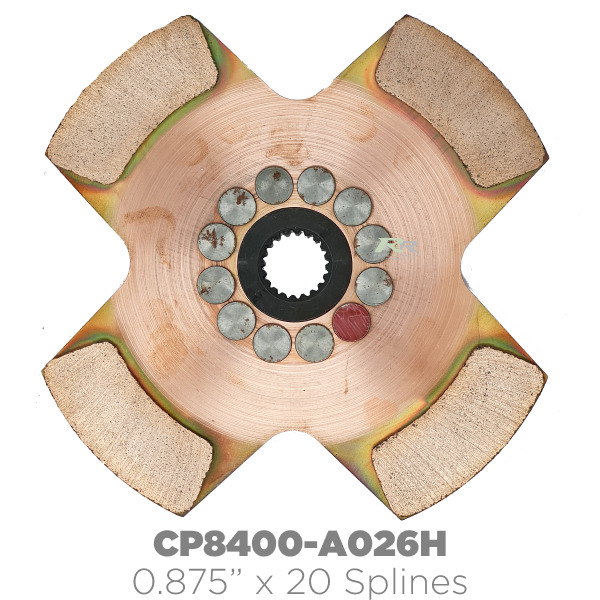

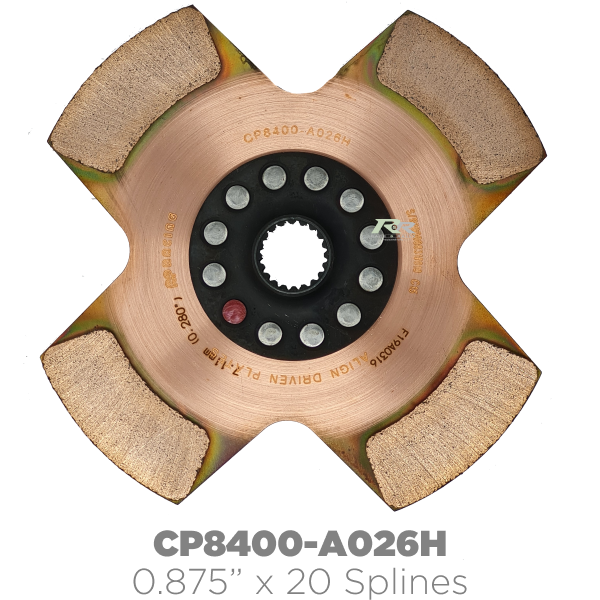

• CP8400-A026H
• 20 Splines
• Ø7/8"
• 14.20mm Hub Profile

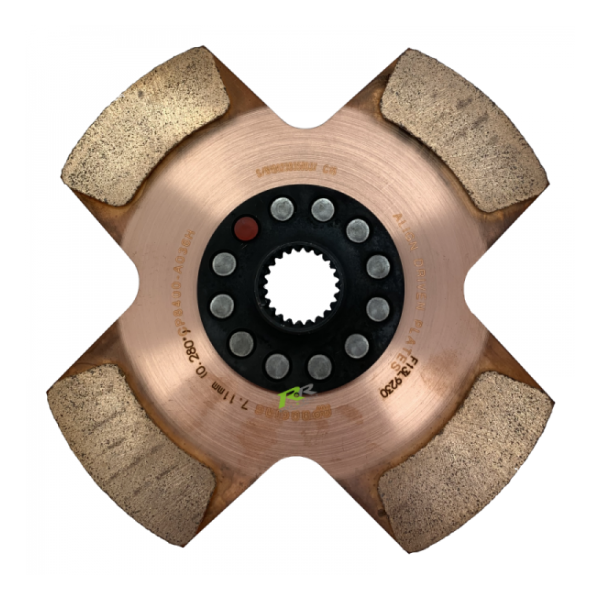

• CP8400-A036H
• 23 Splines
• Ø1.00"
• 14.20mm Hub Profile

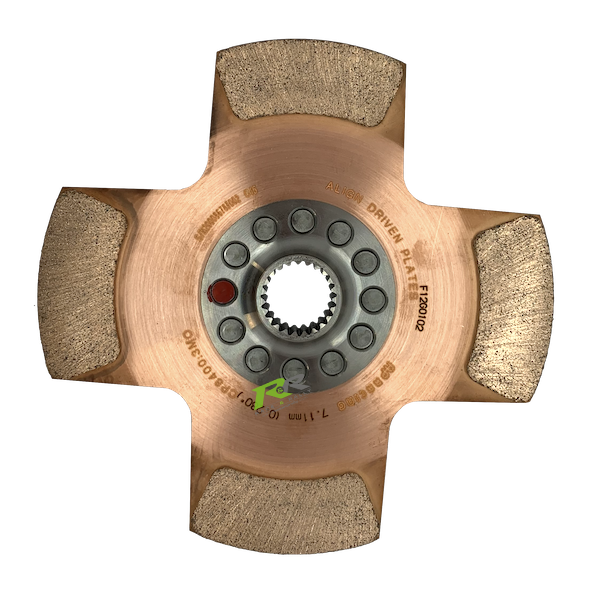

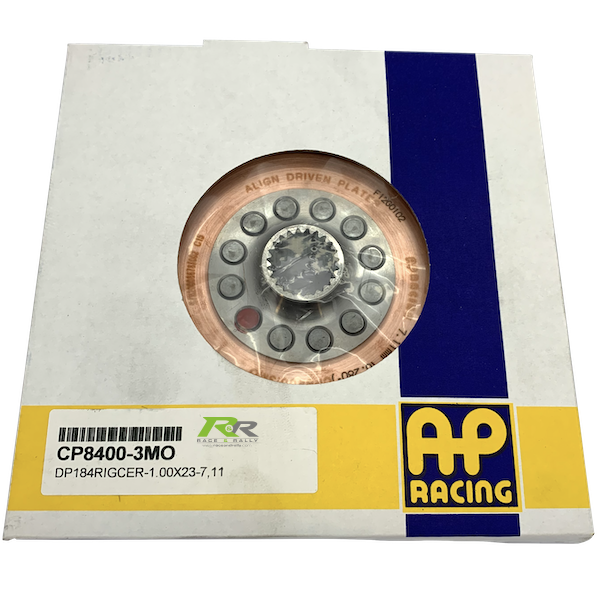

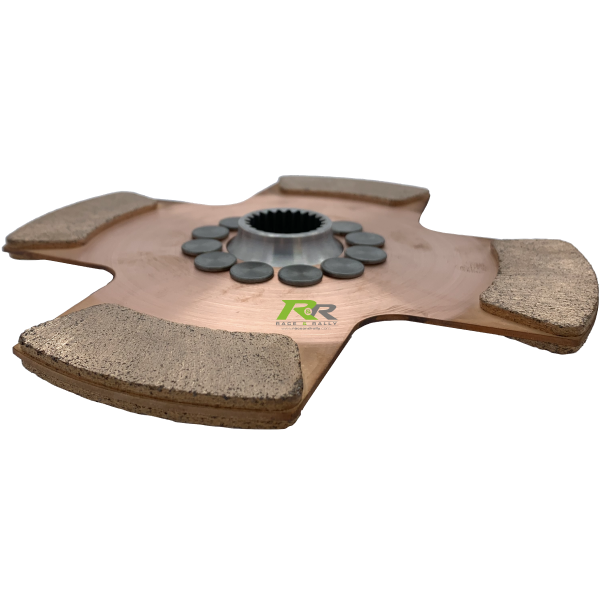

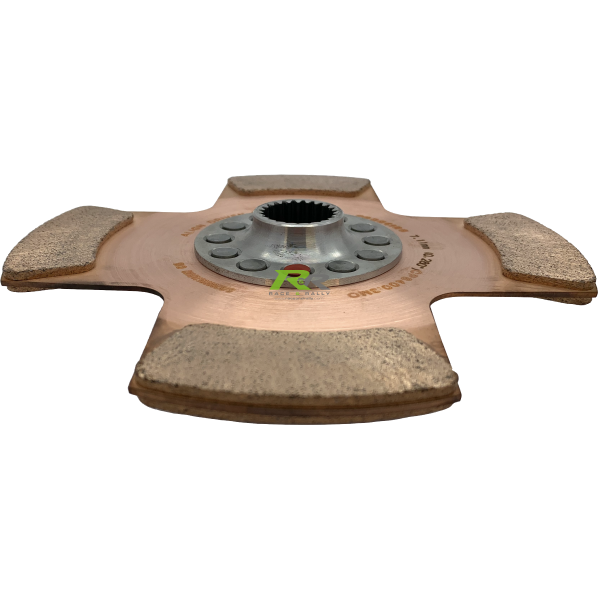

• CP8400-3MO
• 23 Splines
• Ø1.00"
• 23mm Hub Profile
