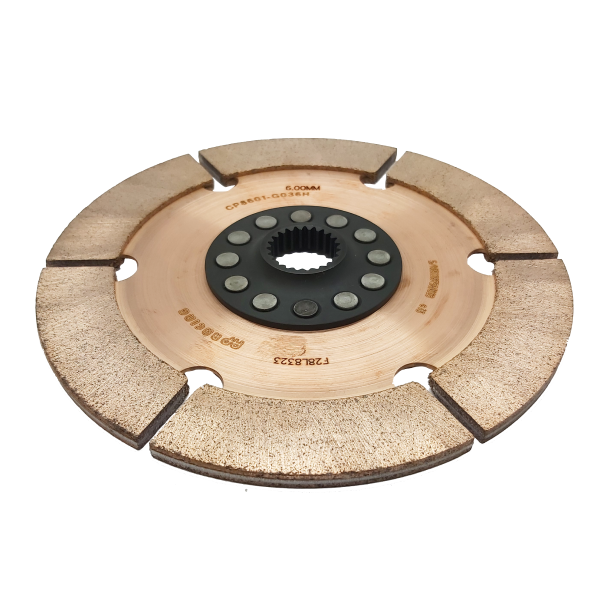

  • CP8601-G036H
  • CP8601-G036H - End Profile

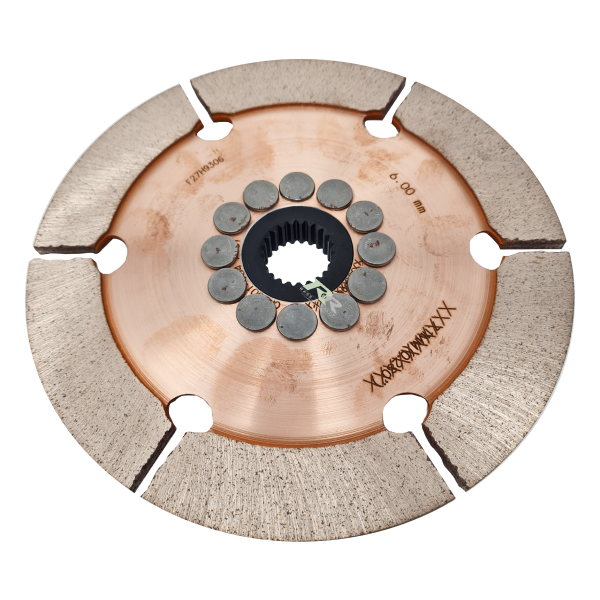

  • CP8601-A036H

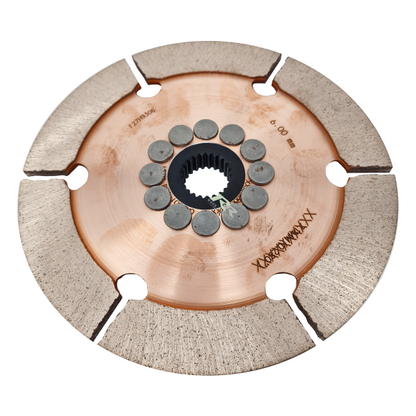

  • CP8601-A036H
1 5

CP8601 - 6 Paddle Back to Back (Ø184mm x 6.00mm)

CP8601 - 6 Paddle Back to Back (Ø184mm x 6.00mm)

CP8601-A036H

€255.20 €313.90
Sale Sold out
  • Feature Icon 6-Paddle Bonded
  • Feature Icon Ø184MM
  • Feature Icon 6.00MM Thickness
  • Feature Icon Back to Back Design
View full details

TECHNICAL DETAILS

  • 6 Paddle
  • Ø184mm // 7.25"
  • 6.00mm Thickness New - creates a low stack height
  • 5.63mm Thickness Worn
  • Bonded Cerametallic
  • Range of spline sizes available
  • Various hub profiles available

APPLICATIONS:

  • S2000
  • Citroen DS3 R5
  • Ford Fiesta WRC
  • Ford Fiesta R5

COMPATIABLE CLUTCH ASSEMBLIES:

PART NUMBER

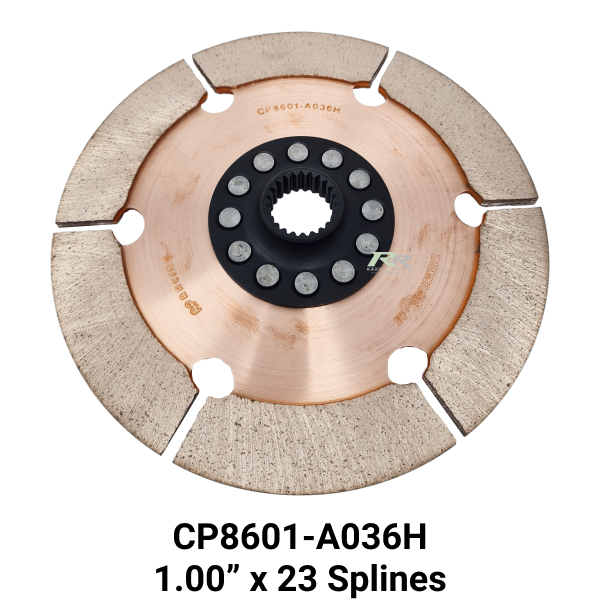

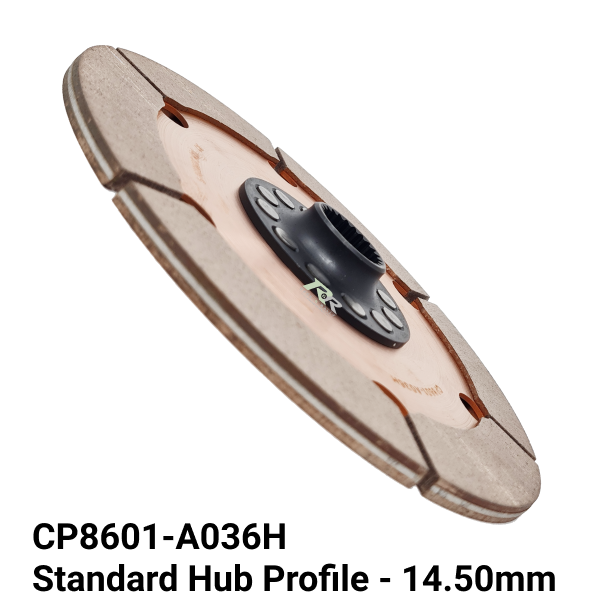

  • CP8601-A036H - 1.00" x 23 Splines - Standard Hub Profile

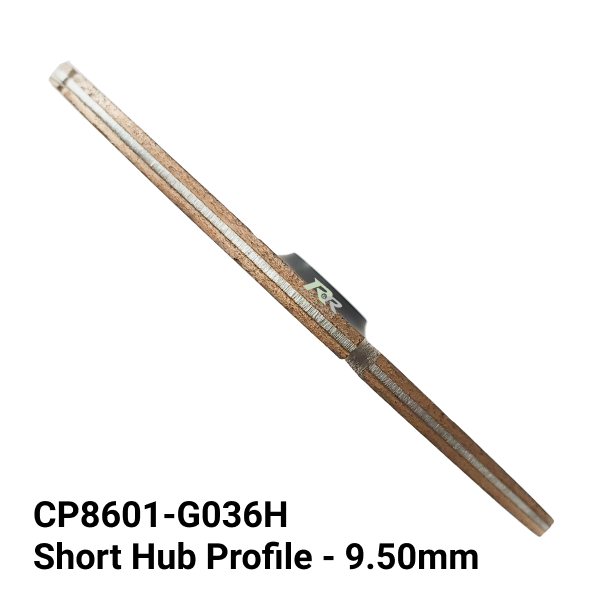

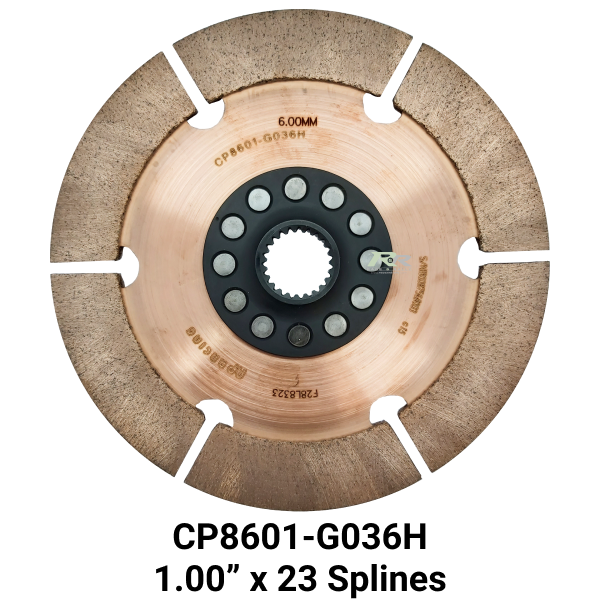

  • CP8601-G036H - 1.00" x 23 Splines - Short Hub Profile

Cross Reference:

  • Skoda S2000
    • Flywheel Side: CP8601-G036H - 5JT141031C
    • Gearbox Side: CP8601-A036H - 5JT141031B
DRIVEN PLATE HUB PROFILES

Brand:

AP Racing

Manufacturer Part Number:

CP8601-A036H, CP8601-G036H
