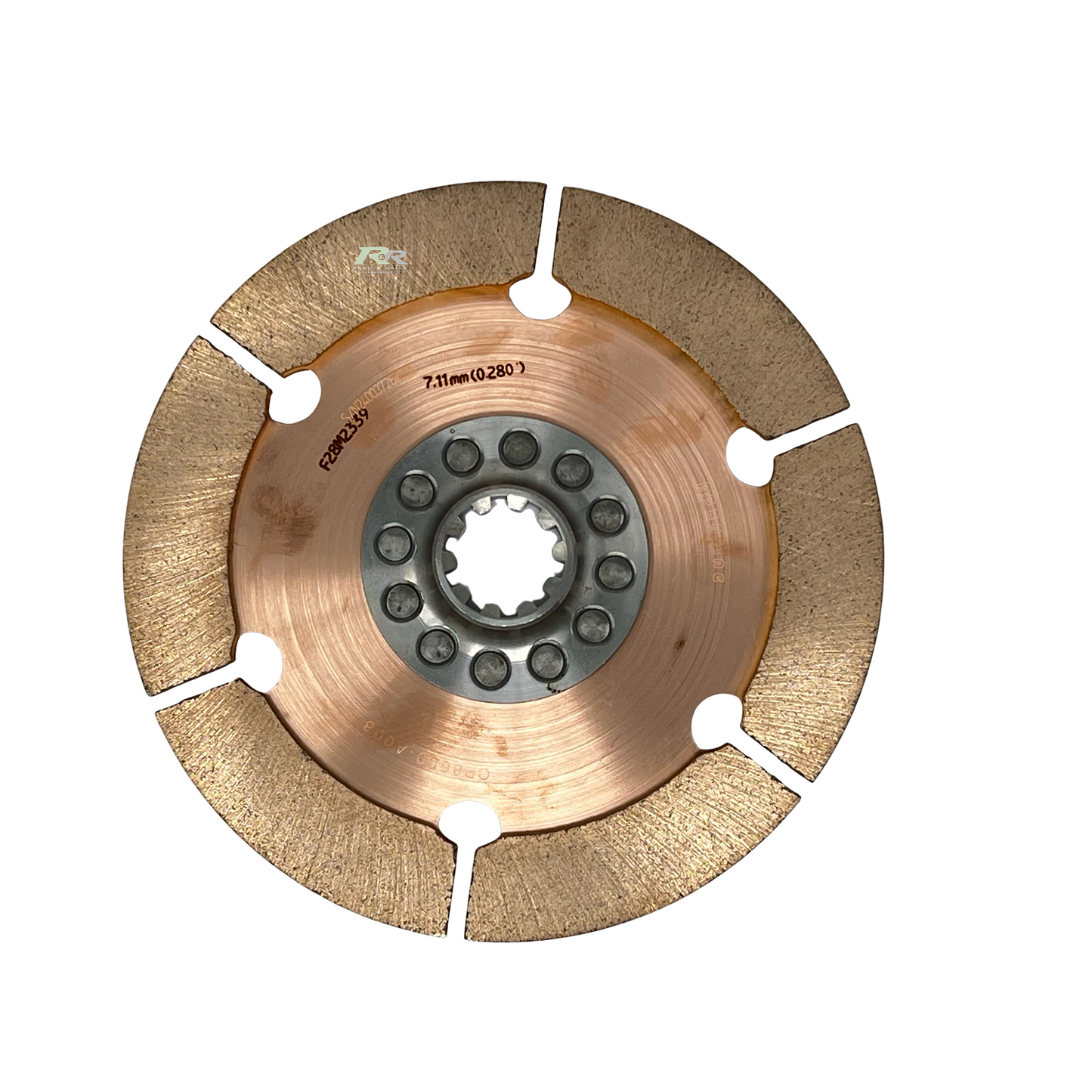

CP8600

These 7.25" cerametallic drive plates have been designed primarily for Rally, Off-Road and Hillclimb applications, with a ceramic and metallic compound friction material. The friction material has been bonded to the steel drive plate and has a thick friction material depth to provide better heat management. The cerametallic material also gives a smoother engagement over the sintered material, where more clutch slip is required in order to modulate the drive.

Technical Specifications:

• 3 Paddle
• Ø184mm // 7.25"
• 7.11mm Thickness New
• 6.29mm Thickness Worn
• Bonded Cerametallic
• Range of spline sizes available
• Various Hub Profiles Available

Applications:

• Rally
• Hillclimb
• Off-Road

Spline Details:

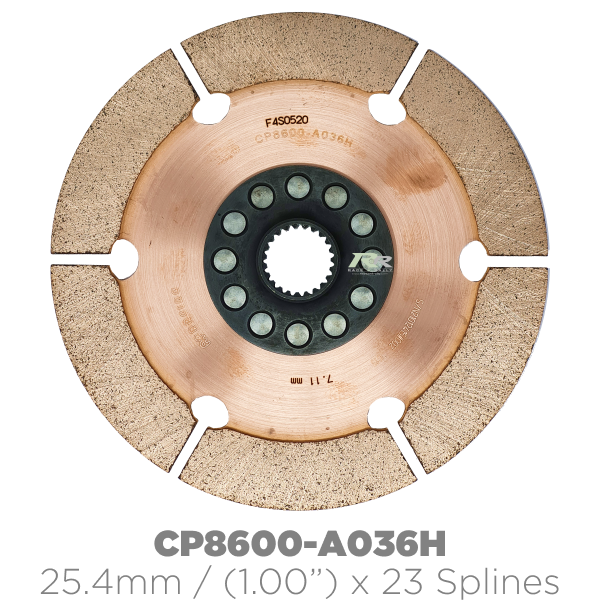

• CP8600-A036H
• 23 Splines
• Ø1.00"
• 14.20mm Hub Profile
