CP9230 - 4 Piston ProSport Caliper

CP9230 - 4 Piston ProSport Caliper

CP9230-2S4L

€445.31 €547.73
Sale Sold out
Piston Diameter
Caliper Hand
View Docs
View full details

CP9230 - 4 Piston ProSport Caliper

Typical Applications:

  • Budget, general competition use
  • Single make race or rally series

Features:

  • Forged, two piece aluminium alloy body
  • Radial mount:
    • 152.0mm x 48.79mm centres
  • Disc Sizes:
    • Ø355mm or Ø310mm x 32mm Brake discs
  • Stainless Steel Pistons
  • High temperature seals
  • 4lb Anti-knockback springs fitted
  • Stainless Steel wear plates

Part Numbers:

  • Trailing:

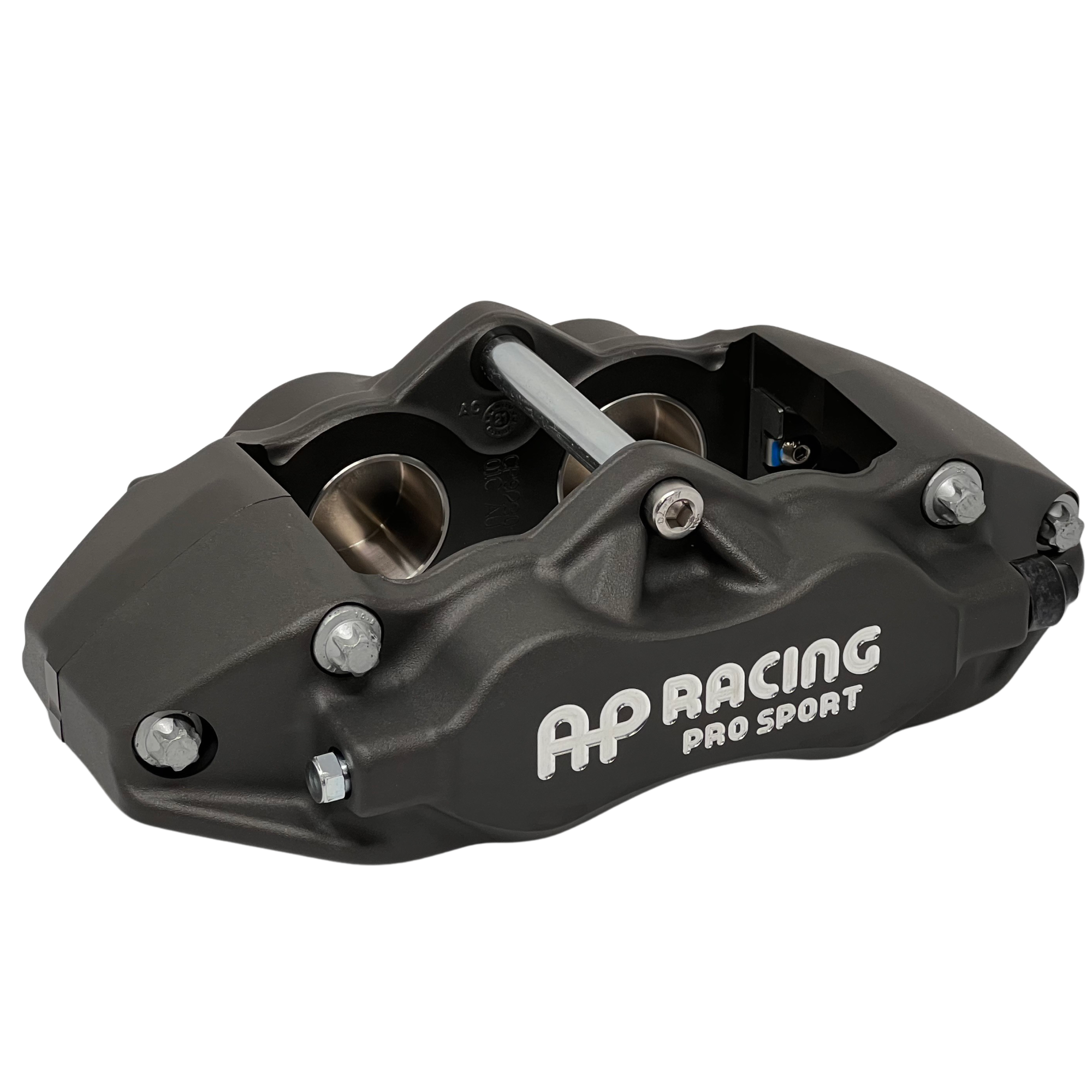

    • RHS - CP9230-2S4L

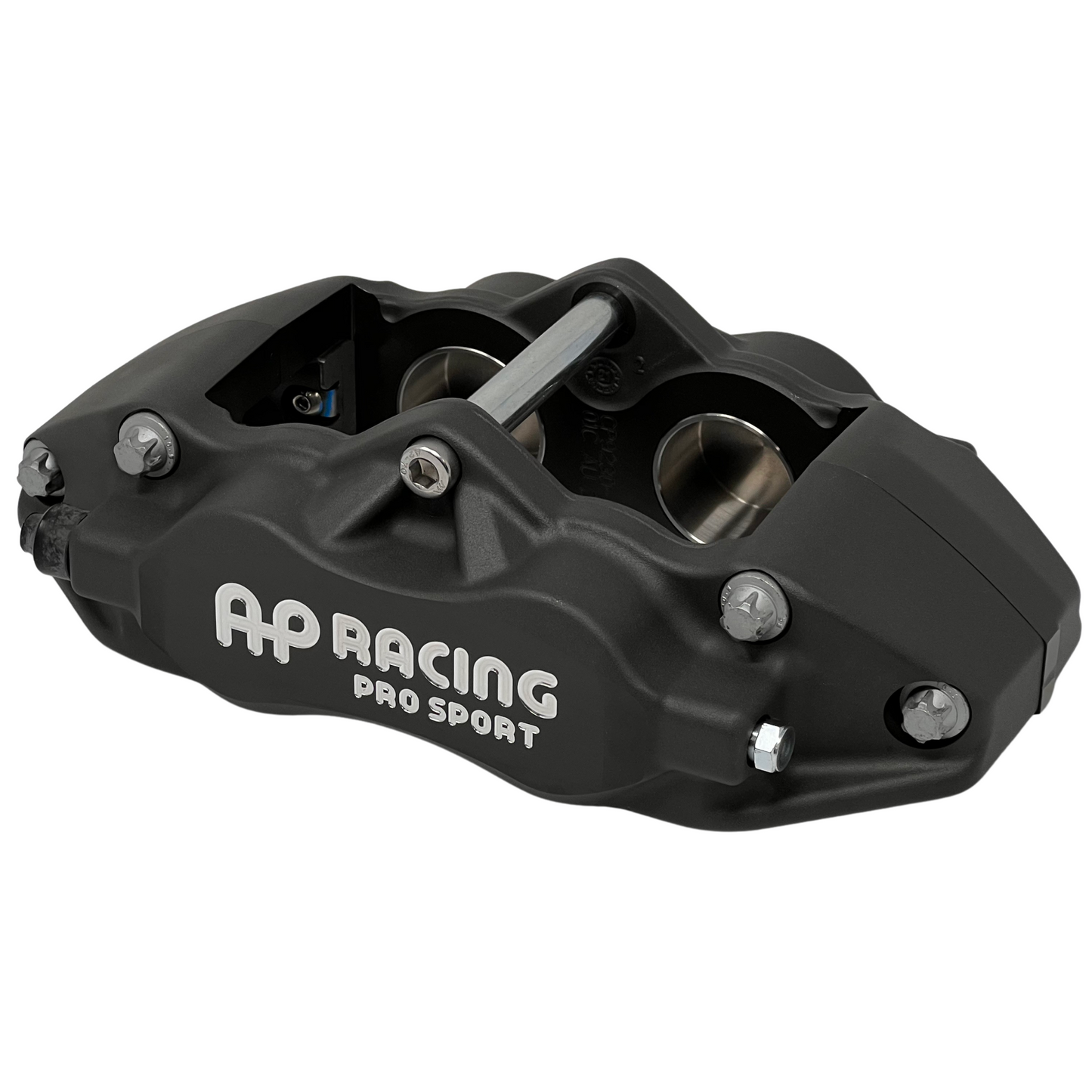

    • LHS - CP9230-3S4L
  • Leading:
    • RHS - CP9230-4S4L

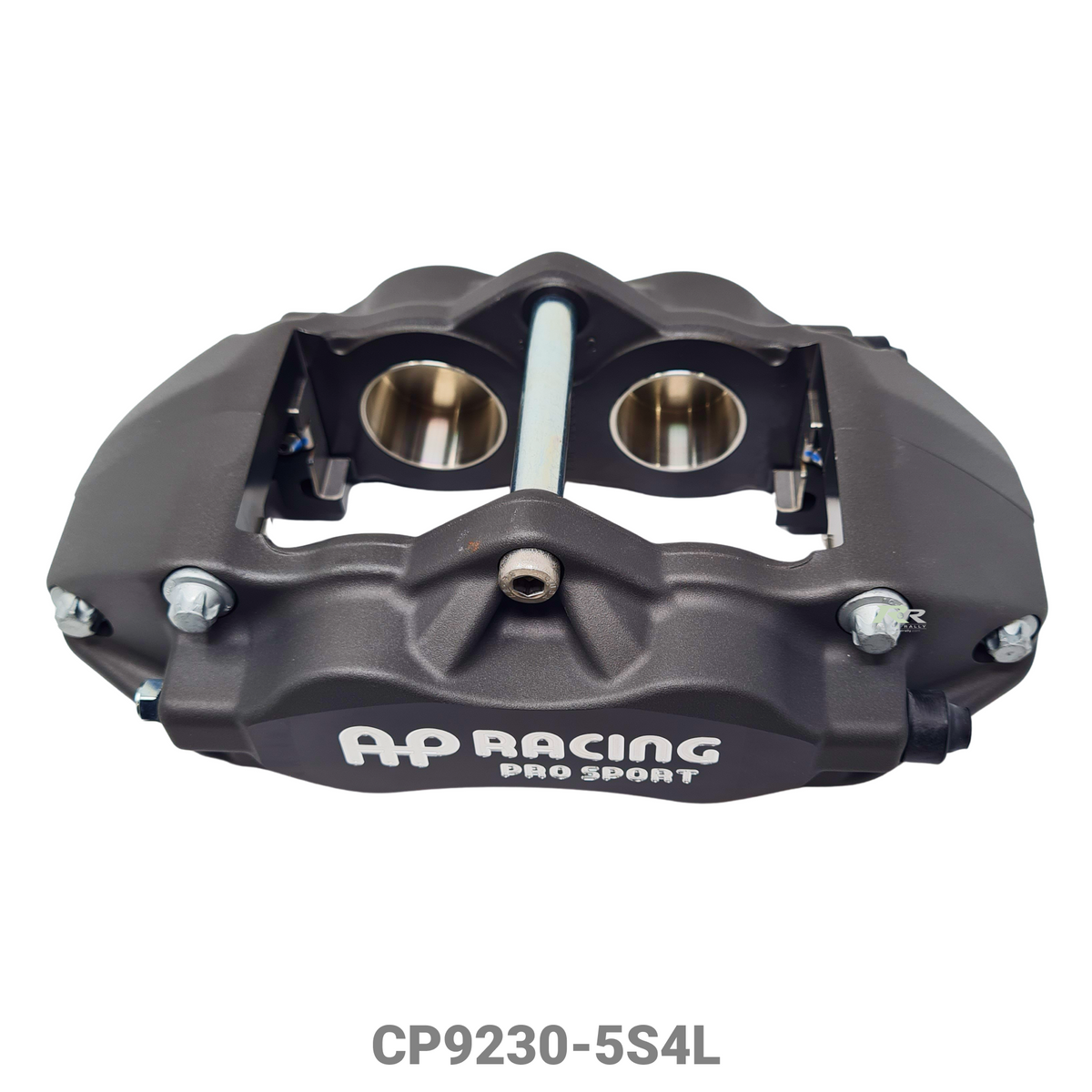

    • LHS - CP9230-5S4L

Brake Pads - Shop here

AP Racing: CP3215D50
CL Brakes: 5004W50T17
Endless: RCP015
Ferodo Racing: FRP216

  • Pad Area: 57.40cm
  • Pad Depth: 50.30mm
  • Thickness: 16.80mm

Piston Sizes:

  • 2x Ø38.1mm
  • 2x Ø41.3mm

Piston Area:

  • 47.36cm²

Disc Diameters:

  • Max - Ø355mm
  • Min - Ø310mm

Disc Thickness:

  • Max - Ø32mm
  • Min - Ø26mm

Weight:

  • No pads - 2.54 Kg

Hydraulic Threads:

  • M10 x 1.0
  • Bleed Screw tightening torque - 17 Nm (12.5 lb/ft)

Mounting:

  • Radial Mounted
  • 152.0mm Mounting Centres
  • 48.79mm Mounting Offset
  • 59.0mm 'PL' Dimension

Spare Parts

  • Ø38.1mm Piston - CP9230-112
  • Ø41.3mm Piston - CP9230-113
  • Pad Retainer - CP5200-110
  • Pad Retainer Bolt - CP3984-139ST
  • RH Wear Plate - CP9230-110
  • LH Wear Plate - CP9230-111
  • Bleed Screw Kit - CP3880-1
  • Seal Repair Kit - CP8518-JK
  • Blanking Plug - CP6320-215
Brand AP Racing
Option SKU Barcode
Ø38.1mm x2 & Ø41.3mm x2 / Right Hand Trailing CP9230-2S4L
Ø38.1mm x2 & Ø41.3mm x2 / Left Hand Trailing CP9230-3S4L
Ø38.1mm x2 & Ø41.3mm x2 / Right Hand Leading CP9230-4S4L
Ø38.1mm x2 & Ø41.3mm x2 / Left Hand Leading CP9230-5S4L

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
