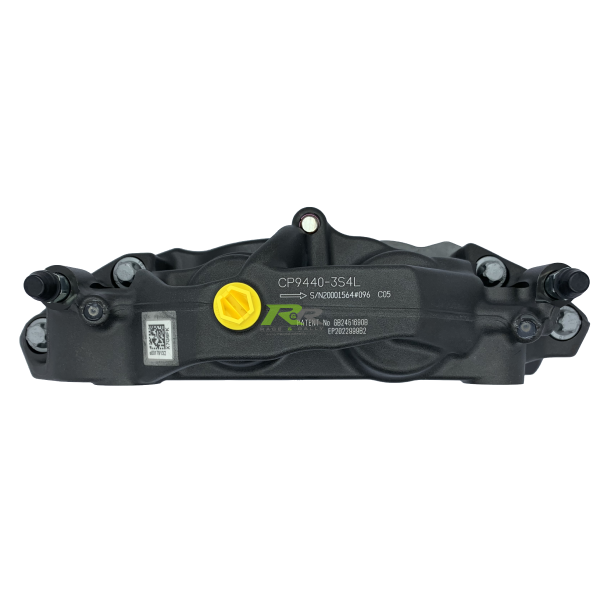

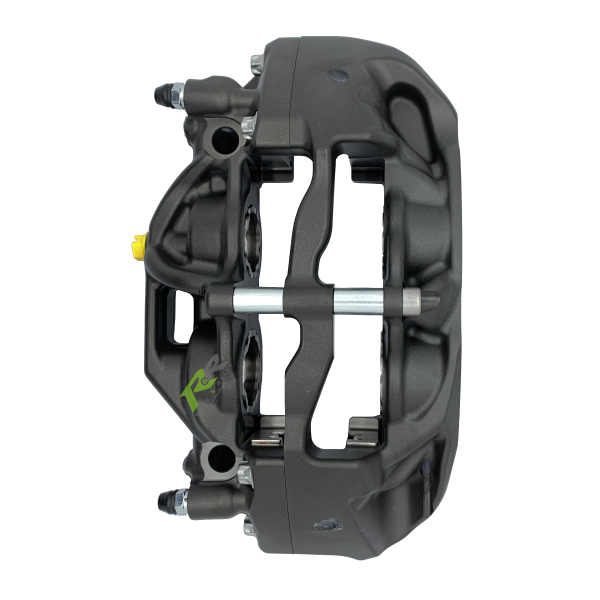

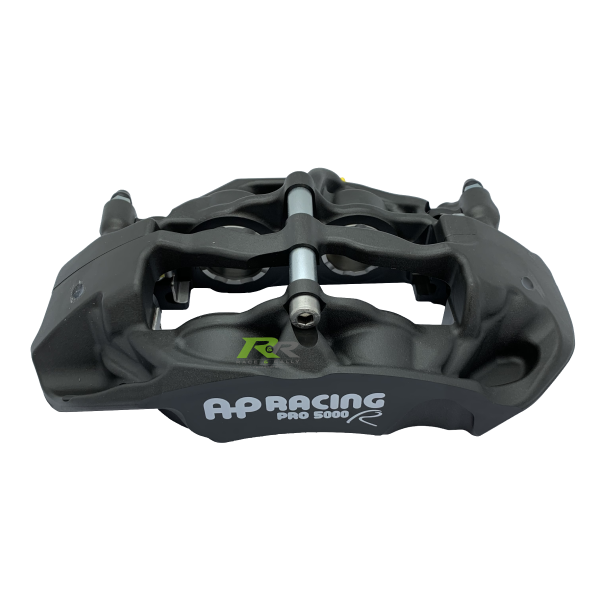

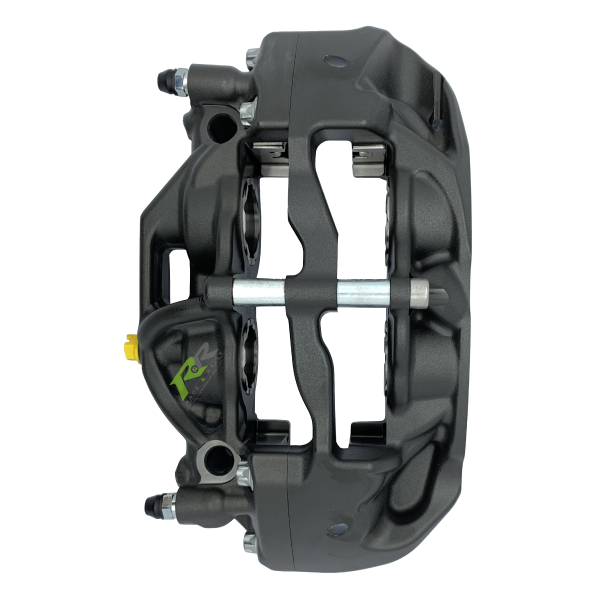

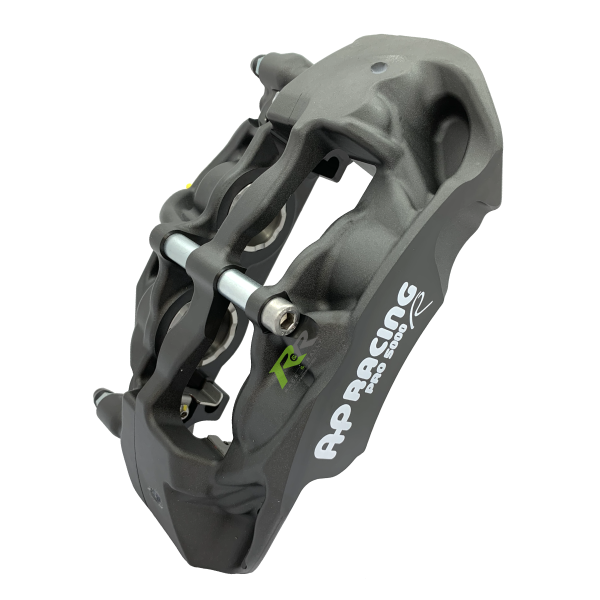

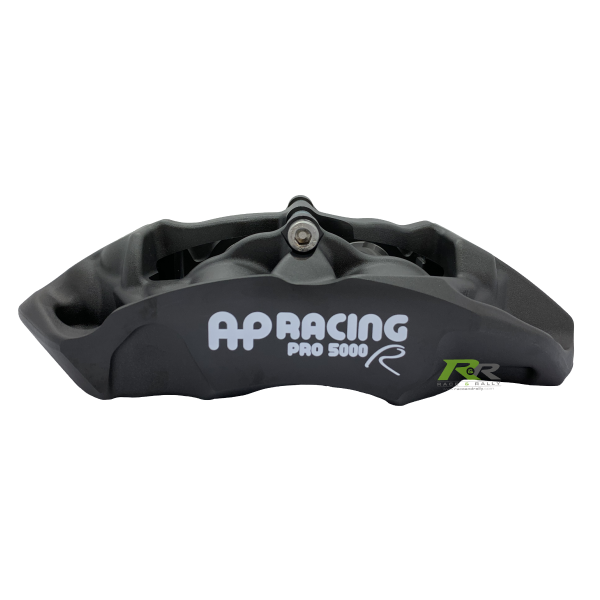

CP9440 - PRO 5000 R 4 Piston Radi-CAL™️ Caliper

CP9440 - PRO 5000 R 4 Piston Radi-CAL™️ Caliper

CP9440-2S4L

€718.69 €883.99
Sale Sold out
  • Feature Icon 4-Piston
  • Feature Icon Pro 5000 R
  • Feature Icon Internally Ported
  • Feature Icon Stainless Steel Pistons
Piston Size
Caliper Hand

View Docs View full details

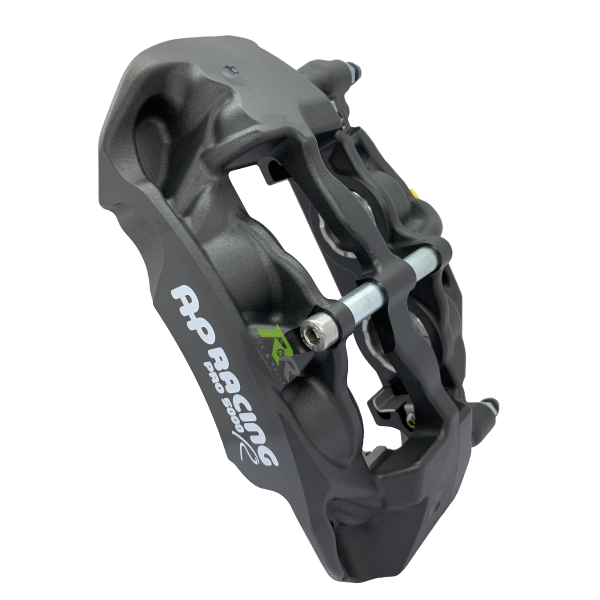

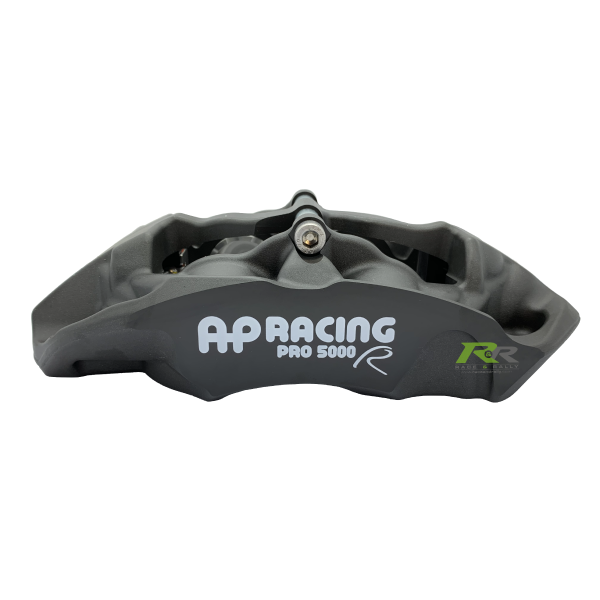

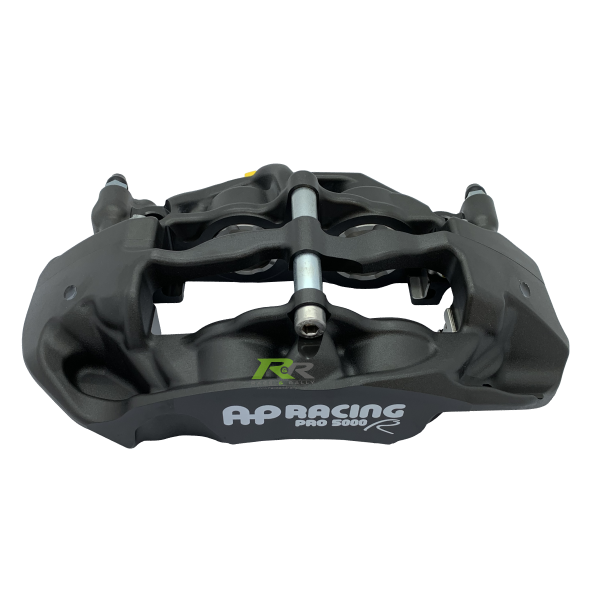

CP9440 - Forged Two-piece 4 Piston Caliper

Typical Applications:

  • Budget, general competition use
  • Single make race series
  • Modified Ford Escort MKII

Features:

  • Benefits from a radical asymmetric design concept
  • Superior dynamic performance
  • Increased stiffness
  • Forged, two piece aluminium alloy body
  • Radial mount, 152.0mm x 44.0mm centres
  • Suits Ø304 - Ø330mm x 28 mm brake disc

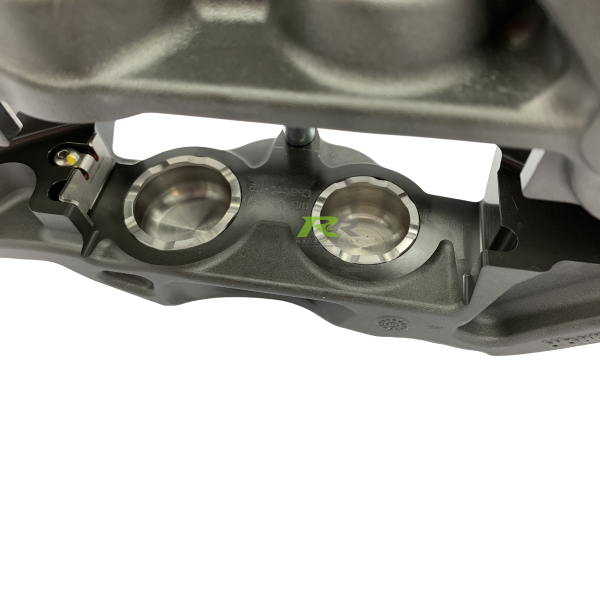

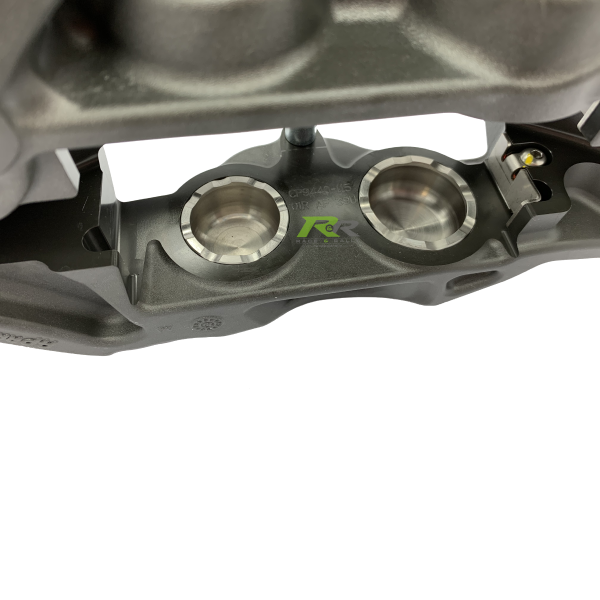

  • Stainless steel Pistons
  • High temperature seals
  • 4lb Anti-knockback springs fitted
  • Stainless Steel wear plates
  • Smaller bore version for rear applications is available

Part Numbers:

CP9440 Front Caliper

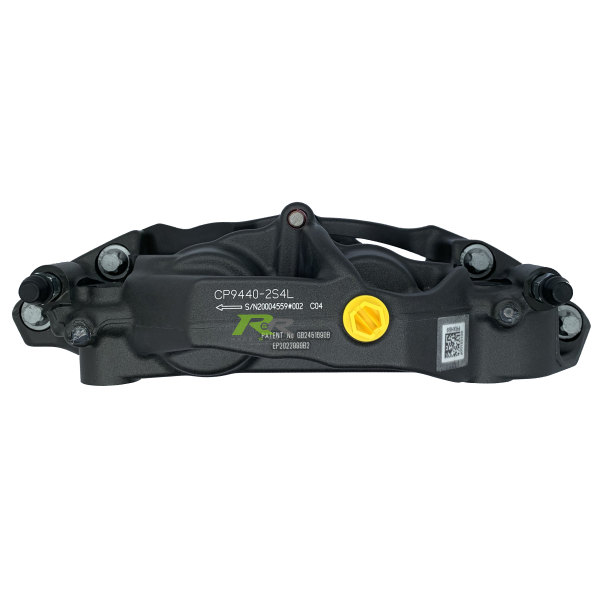

  • Right - CP9440-2S4L

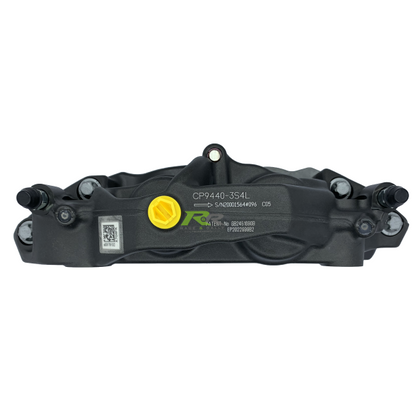

  • Left - CP9440-3S4L

Technical Specifications:

 Piston Sizes Ø36.0mm x2
Ø41.3mm x2
Piston Area 47.12 cm³
Disc Diameter Max - Ø330mm
Min - Ø304mm
Disc Thickess 28.00mm
Weight (no pads) 2.16 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 152.00mm
Mounting Offset 44.00mm
Mounting Hole Ø12.17 - 12.27mm
'PL' Dimension 57.80mm
Bleed Screw Tightening Torque 17Nm



Spare Parts

Pistons Ø36.0mm - CP9440-107
Ø41.3mm - CP9440-106
Seal Repair Kit CP8518-HK
Pad Retainer Tube - CP9440-110 x2
Pad Retainer Bolt CP3796-121ST
Wear Plates RH - CP9440-108
LH - CP9440-109
Bolt - CP9440-116 x4
Anti-knockback Springs CP6518-4LBLL
Bleed Screw CP3880-1
Bleed Screw Cap CP2494-177



Brake Pads

Pad Shape CP3215D50

CP3215D50 Brake Pad Set - (R) DS3000 Compound - Race and Rally
Pad Area 57.4cm²
Pad Depth 50.3mm
Thickness 16.8mm


Brand AP Racing
Option SKU Barcode
Ø36.0mm x2 & Ø41.3mm x2 / Right Hand CP9440-2S4L
Ø36.0mm x2 & Ø41.3mm x2 / Left Hand CP9440-3S4L

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
