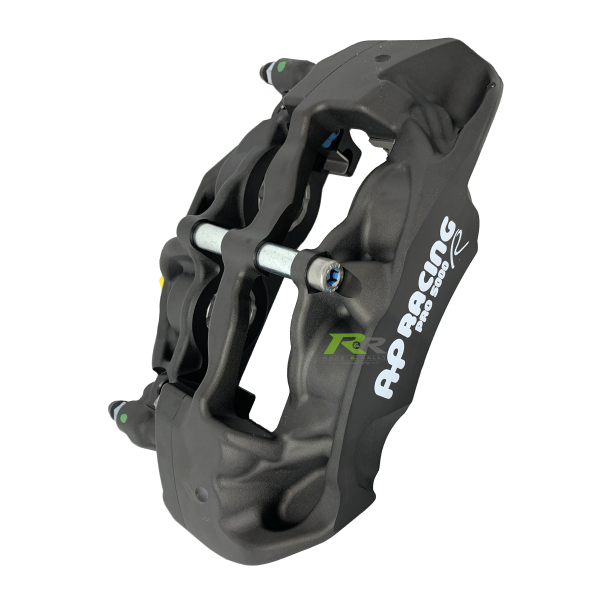

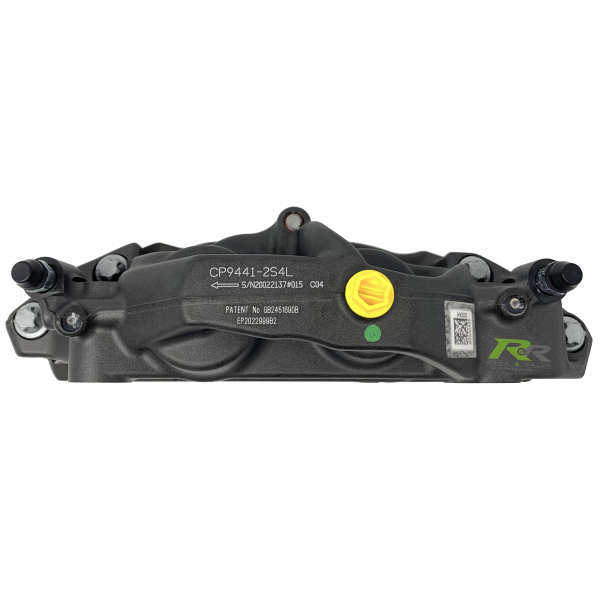

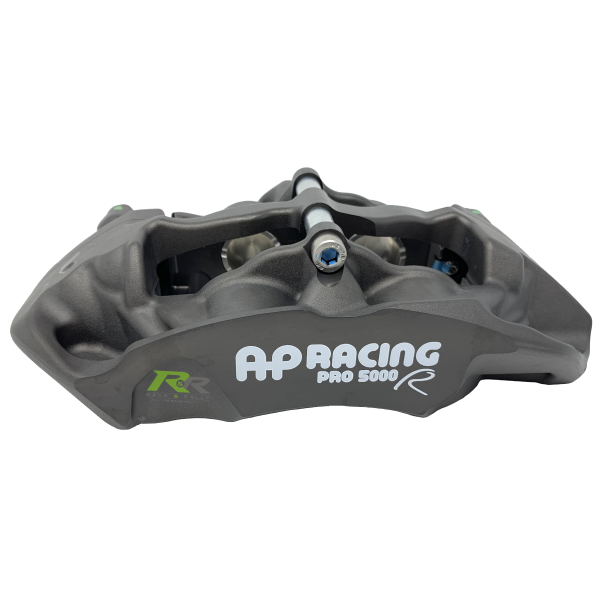

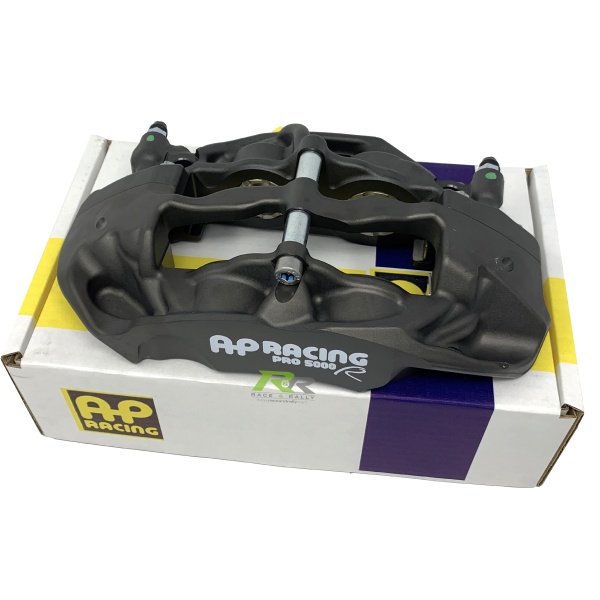

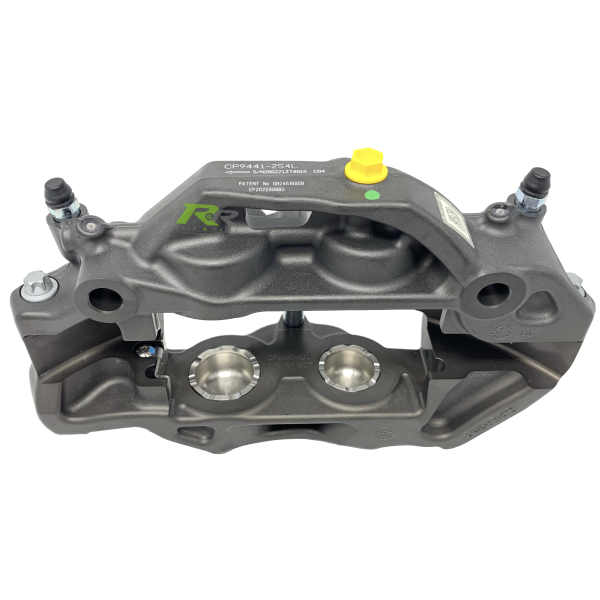

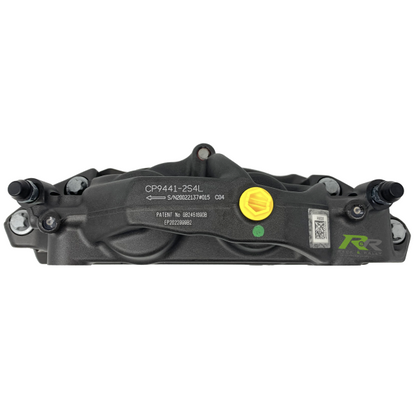

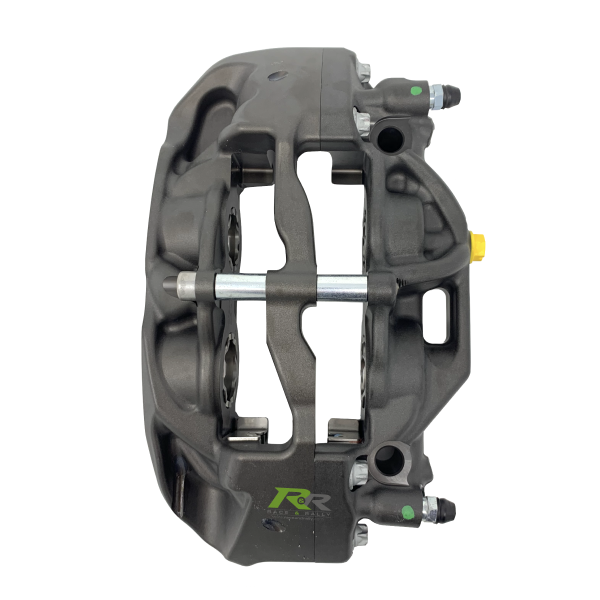

CP9441 - PRO 5000 R 4 Piston Radi-CAL™️ Caliper

Name: CP9441 - PRO 5000 R 4 Piston Radi-CAL™️ Caliper
Brand: AP Racing
SKU: CP9441-2S4L
Price: 718.69 GBP
Availability: InStock

SKU:CP9441-2S4L

€718.69 €883.99

Sale Sold out

4-Piston
Pro 5000 R
Stainless Steel Pistons
[Pad Shape: CP3215D50]

Piston Diameter Ø31.8mm x2 | Ø36.0mm x2

Caliper Hand Right Hand Left Hand

Quantity

In stock

View full details

CP9441 - PRO 5000 R 4 Piston Radi-CAL™️ Caliper

Applications:

Budget, general competition use rear
Single make race series rear

Features:

Benefits from a radical asymmetric design concept
Superior dynamic performance
Increased stiffness
Forged, two piece aluminium alloy body
Radial mount, 152.0mm x 44.0mm centres
Suits Ø330.0mm or 315.0mm x 28mm thick disc
Stainless Steel Pistons
High temperature seals
4lb Anti-knockback springs fitted
Stainless Steel wear plates

Part Numbers:

Right-hand - CP9441-2S4L

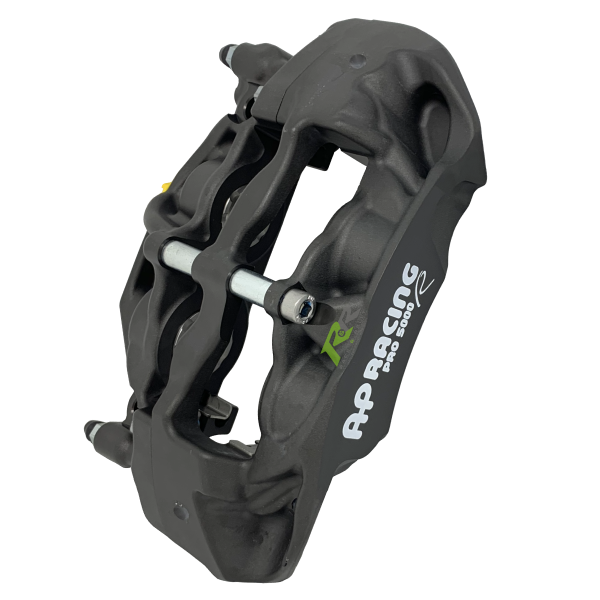

Left-hand - CP9441-3S4L

Technical Specifications:

Piston Sizes	Ø31.8mm x 2 Ø36.0mm x 2
Piston Area	36.19 cm²
Disc Diameter	Max - Ø330mm Min - Ø315mm
Disc Thickness	28.00mm
Weight (no pads)	2.20 Kg
Hydraulic Threads	M10 x 1.0
Mounting Type	Radial
Mounting Centres	152.00mm
Mounting Offset	44.00mm
Mounting Hole	Ø12.25mm
'PL' Dimension	57.80mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	Ø31.8mm - CP9441-101 Ø36.0mm - CP9440-107
Seal Repair Kit	CP8518-EH
Pad Retainer - Tube	CP9440-110 x2
Pad Retainer Bolt	CP3796-121ST
Wear Plates	CP5200-306 x4
Wear Plate Bolts
Anti-knockback Springs	CP6518-4LBLL
Bleed Screw	CP3880-1
Bleed Screw Cap	CP2494-177
Brake Cooling Duct	RH - 2653-05-2S LH - 2653-05-3S

Brake Pads

Pad Shape	CP3215D46
Pad Area	54.6cm²
Pad Depth	45.6mm
Thickness	16.8mm

CP9441 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø31.8mm x2 \| Ø36.0mm x2 / Right Hand	CP9441-2S4L
Ø31.8mm x2 \| Ø36.0mm x2 / Left Hand	CP9441-3S4L
