CP9444 & CP9445 - 4 Piston Radi-CAL Caliper - to suit 13" Wheels

SKU:CP9444-4S0L

€718.69 €883.99

Sale Sold out

Single seaters
Designed to suit 13" wheel

Brake Disc Thickness 18.0mm - 21.0mm

Piston Diameter Ø34.9mm x2 & Ø41.3mm x2

Caliper Hand Right Hand Left Hand

Quantity

Out of stock, contact for leadtime

View full details

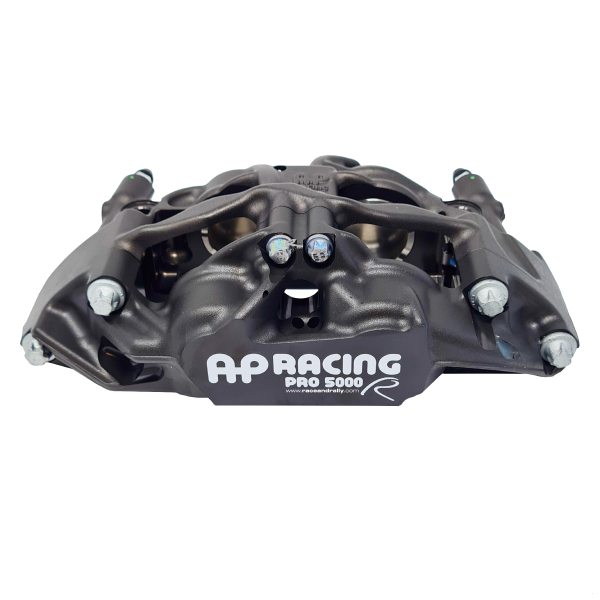

4 Piston - CP9444 Front Suits 13"

Applications:

13" Wheel, single seater.
Budget, general competition use.

Features:

Benefits from a radical asymmetric design concept.
Superior dynamic performance.
Increased stiffness.
Forged, two piece aluminium alloy body.
Grey anodised surface finish.
Radial mount, 152.0mm x 44.0mm centres.
Suits Ø280mm x 25.4 / 22.0 / 21.0 or 18.0mm thick disc.
Stainless Steel Pistons.
High temperature seals.
Stainless Steel wear plates.
Smaller bore version for rear applications available - CP9445 family.

Part Numbers:

To suit discs Ø280.0mm x 25.4 - 22.0mm
- RH = CP9444-2S0L.
- LH = CP9444-3S0L
To suit discs Ø280.0mm x 21.0 - 18.0mm

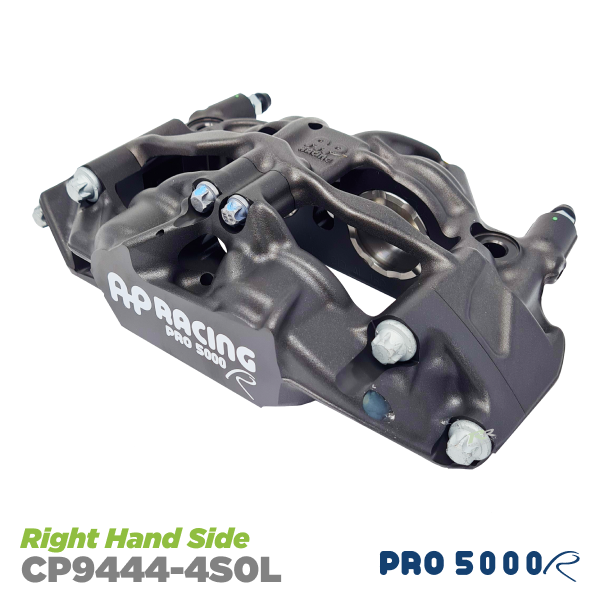

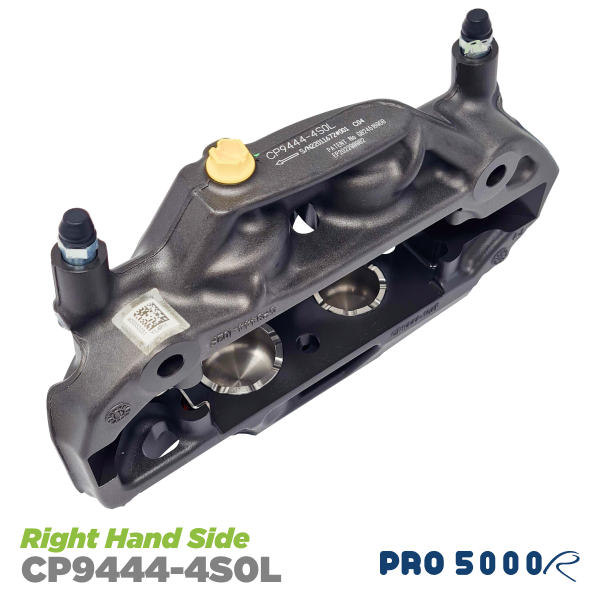

- RH = CP9444-4S0L.

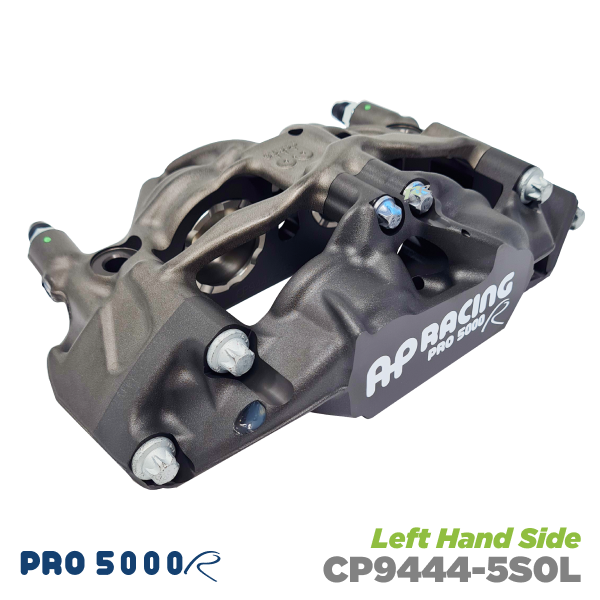

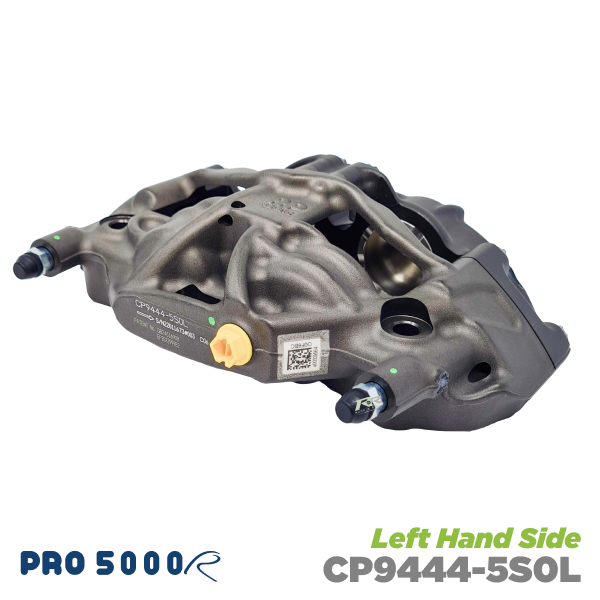

- LH = CP9444-5S0L

Technical Specifications:

Piston Sizes	Ø34.9 x 2 Ø41.3 x 2
Piston Area	45.9 cm²
Disc Diameter	Max - Ø280mm
Disc Thickness	CP9444-2/3 = 25.4 to 22.0 CP9444/5 = 21.0 to 18.0
Weight (no pads)	1.86 Kg
Hydraulic Threads	M10x1.0
Mounting Type	Radial
Mounting Centres	152.00mm
Mounting Offset	CP9444-2/3 = 40.0mm CP9444-4/5 = 38.0mm
Mounting Hole	Ø10mm
'PL' Dimension	57.0mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	Ø34.9 = CP9444-110 Ø41.3 = CP9444-111
Seal Repair Kit	CP8518-GK
Wear Plates	RH = CP9444-112 LH = CP9444-113
Bleed Screw	CP3880-1

Brake Pads

Pad Shape	CP3215D42
Pad Area	48.3cm²
Pad Depth	42.0mm
Thickness	16.8mm

cp9444 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
18.0mm - 21.0mm / Ø34.9mm x2 & Ø41.3mm x2 / Right Hand	CP9444-4S0L
18.0mm - 21.0mm / Ø34.9mm x2 & Ø41.3mm x2 / Left Hand	CP9444-5S0L
