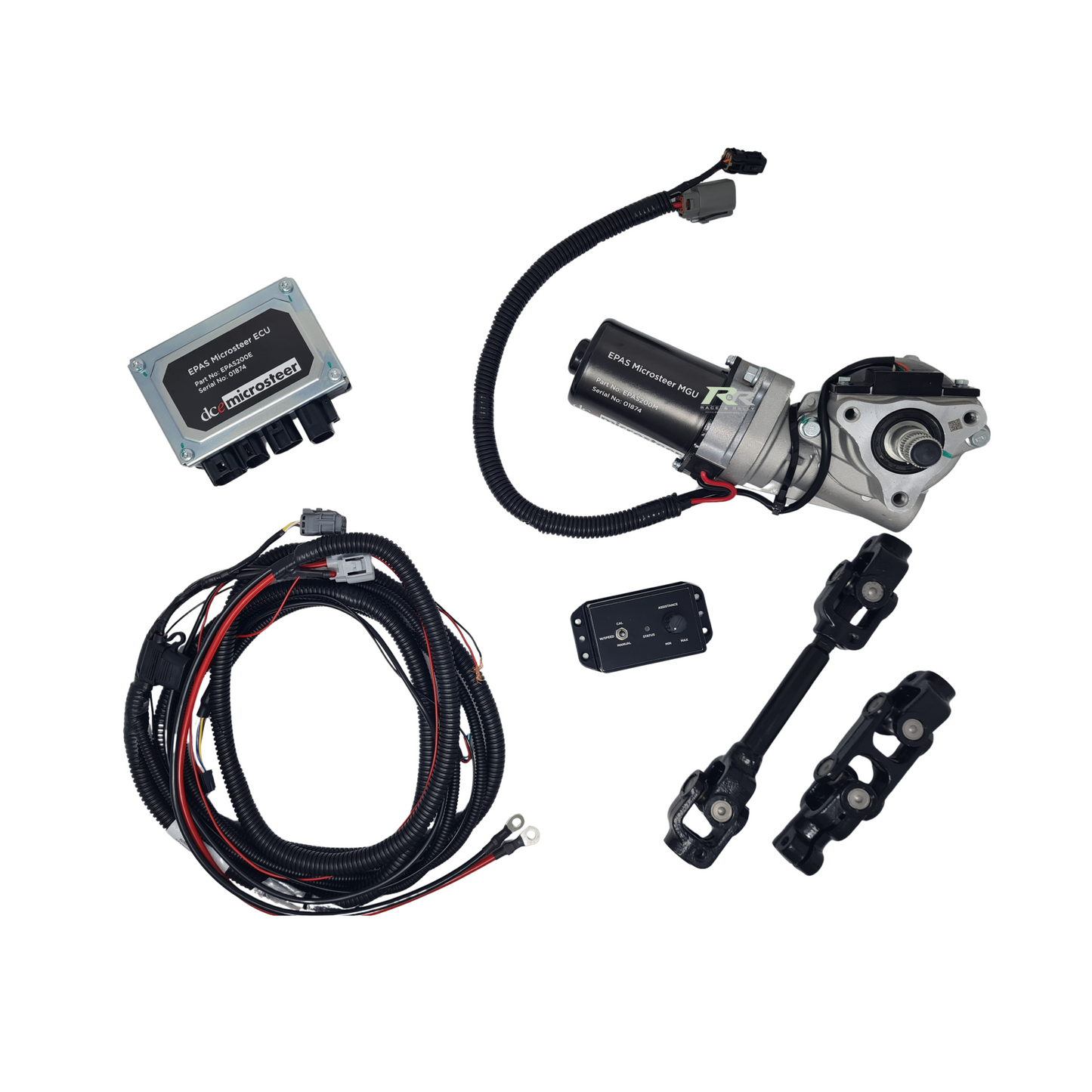

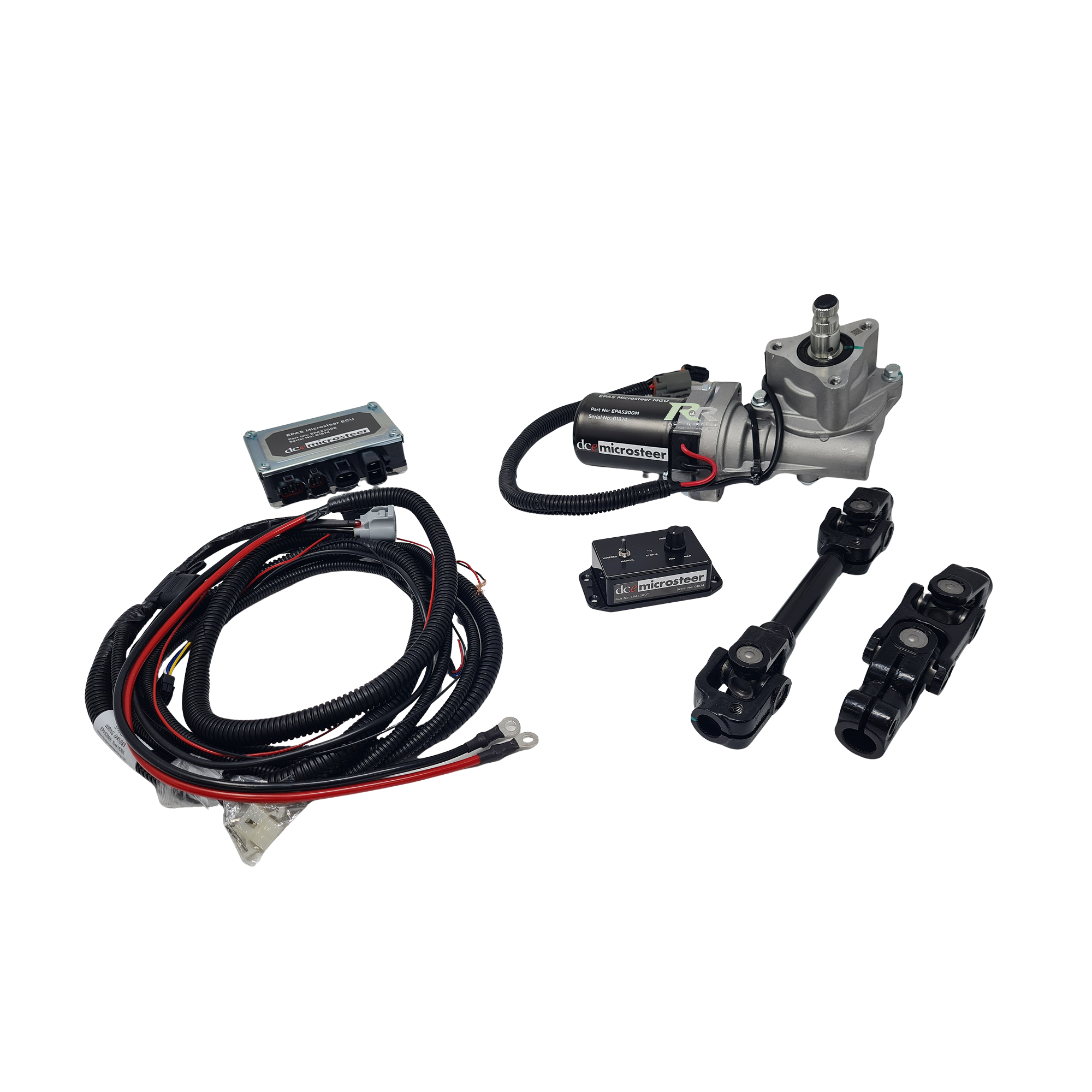

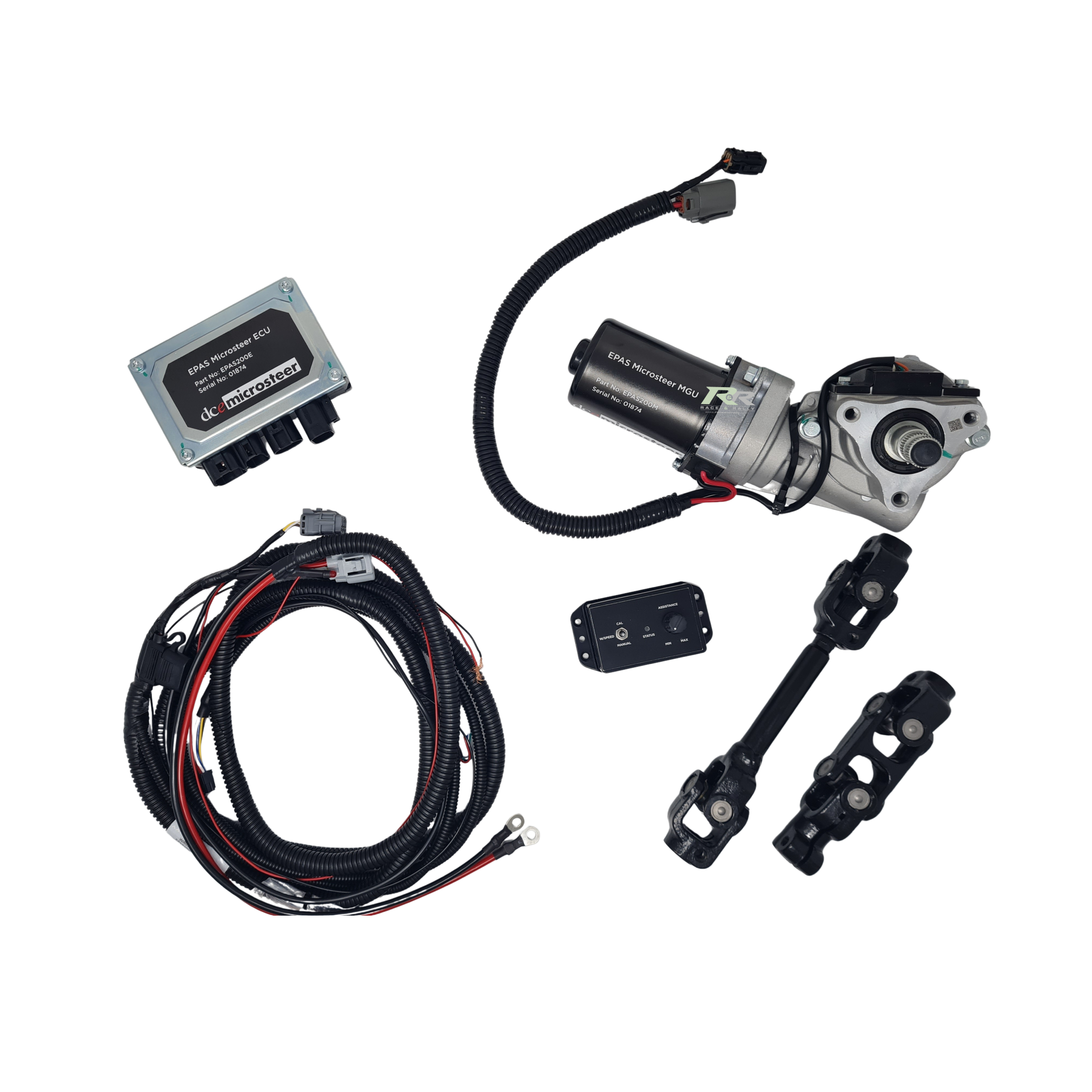

This universal system comes as a complete kit containing everything you need to add electric power steering to your vehicle.
DCE Microsteer’s unique Tuning Box allows the driver to manually adjust the level of steering assistance with the rotary potentiometer, as well as providing the option to switch to wheelspeed mode (making the system speed sensitive, with steering automatically becoming lighter at parking speeds, while reducing assistance at higher speeds).

• No hydraulics required.
• Lighter than a comparable hydraulic system.
• No hydraulic pump dragging on the engine.
• Weight of steering adjustable.
• Data available over CAN bus (certain systems only).
• Can be retro fitted to existing steering system.


EPAS200 DCE Microsteer Technical Specification

• Operating Voltage: Nominal 13.8V DC
• Maximum current draw: 30 Amps
• Average current draw – Amps (normal urban use): Less than 2 Amps
• System Weight: MGU & ECU: 4.4kg / 9.70lbs
• Maximum Torque Output: 32Nm / 24lb.ft
• IP Rating: IP67
• Operating Temperature: -20 to 120°C /-4 to 248°F
• Motor Rated Power: 220 Watt
• MGU Spline Pattern: 17mm-36 both ends

You will need to provide/fabricate/modify suitable brackets and column shafts for your vehicle. Can be fitted to almost any vehicle provided you are prepared to make the necessary additional parts.

We suggest you familiarise yourself with the Datasheet from DCE to assess suitability for your project.
