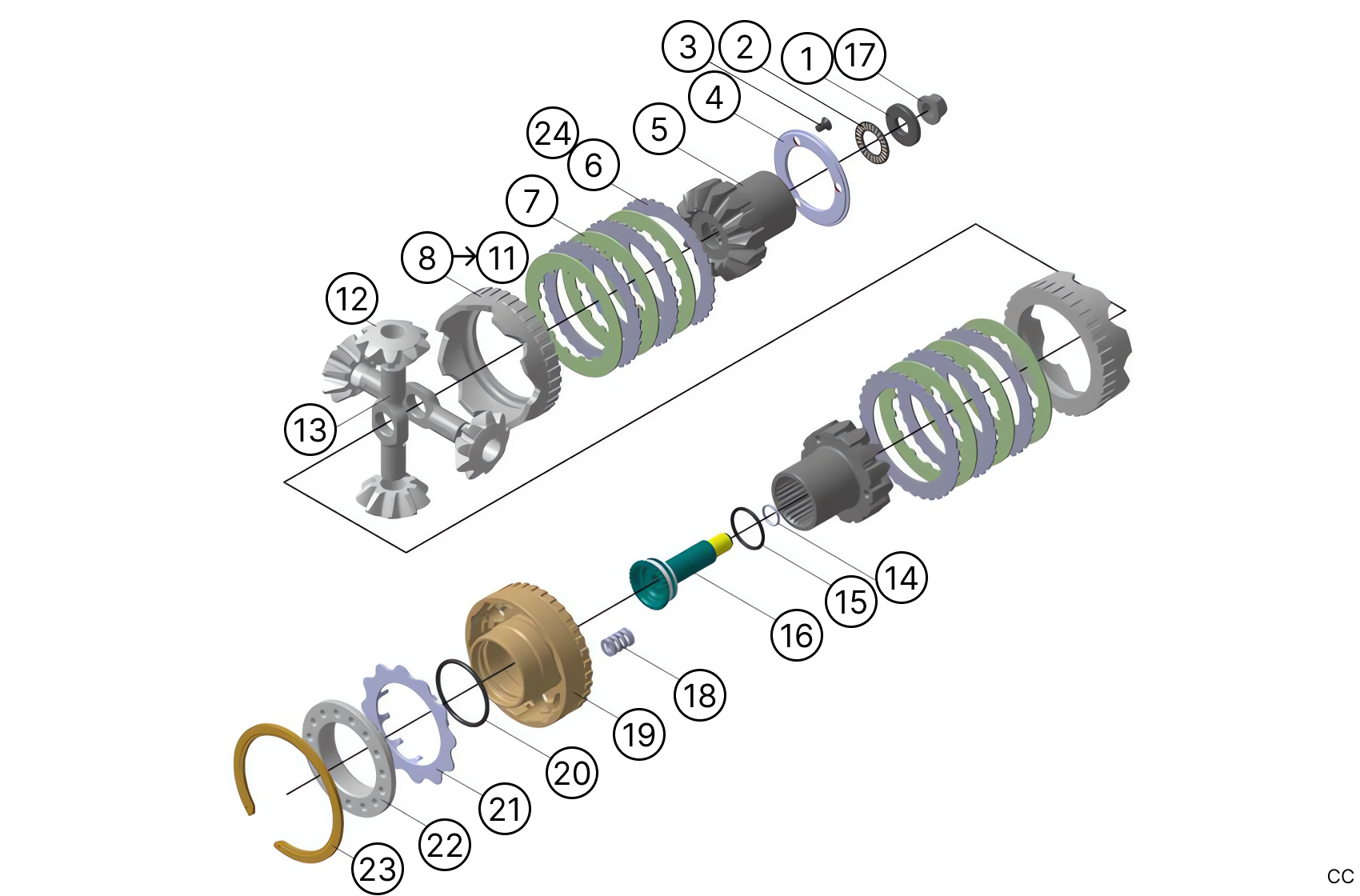

C235 - Front Differential

C235 - Front Differential

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Spacer

F9053311

1

€39.96 €49.15
2
AXK 1730 Bearing

199042

1

€7.91 €9.73
3
M5x8 FHC Bolt

303068

3

€1.57 €1.93
4
Sun Gear Plate

F9053312

1

€42.17 €51.87
5
Sun Gear

F9053306

1

€334.00 €410.82
6
1.50mm Thick Core Disc

F1904057

6

€98.00 €120.54
7
1.50mm Thick Friction Disc

F9007320

6

€128.00 €157.44
8
Rampe 35/60 – 35/90

F90533421

1

€490.00 €602.70
9
Ramp 40/60

F90533391

1

€518.82 €638.15
10
Front Differential Ramps 35/72 - 40/75

F90535031

1

€660.11 €811.94
11

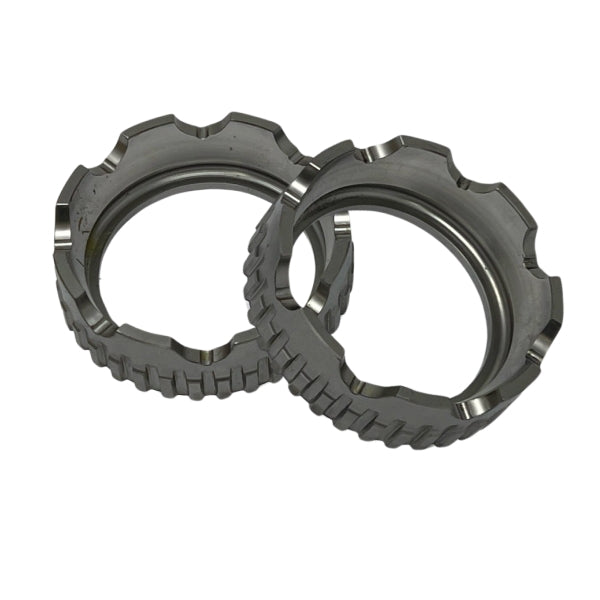

Front Differential Ramps 55/75

F90535041

1

€670.01 €824.11
12
Planet Gear

F9053315

4

€159.00 €195.57
13
Plant Gear Axle

F9053309

2

€551.83 €678.75
14
Gears Clearance Adjustment Shim Set

F90373671

1

€202.03 €248.50
15
Ø2.5x25 O'Ring

201129

1

€0.62 €0.76
16
Sun Gear Bolt

F90533101

1

€313.50 €385.61
17
M12 x 125 Simmonds Nut

499009

1

€17.28 €21.25
18
Preload Spring

801111

12

€75.00 €92.25
19
Differential End Cap

F9053305

1

€1696.07 €2086.17
20
Ø3x41 O'Ring

202068

1

€9.02 €11.09
21
Lock Ring

F9053308

1

€383.63 €471.86
22
Preload Adjustment Nut

F9053307

1

€478.85 €588.99
23
Circlips

F9044313

1

€95.54 €117.51
24
Core Disc 1.55mm

F9046345-1-55

6

€149.98 €184.48
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
