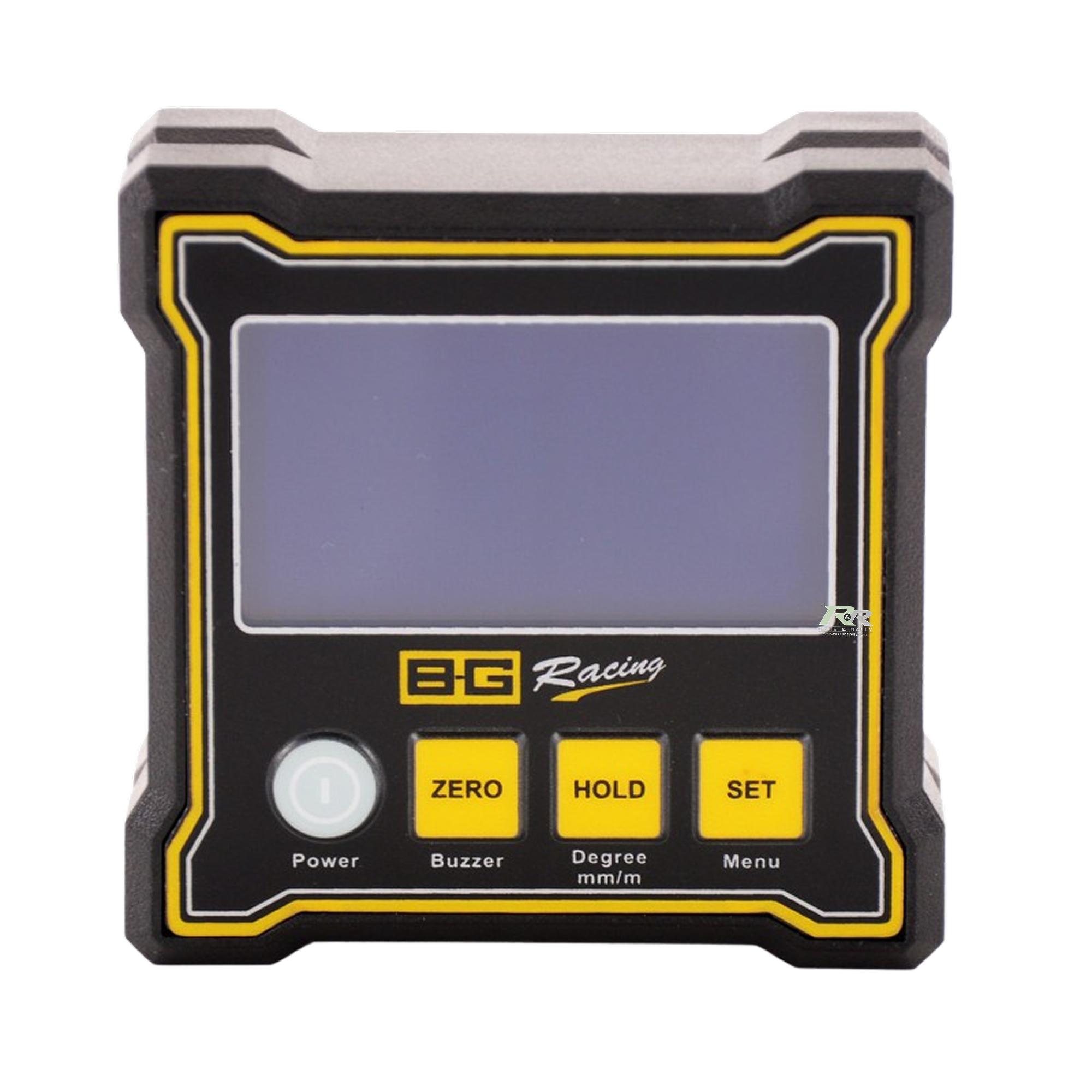

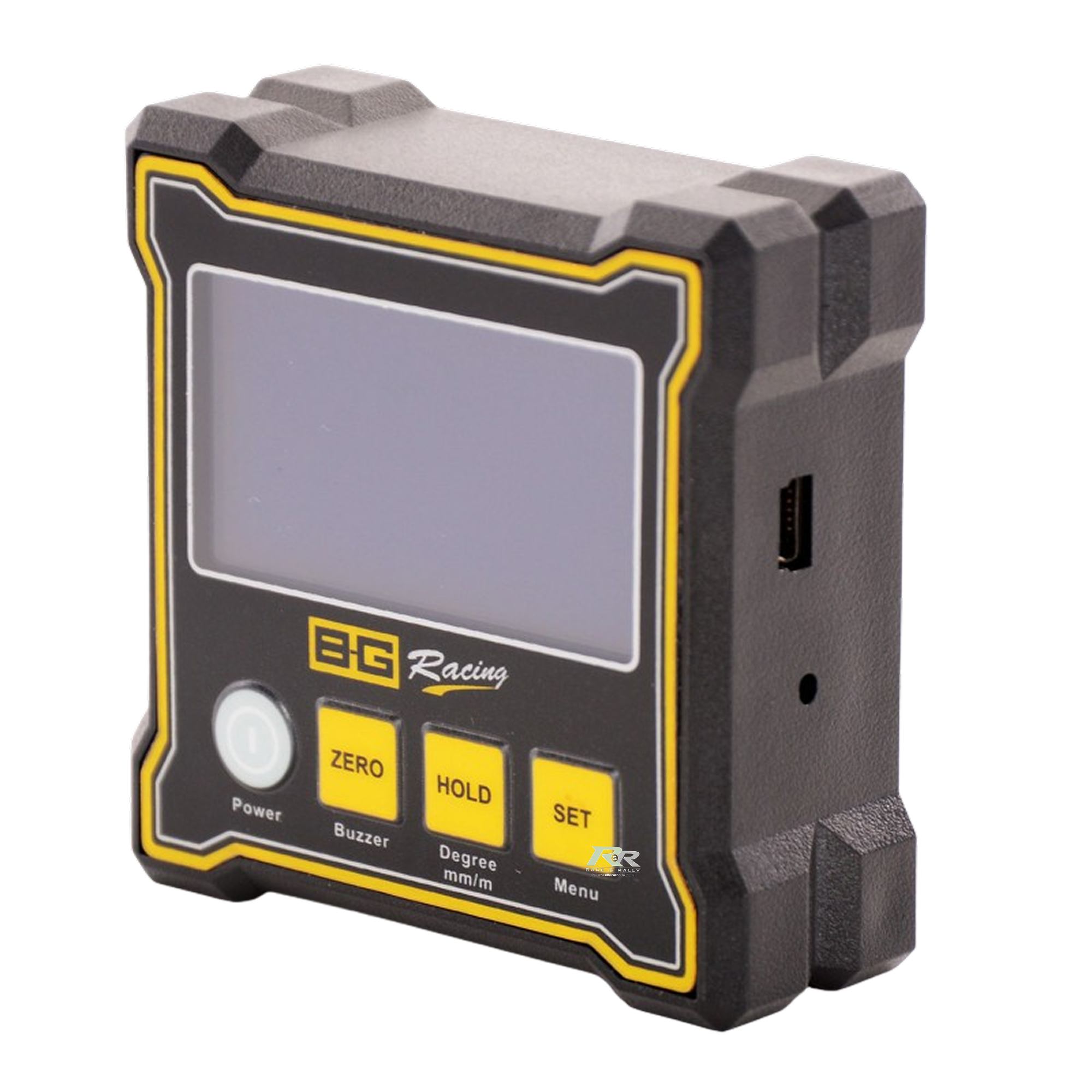

Digital Dual Axis Angle Gauge

Digital Dual Axis Angle Gauge

BGR304

€137.99 €169.73
Sale Sold out

View Docs
View full details

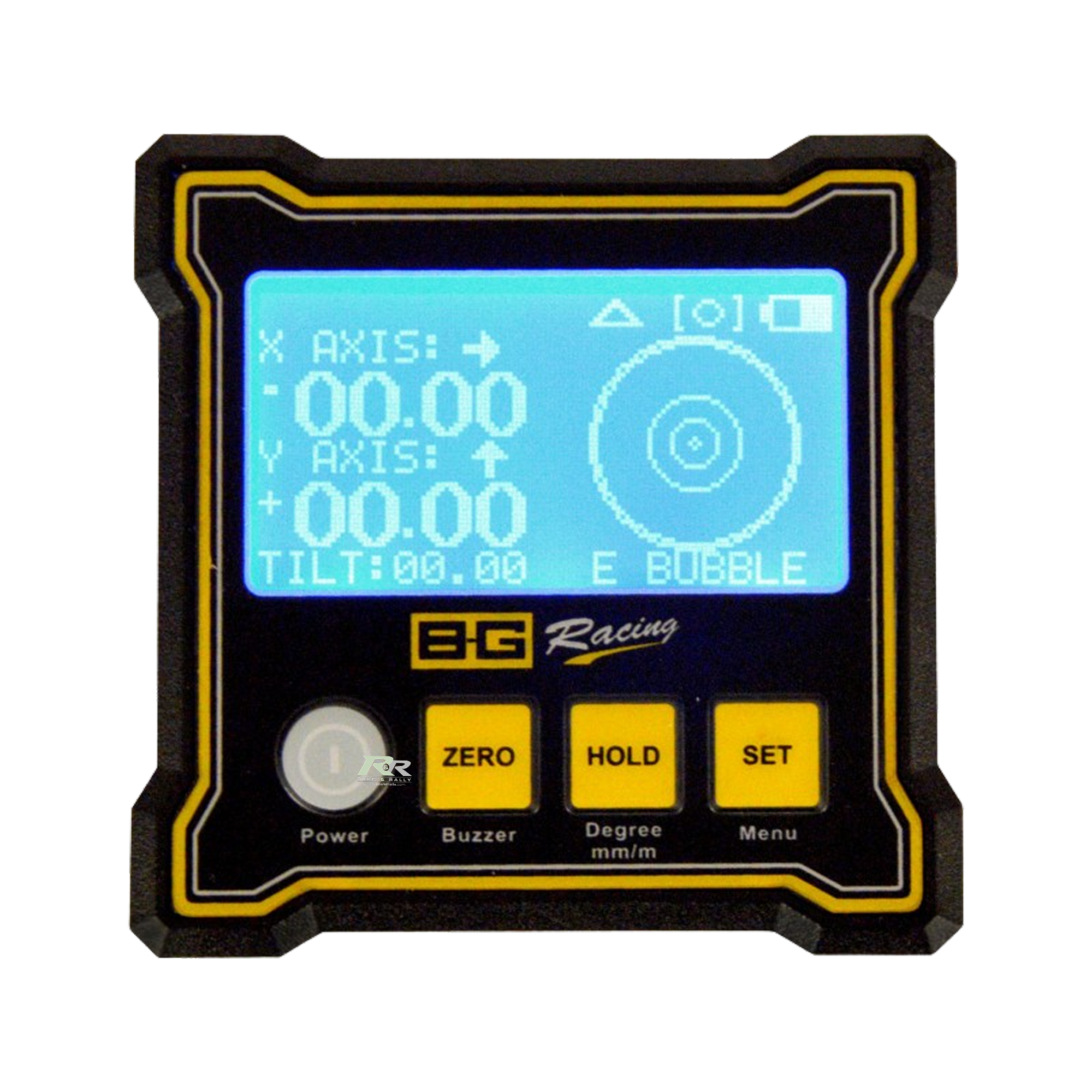

The compact gauge can be used to measure absolute and relative angles to 0.1° accuracy in 0.02° increments in both single and dual axis modes.

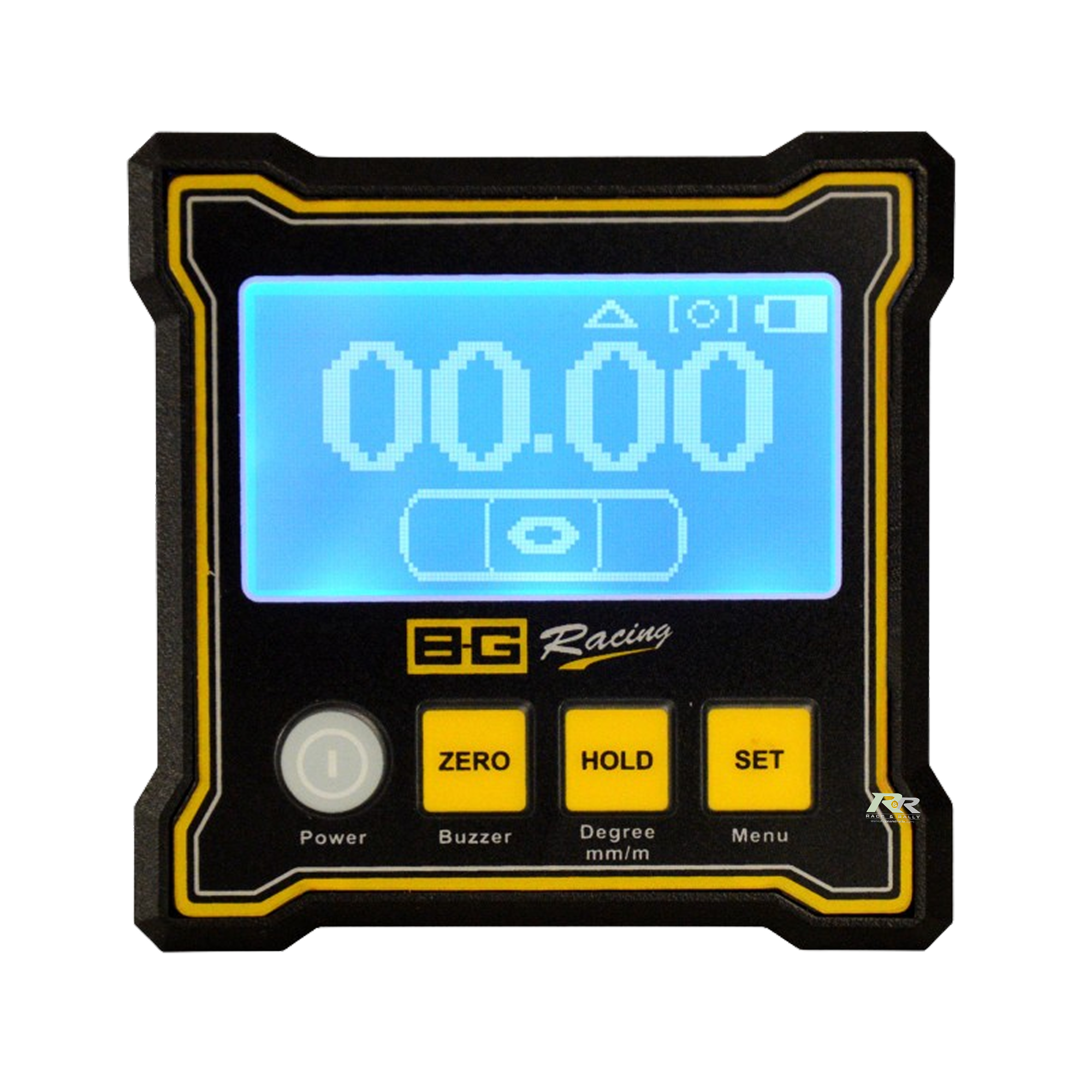

Featuring a large back lit LCD screen, hold button to freeze display, a programmable audio buzzer, auto power off and V shaped multiple magnetic sides for easy mounting.

The B-G Racing Digital Dual Axis Angle Gauge has a low power consumption with a rechargeable battery life of 40hrs, and a USB charging cable is included in the kit.

Ideal for measuring a multitude of suspension geometry angles, setting front or rear wing angles, roll cage bar angles during the construction of a race car, and much more!

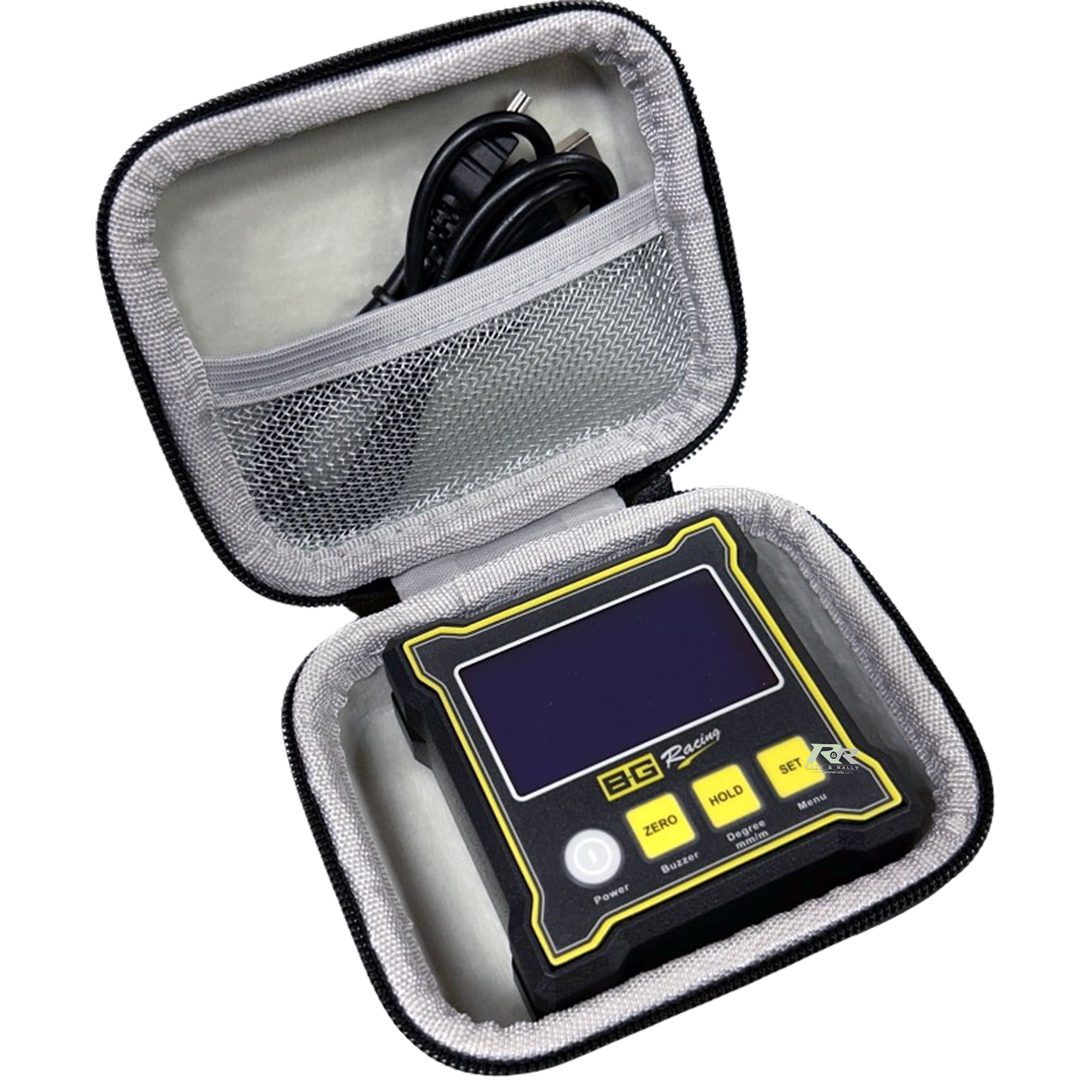

An enhanced feature for 2024 onward, a protective carry case is now included to ensure your B-G Racing Digital Dual Axis Angle Gauge is protected during storage and transportation.

  • Single Axis 360° (4x90°)
  • Dual Axis +/- 40°
  • Relative / Absolute Measurement
  • Calibration Function
  • High Accuracy to 0.1 Degree
  • High Resolution to 0.02 Degree
  • Backlit Display
  • Hold Function
  • Programmable Audio Alarm
  • Auto Power Off
  • Low Battery Indicator
  • Rechargeable Lithium-ion Battery

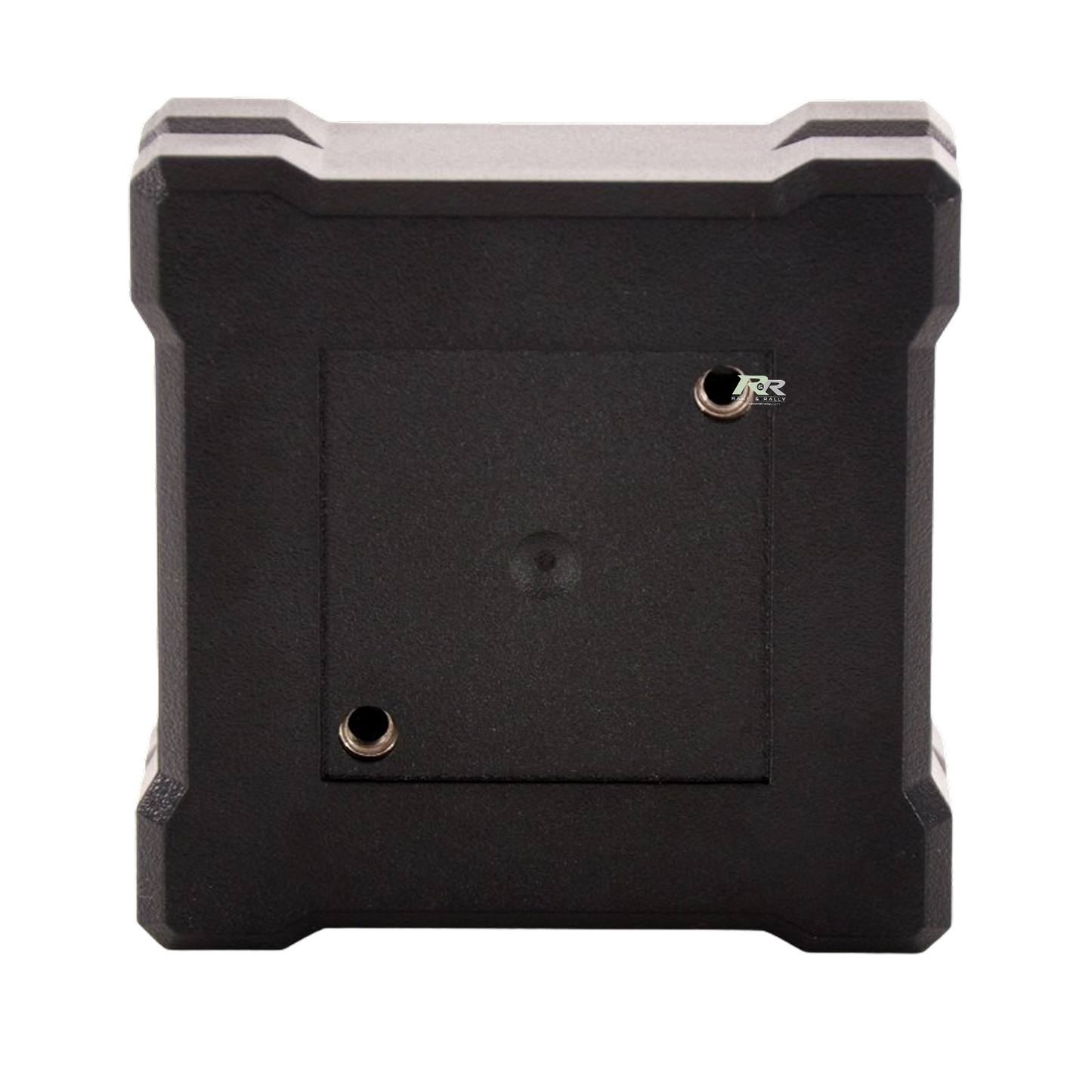

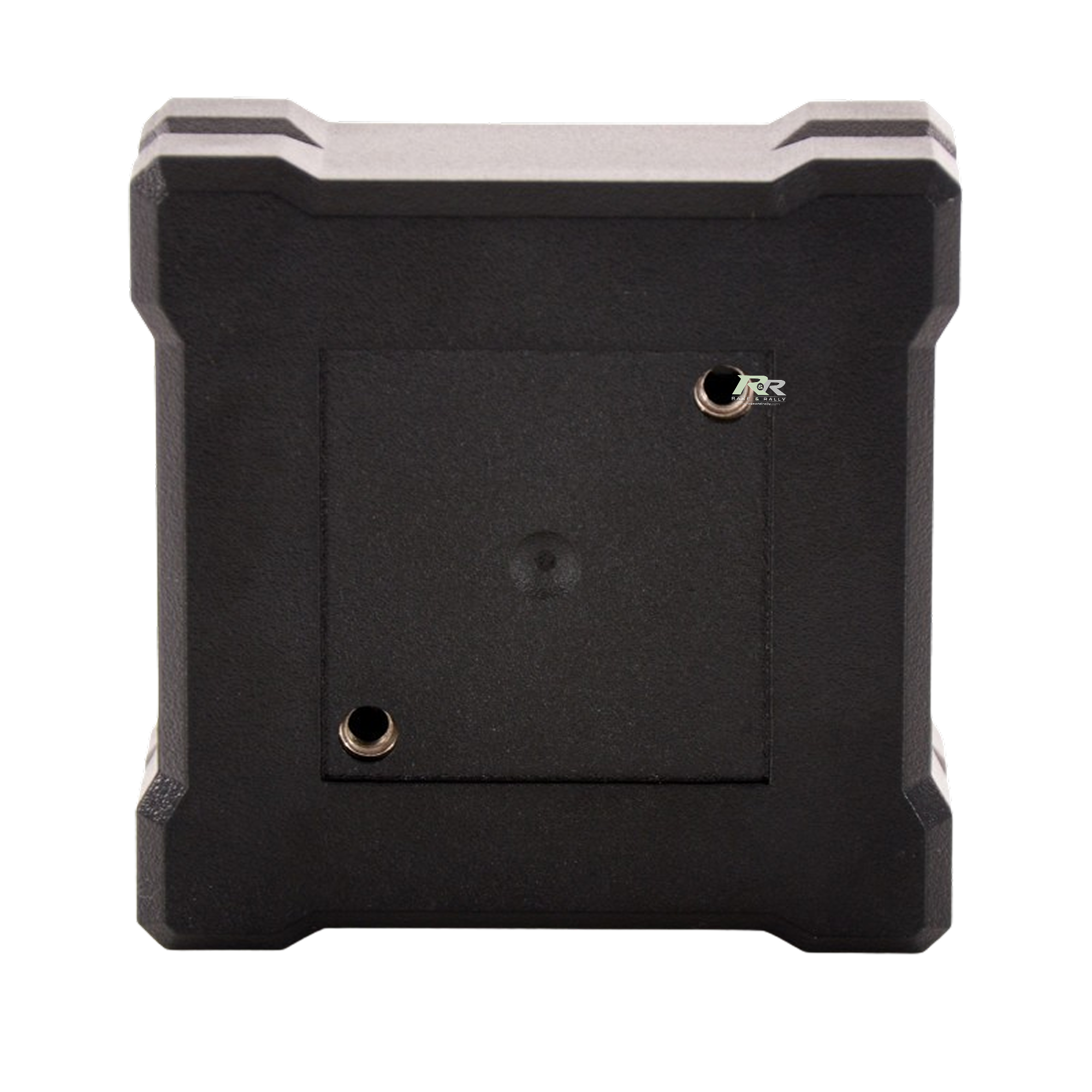

  • 5 Face Magnetic Construction
  • V Shape Grooved Design
  • Impeccable Racing Pedigree
  • One Year Warranty
  • Part Number - BGR304
  • Brand - B-G Racing
  • Height(H) - 70mm - 2.75”
  • Width(W) - 70mm - 2.75”
  • Depth(D) - 23mm - 0.90”
  • Weight - 120g - 0.26lb
  • Accuracy - 0.1° (1/10 degree)
  • Resolution - 0.02°
  • Operating Battery Life - 40 Hours
  • Standby Battery Life - 4000 Hours
  • Warranty - This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not affect your statutory rights.

Brand:

BG Racing

Manufacturer Part Number:

BGR304

Barcodes:

5060252091886
