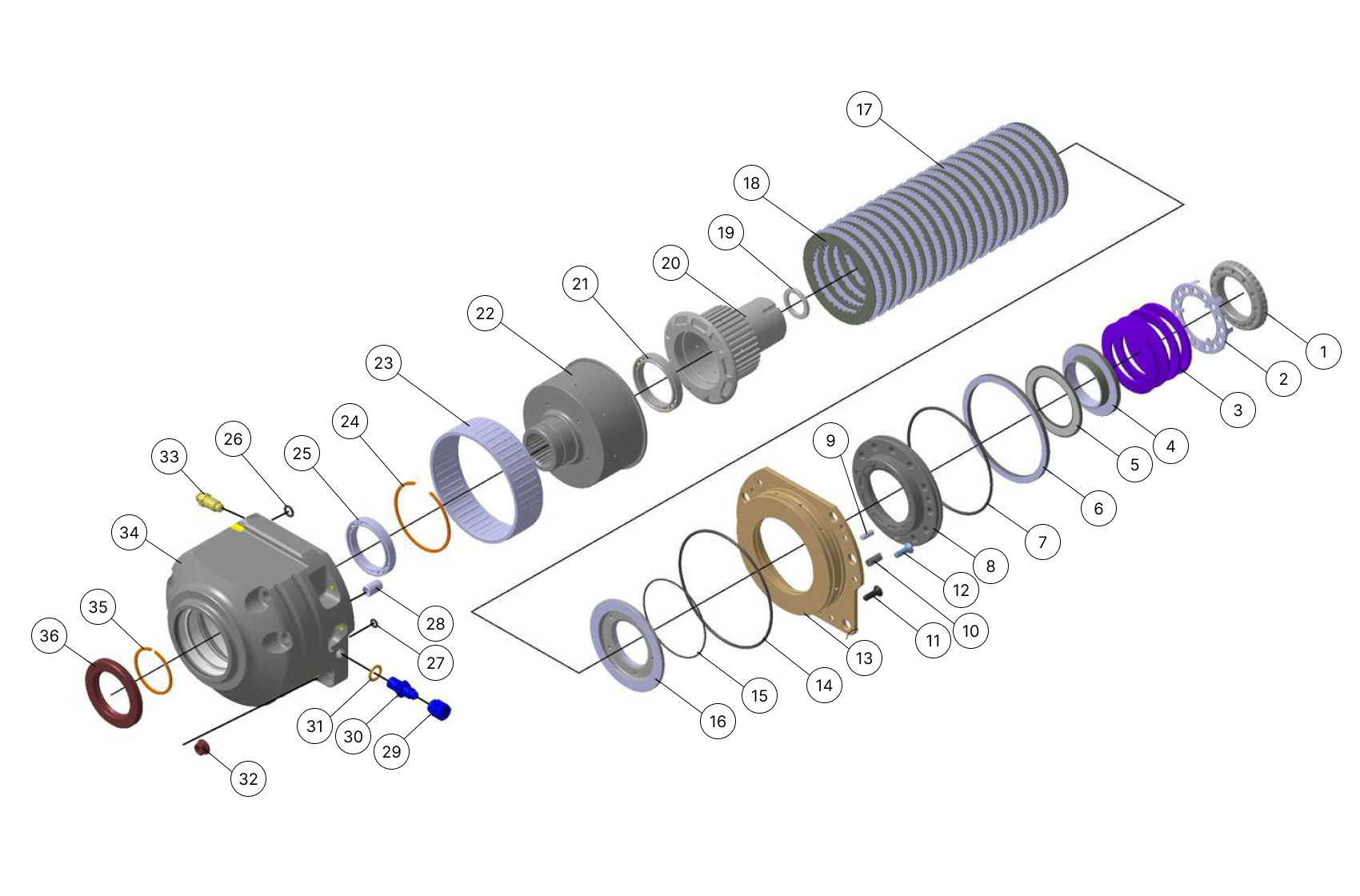

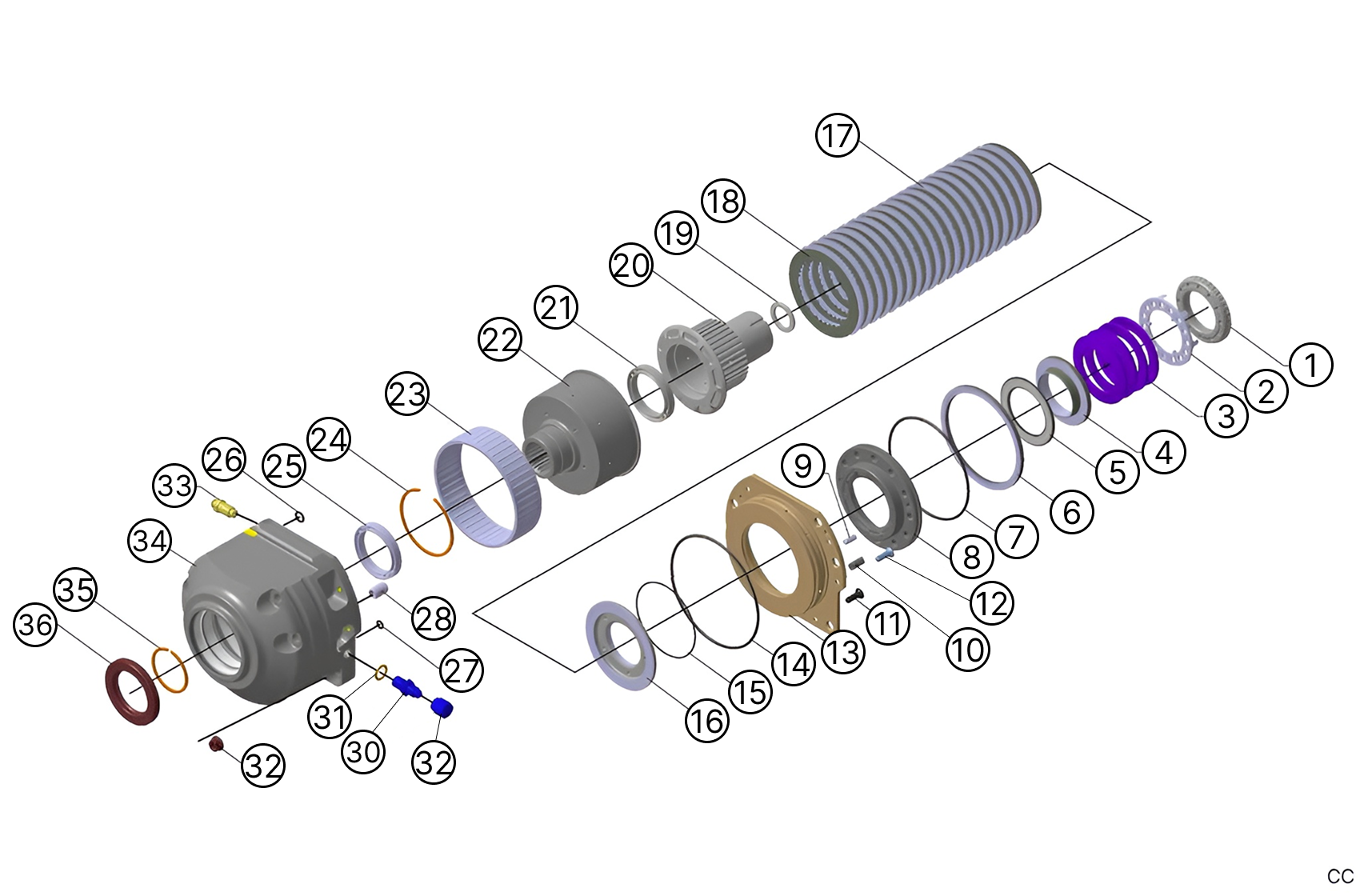

C341 - Disconnect Clutch

C341 - Disconnect Clutch

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Overload Clutch Nut

F9040215

1

€180.60 €222.14
2
Lock Ring

F9040216

1

€415.17 €510.66
3
Belleville Washer

F9040236

4

€161.30 €198.40
4
Intermediate Pressure Plate

F9040212

1

€273.86 €336.85
5
AXK4565 Bearing

199045

1

€10.46 €12.87
6
Piston Stroke Shim Set

F90402211

1

€1623.51 €1996.92
7
Ø2.5X94 O'Ring

201262

1

€36.27 €44.61
8
Piston

F9040209

1

€703.10 €864.81
9
Pin

F9040222

2

€23.72 €29.18
10
Ø1.25xØ6.4x17 Spring

801079

12

€8.66 €10.65
11
M5x12 cl. 10.9 ZN Fac Bolt

303045

4

€0.34 €0.42
12
Machined M5x16 FHC Bolt

F9040223

2

€15.04 €18.50
13
Piston Race

F9040208

1

€2149.83 €2644.29
14
Ø104x2.5 O'Ring

201263

2

€27.78 €34.17
15
Ø70x1.5 O'Ring

201210

1

€8.99 €11.06
16
Pressure Plate

F9040231

1

€322.65 €396.86
17
Core Disc

F9040218

19

€114.84 €141.25
18
Friction Disc

F9040219

20

€153.28 €188.53
19
Mechanism Position Set

F90402171

1

€367.05 €451.47
20
Overload Clutch Hub

F9040201

1

€1875.11 €2306.39
21
61808 Bearing

101086

1

€64.90 €79.83
22
Overload Clutch Case

F9053811

1

€2938.67 €3614.56
23
K95x103x3030 Bearing

105069

1

€223.61 €275.04
24
SB62 Ring

9907037

1

€5.56 €6.84
25
61908 Bearing

101018

1

€58.15 €71.52
26
Ø7x2 O'Ring

201154

1

€0.99 €1.22
27
Ø4.5x2 O'Ring

201008

2

€1.24 €1.53
28
Ø8.1 x 10 x 15 Center Pin

F9027131

1

€19.03 €23.41
29
Dash -03 Plug

9999586

1

€10.50 €12.92
30
D03/ M10x100 Fitting | AN929-03D

9999556

1

€18.39 €22.62
31
Ø10.2x15x1 Copper Washer

599017

1

€1.58 €1.94
32
M8 Simmonds Nut

499003

6

€4.62 €5.68
33
Bleeding Fitting

9999417

1

€8.11 €9.98
34
Overload Clutch Housing

F1513802

1

€4125.03 €5073.79
35
Ø40 Circlip

601010

1

€2.84 €3.49
36
40x62x7 Double Lip Seal

206028

1

€37.15 €45.69
