The Geartronics gear indicator is fully programmable to suit all sequential gearbox types with a 3 wire potentiometer (or hall-effect) barrel position sensor, regardless of gear order or angular increments between gears, it even works if the potentiometer is fitted upside down. A simple one touch button programming procedure is used to learn the positions of each gear, including neutral and reverse. A programmable relay driver pin is also included that can be activated in R, N or both R & N.

It's the most popular and widely used gear display for all motorsport disciplines with great success.

• 30mm alphanumeric digit, capable of displaying 1-7, N & R
• High intensity red alphanumeric LED display
• Photo sensor automatically adjusts display brightness

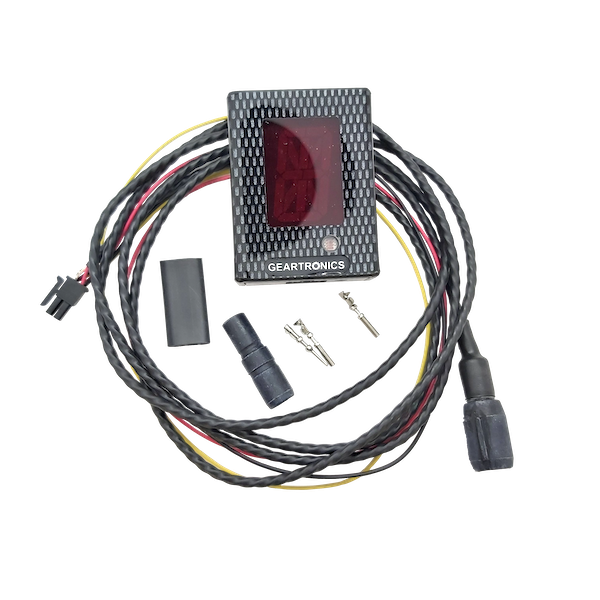

• Supplied with high quality wiring harness
• Designed using latest SMD & multi-layer PCB technology
• Supplied complete with

Dimensions: 47 x 63 x 20mm
