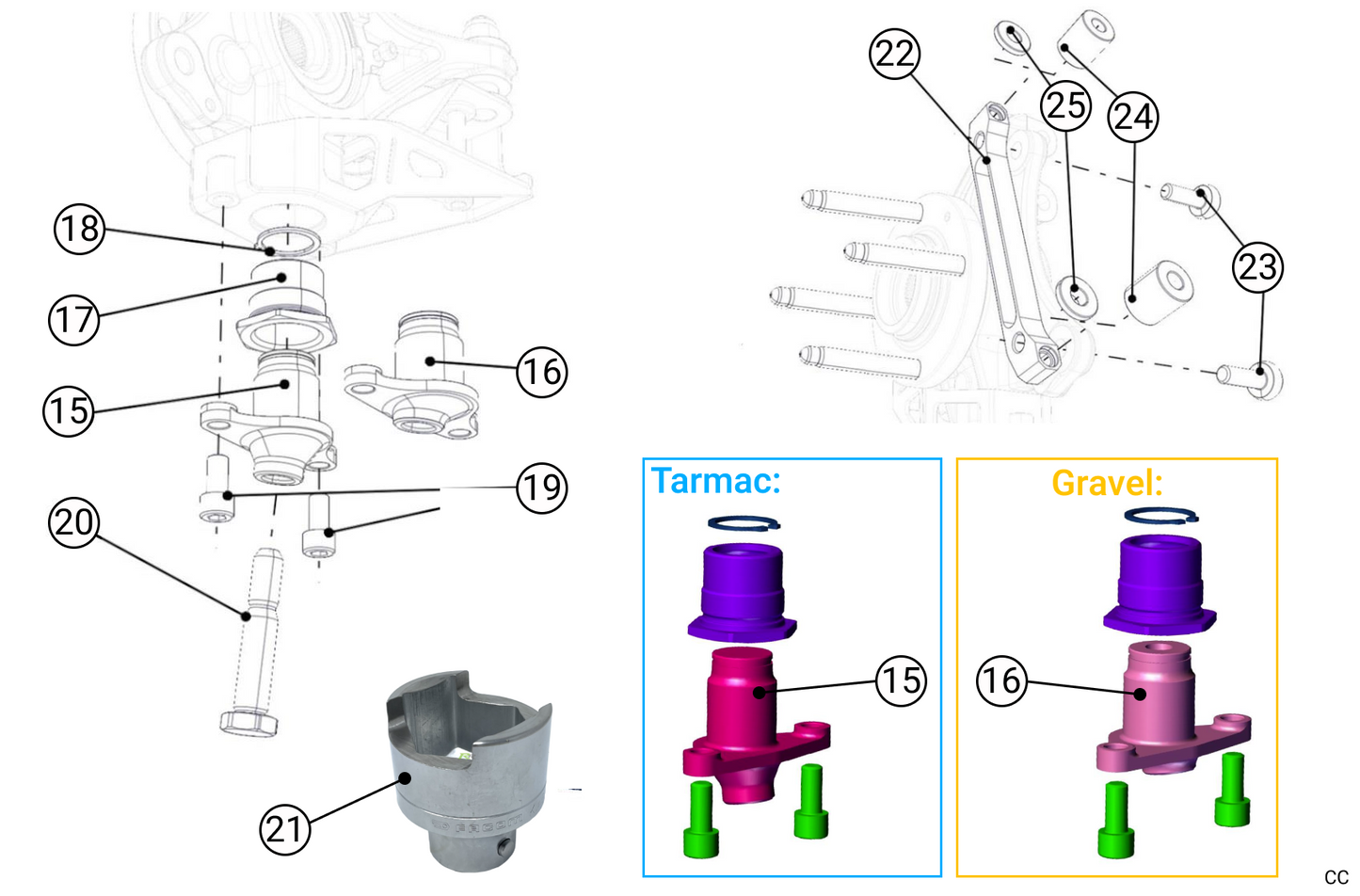

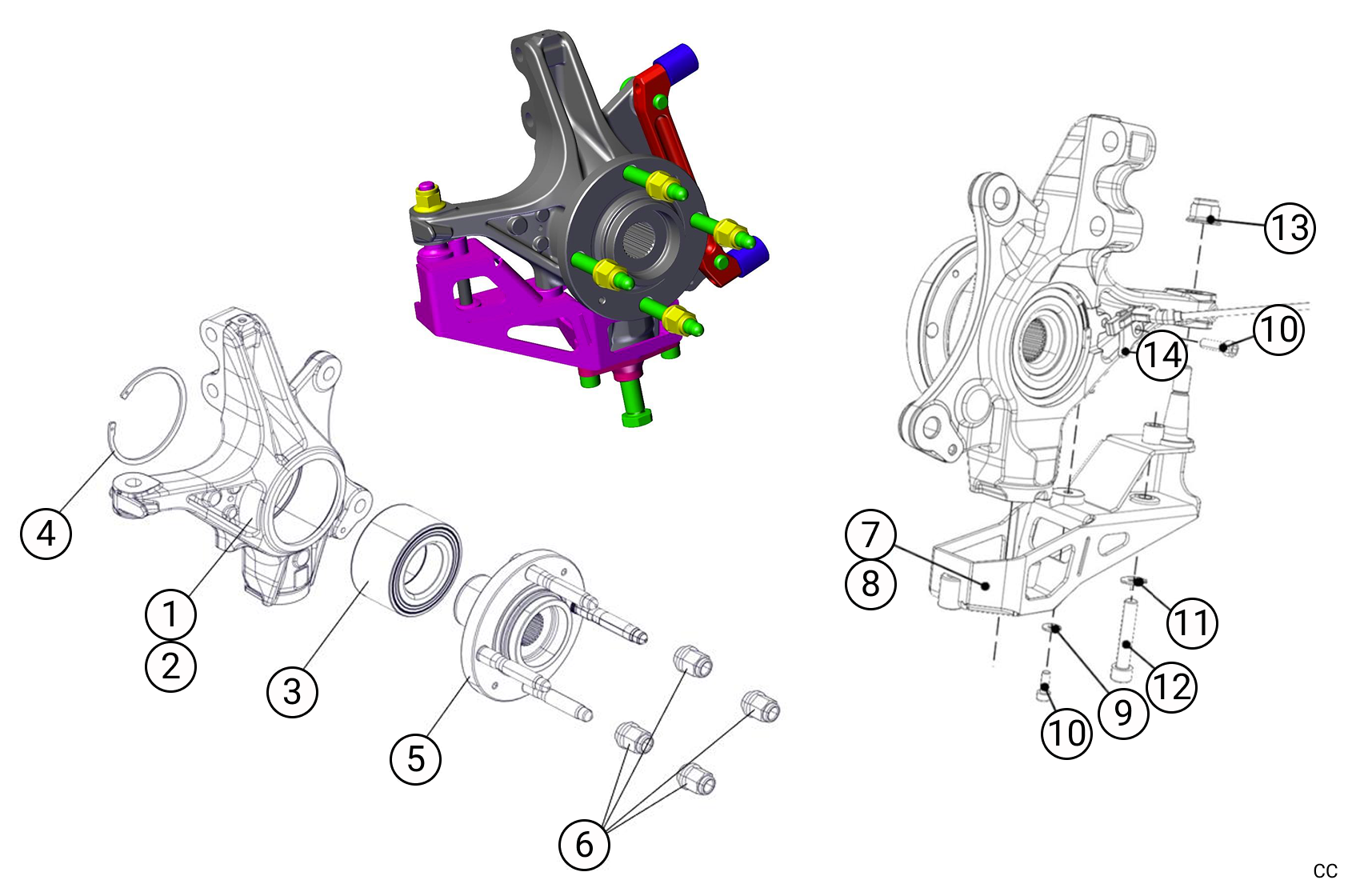

E13 - Front Upright

E13 - Front Upright

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Rally4 Front Upright Pivot - Left-hand Side [BARE]

9686922580

1

€381.22 €468.90
2
Rally4 Front Upright Pivot - Right-hand Side [BARE]

9686922480

1

€381.22 €468.90
3
Wheel Bearing 83X45X44

9811580480

2

€37.20 €45.76
4
Retaining Ring Ø82 - Ø83

9646143280

2

€0.59 €0.73
5
Assembled Wheel Hub

904958198A

2

€454.23 €558.70
6
Wheel Nut

1E1321057A

8

€6.42 €7.90
7
Front Right TCA Axle

904639608D

1

€461.67 €567.85
8
Front Left TCA Axle

904639618D

1

€461.67 €567.85
9
Tooth Spring Washer

6947C7

2

€0.17 €0.21
10
Socket Screw M6-16 12.9

PS82156A10

4

€0.58 €0.71
11
Spring Washer Ø10 Type B

PS86538A10

2

€0.56 €0.69
12

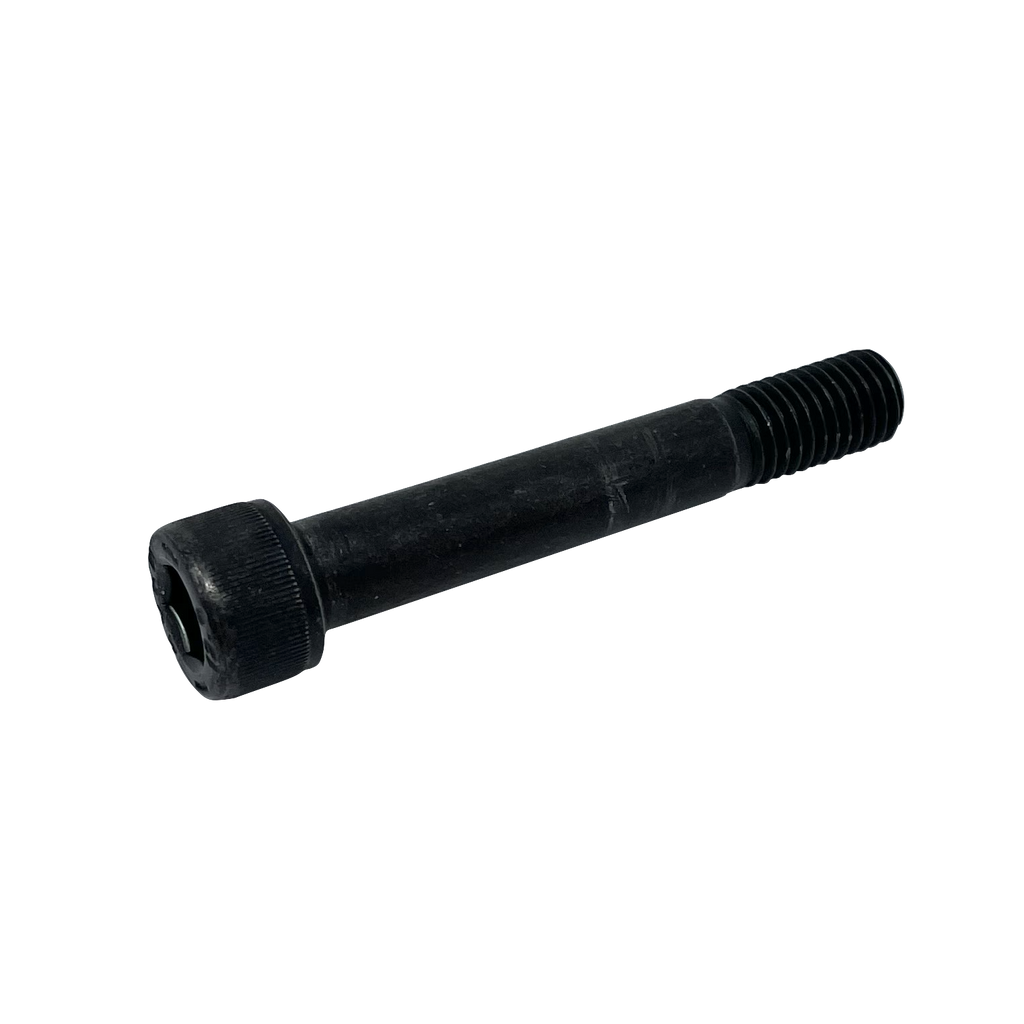

VIS Screw M10x150 L65 cl 12.9

904639748A

2

€9.28 €11.41
13
Locking Nut M12x125

503621

2

€4.60 €5.66
14
Front Wheel Speed Sensor

4545K3

2

€87.37 €107.47
15
Front Tarmac TCA Bracket

904639758A

2

€206.86 €254.44
16
Front gravel TCA bracket

904639768A

2

€253.75 €312.11
17
RIGHT CENTERING SCREW

904639778B

2

€66.41 €81.68
18

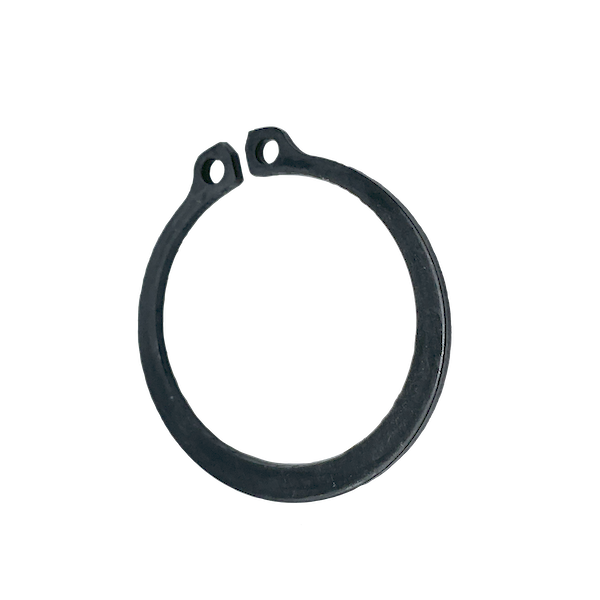

Stop Ring AE 28

PS72555A10

2

€0.81 €1.00
19
M10x20 Bolt CHC cl.12.9

PS82013A10

4

€1.47 €1.81
20
TCA axle screw

1E1320243A

2

€26.10 €32.10
21

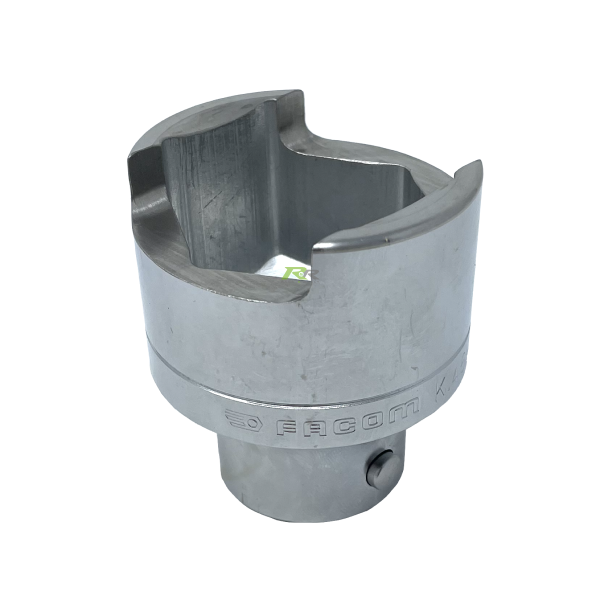

Centring Screw Socket Tool

904678451A

1

€146.71 €180.45
22

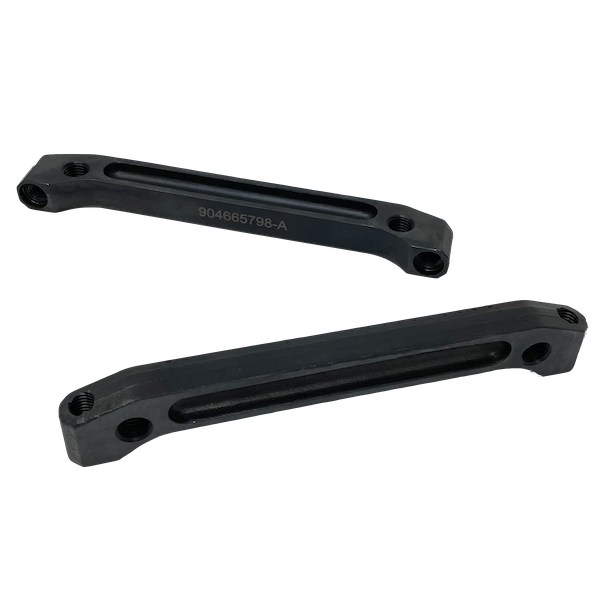

Front caliper bracket

904665798A

2

€74.12 €91.17
23
Caliper Screw 12X150-36

440547

4

€4.97 €6.11
24
Front tarmac caliper mounting spacer

904666558A

4

€20.18 €24.82
25
Front gravel caliper mounting spacer

1E1321055B

4

€12.90 €15.87
