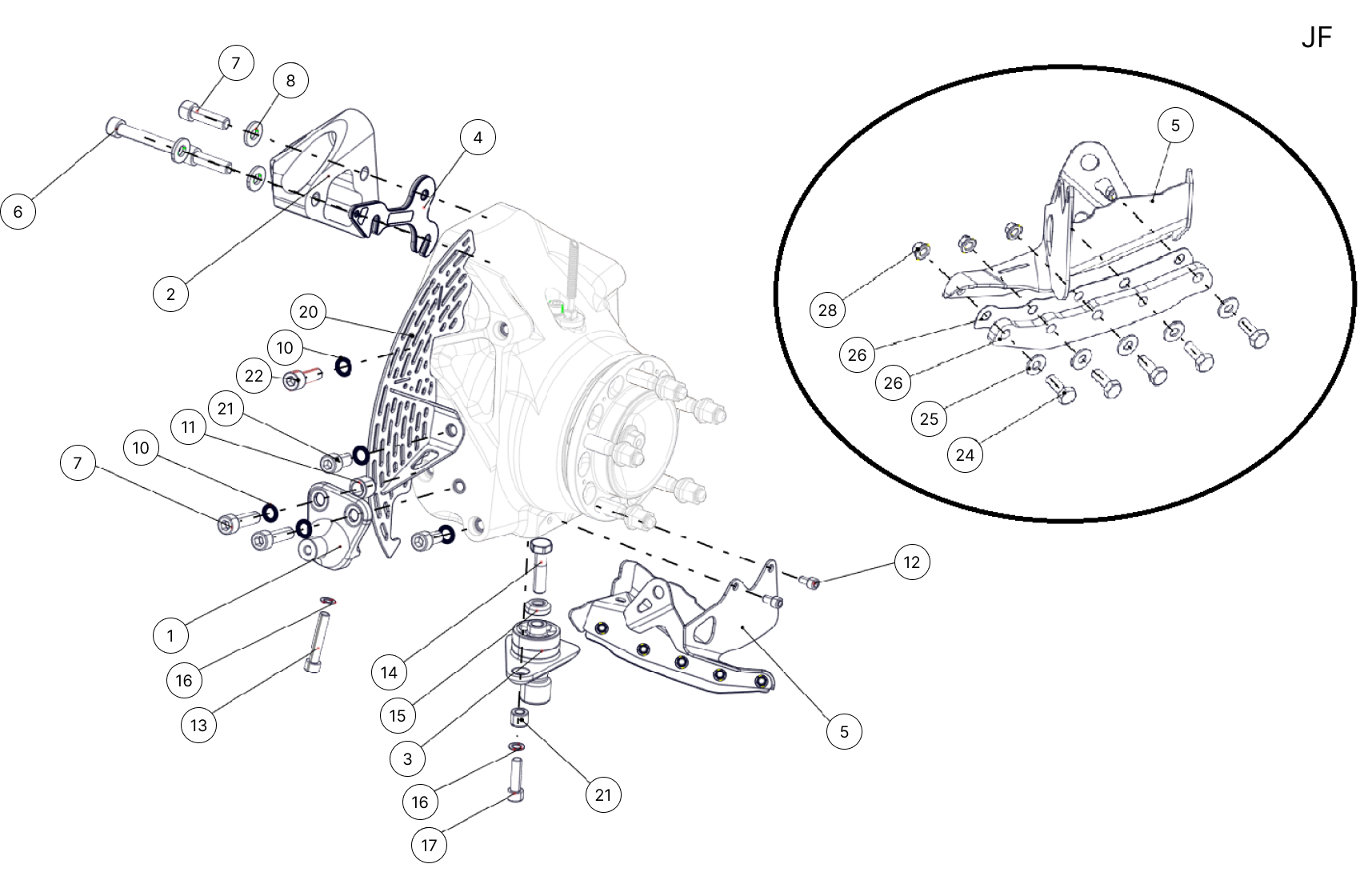

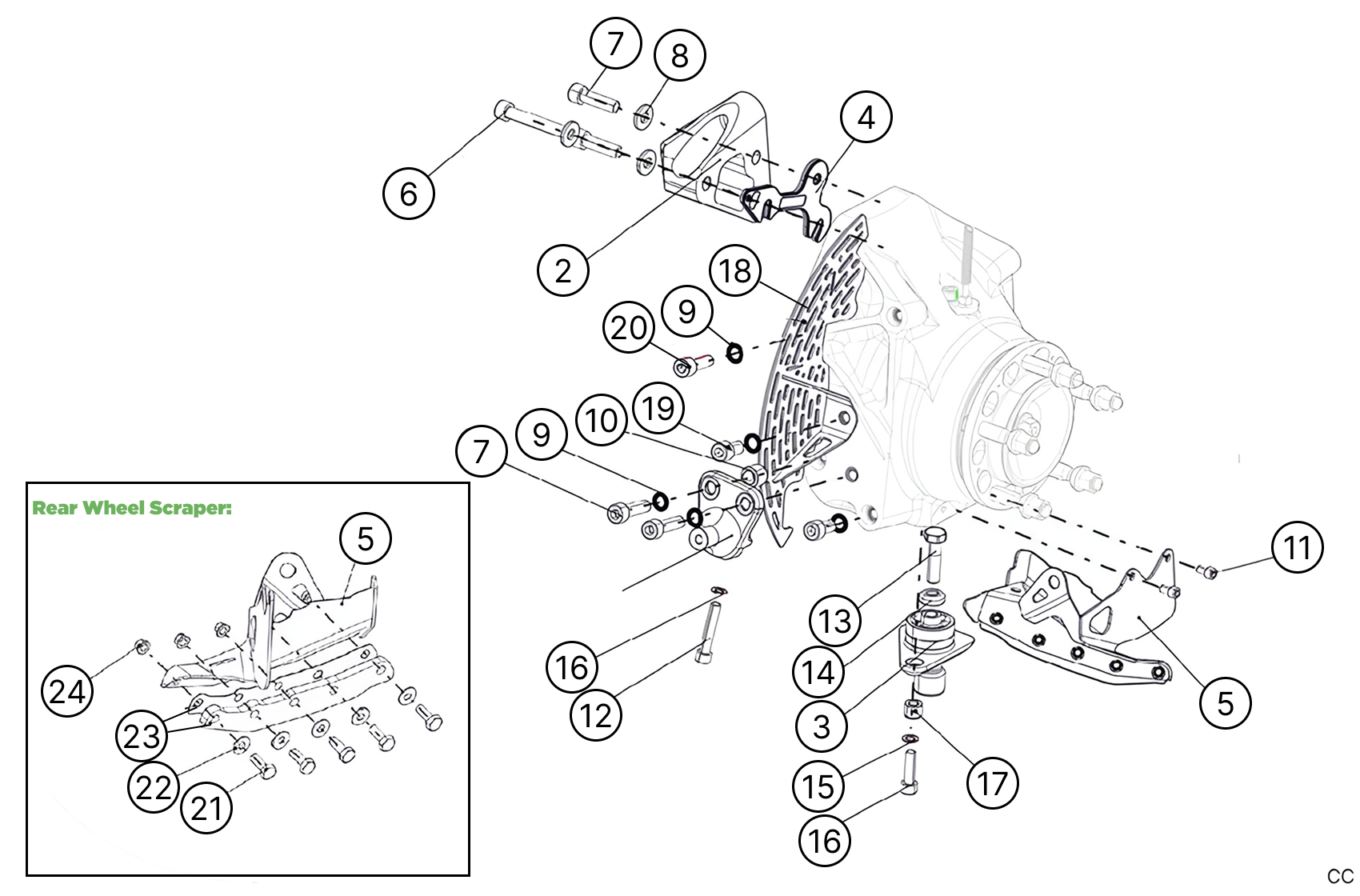

E24 - Rear Upright Gravel

E24 - Rear Upright Gravel

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

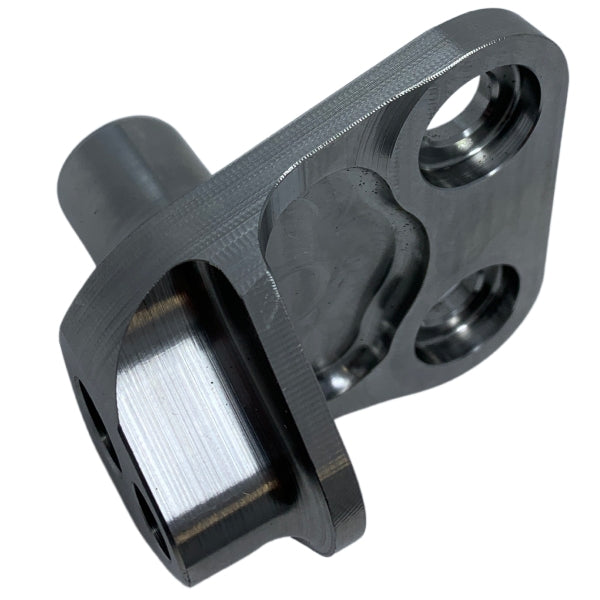

Rear Gravel Point M Bracket

904484018B

2

€949.39 €1167.75
2
CBB Type 1 - Tarmac - Left Side / Gravel - Right Side

904475598C

1

€438.20 €538.99
2
CBB Type 2 - Tarmac - Right Side / Gravel - Left Side

904475608C

1

€410.81 €505.30
3
Front Gravel Point D Bracket

904475548D

2

€954.50 €1174.04
4
Camber Shim 0.5mm

904479428A

2

€12.00 €14.76
4
Camber Shim 0.8mm

904479438A

2

€12.00 €14.76
4
Camber Shim 1mm

904479448A

2

€11.25 €13.84
4
Camber Shim 1.2mm

904479458A

2

€12.80 €15.74
4
Camber Shim 2mm

904479468A

2

€15.00 €18.45
4
Camber Shim 3mm

904479478A

2

€27.20 €33.46
4
Camber Shim 5mm

904479488A

2

€28.00 €34.44
5

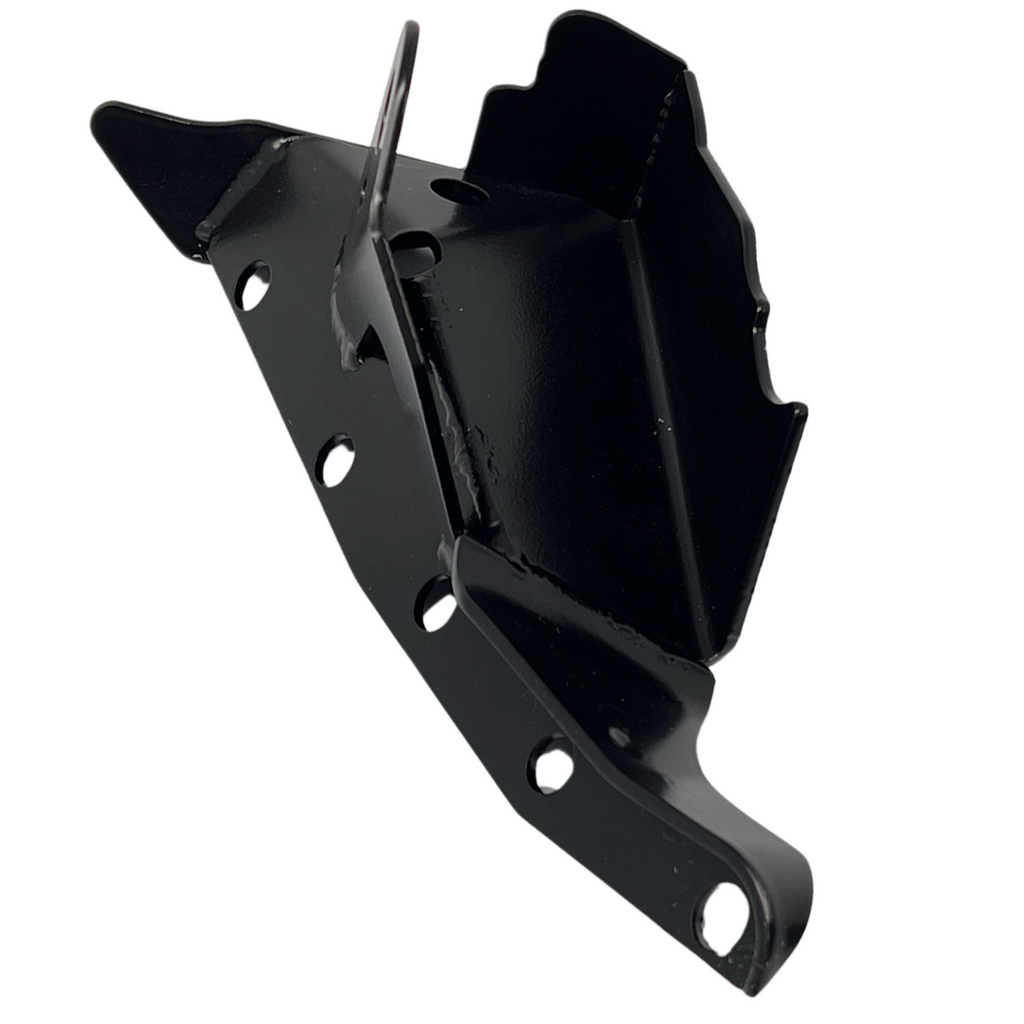

Right Scraper Bracket

904904388B

1

€281.25 €345.94
5

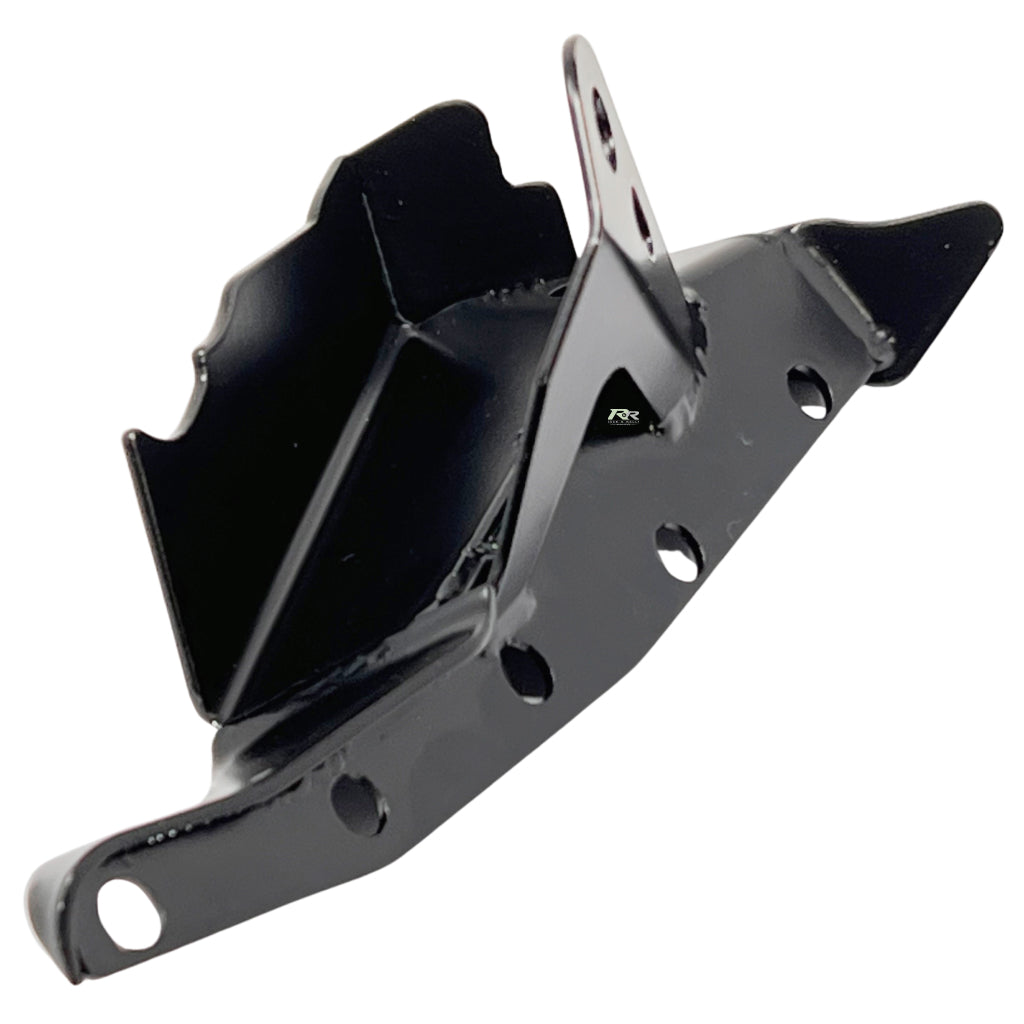

Left Scraper Bracket

904904378B

1

€281.25 €345.94
6
Screw CHC M10x60 cl12.9

PS82146A10

2

€2.89 €3.55
7
Screw CHC M10x35 cl.12.9

PS82003A10

8

€4.18 €5.14
8
Washer 10 D22 TH2,5

6947H6

6

€1.02 €1.25
9
Sps washer 10-16-1

PS86571A10

10

€0.49 €0.60
10
Point M locating pin

904475708A

2

€70.13 €86.26
11
Screw M6-10

PS82045A10

4

€0.28 €0.34
12
HSH Screw M8x125 L45 CL12.9

PS82132A10

2

€1.69 €2.08
13
Screw H Emb M10X150 L40 Th26

904625448C

2

€93.38 €114.86
14
Washer PT DT

904602128B

2

€42.56 €52.35
15
SPS Washer Ø8x13-0,8

PS86570A10

4

€0.36 €0.44
16
Screw CHC M8x30 cl.12.9

PS82079A10

2

€1.07 €1.32
17
Front Point D Centering Pin M8

904475568A

2

€69.71 €85.74
18

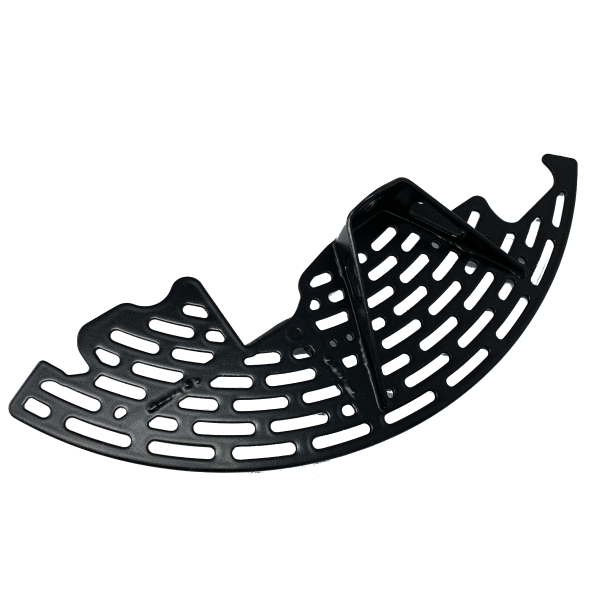

Stone Guard Rhs

904487508B

1

€272.00 €334.56
18

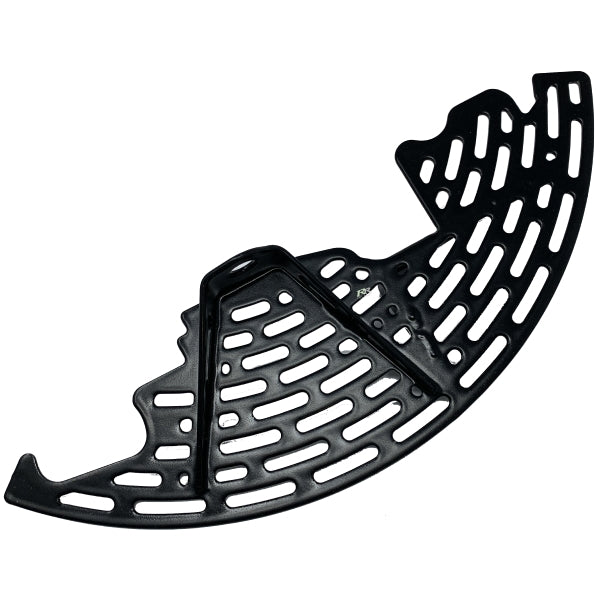

Stone Guard Lhs

904487518B

1

€272.00 €334.56
19
M10x20 Bolt CHC cl.12.9

PS82013A10

4

€1.47 €1.81
20
CHC Screw M10 lg30 cl12.9

PS82008A10

2

€1.87 €2.30
21

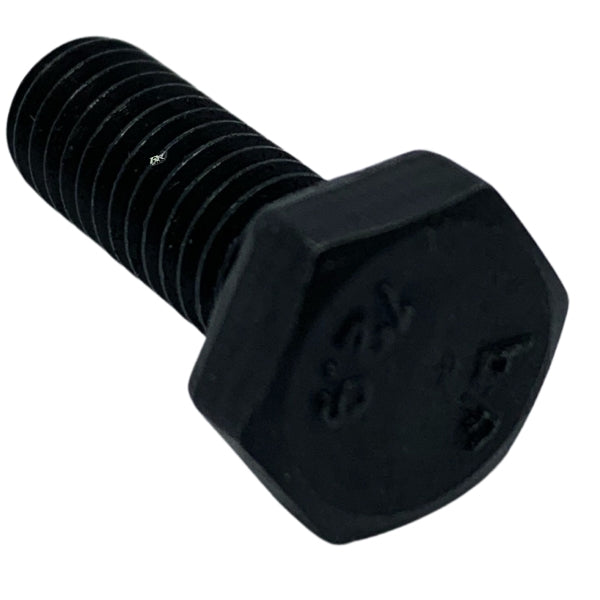

Hh Screw M6X16 Acier Cl12.9

PS84525A10

10

€3.00 €3.69
22
Flat washer Ø6-14-1

PS86011A10

10

€0.32 €0.39
23

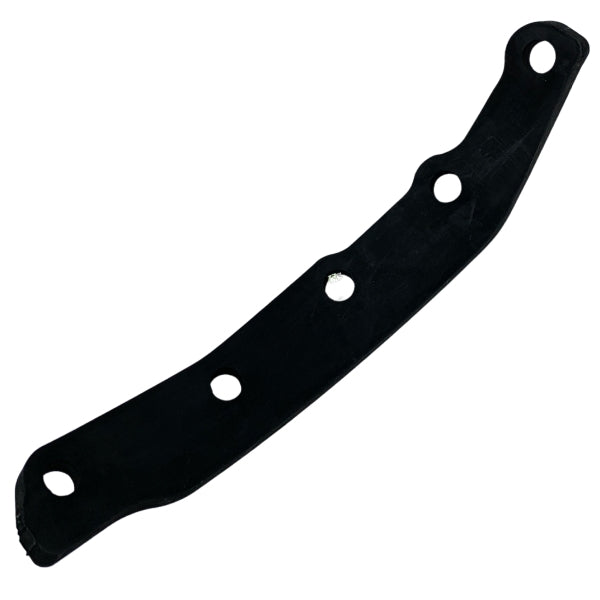

Rim Scraper

904475808B

2

€26.54 €32.64
24
Collar nut M6

PS74001A10

10

€7.61 €9.36
View full details
