• E24 - Rear Upright Tarmac - Race and Rally
1 1

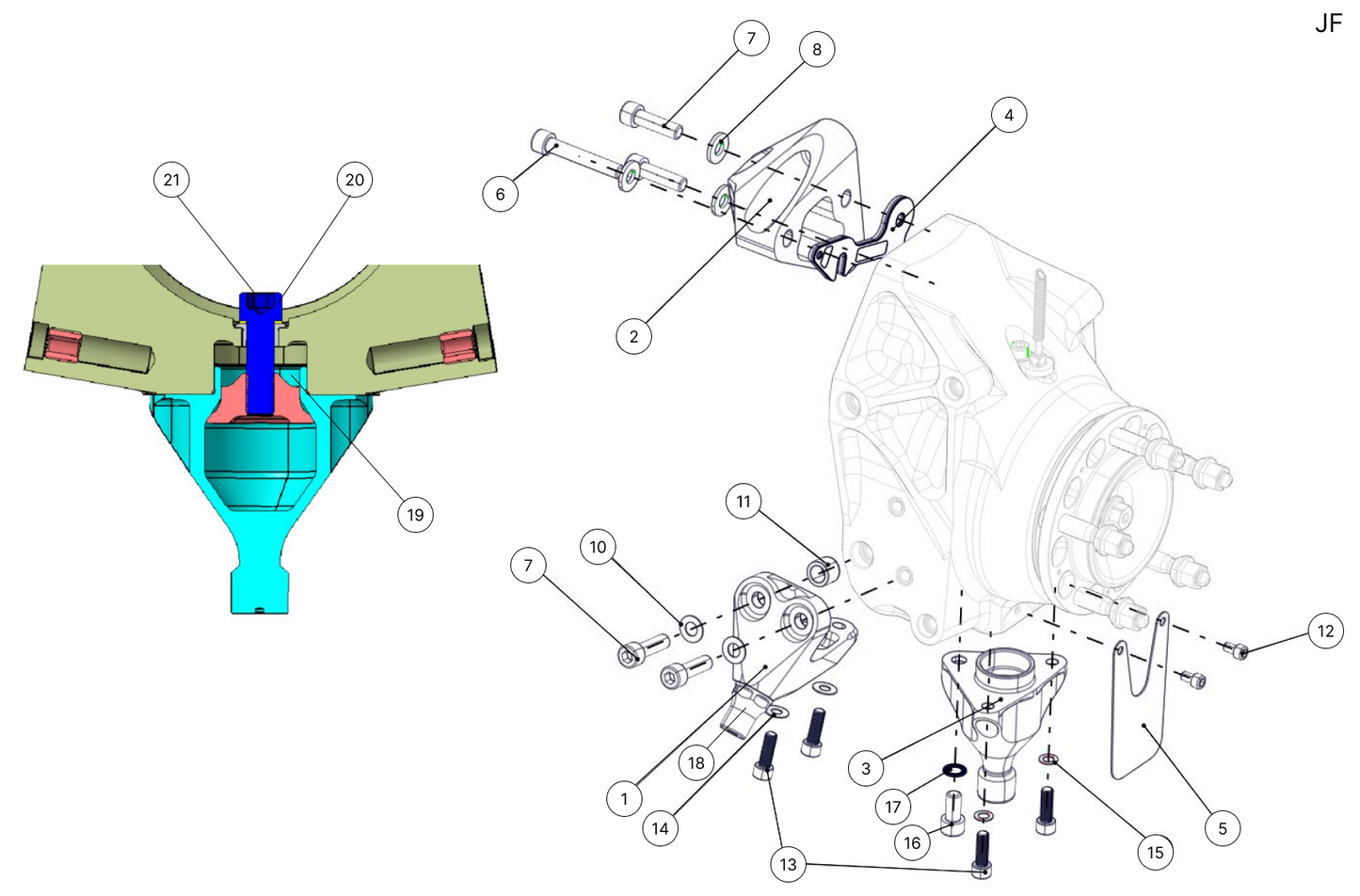

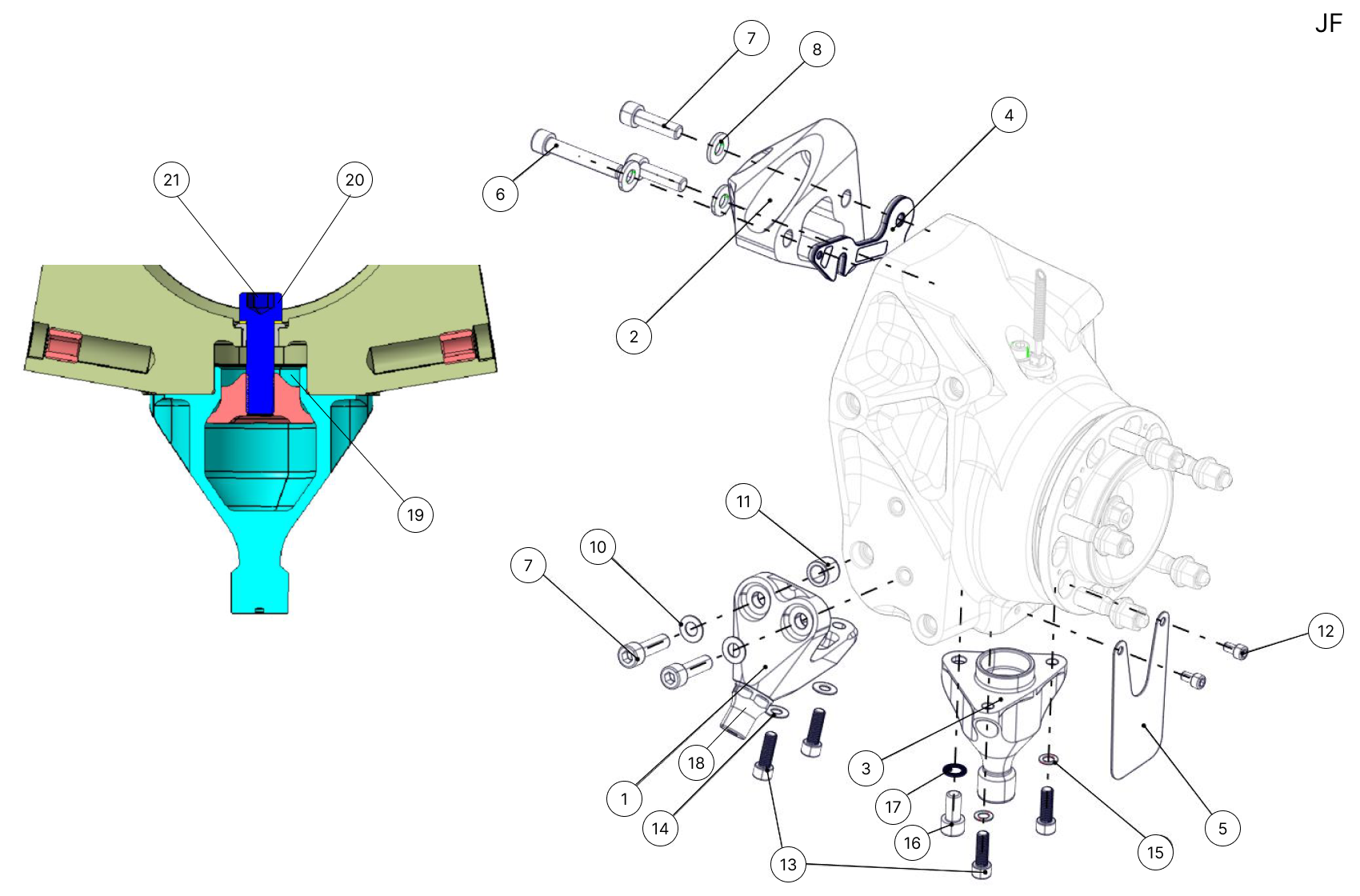

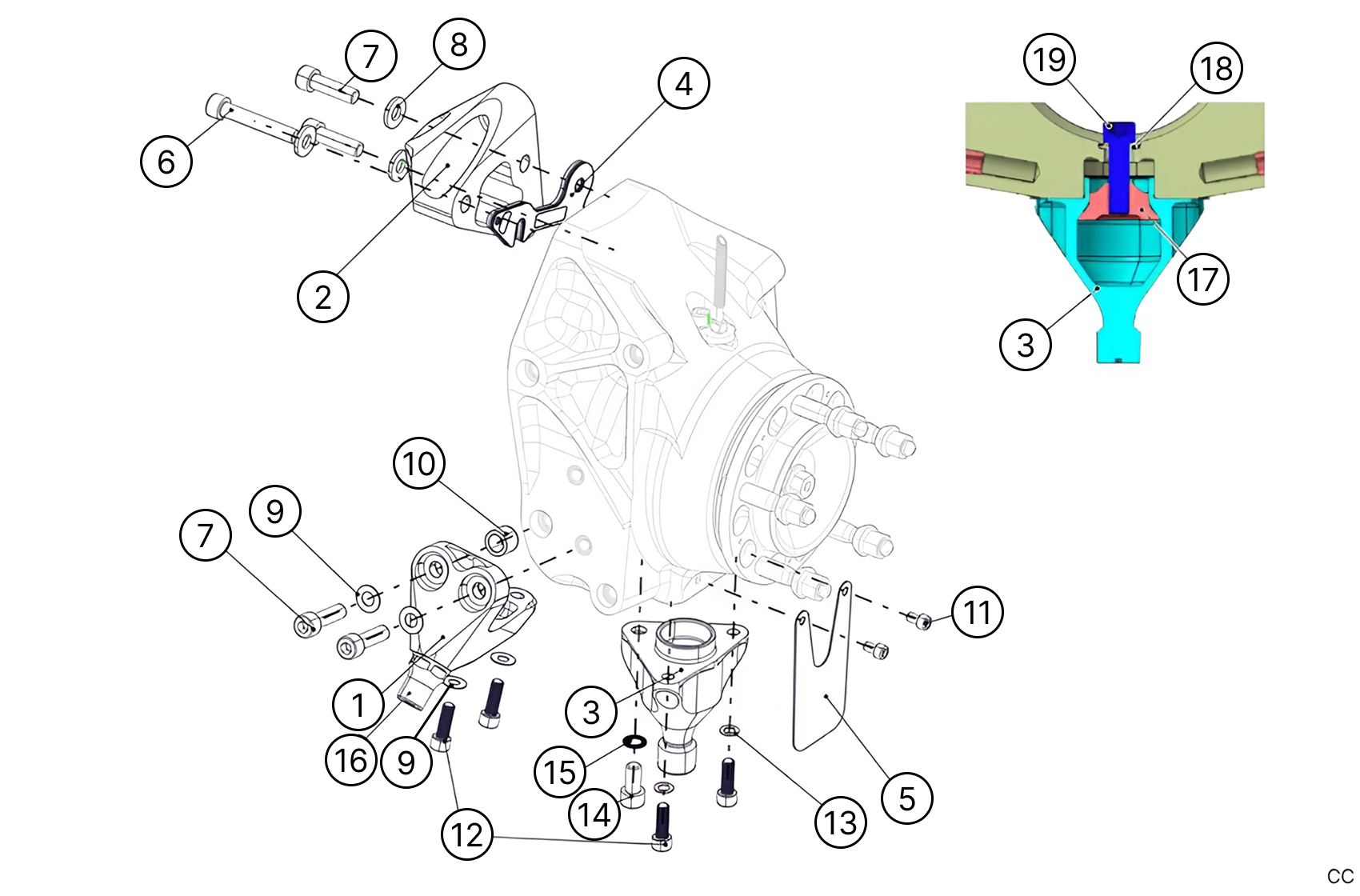

E24 - Rear Upright Tarmac

E24 - Rear Upright Tarmac

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

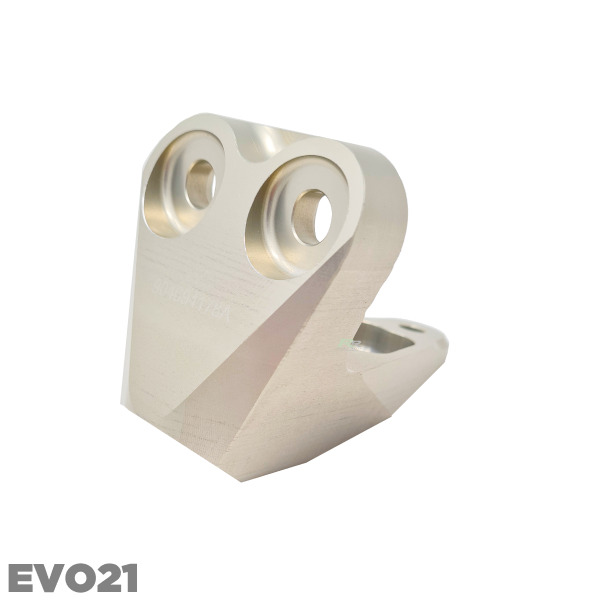

Rear Tarmac point M bracket - EVO21

904694178A

2

€607.20 €746.86
2
CBB Type 1 - Tarmac - Left Side / Gravel - Right Side

904475598C

1

€438.20 €538.99
2
CBB Type 2 - Tarmac - Right Side / Gravel - Left Side

904475608C

1

€410.81 €505.30
3
Point D Tarmac bracket

904475558C

2

€913.00 €1122.99
4
Camber Shim 0.5mm

904479428A

2

€12.00 €14.76
4
Camber Shim 0.8mm

904479438A

2

€12.00 €14.76
4
Camber Shim 1mm

904479448A

2

€11.25 €13.84
4
Camber Shim 1.2mm

904479458A

2

€12.80 €15.74
4
Camber Shim 2mm

904479468A

2

€15.00 €18.45
4
Camber Shim 3mm

904479478A

2

€27.20 €33.46
4
Camber Shim 5mm

904479488A

2

€28.00 €34.44
5
Point D tarmac protection

904475658A

2

€28.80 €35.42
6
Screw CHC M10x60 cl12.9

PS82146A10

2

€2.89 €3.55
7
Screw CHC M10x35 cl.12.9

PS82003A10

8

€4.18 €5.14
8
Washer 10 D22 TH2,5

6947H6

6

€1.02 €1.25
10
Spring Washer Ø10 Type B

PS86538A10

2

€0.56 €0.69
11
Point M locating pin

904475708A

2

€70.13 €86.26
12
Screw M6-10

PS82045A10

4

€0.27 €0.33
13
Screw M8 L25

PS82091A10

8

€0.75 €0.92
14
Spring Washer Ø8

PS86510A10

€0.09 €0.11
15
SPS Washer Ø8x13-0,8

PS86570A10

4

€0.36 €0.44
16
M10x20 Bolt CHC cl.12.9

PS82013A10

2

€1.47 €1.81
17
Sps washer 10-16-1

PS86571A10

2

€0.49 €0.60
18

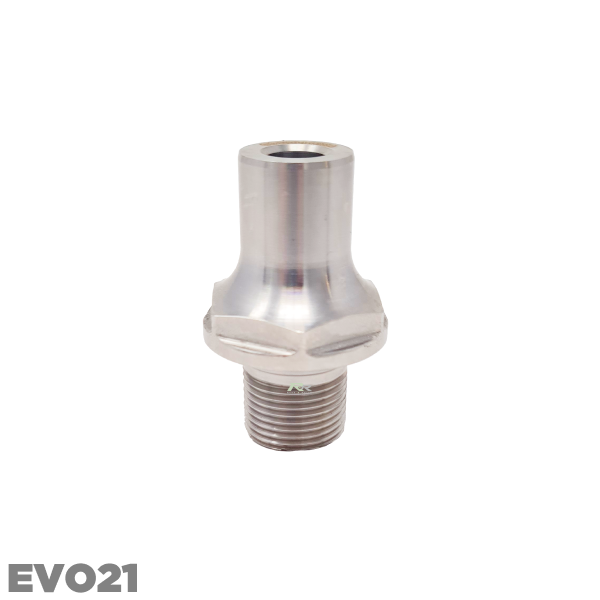

Rear Tarmac point M pin - EVO21

904694168A

2

€251.25 €309.04
19
Point D Tarmac Insert

904622388B

2

€123.20 €151.54
20
Locating Washer

904622398A

2

€52.80 €64.94
21
CHC Screw M12X150X40

PS82175A10

2

€0.58 €0.71
