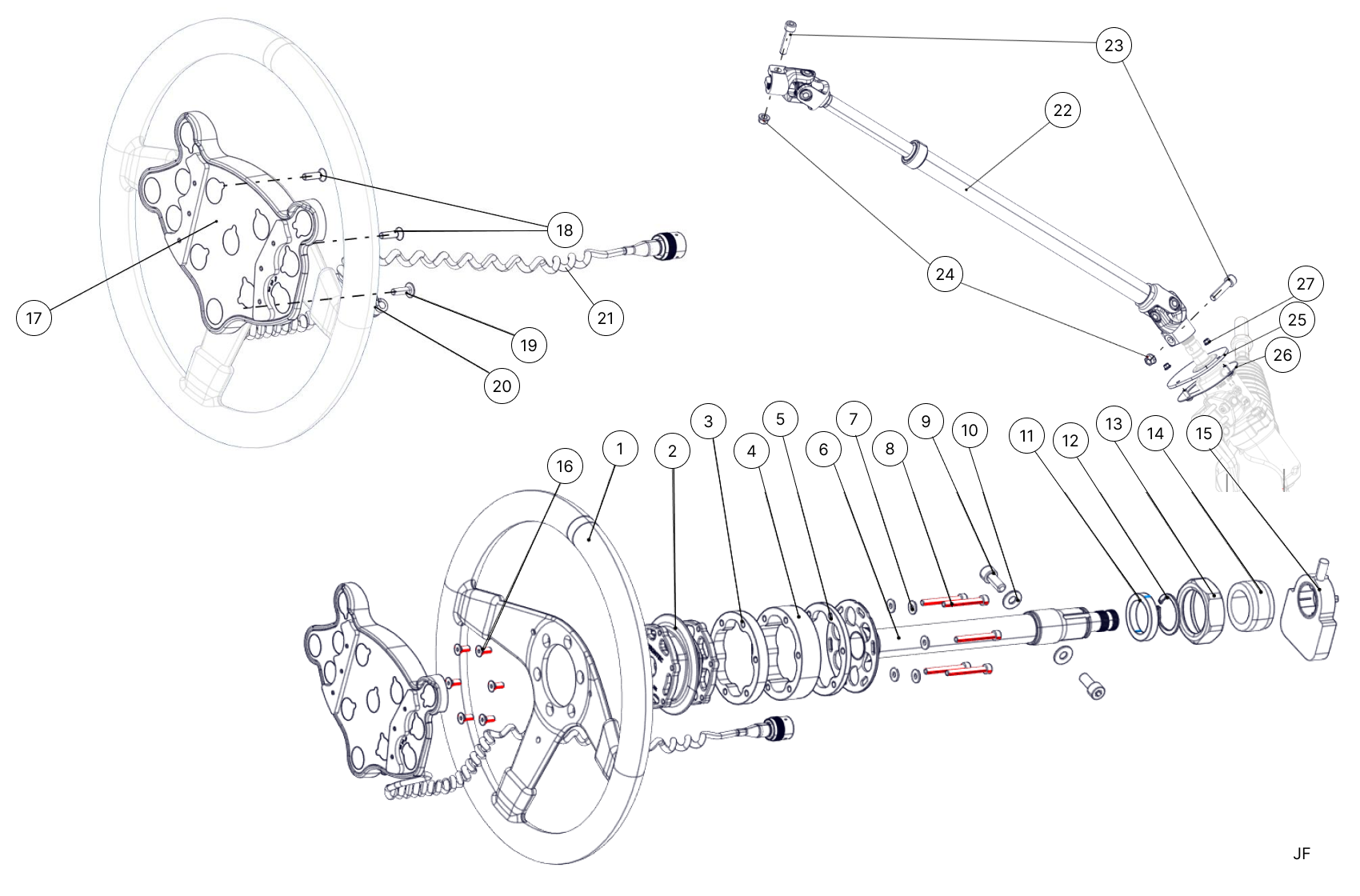

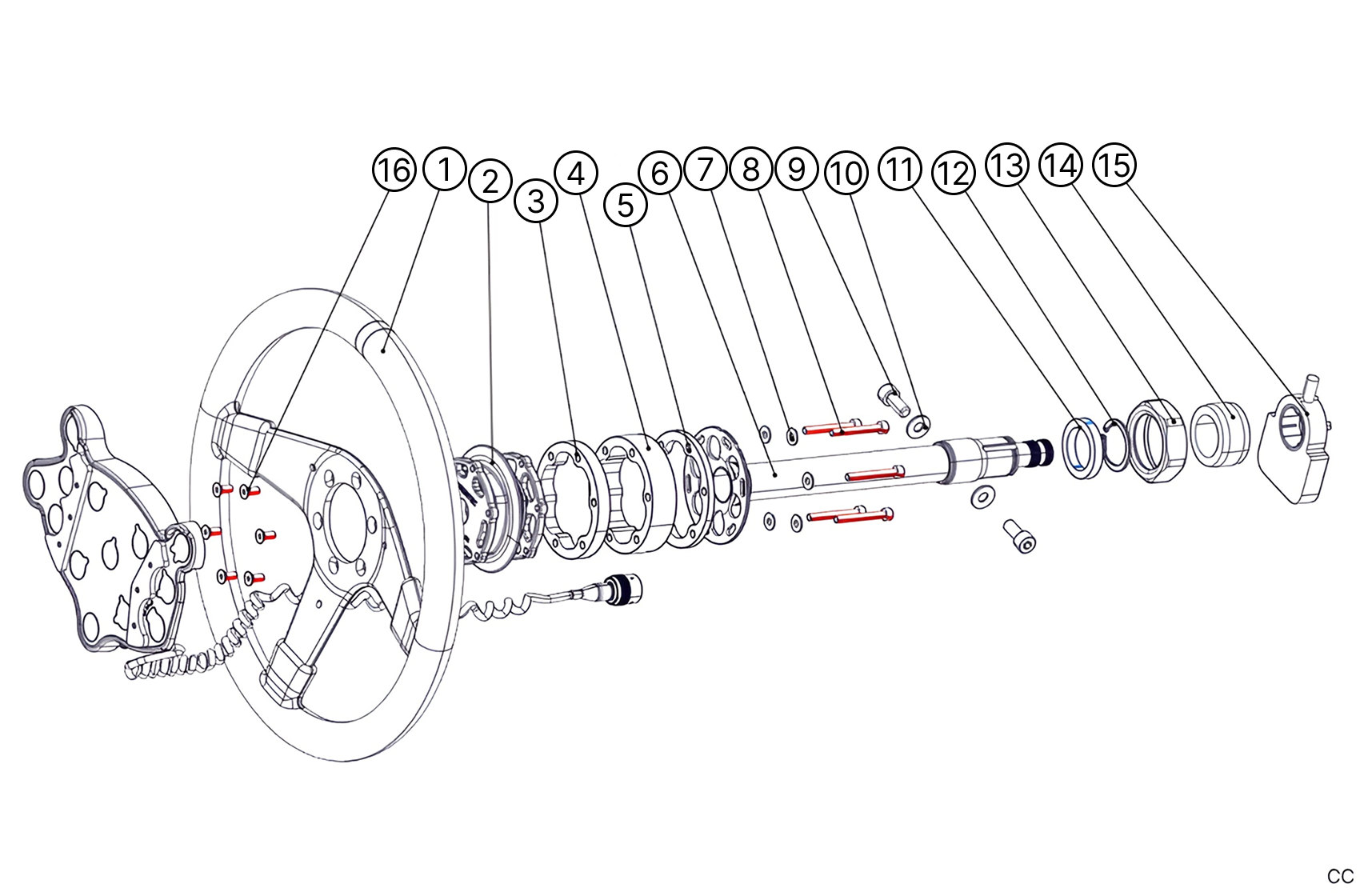

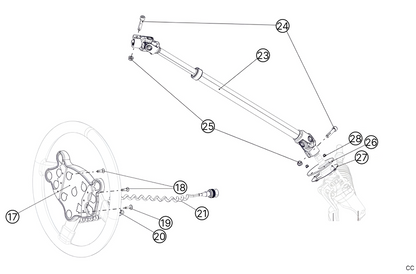

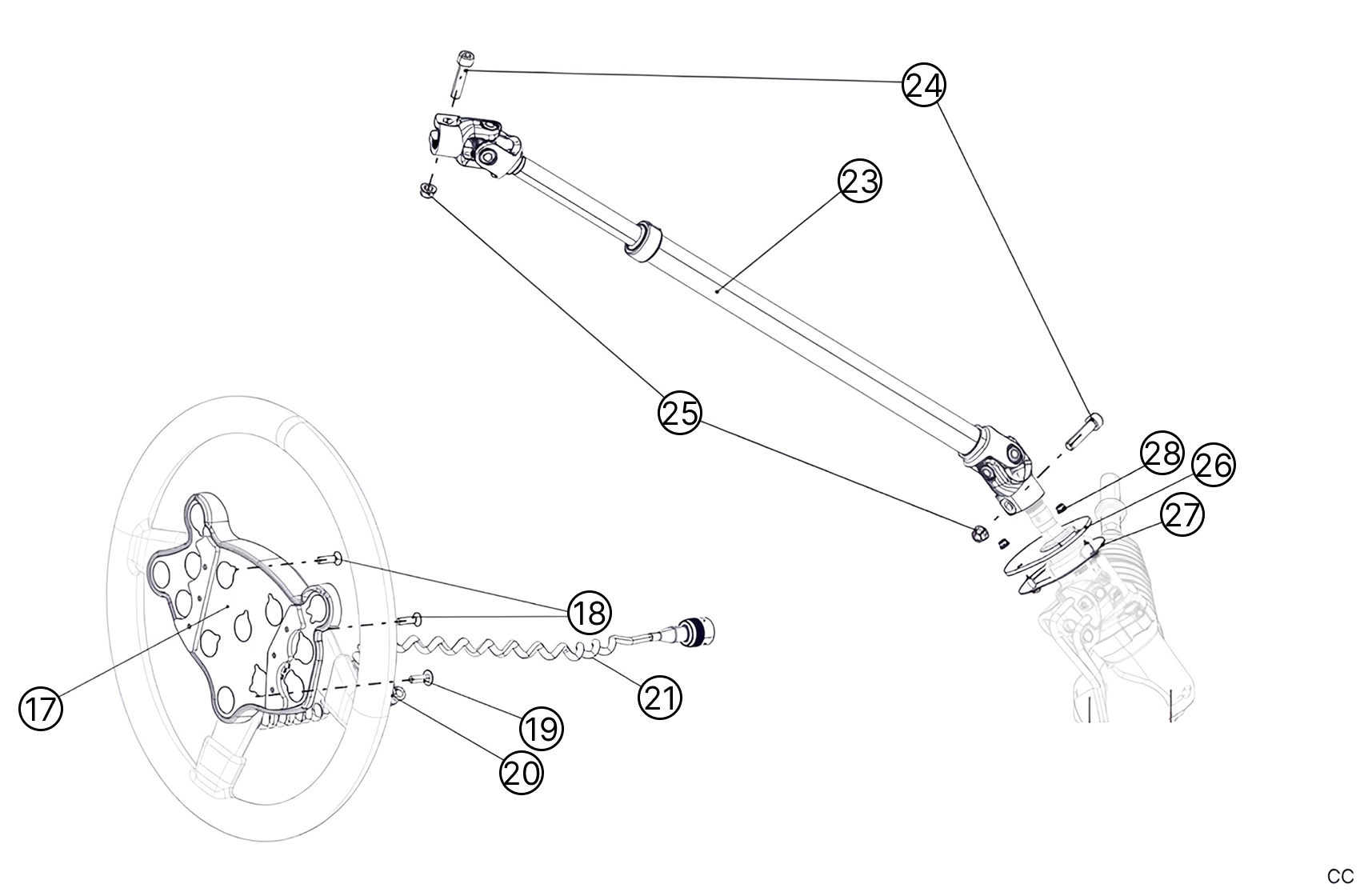

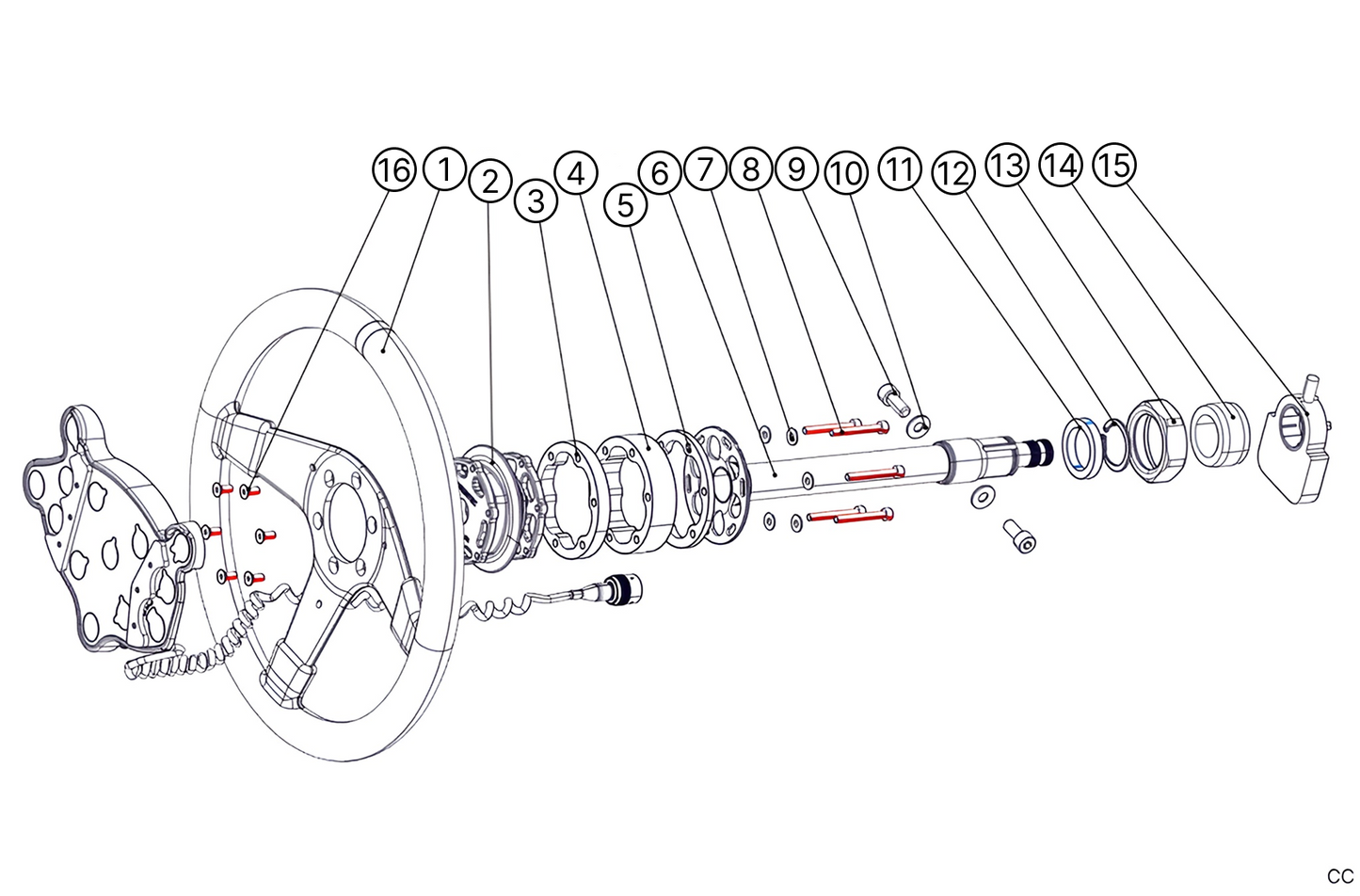

E45 - Steering Column

E45 - Steering Column

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
0

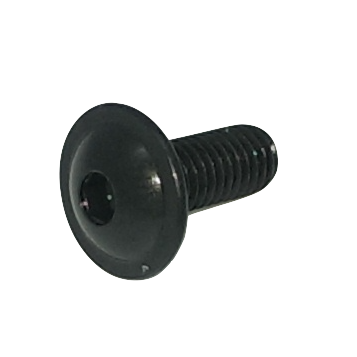

Screw M5-12

PS82634A10

4

€0.58 €0.71
0
Shoulder Washer D5X24X3.7

904618898A

€40.40 €49.69
0
Nylstop Nut M5X080

CS250040ST

€0.31 €0.38
0

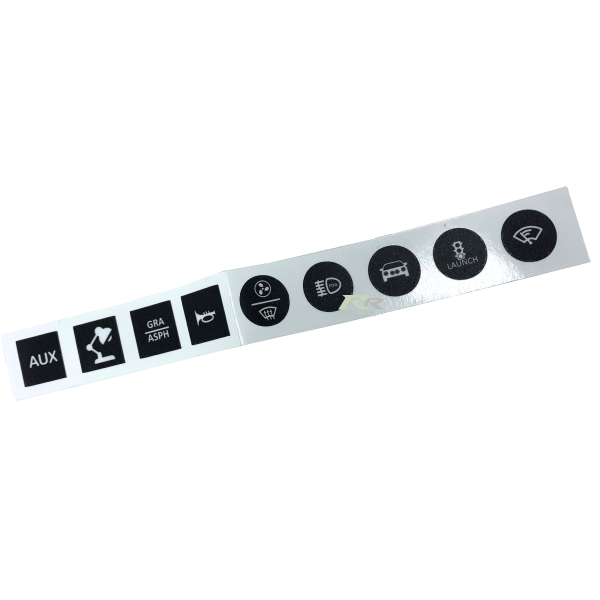

Steering Wheel Stickers

904698228C

€20.65 €25.40
1

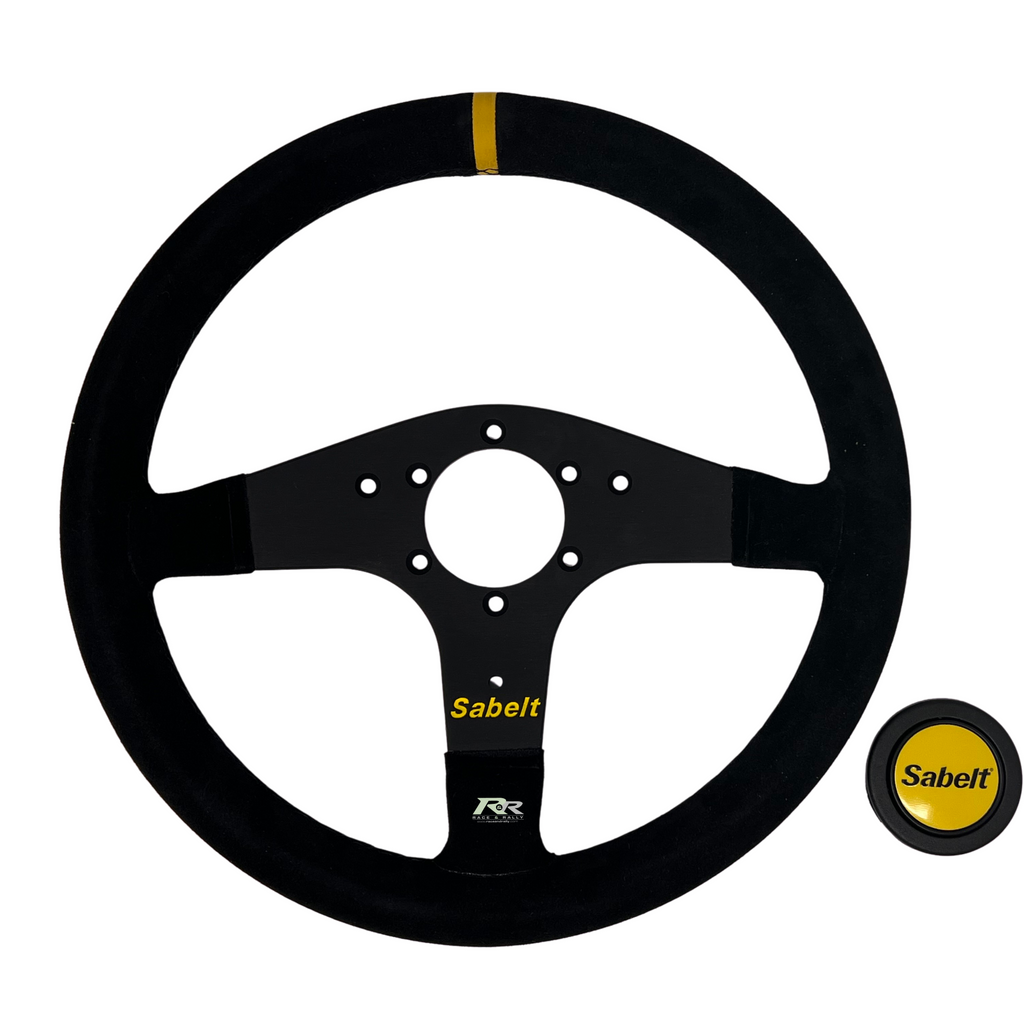

Ø330mm Flat 3-Spoke Steering Wheel

904616798B

1

€500.00 €615.00
2

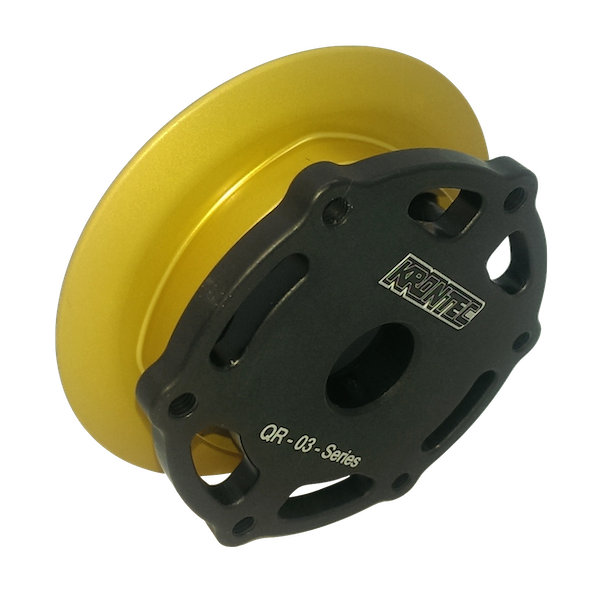

Quick release Krontec QR03

PS97716A10

1

€685.68 €843.39
3
Steering Wheel Spacer 10

904488088A

1

€152.00 €186.96
4
Steering Wheel Spacer 20

904488098A

1

€164.00 €201.72
5
Steering Wheel Spacer 5

904488078A

1

€132.00 €162.36
6

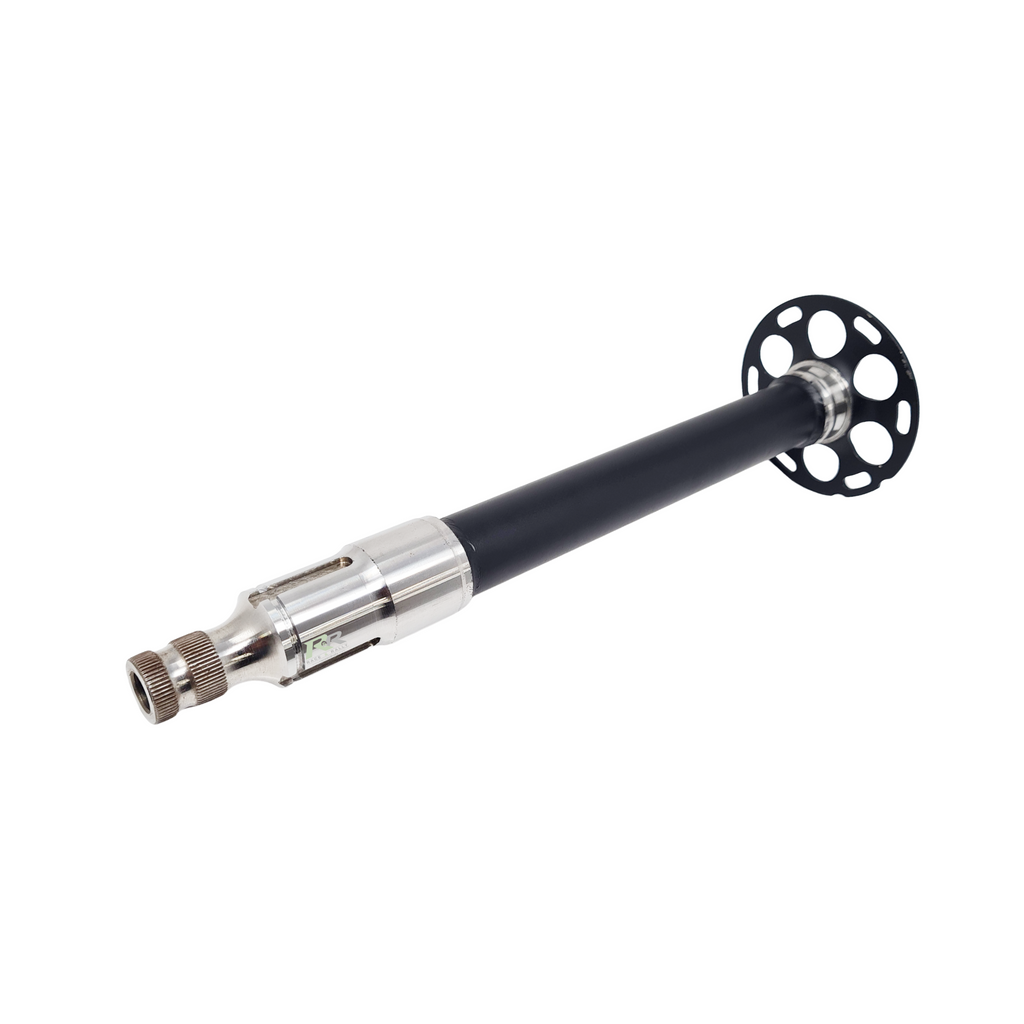

Steering Column Primary Shaft

904488038A

1

€635.00 €781.05
7
Washer D5 D12 E1.2

PS86046A10

6

€2.45 €3.01
8
Chc screw m5x10 cl.12.9

PS82018A10

6

€0.23 €0.28
9
M8x20 Bolt CHC cl.12.9

PS82031A10

2

€0.23 €0.28
10
Washer Ø8x18x1.5

PS86019A10

2

€1.36 €1.67
11
Bearing 30 D42 E7

CS460056ST

1

€19.43 €23.90
12
Circlips Inv. Ext. D30

PS72070A10

1

€0.40 €0.49
13
Steering Column Nut

904488108A

1

€123.08 €151.39
14
Needle bearing

CS460044ST

1

€81.96 €100.81
15
Steering angle sensor

4545H8

1

€622.44 €765.60
16
Screw FHC M5x12 cl.12.9

PS85557A10

6

€0.37 €0.46
17

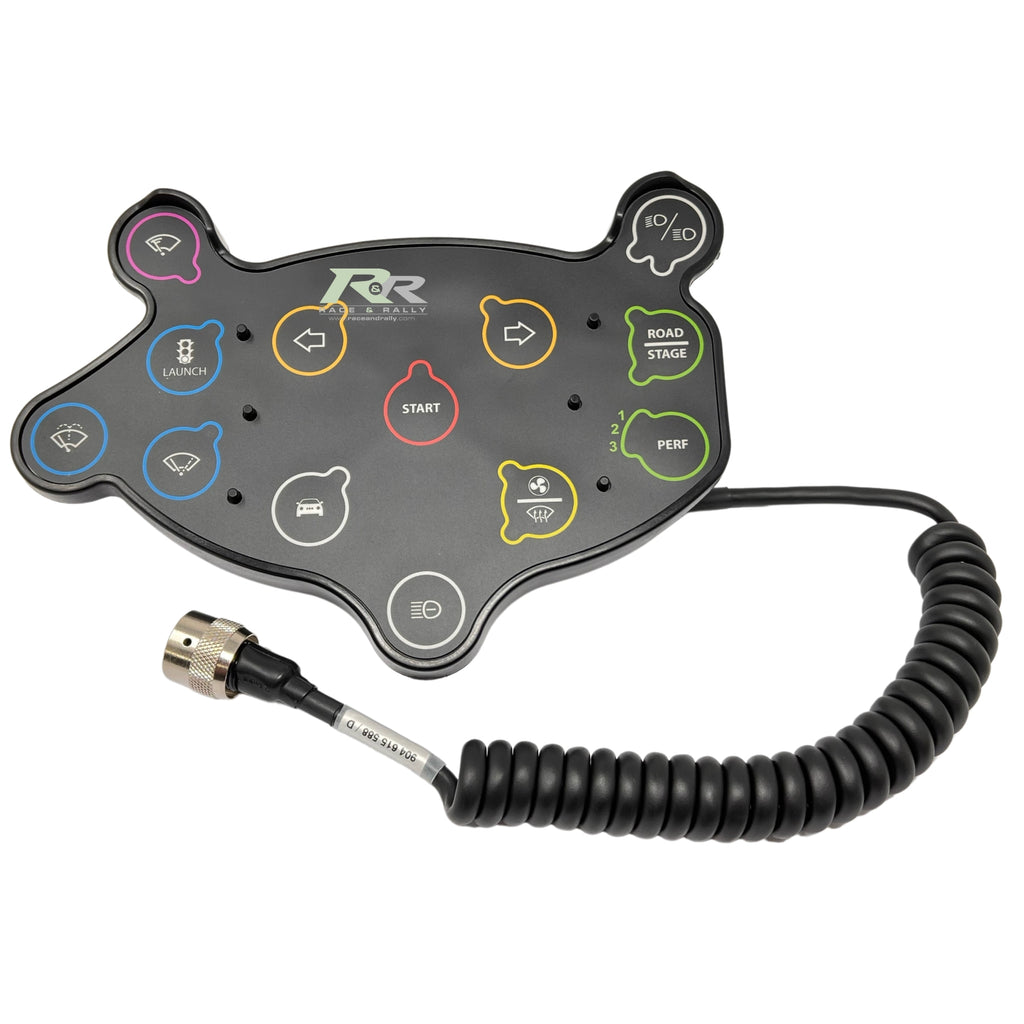

Steering panel + SW loom

904615588D

€3724.35 €4580.95
18
Screw Fhc M5-18

PS85127A10

2

€1.91 €2.35
19
Screw M5 L16

PS82635A10

1

€1.02 €1.25
20
Collier Fixation Bcl D6/L12 Acier/Epdm

ST01600014

1

€0.20 €0.25
21

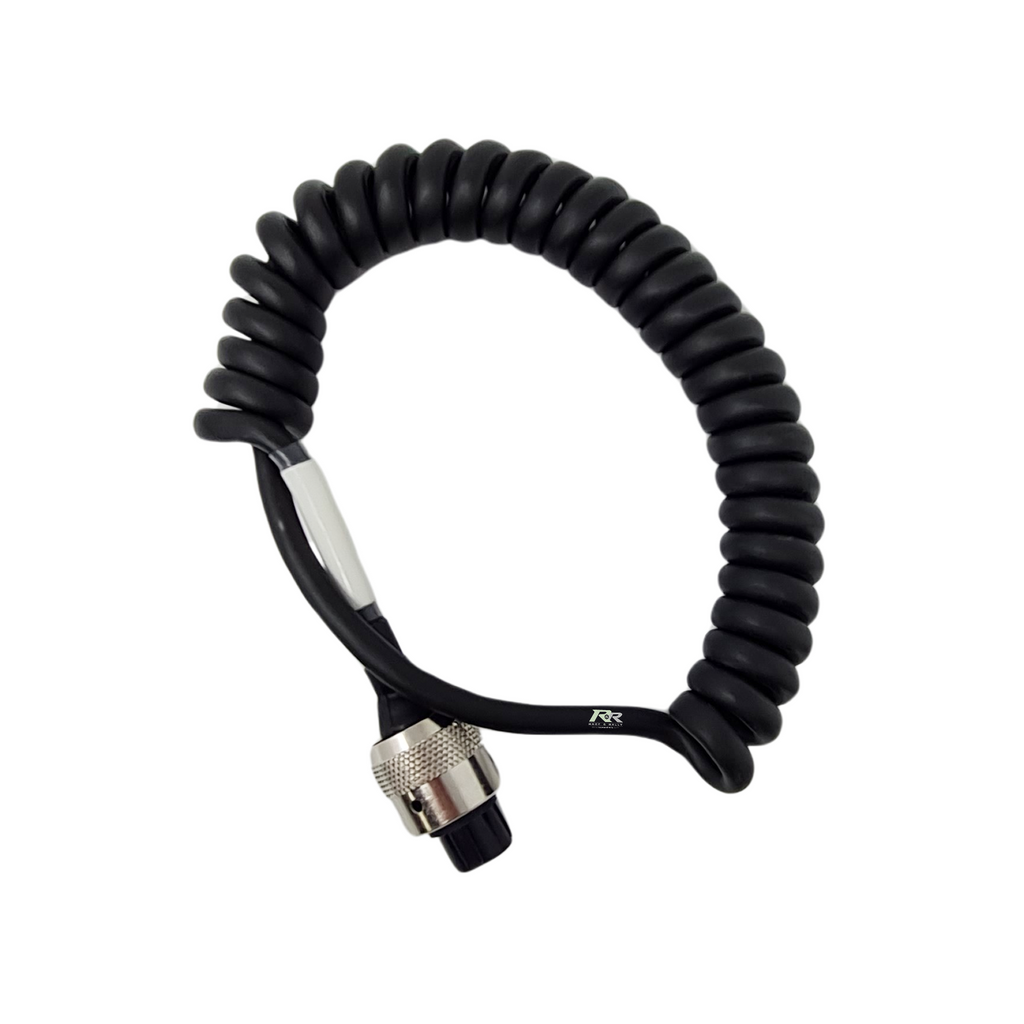

SW loom

904601998B

1

€424.32 €521.91
22
Spirale Bracket

904618888A

1

€38.40 €47.23
23

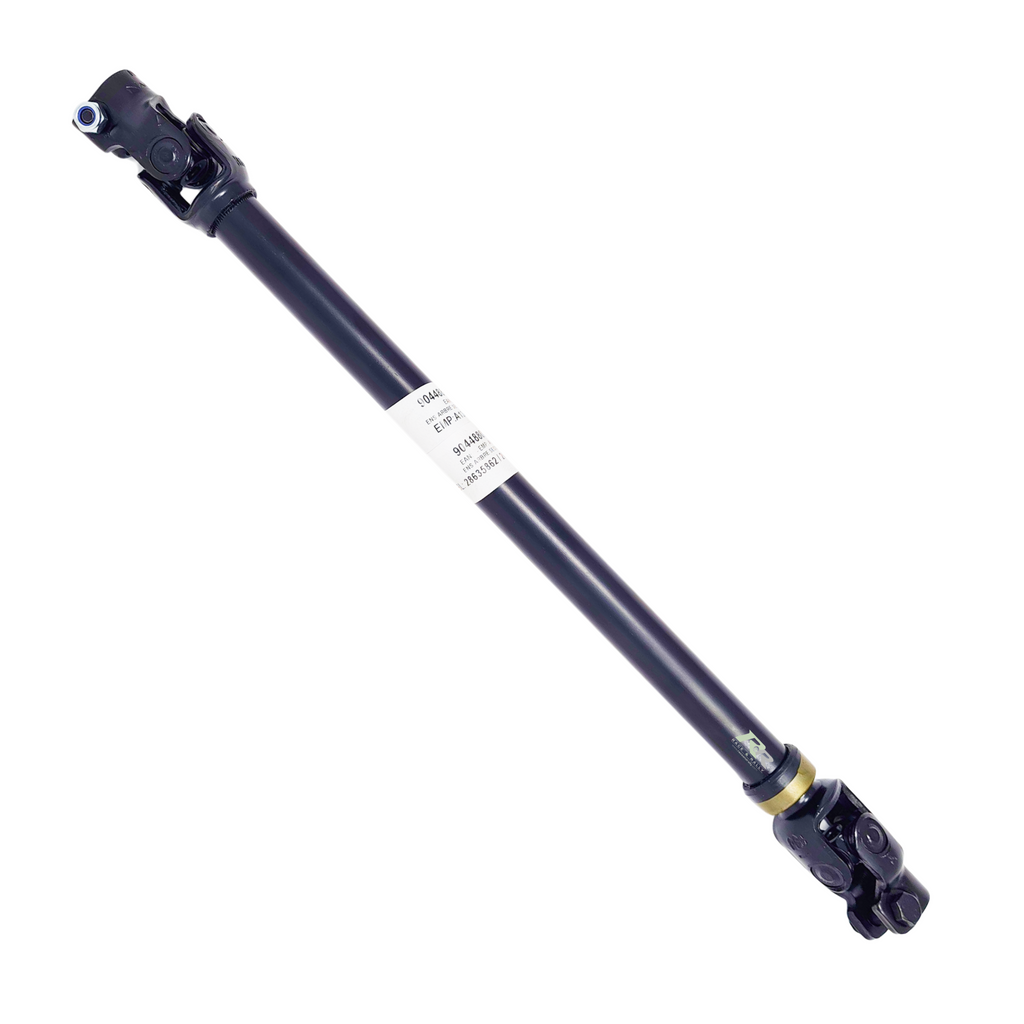

Steering Column Secondary Shaft

904488028A

1

€309.41 €380.57
24
Screw CHC M8x125 L35 Steel CL 12.9

PS82082A10

2

€0.55 €0.68
25
Simloc Nut M8

RC17705-25

2

€2.25 €2.77
26
Bulhead Valve Gasket

904476528A

1

€6.41 €7.88
27

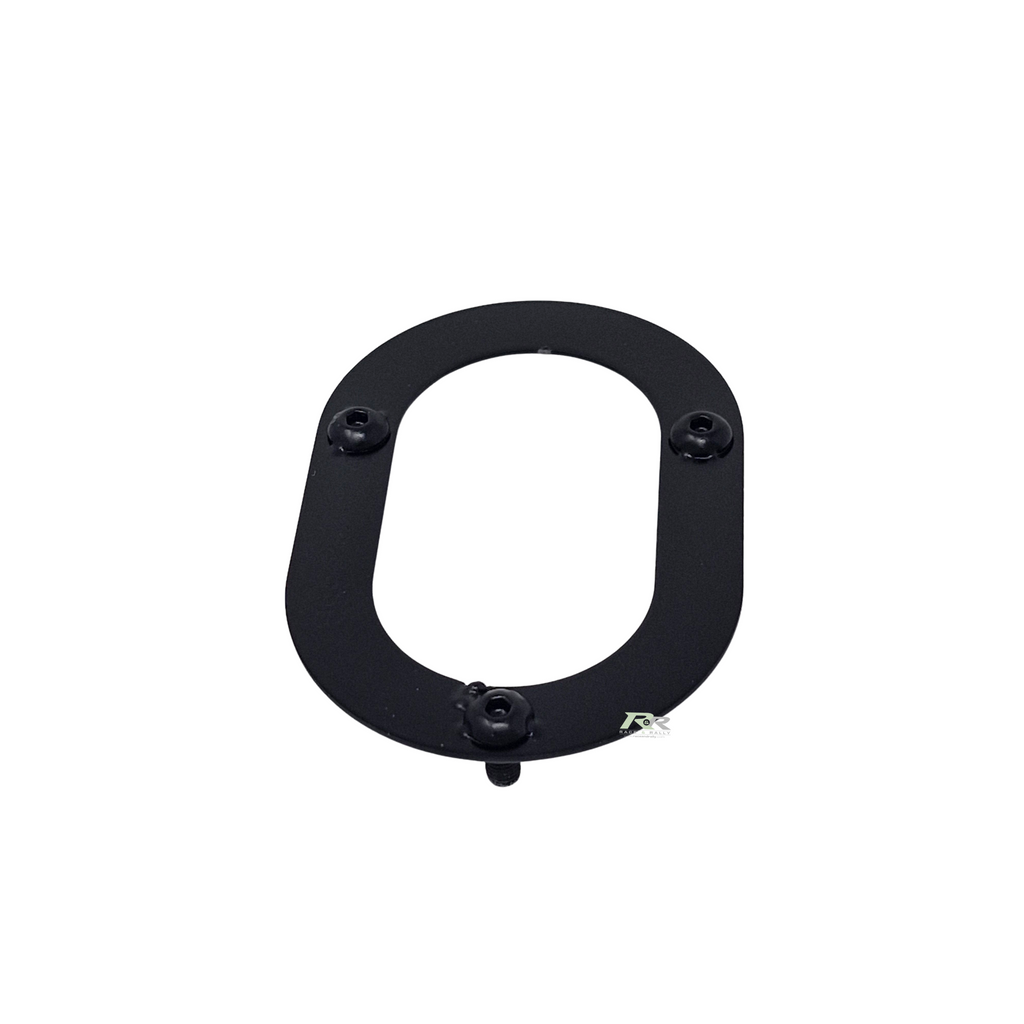

Valve Flange

904476538A

1

€51.83 €63.75
28
Self Locking Nut M5

6939-01

3

€0.33 €0.41
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
