Image coming soon for Evo 16 2016 (Kits)

Evo 16 2016 (Kits)

Evo 16 2016 (Kits)

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

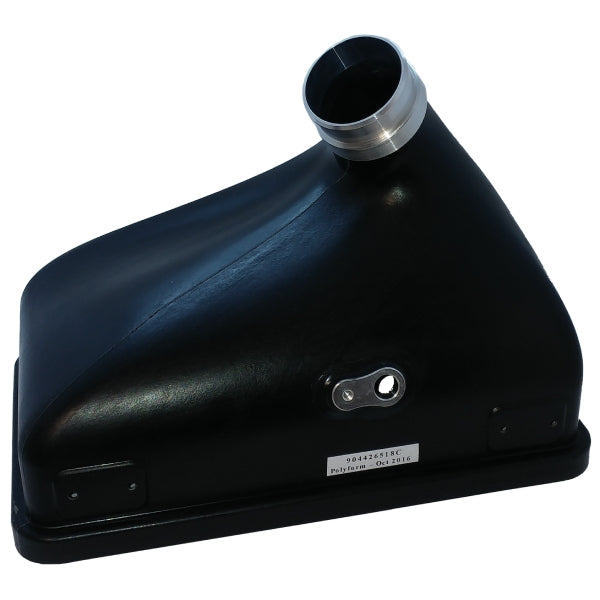

Lower Air Box - R5 EVO

0A2642651C

1

€542.80 €667.64
2

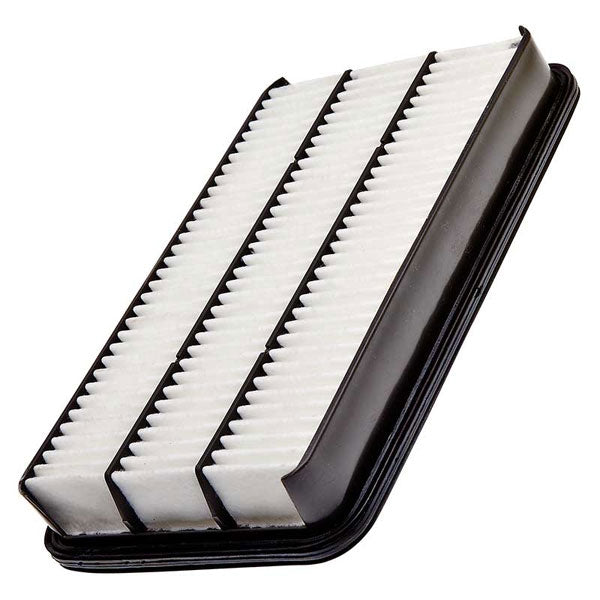

Mann Air Filter

0A2642654A

1

€88.20 €108.49
3

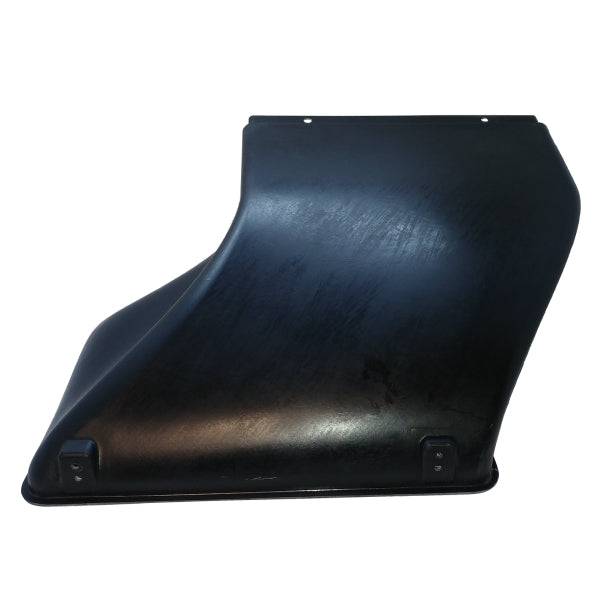

Upper Air Box - R5 EVO

0A2642652C

1

€598.85 €736.59
4

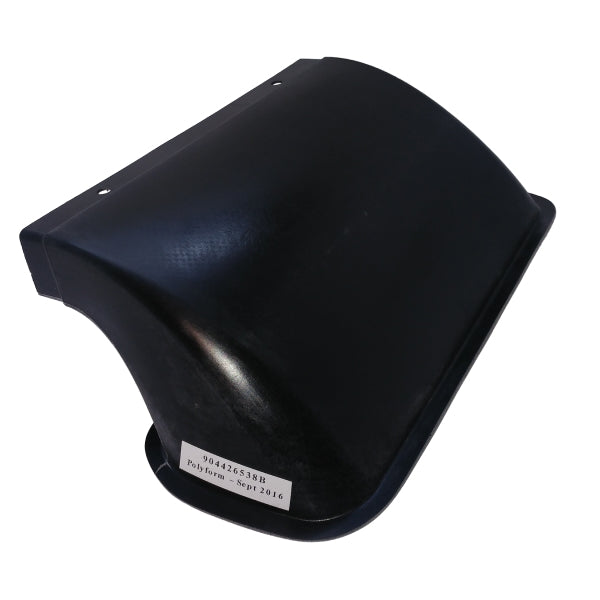

Air Inlet Duct - R5 EVO

0A2642653B

1

€307.40 €378.10
5

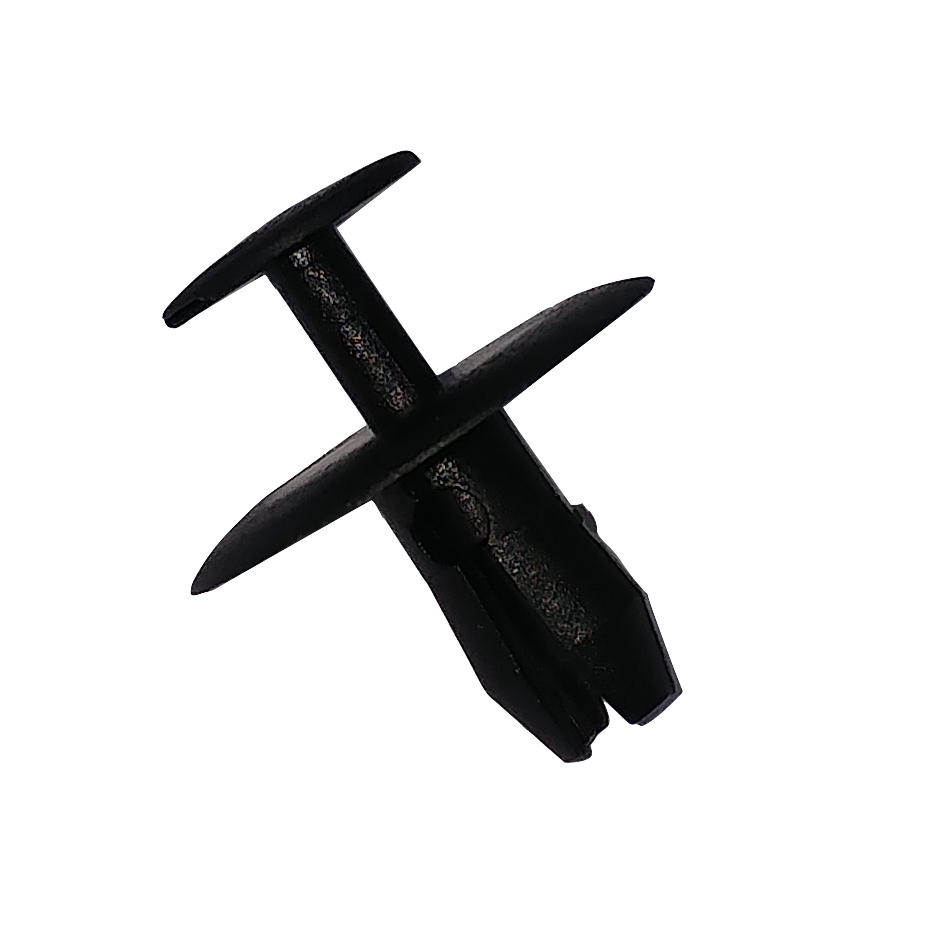

Plastic Rivet

6997T2

2

€0.69 €0.85
6

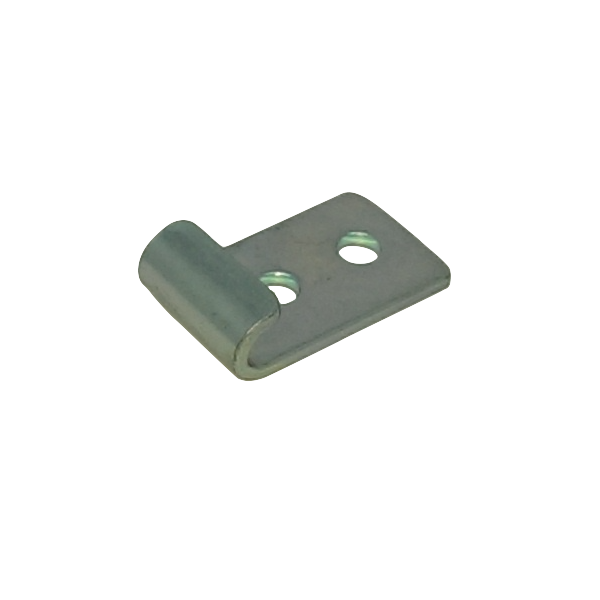

Catch Plate

PS78571A10

2

€2.21 €2.72
7

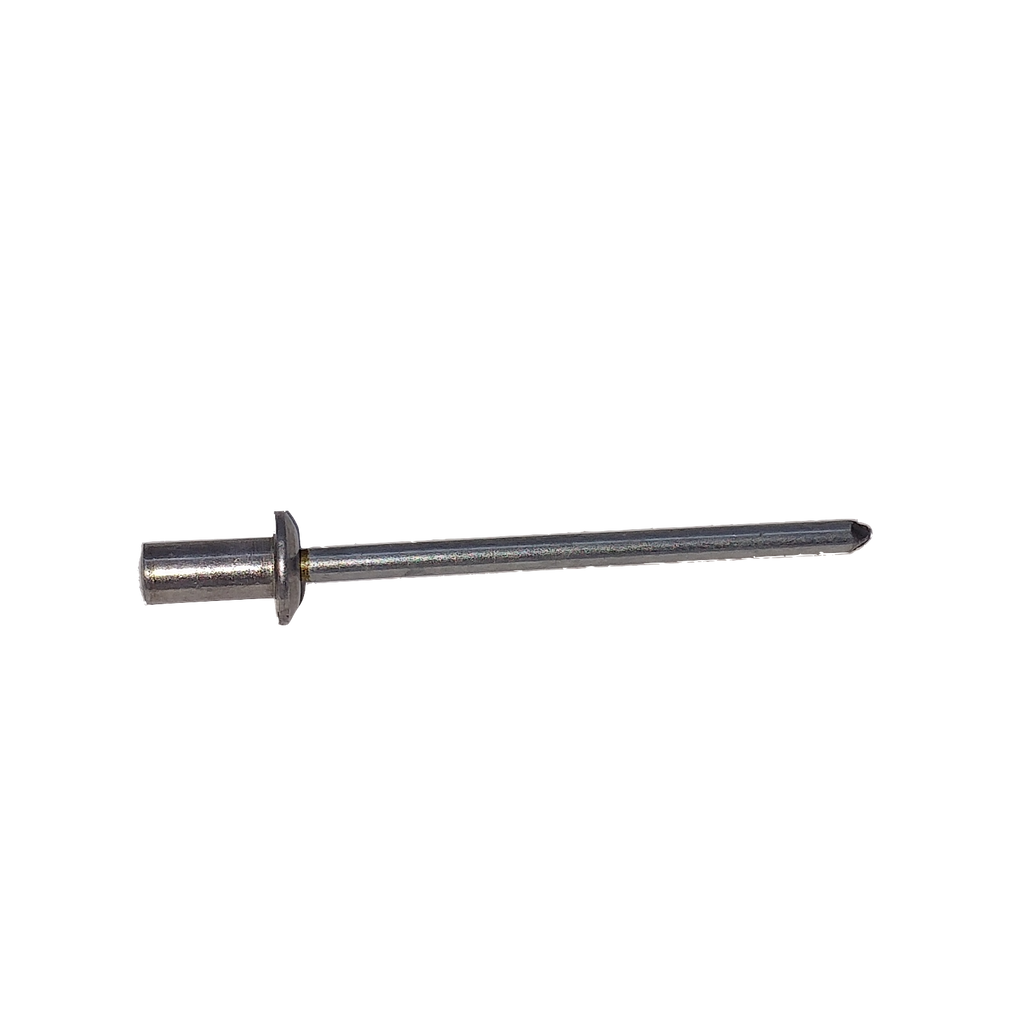

4x8 Airtight Rivet

PS92525A10

16

€0.09 €0.11
8
Washer Ø4x10x0,8

PS86041A10

2

€3.12 €3.84
9
Watersplash Flap

0A2643449B

1

€16.25 €19.99
10
Watersplash Flap Axle

0A2643663B

1

€176.41 €216.98
11
Watersplash Trap Pulley

0A2643443A

1

€94.40 €116.11
12
Right Mount for Watersplash Flap

0A2643442B

1

€37.08 €45.61
13
Left Mount for Watersplash Flap

0A2642658B

1

€31.95 €39.30
14
M4x100 FHC Screw

PS82032A10

5

€0.25 €0.31
15
Rivet Ø3.2x8 Aluminium

6973-19

20

€0.36 €0.44
16

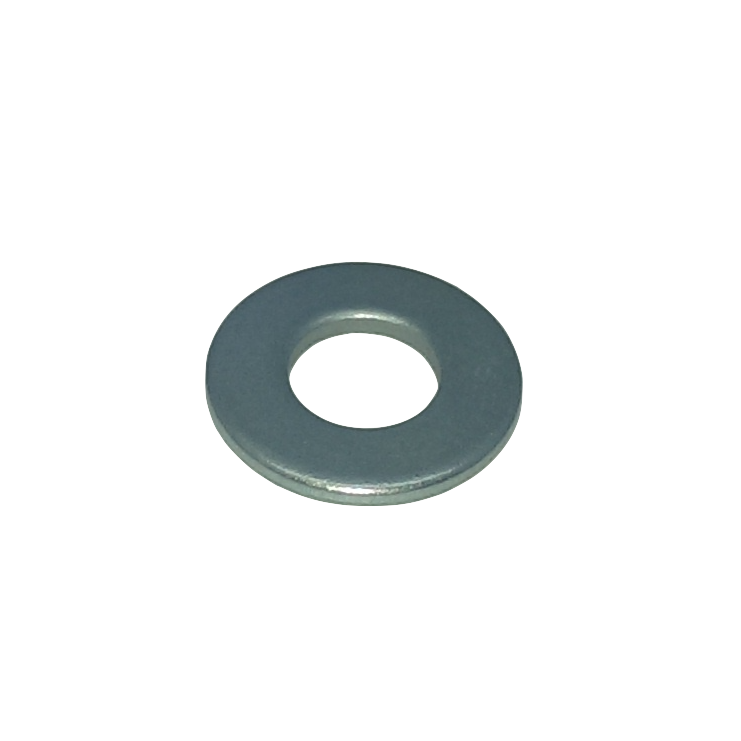

Washer Ø8x18x1.5

PS86019A10

2

€1.36 €1.67
17

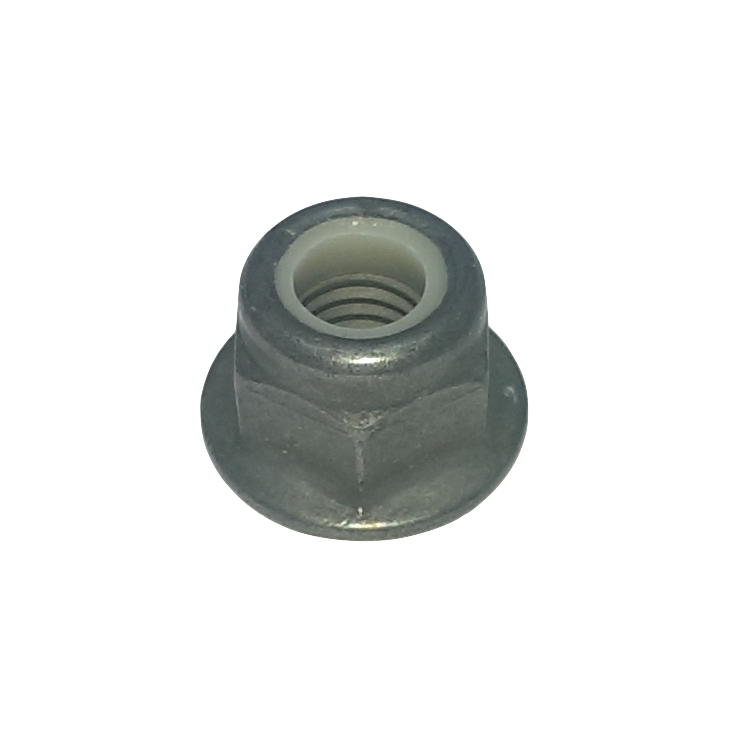

Nut HM M8 x 125

693999

2

€1.02 €1.25
18
Shouldered Ring

PS03038A10

2

€0.65 €0.80
19
Counter Spring

PS99558A10

1

€21.56 €26.52
21
Watersplash Trap Command Cable

0A2644570A

1

€35.11 €43.19
22
Hose Clamp Ø32-50 W9mm

1609056580

4

€0.71 €0.87
23

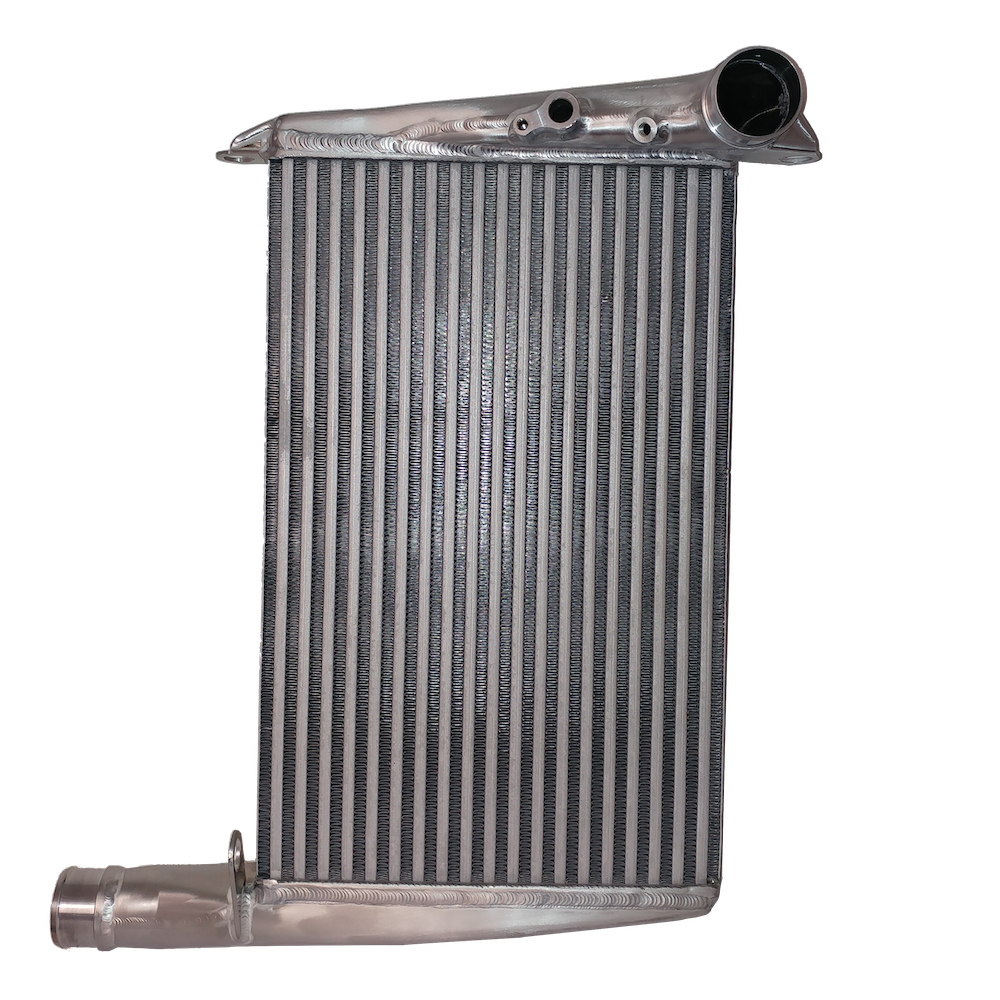

R5 Evo Intercooler

0A2742700E

1

€1390.62 €1710.46
24

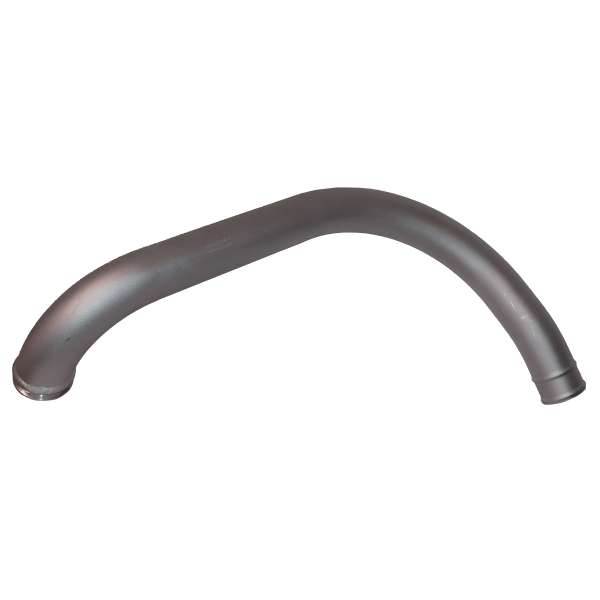

R5 Evo Turbo Outlet Hose

0A2743370A

1

€513.30 €631.36
25

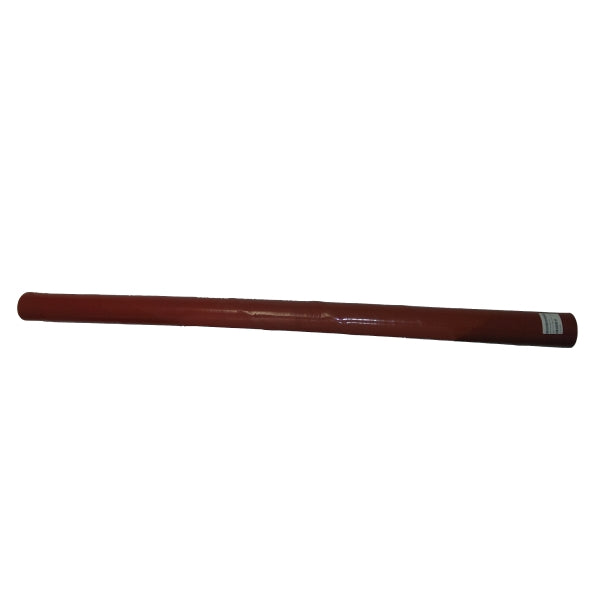

Elastomer Hose Ø50 L1m

CS480040ST

1

€171.85 €211.38
26
Hose Clamp Ø50 Ø70 W9

6981K1

2

€1.61 €1.98
27
Silent Bloc Mount

0384L3

4

€5.66 €6.96
29

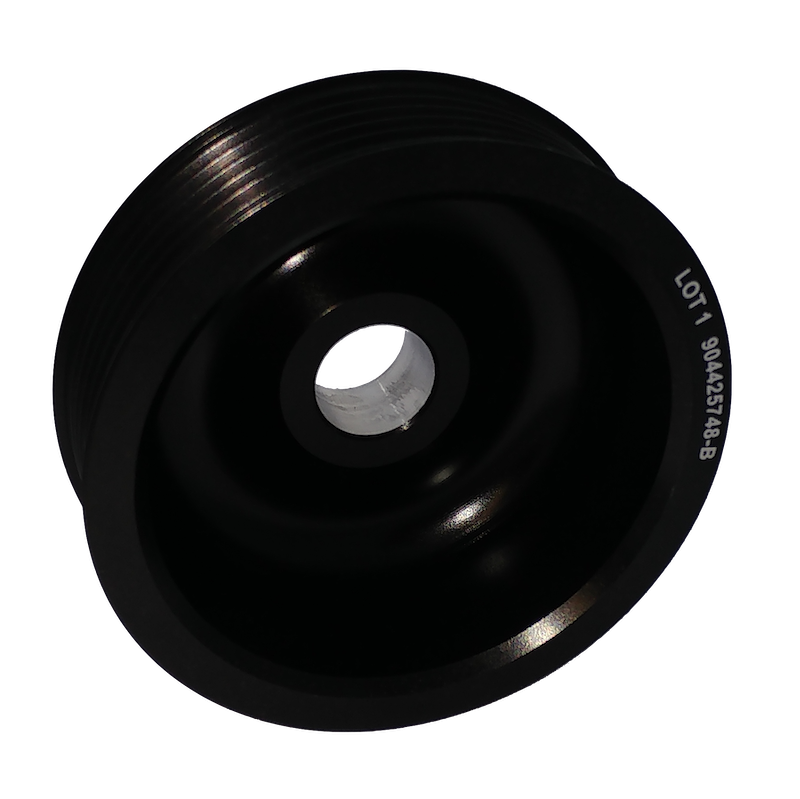

Alternator Pulley R5 Evo

0A3142574B

1

€235.50 €289.67
30

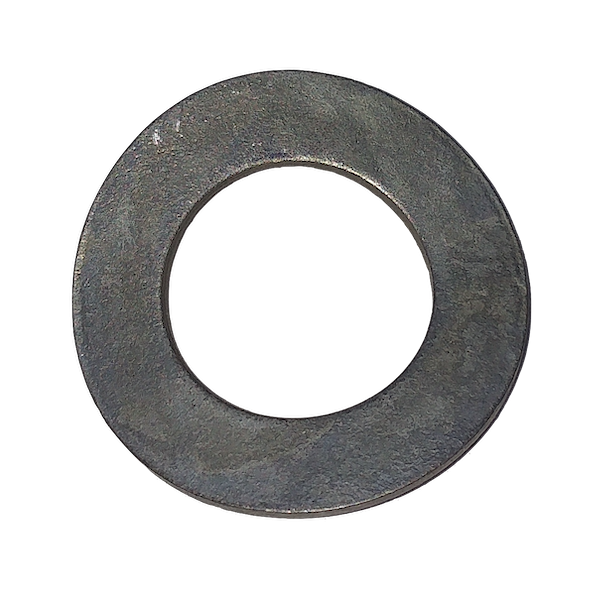

Onduflex type B Ø16 Spring Washer

PS86675A10

1

€1.46 €1.80
31

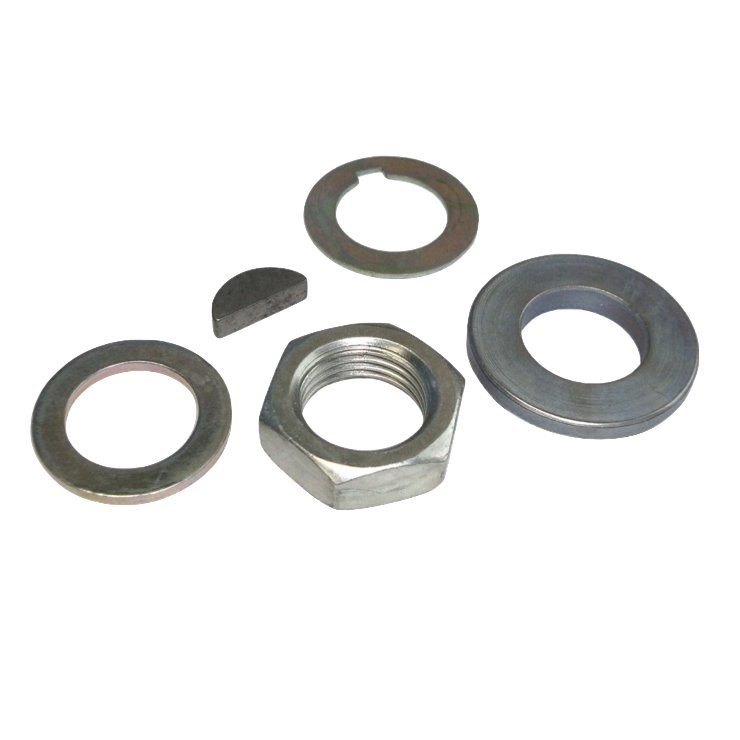

Nut H M17x150

PS74815A10

1

€34.68 €42.66
32

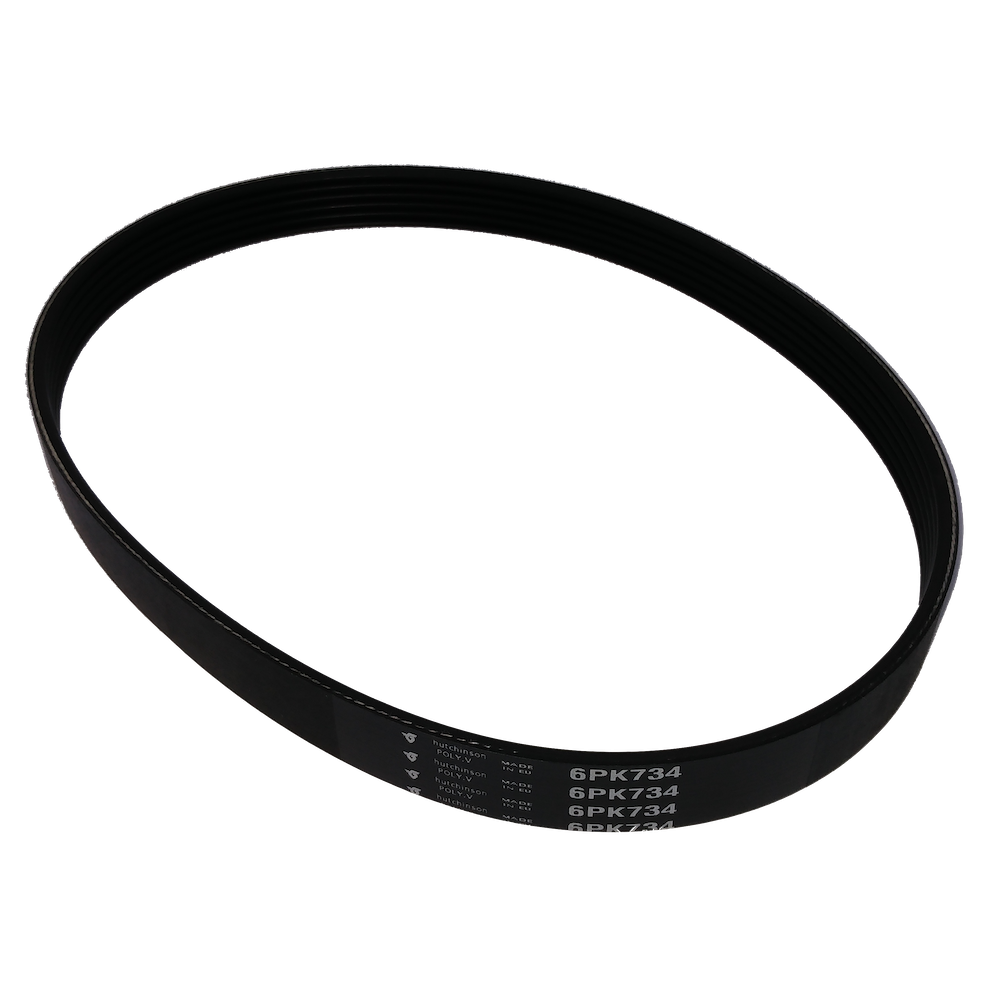

Alternator Stretchy Belt L734 - Evo 16 Belt

0A3142615A

1

€235.20 €289.30
33
Alternator Fixing Bolts Ø8x125 LG 114

5703A6

3

€2.54 €3.12
34

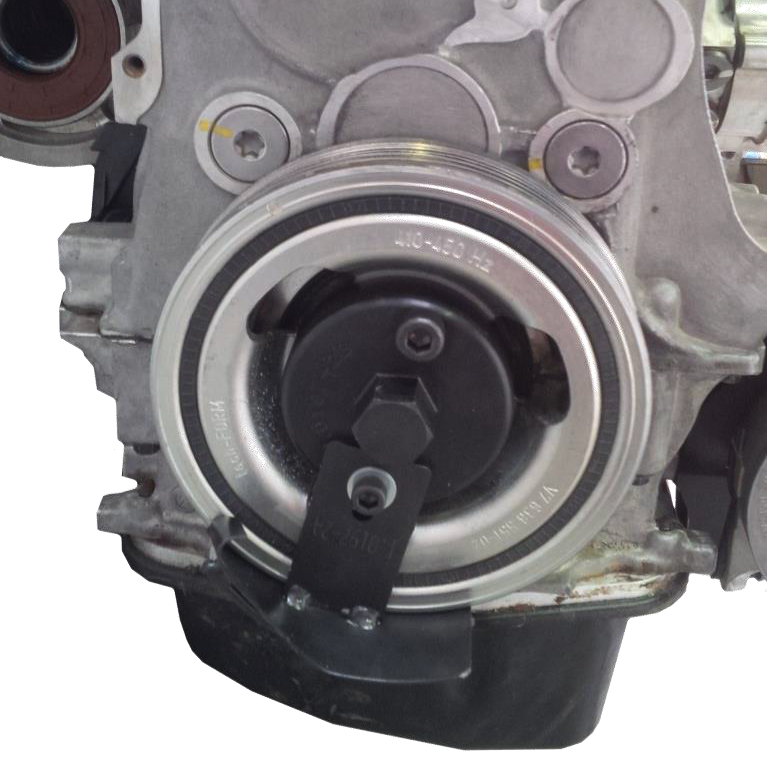

Belt Replacement Tool

9780CX

1

€236.92 €291.41
35
Alternator Fixing Spacer

5703C3

1

€1.33 €1.64
36

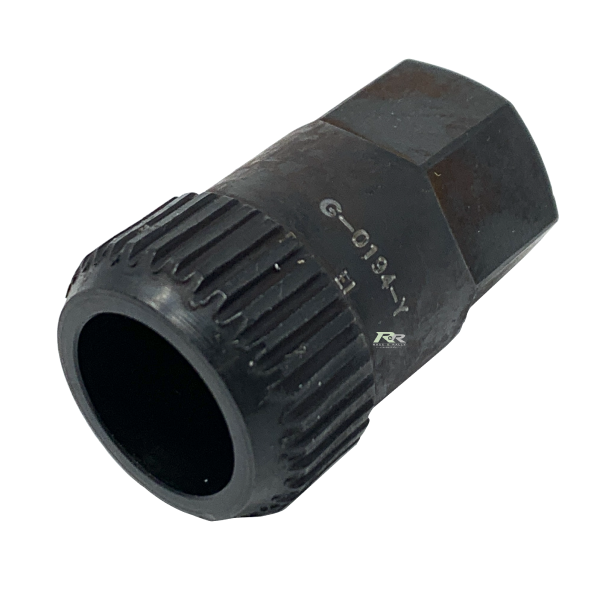

Alternator Pulley Socket

1612108280

1

€21.08 €25.93
37

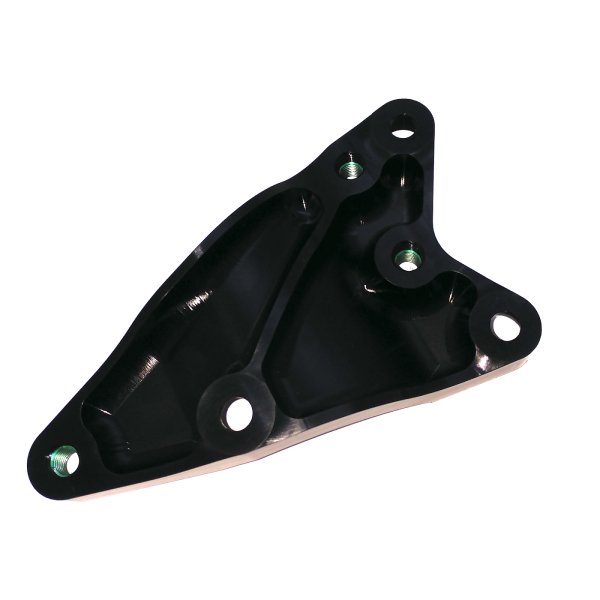

Water Pump Mount

0B1242573A

€190.95 €234.87
38

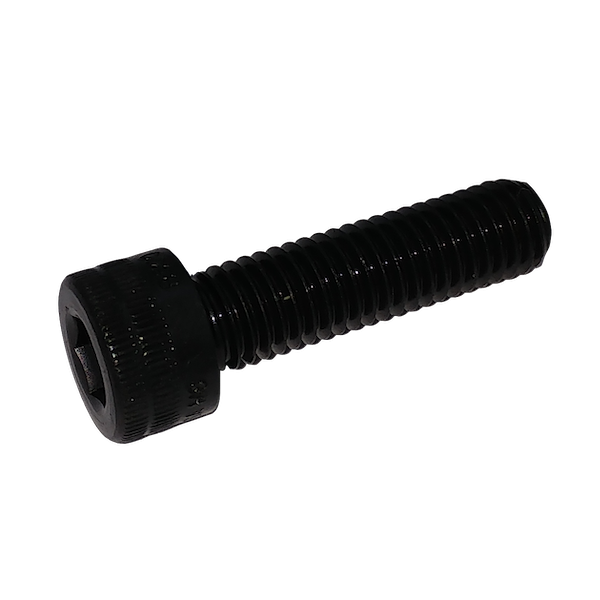

Screw CHC M8x30 cl.12.9

PS82079A10

€1.07 €1.32
39

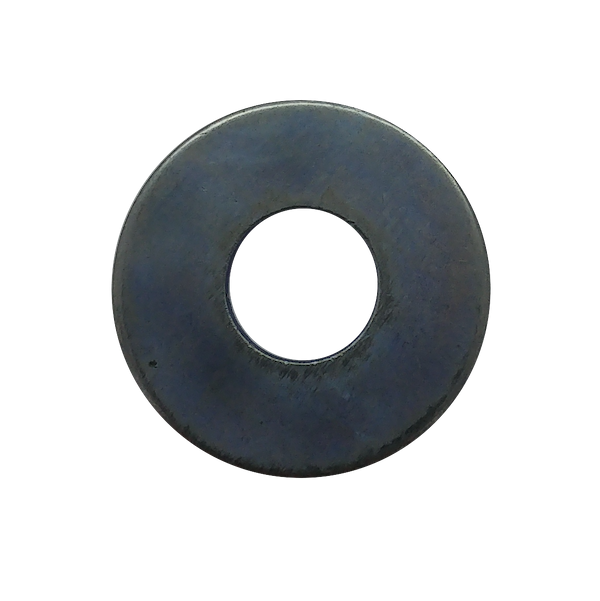

Washer M8x22x1.5

694706

3

€0.31 €0.38
40

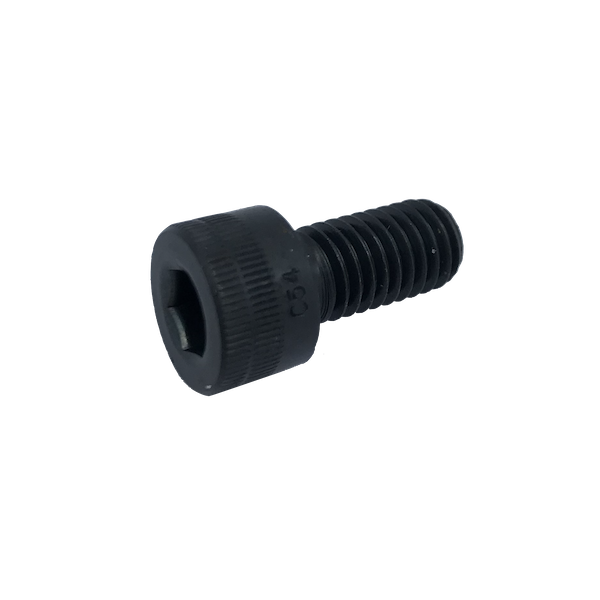

Screw CHC M8x16 cl12.9

PS82130A10

€1.25 €1.54
41

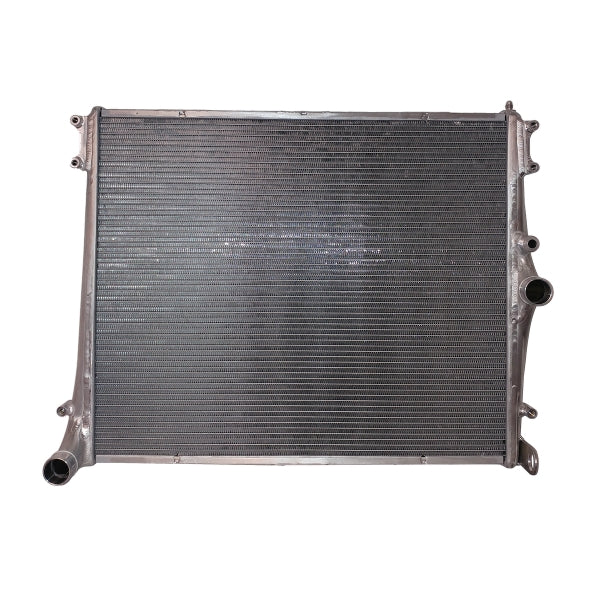

Radiator R5 Evo

0B1242701C

1

€1470.00 €1808.10
42

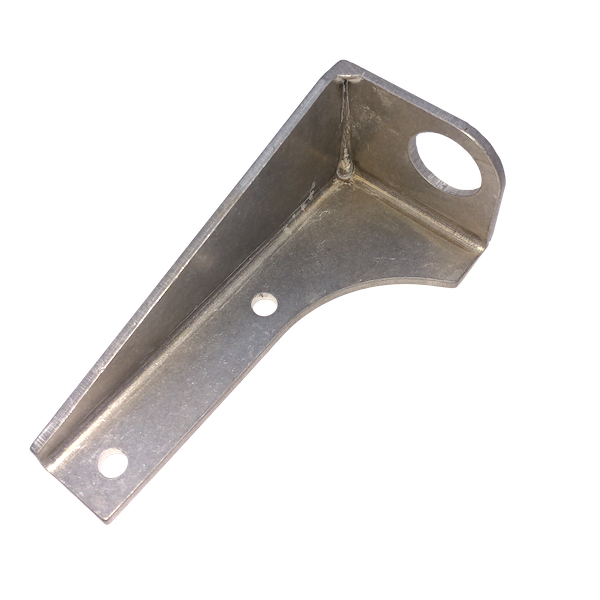

Left Mount Door Radiator

0B1242705A

€25.31 €31.13
43

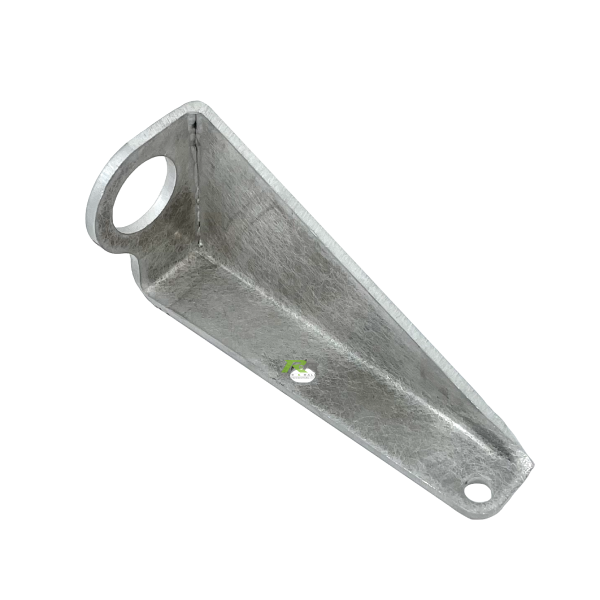

Right Mount Door Radiator

0B1242704A

€25.43 €31.28
44
Screw M6x18 cl.12.9

PS82057A10

4

€0.28 €0.34
46

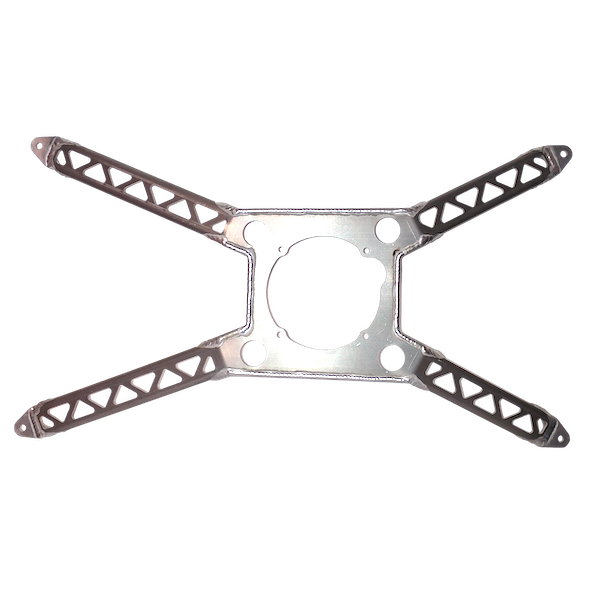

Radiator Fan Mounting

0B1243368A

€208.18 €256.06
47

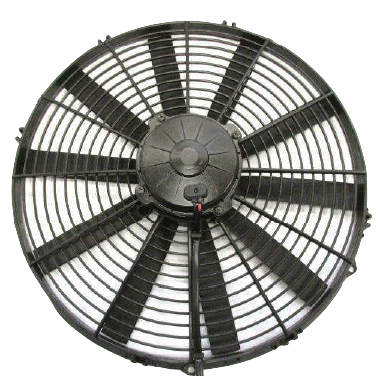

Radiator Fan

0B1243703A

€100.52 €123.64
48

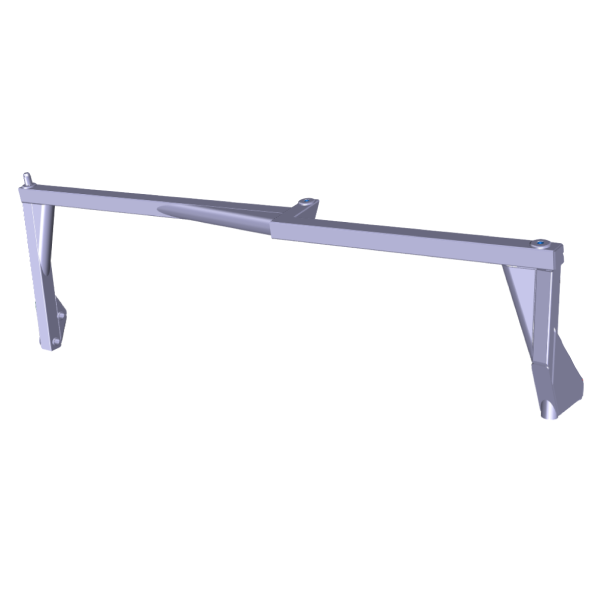

Top Cross Member

0B1242703B

€896.80 €1103.06
49

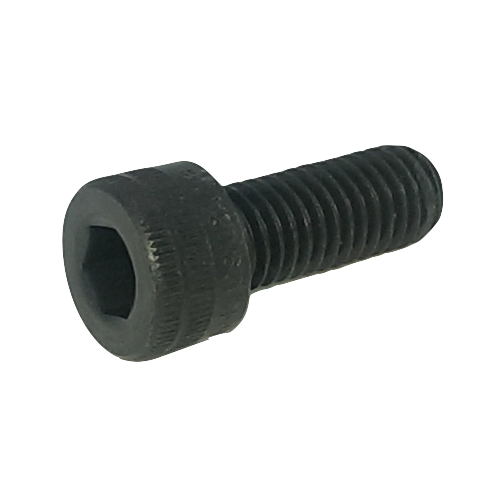

M8x20 Bolt CHC cl.12.9

PS82031A10

€0.23 €0.28
50
Washer Ø8.2x18-1.4

PS86662A10

4

€0.67 €0.82
51
M10x20 Bolt CHC cl.12.9

PS82013A10

€1.47 €1.81
52

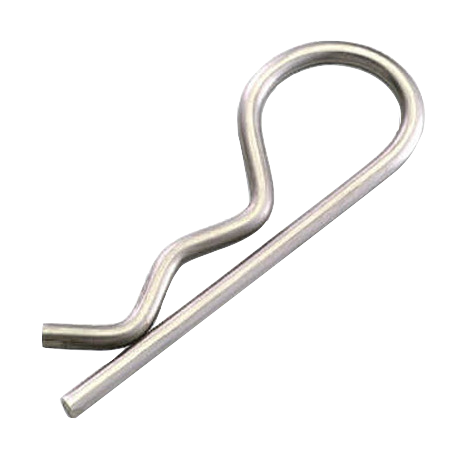

R Clip

PS78051A10

2

€0.75 €0.92
53
Screw CHC M6x35 cl.12.9

PS82038A10

3

€0.68 €0.84
54
M6x25 Bolt

PS82017A10

1

€0.53 €0.65
55

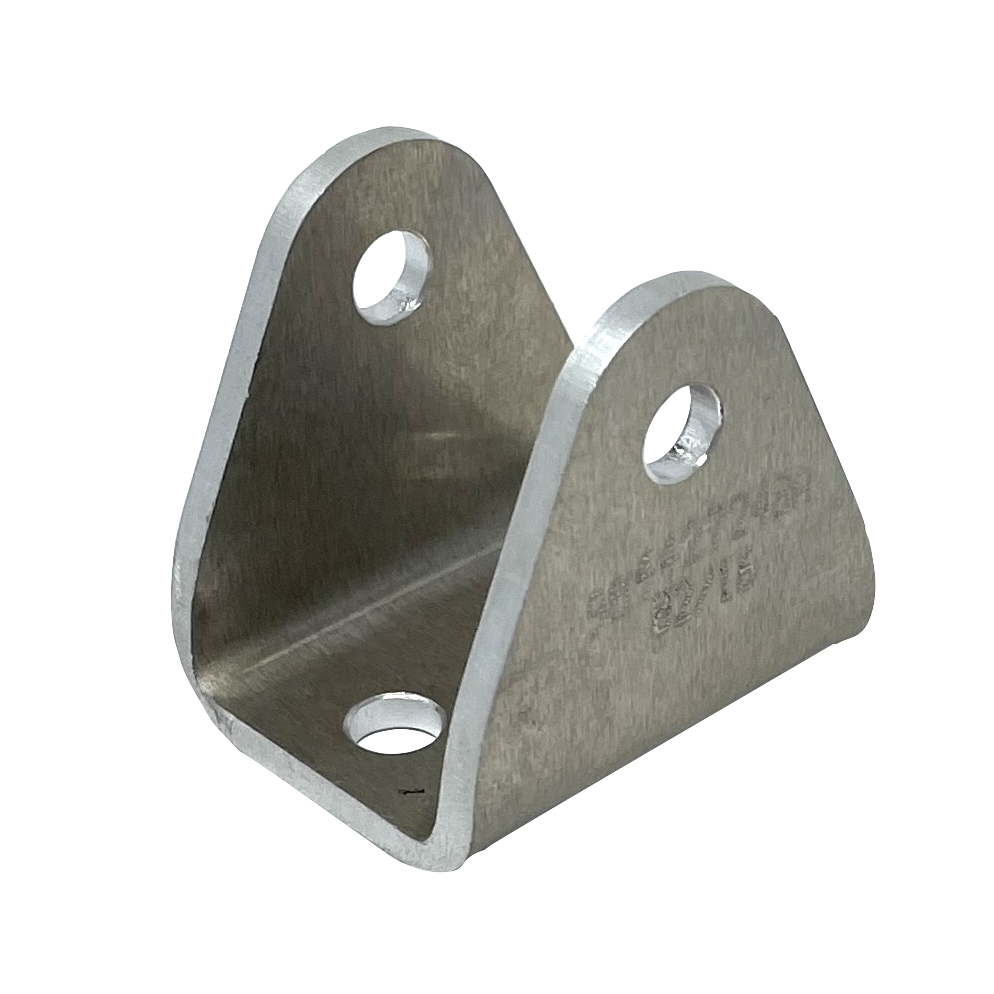

Stabiliser Bracket

0B1242724A

€9.62 €11.83
56

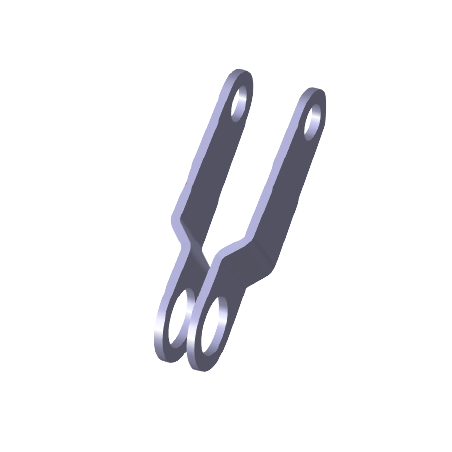

Stabiliser Rod

0B1242723A

€10.35 €12.73
57
Axle for Stabiliser Rod

0B1243380A

€23.31 €28.67
58

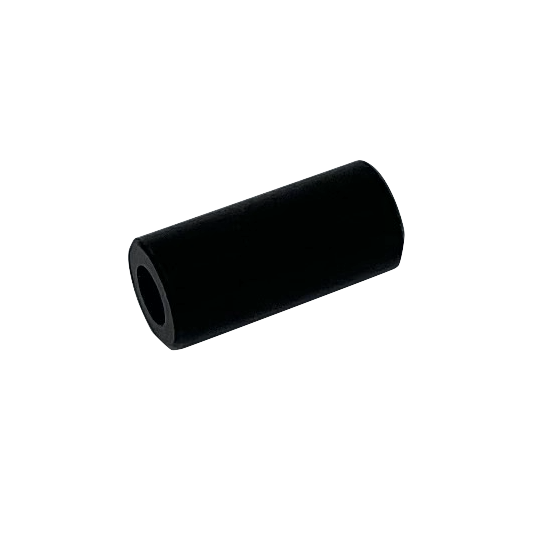

Bracket Spacer

0B1242762A

€28.03 €34.48
59
Screw M6x12

PS82119A10

4

€0.25 €0.31
60
Screw CHC M6x100 L45

PS82039A10

12

€0.68 €0.84
61
Flat washer Ø6x14x1.5

694904

8

€1.51 €1.86
62
M6 Lock Nut

693586

2

€0.37 €0.46
64

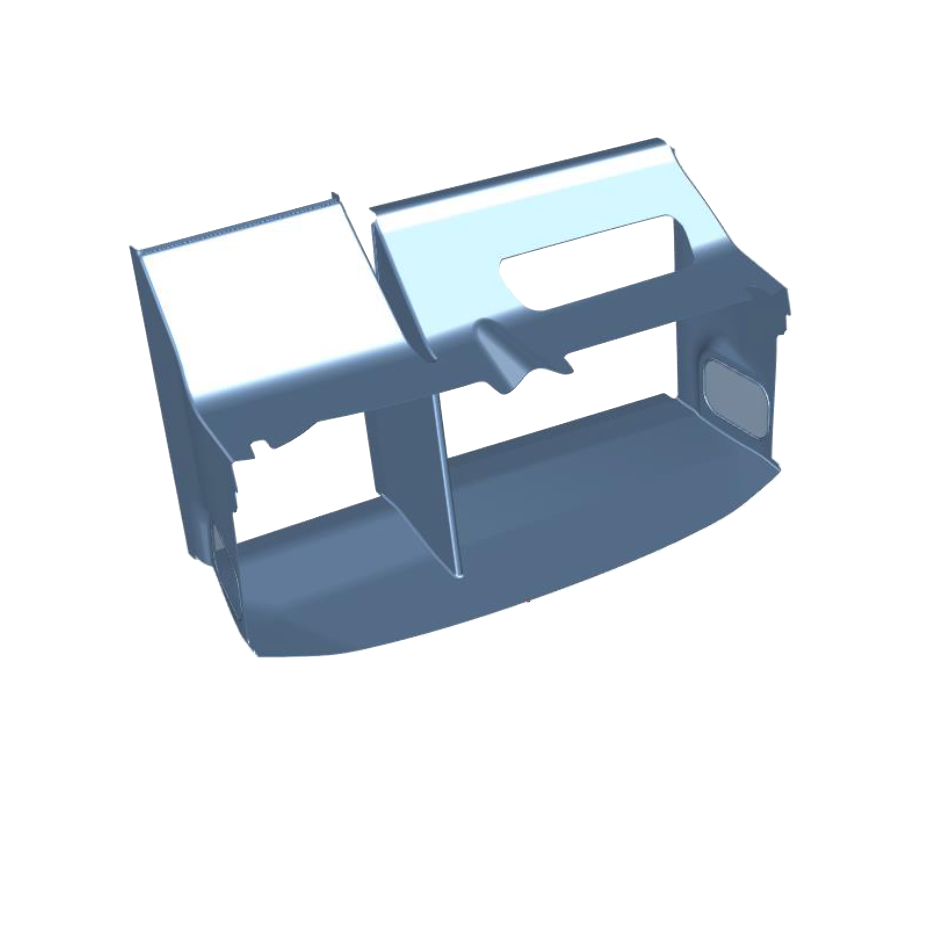

Main Air Duct - Evo

0B1242623B

Sold Out

€922.20 €1134.31
65

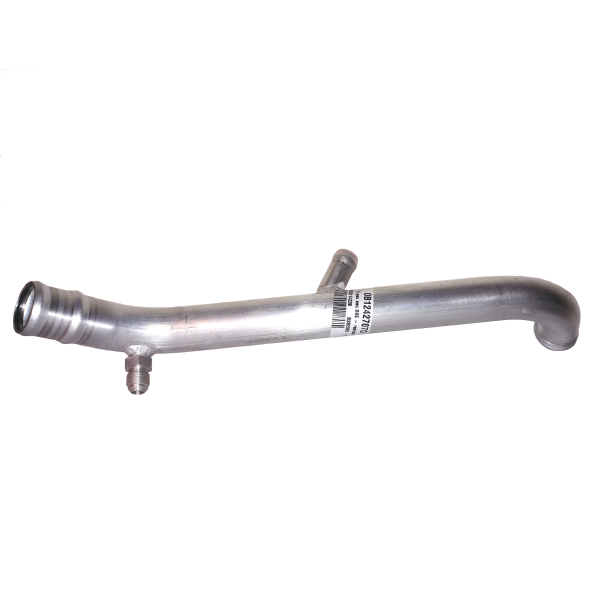

Hose Engine - Radiator

0B1242707D

€196.77 €242.03
66

Sold Out

67

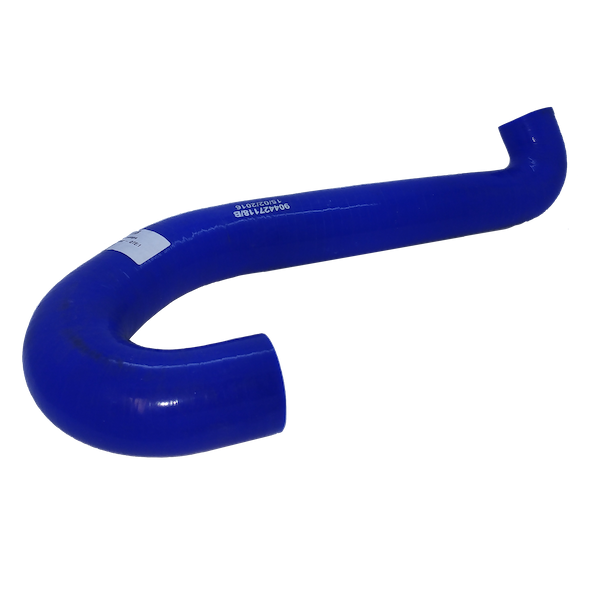

Hose Radiator - Water Pump

0B1242711B

€152.71 €187.83
68

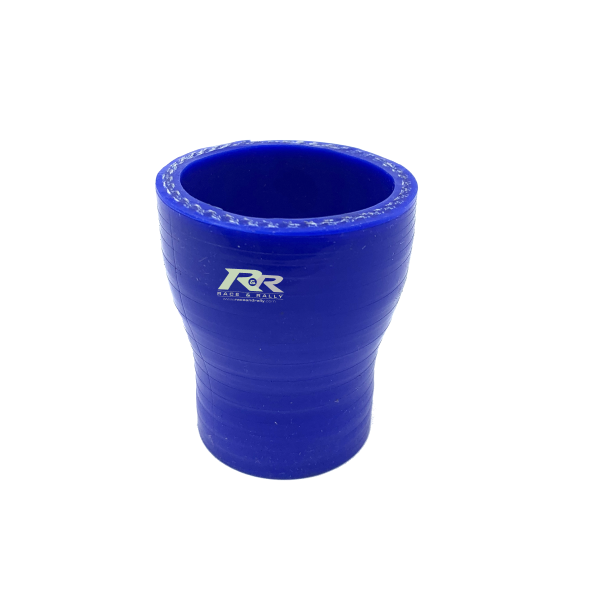

Reduction Hose 39-30

0B1242743A

€63.71 €78.36
69

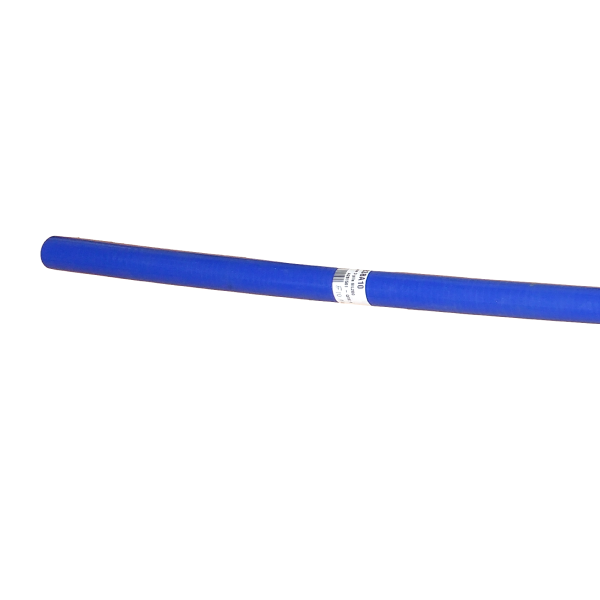

Silicon Hose Ø16

PS69838A10

€78.03 €95.98
70

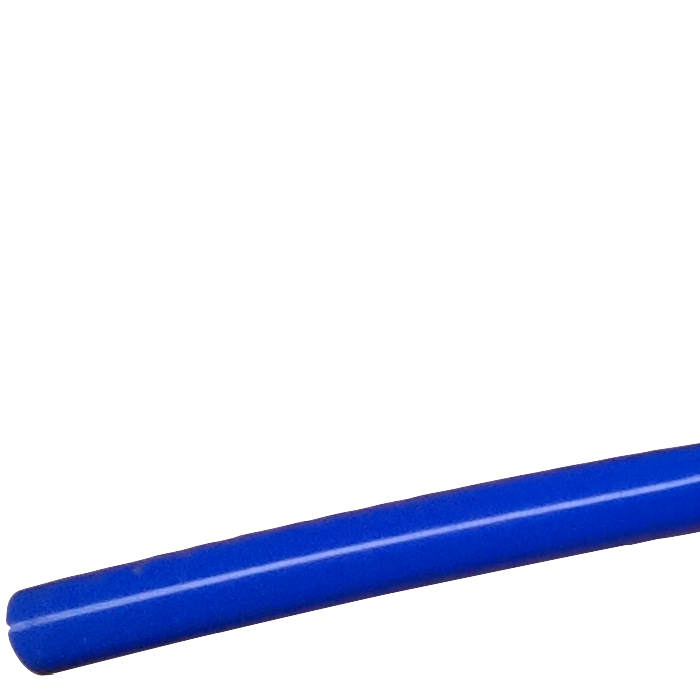

Silicon Hose Ø30

PS69814A10

1

€76.41 €93.98
71

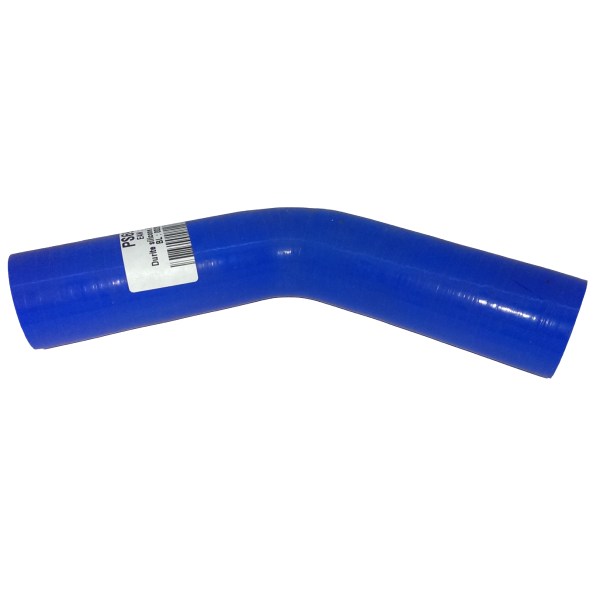

Silicone Hose Ø30 45°

PS69815A10

1

€39.38 €48.44
73

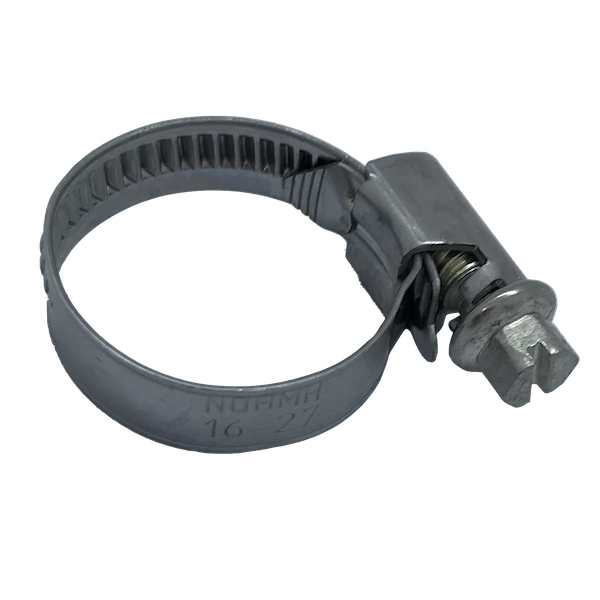

Hose Clamp Ø16-27 W9mm

BCSP6981H7

€1.68 €2.07
77
O-Ring

219040-391

€2.96 €3.64
78

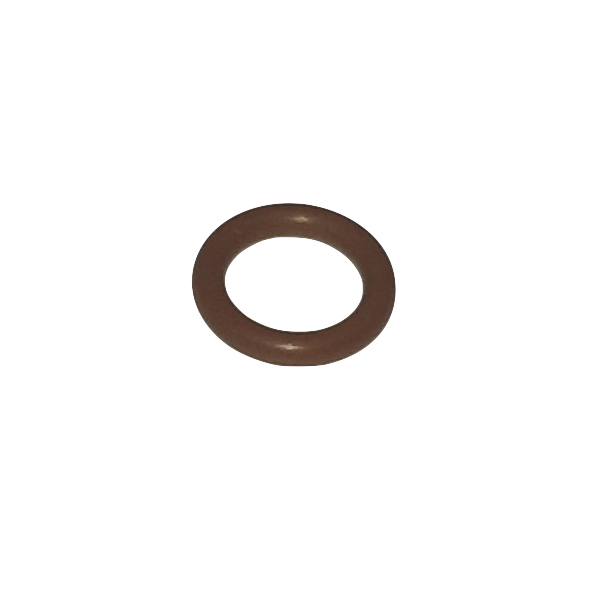

O-Ring

219040-392

2

€1.48 €1.82
79

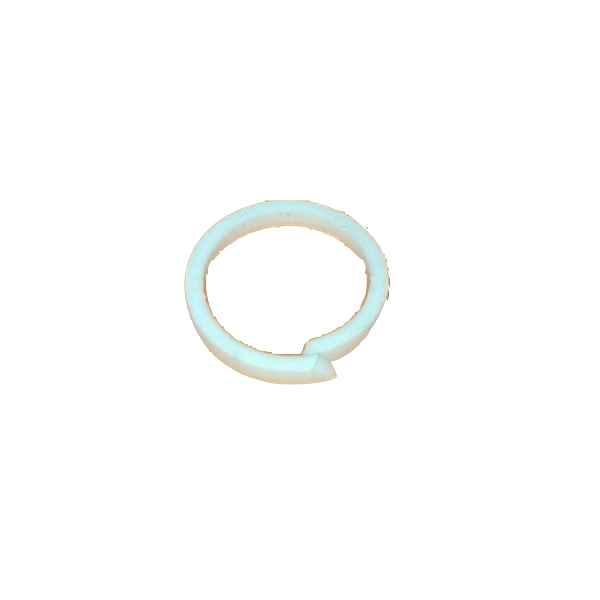

Spacer

219040-393

2

€2.44 €3.00
80

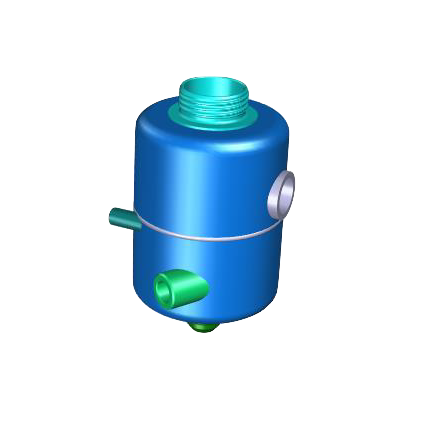

Hydraulic Tank

1E4242224C

1

€230.00 €282.90
81
Oil Level Indicator (Alu 180°C 3/4)

90344293-A

1

€54.84 €67.45
82
Aluminium Tank Cap

1E4242287A

1

€168.35 €207.07
83
Seal for Tank Cap

1E4242411A

1

€6.31 €7.76
84
Silent Bloc

PS93510A10

3

€12.61 €15.51
85

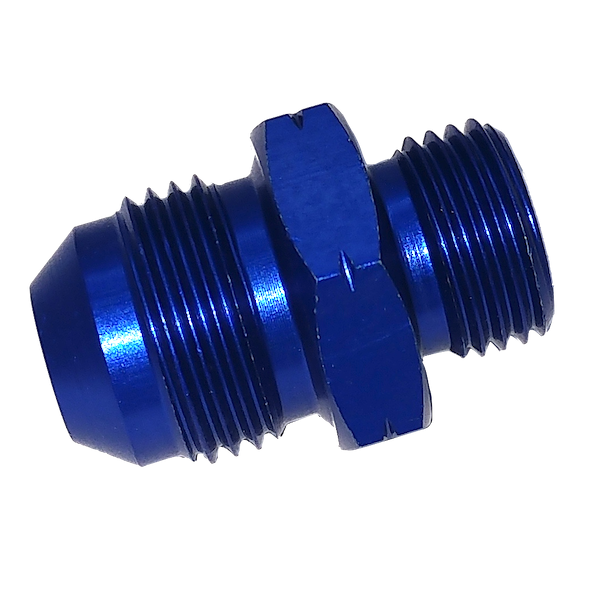

Dash 8 M16x150 Connector

CS410330ST

1

€12.76 €15.69
86

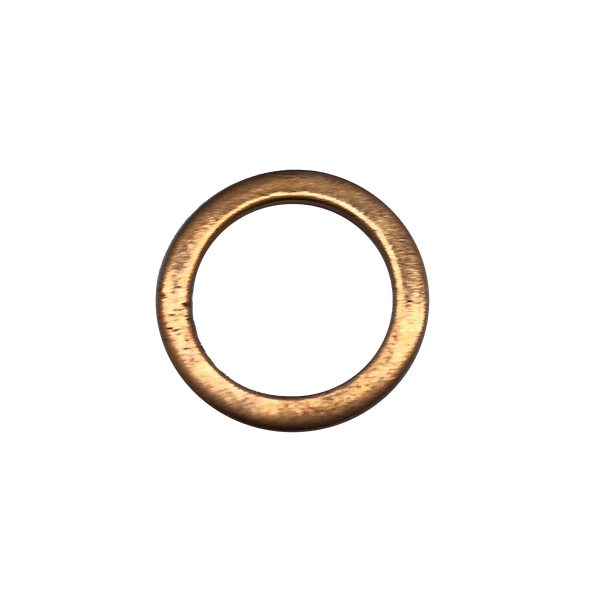

Copper Seal Ø16x22x1.5

PS81614A10

1

€2.36 €2.90
90
Nut M10

PS74014A10

4

€3.63 €4.46
93

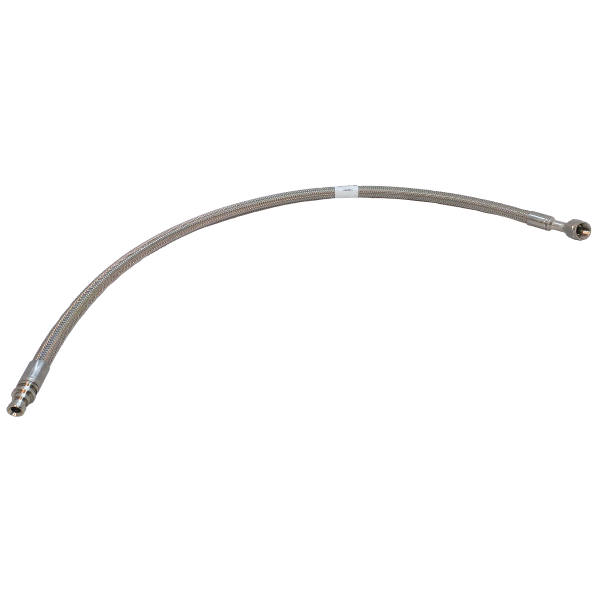

GEP output / rear bulkhead pipe

1E4243501B

1

€339.21 €417.23
94

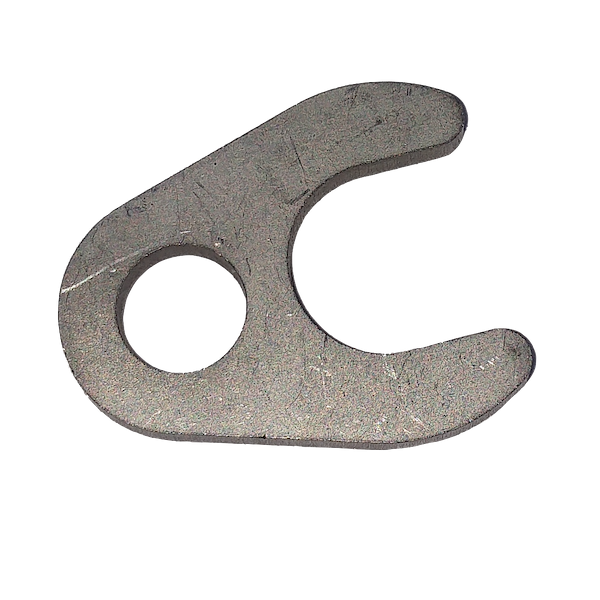

Clamp for GEP outlet pipe

1E4244372A

1

€35.00 €43.05
96
SPS Washer Ø8x13-0,8

PS86570A10

6

€0.27 €0.33
100

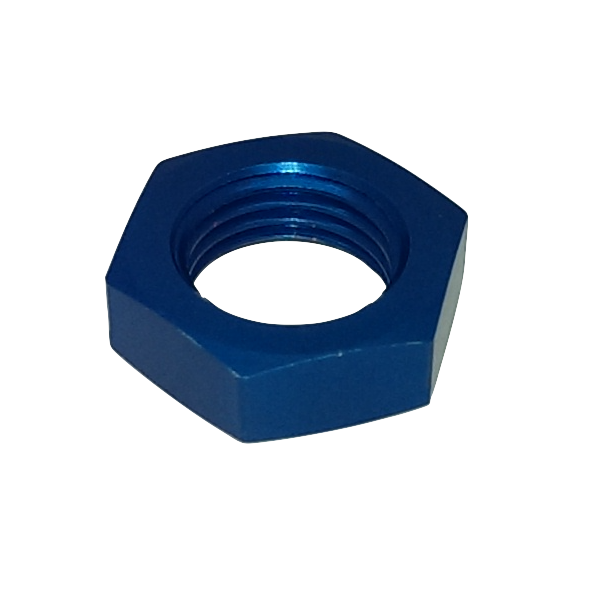

Nut dash 6

PS74549A10

€2.15 €2.64
105

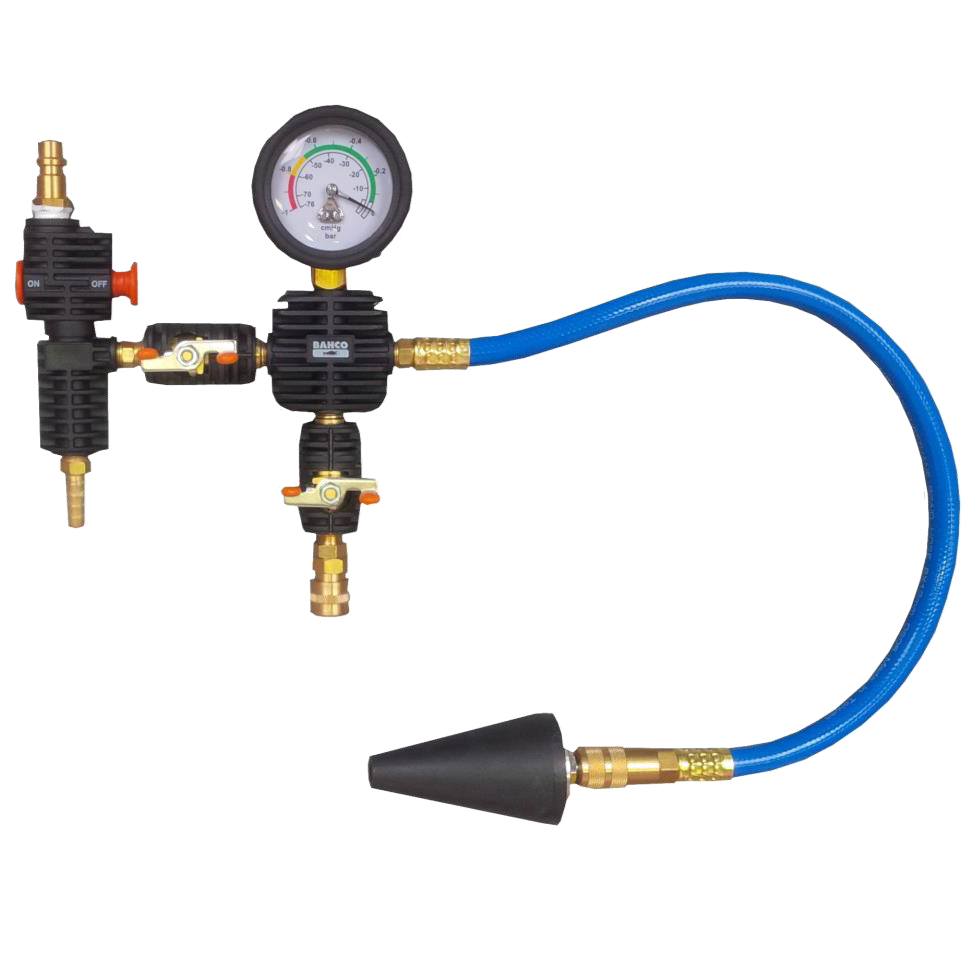

Tool to bleed the power steering circuit

1606283580

1

€225.00 €276.75
106

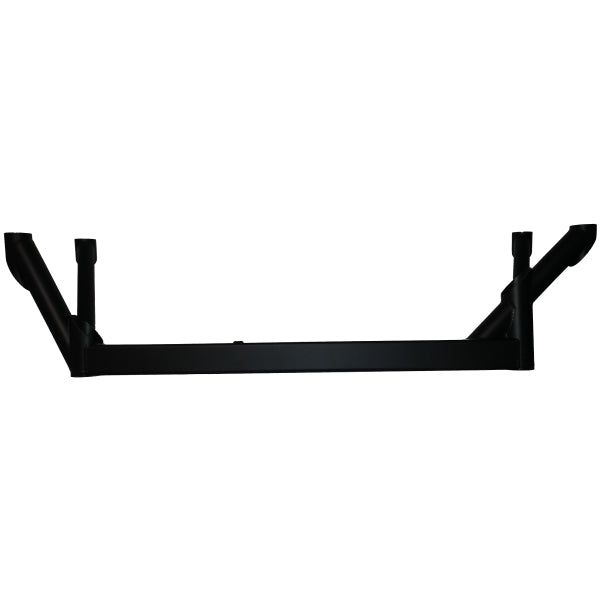

R5 Evo 17 Sumpguard Crossmember

3R6A42642B

1

€2376.61 €2923.23
107
R5 Evo 17 Sumpguard

3R6A42643B

1

€884.00 €1087.32
108

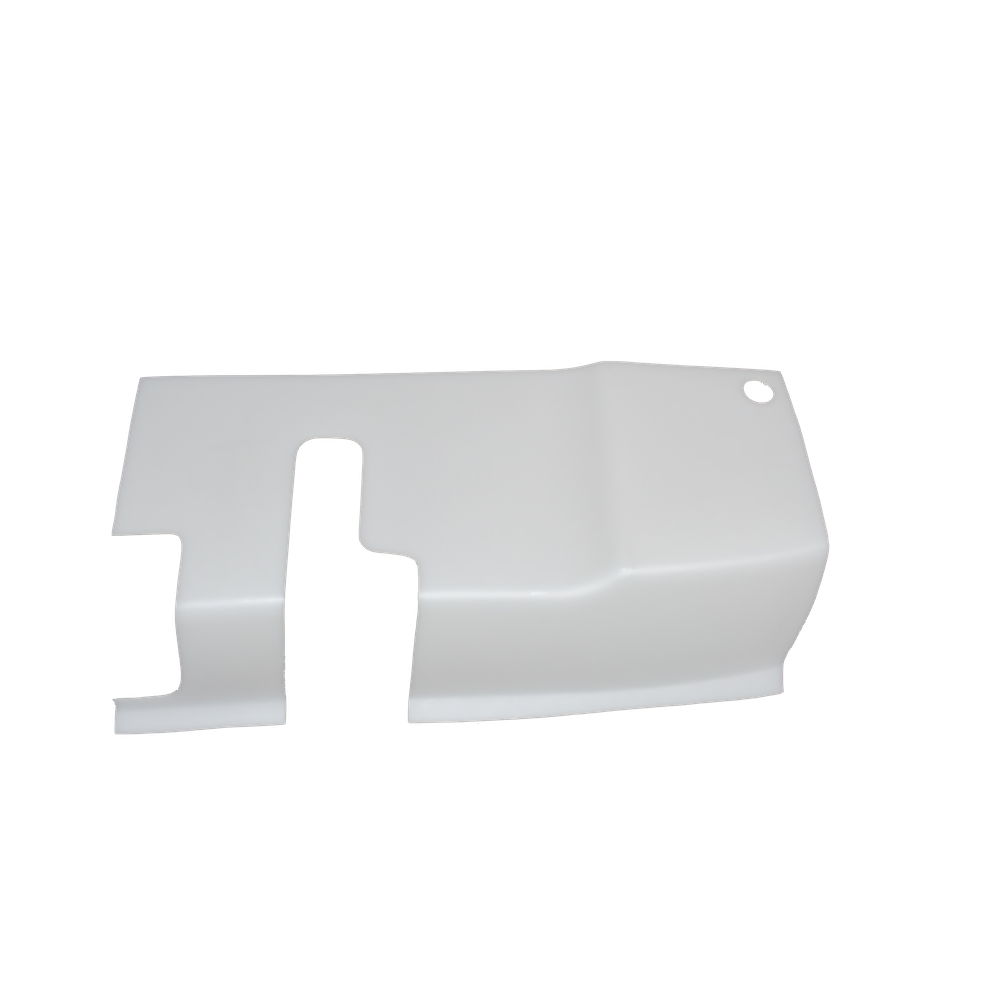

Right protection for Sumpguard - Evo

3R6A43437A

1

€68.94 €84.80
109

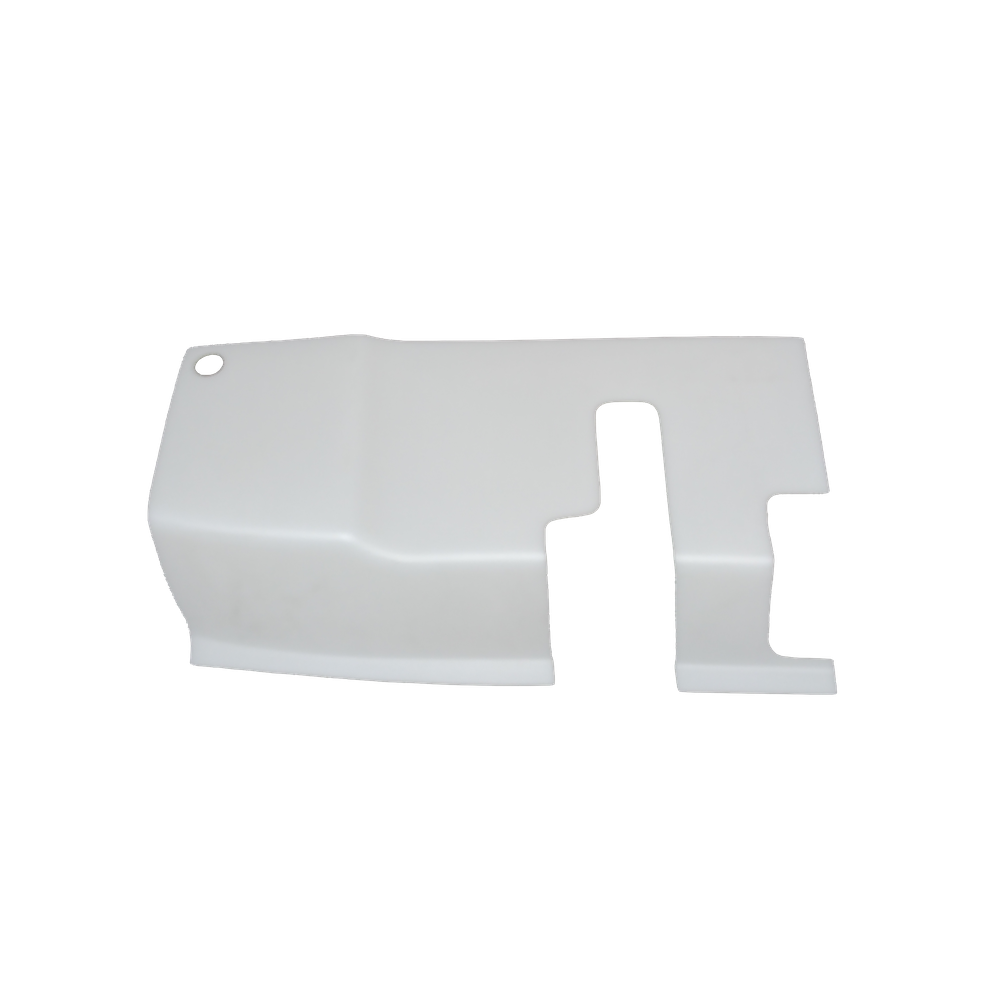

Left protection for Sumpguard - Evo

3R6A43436A

1

€69.18 €85.09
110

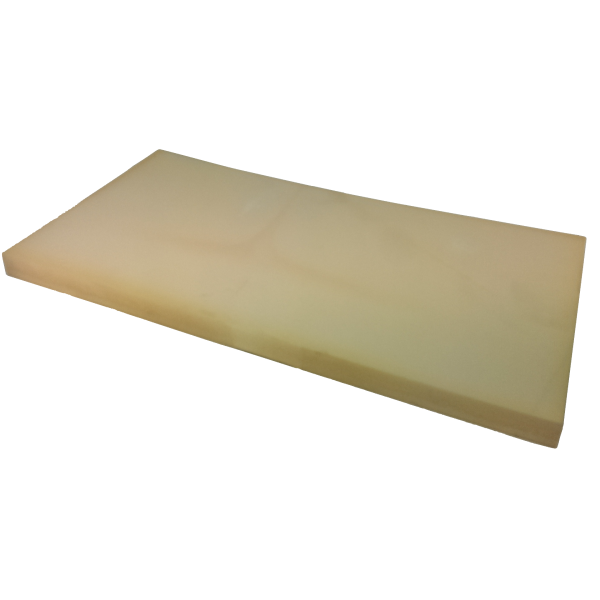

Foam pad

RC7431345A

2

€55.17 €67.86
111

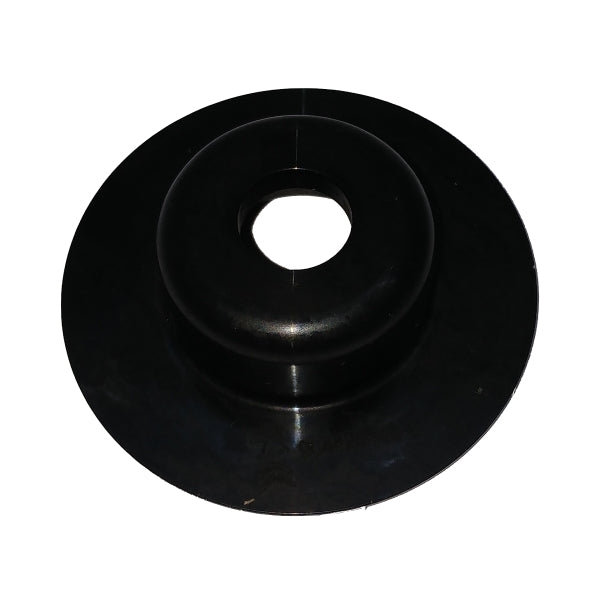

Sumpguard spacer

3R6A42644B

2

€45.31 €55.73
112

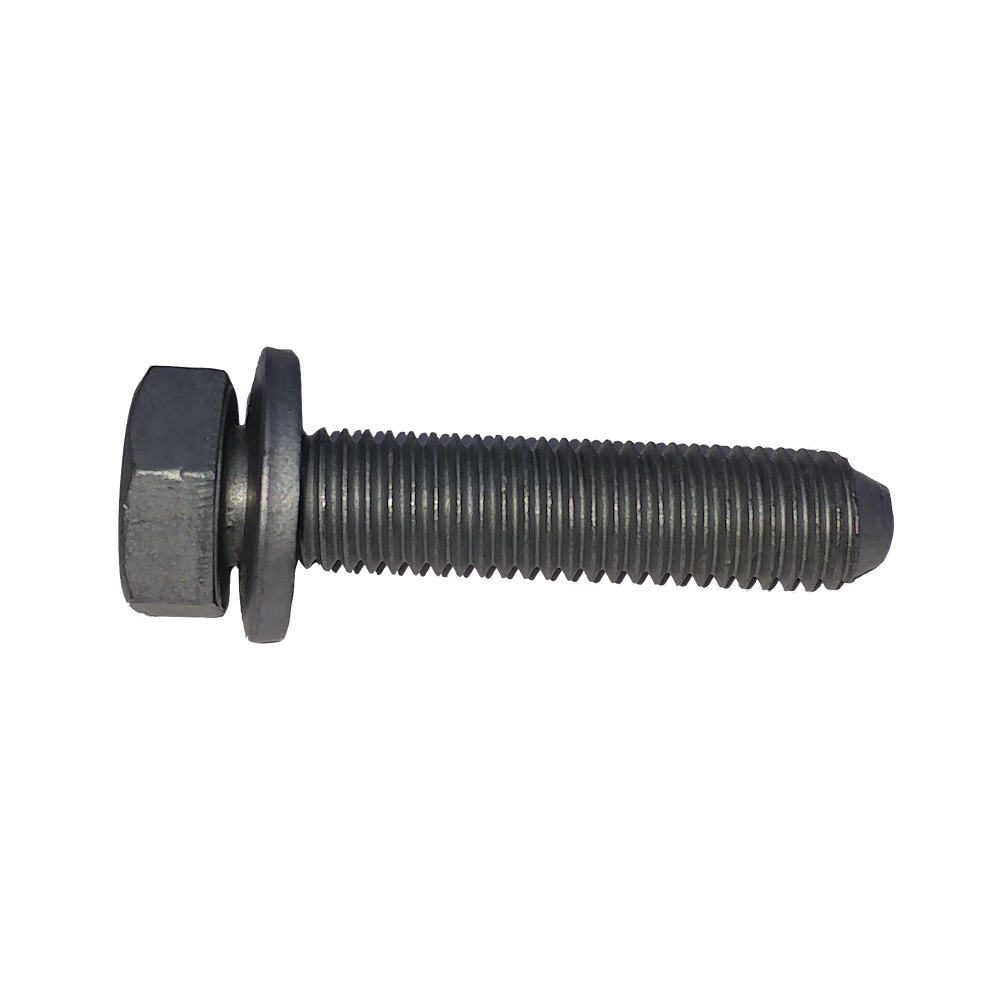

Screw M10 L45

692373

4

€3.75 €4.61
113
Sliding Latch

PS78573A10

2

€4.92 €6.05
114
Rivet Ø3.2x8

PS92605A10

4

€0.19 €0.23
115
Bush

PS78574A10

€1.61 €1.98
116

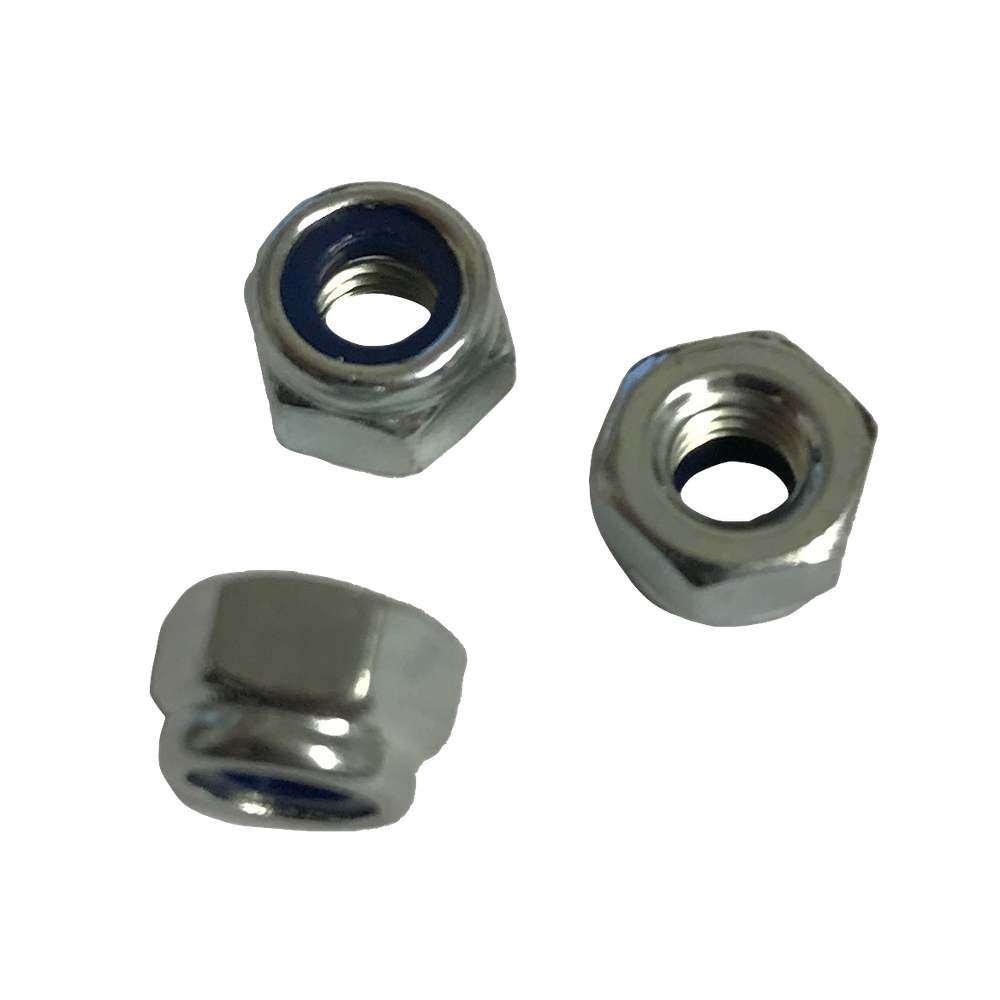

Lock nut Hm M4

PS74052A10

8

€1.17 €1.44
117
Bolt M4x20 ULF

PS82815A10

4

€6.28 €7.72
118
Screw FHC M4x25

CS540288ST

4

€6.28 €7.72
121

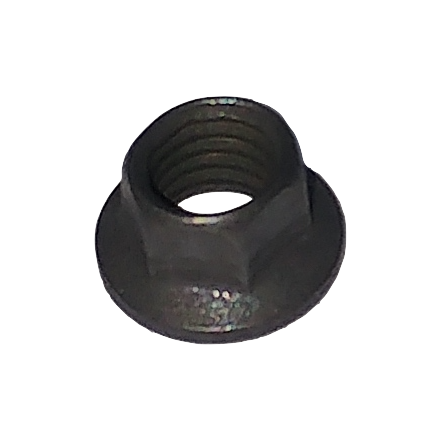

Lock nut M5x80

PS74524A10

2

€0.55 €0.68
122

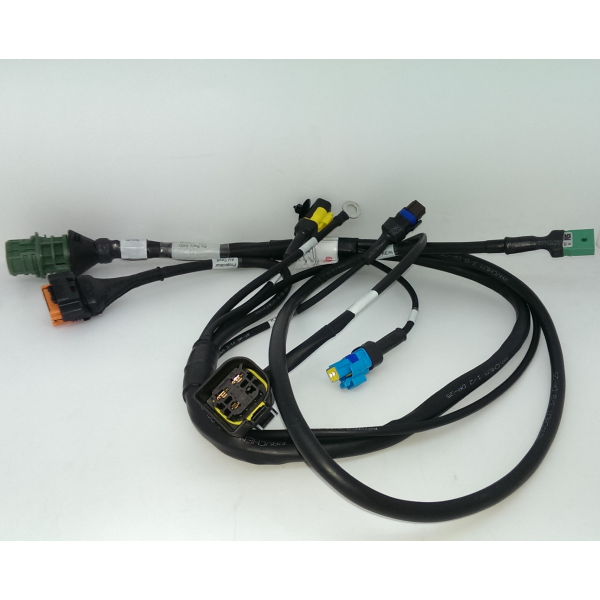

Front right accessories loom

3Z9J23995H

1

€396.58 €487.79
124
Starter to Alternator Loom

3Z9J20920B

1

€25.90 €31.86
125

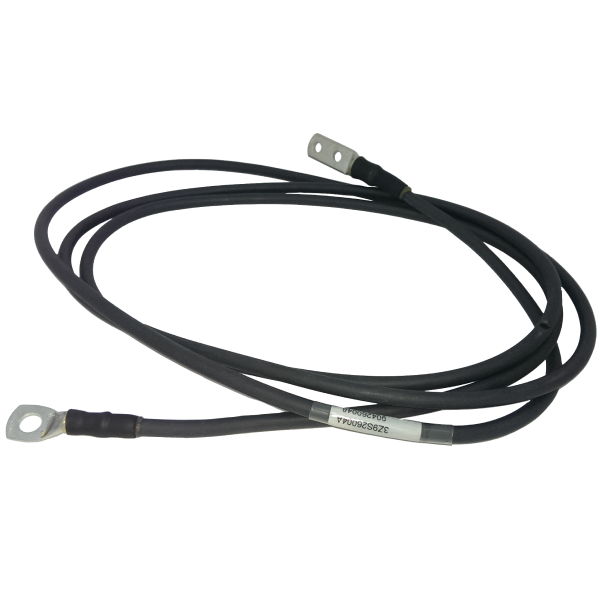

Starter to cutout switch cable

3Z9J26004A

1

€32.01 €39.37
126

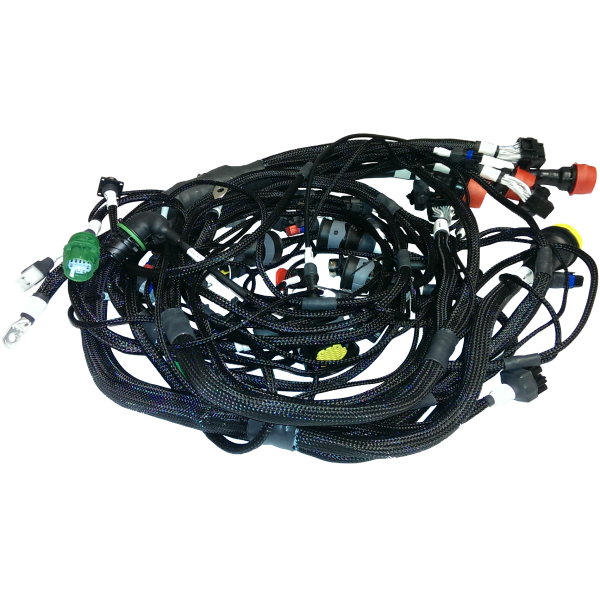

Chassis Loom

3Z9S23834P

1

€3982.50 €4898.48
127

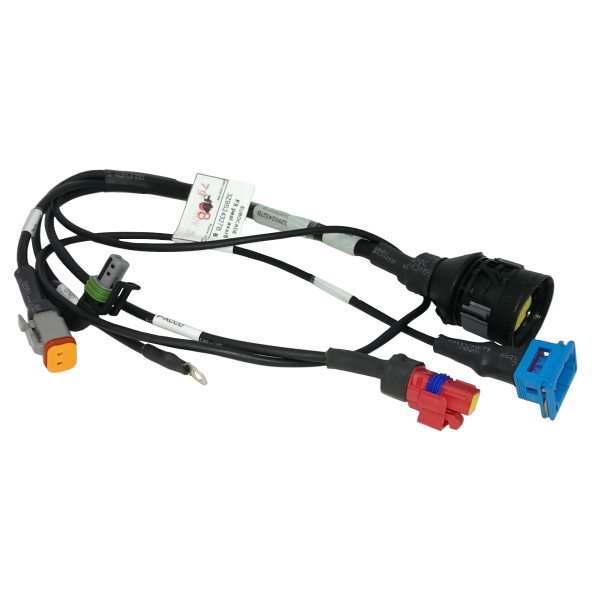

PEAL Loom

3Z9S24327C

1

€308.27 €379.17
128
Selector

3Z9S41616A

1

€214.85 €264.27
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
