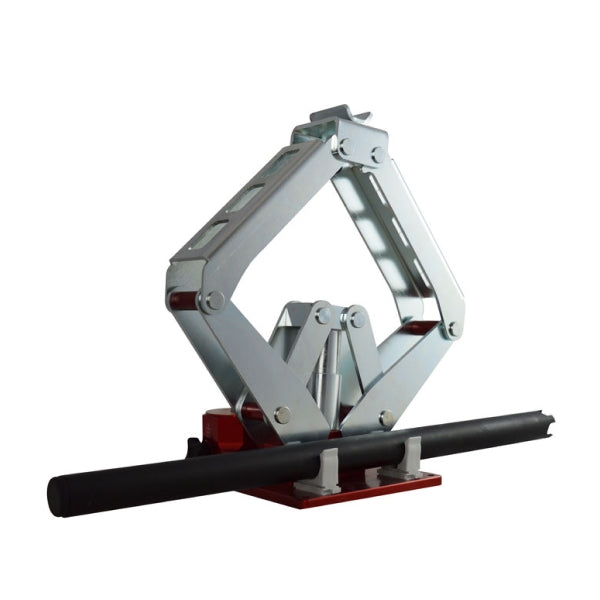

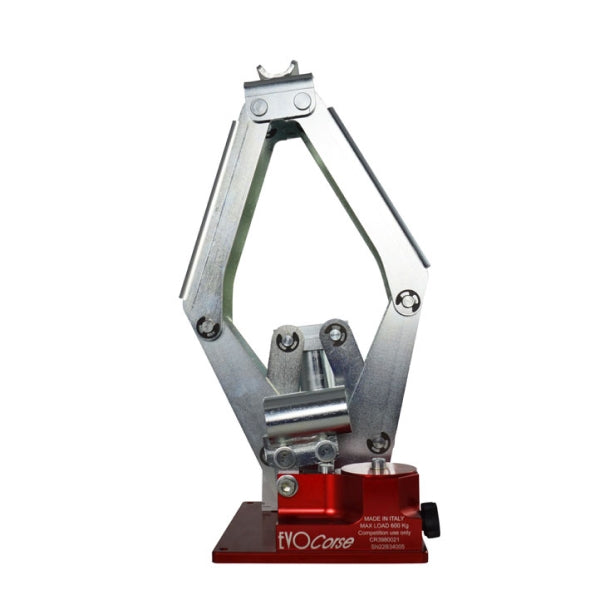

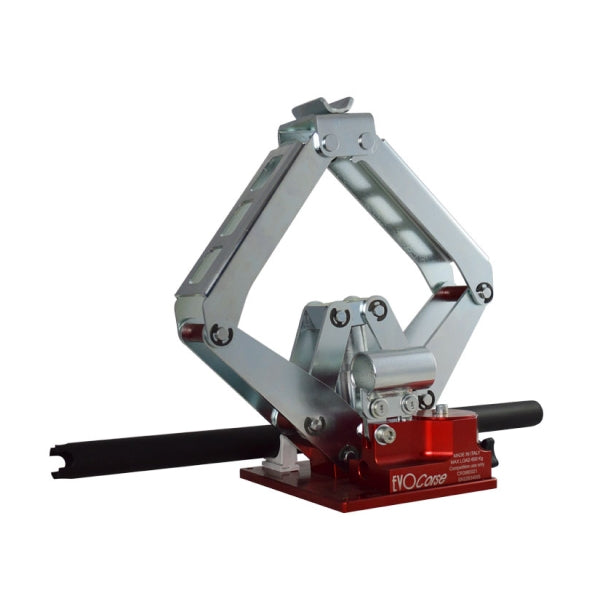

EVOjack Quadra is the fast hydraulic scissor jack specifically designed for rally racing.

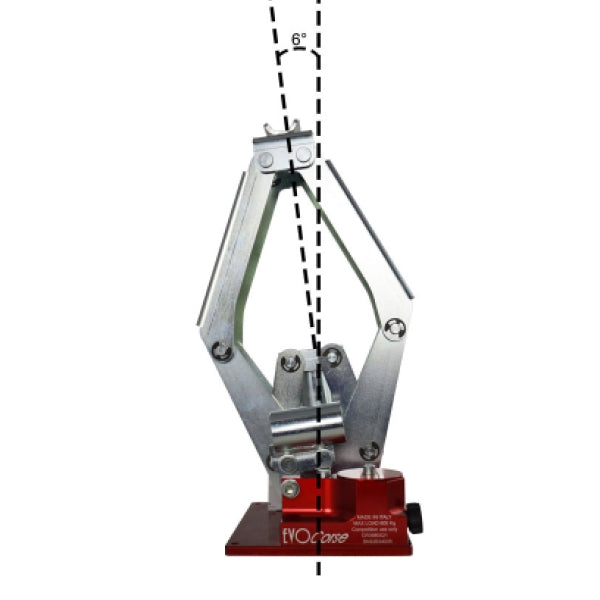

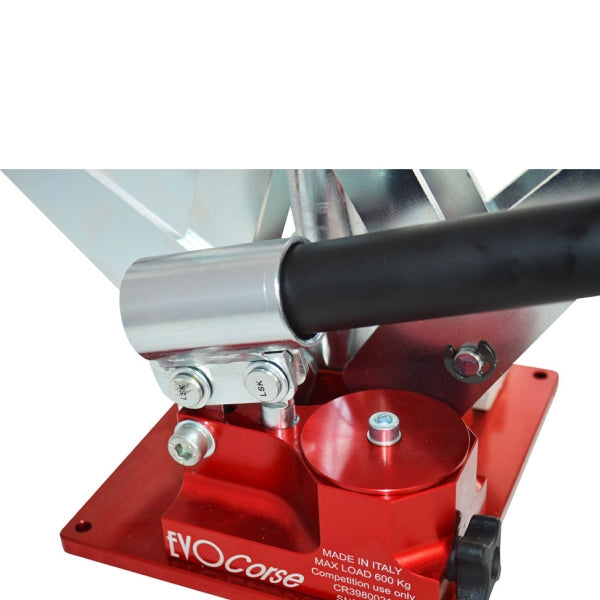

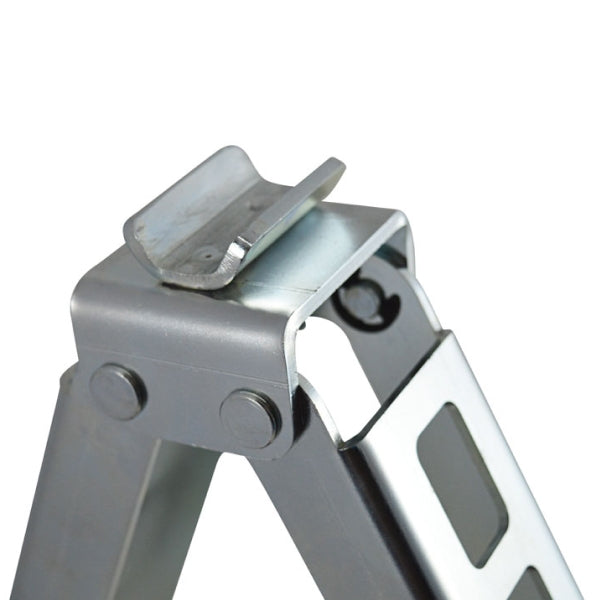

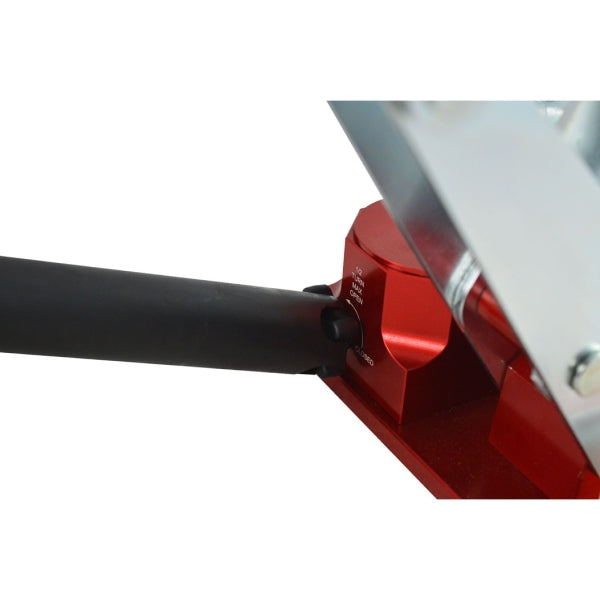

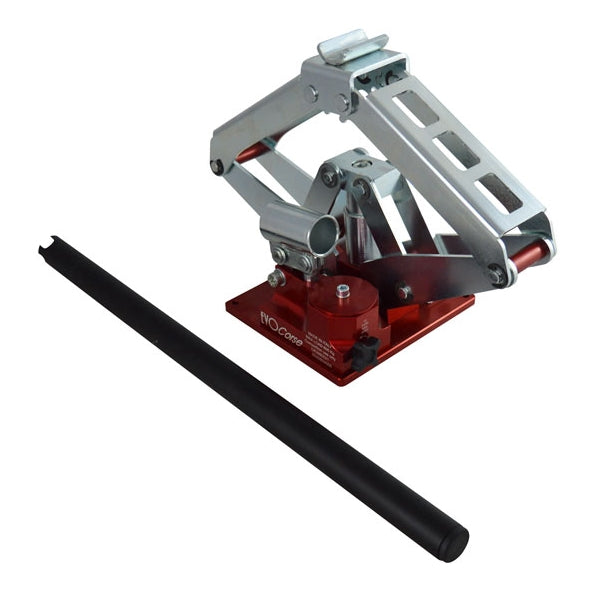

EVOjack Quadra can be used with any racing car, thanks to the carrier member that fits the chassis without the need for the insertion hole. The removable handle allows to quickly lift the car and to safely turn the release valve; the lifting arm is inclined to the vertical in order to follow the natural movement of the car in the lifting phase ensuring extreme stability during wheel change operations.

It is easy to place in the car trunk, thanks to its low weight – only 5 kg – and small size.

Specification

Base Aircraft billet aluminum

Weight 5.1 kg

Lifting Speed 24 Strokes for maximum height

Lifting weight 600 kg

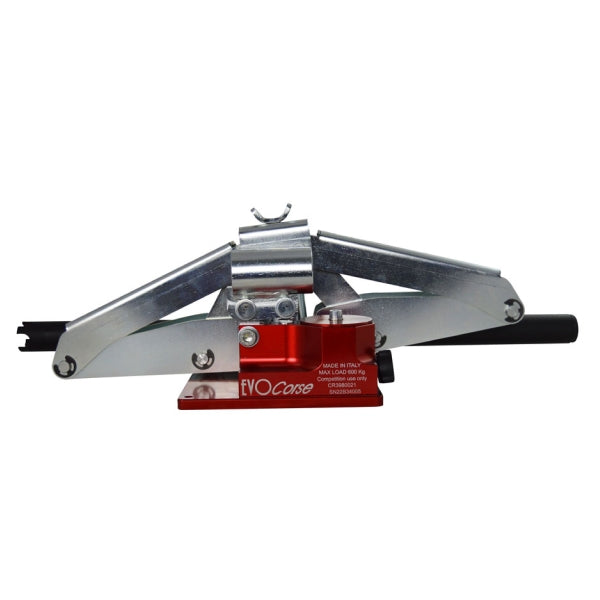

Minimum setup height 16 cm

Maximum setup height 39.5 cm

Extension 23.5 cm

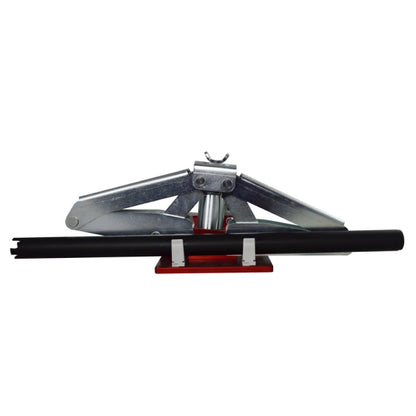

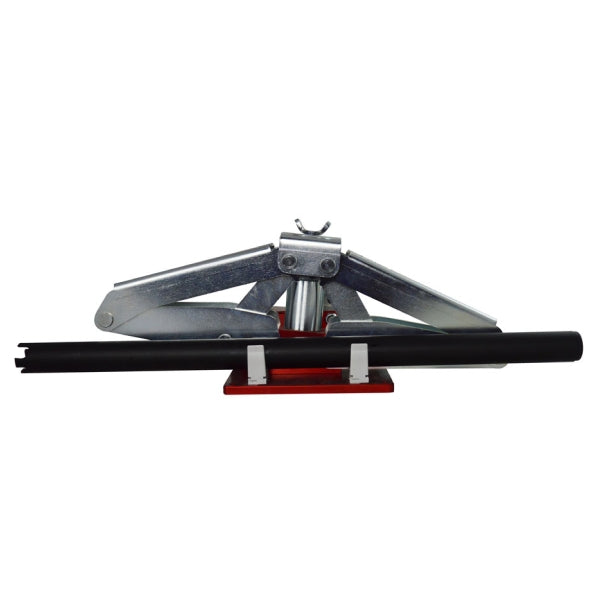

Total length when closed 39 cm
