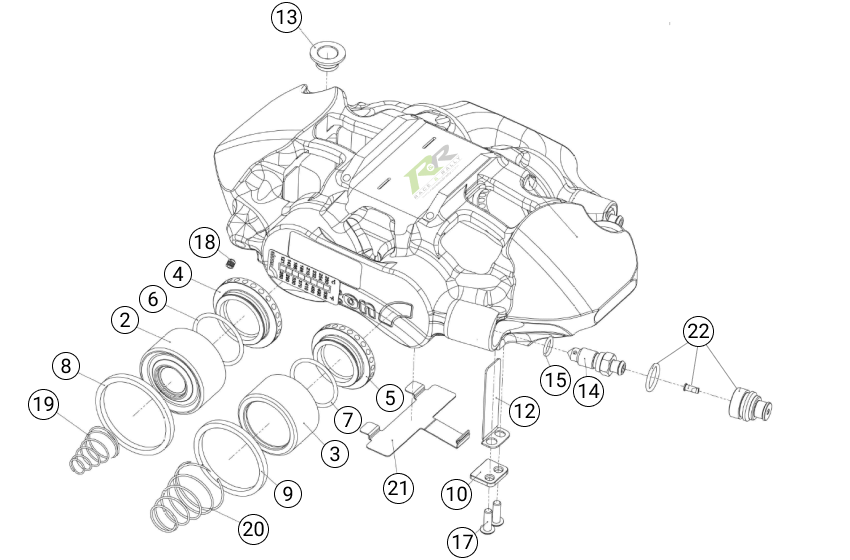

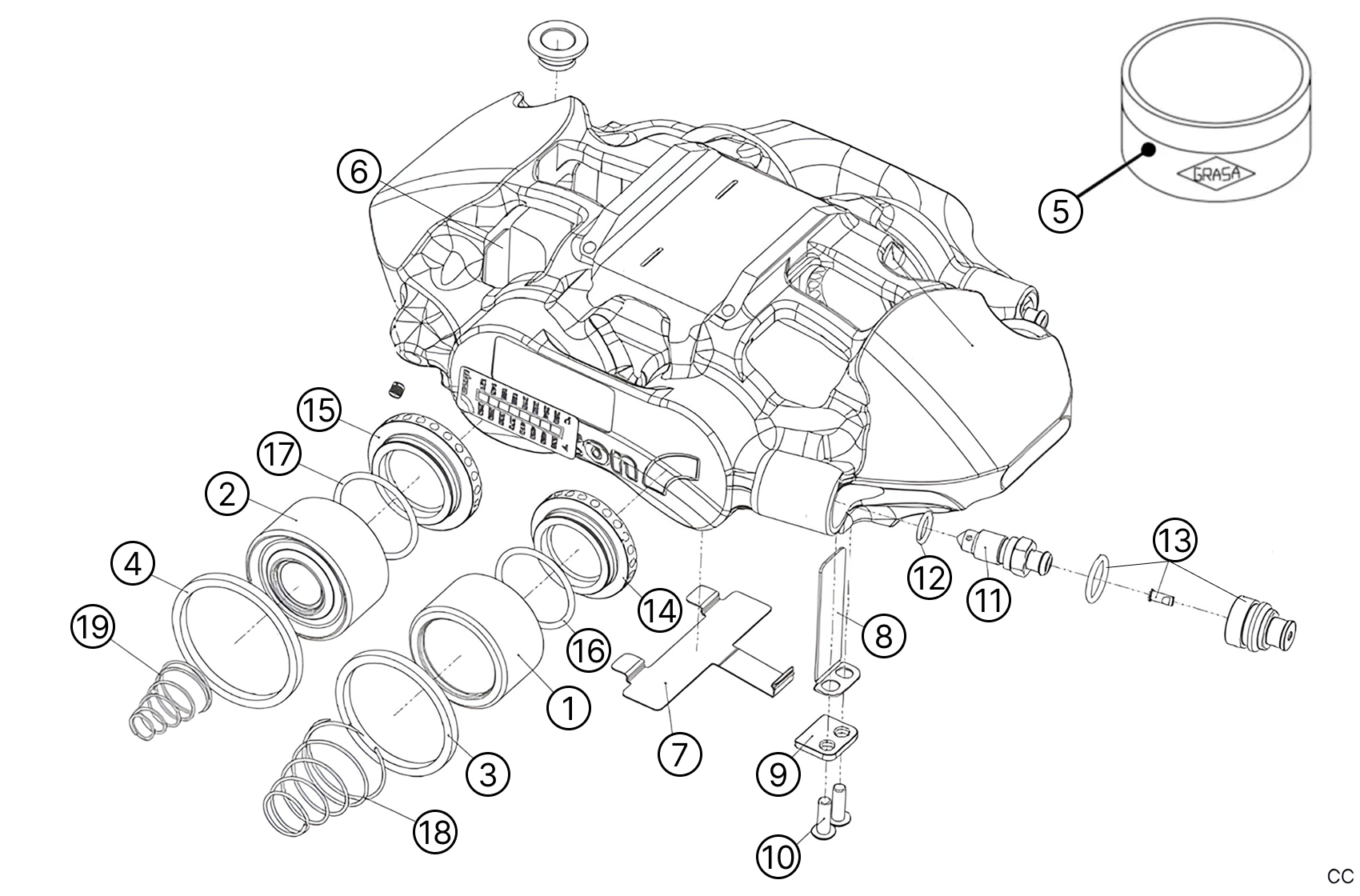

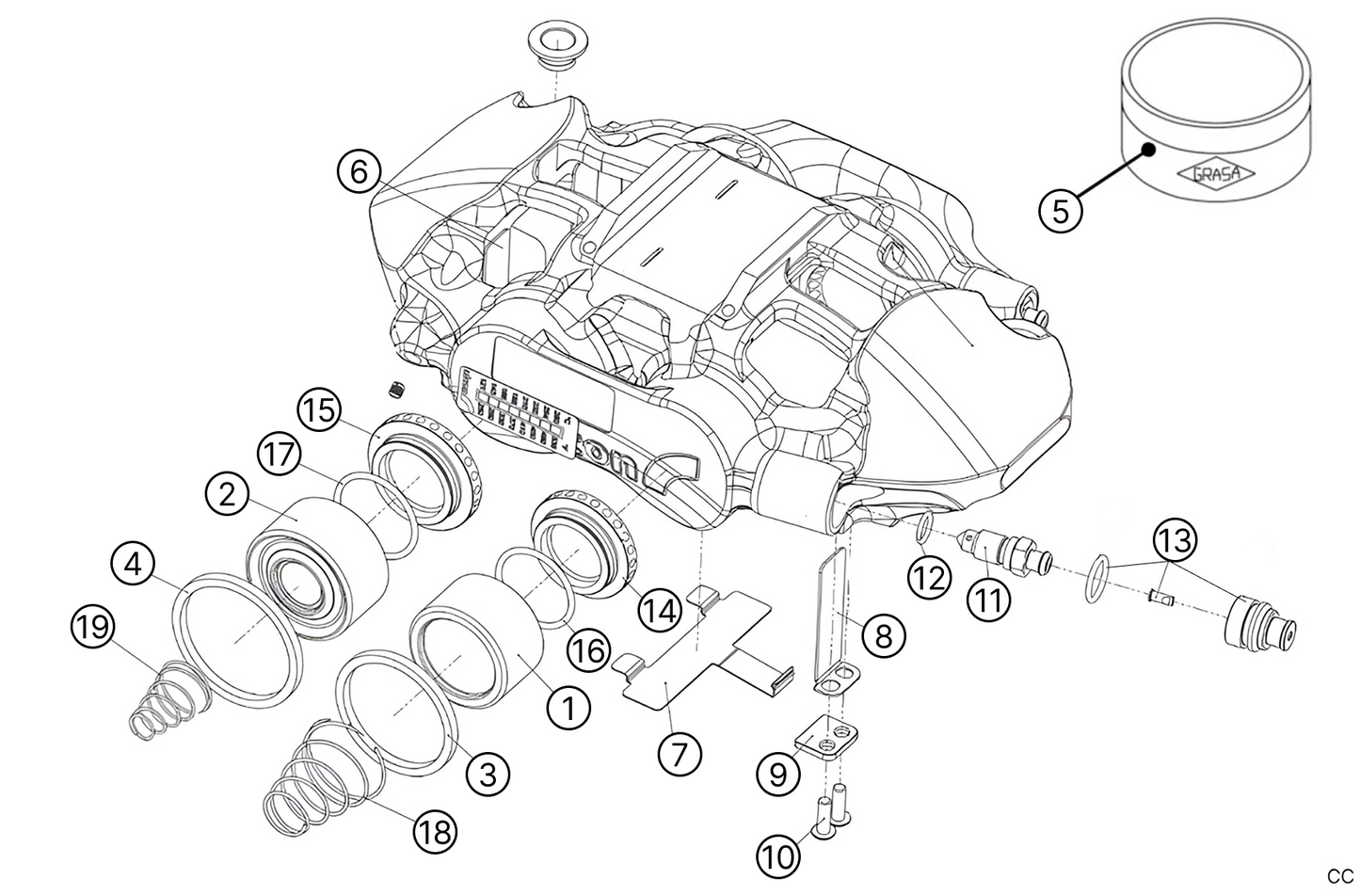

F21 - Calipers Service Parts

F21 - Calipers Service Parts

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

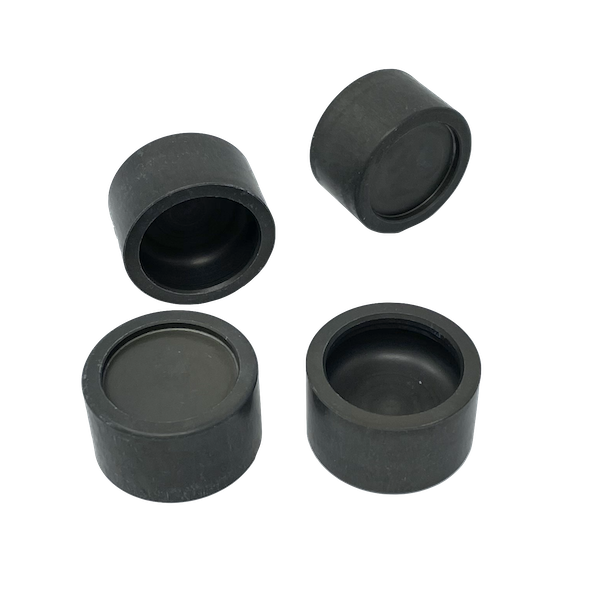

Piston ø38.1

1F2128266A

4

€136.89 €168.37
2

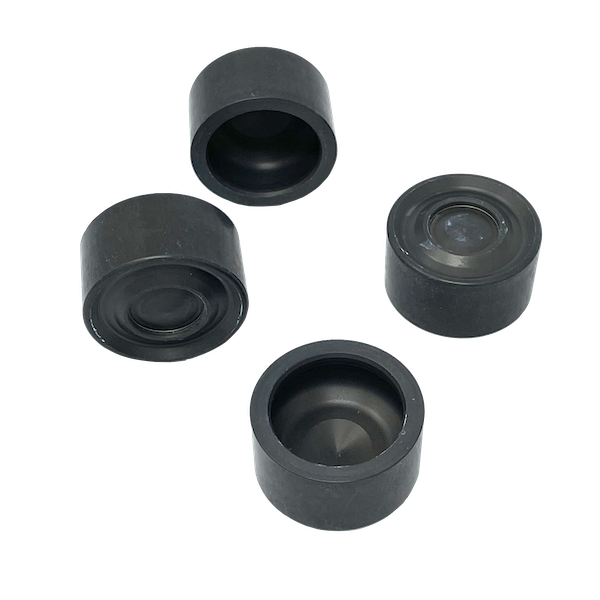

Piston ø41.3

1F2128267A

4

€136.89 €168.37
3

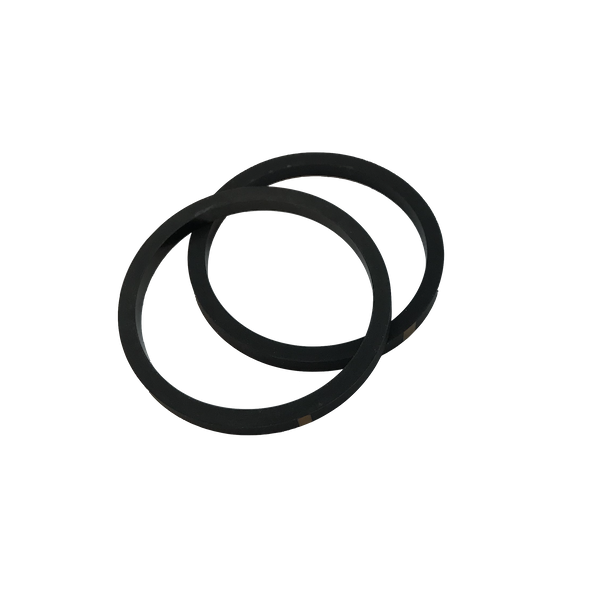

ø38.1 piston seal

1F2128268A

4

€31.28 €38.47
4

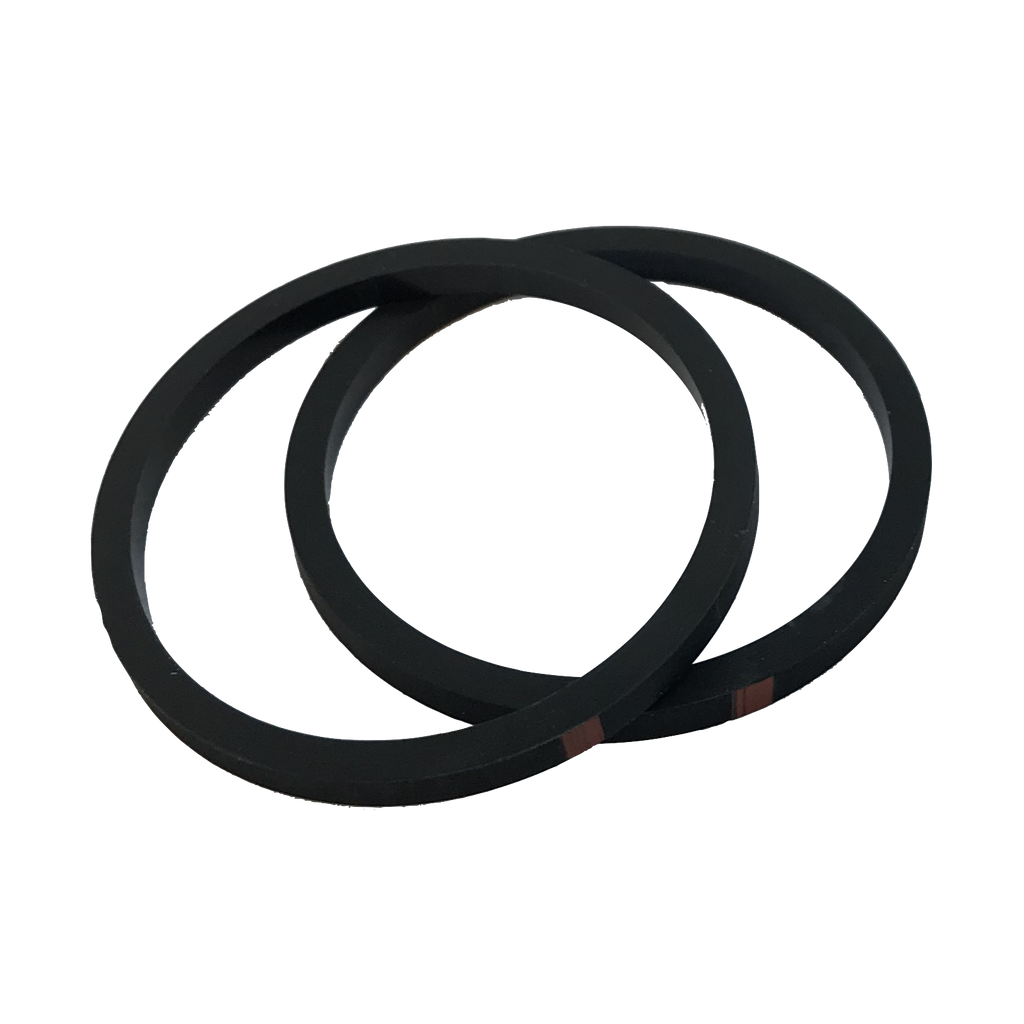

ø41.3 piston seal

90348234-A

4

€33.04 €40.64
5

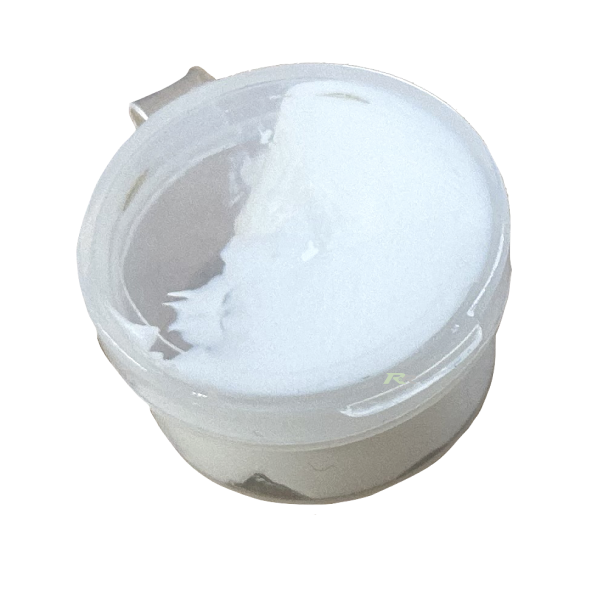

Optitemp Grease

904620538B

1

€39.30 €48.34
6
Upper wear plate

1F2128272A

2

€18.76 €23.07
7
Wear plate

90404306-A

4

€17.93 €22.05
8
Wear plate

1F2128275A

4

€13.60 €16.73
9
Pad support

1F2128277A

8

€7.42 €9.13
10
1/2 Button head screw 8-32 UNC

1F2128279A

16

€7.88 €9.69
11

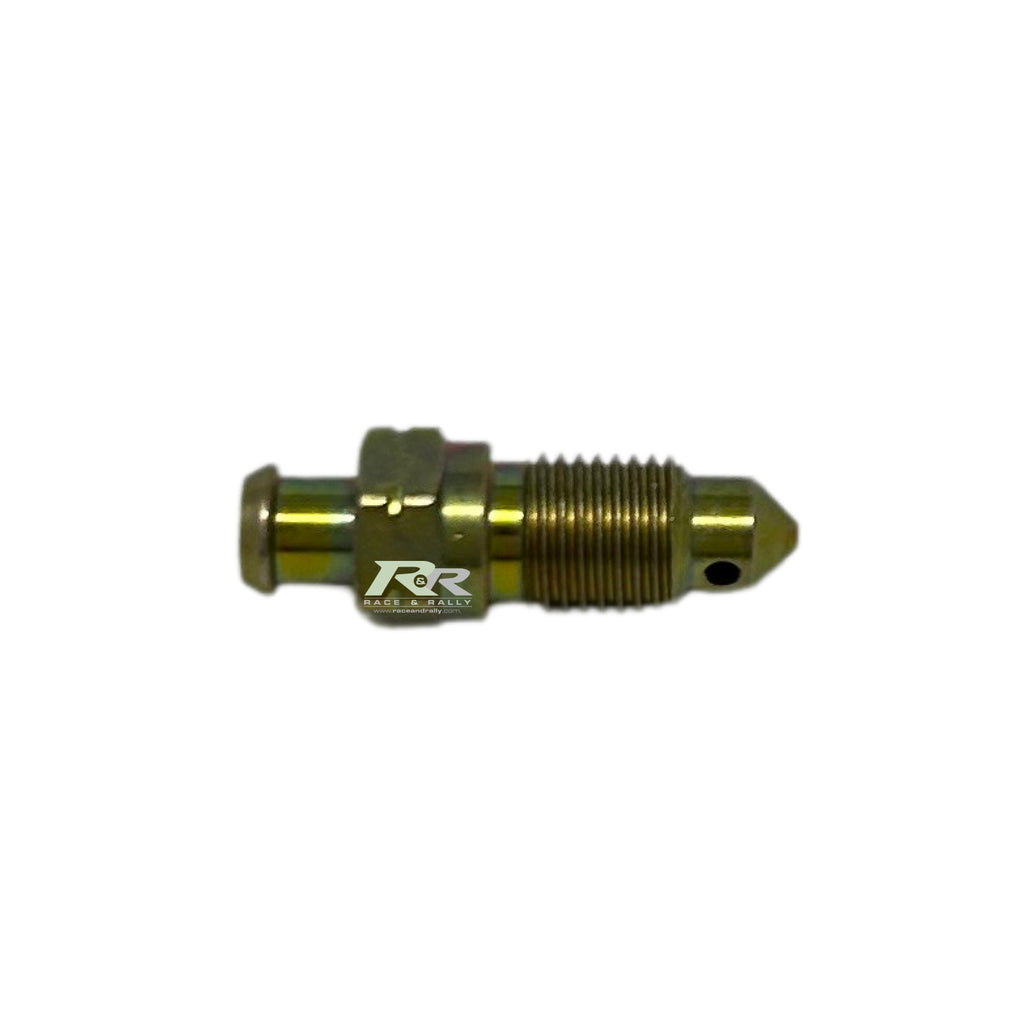

Bleed screw 3/8 UNF

90348392-A

4

€61.36 €75.47
12
EPDM O-seal Ø0.28x0.063 inches

90348393-A

4

€1.62 €1.99
13

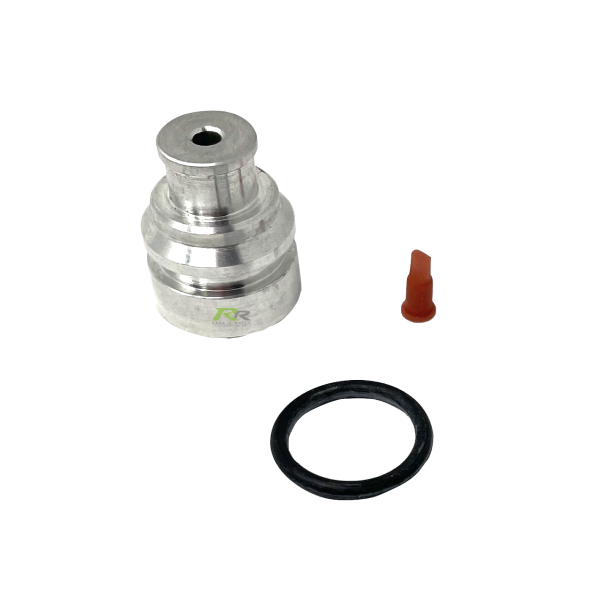

Bleed screw protection kit

904622158A

4

€41.78 €51.39
14
Steel insert ø38.1

1F2128284A

4

€144.36 €177.56
15
Steel insert ø41.3

1F2128285A

4

€144.36 €177.56
16

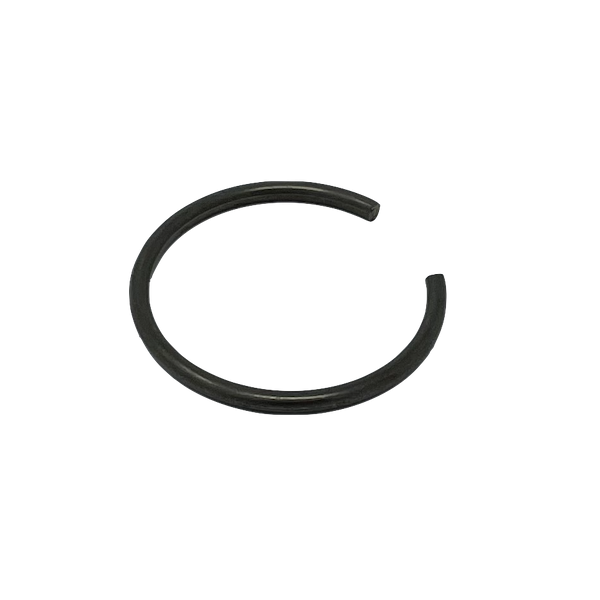

Round wire retaining ring

1F2128286A

4

€1.41 €1.73
17

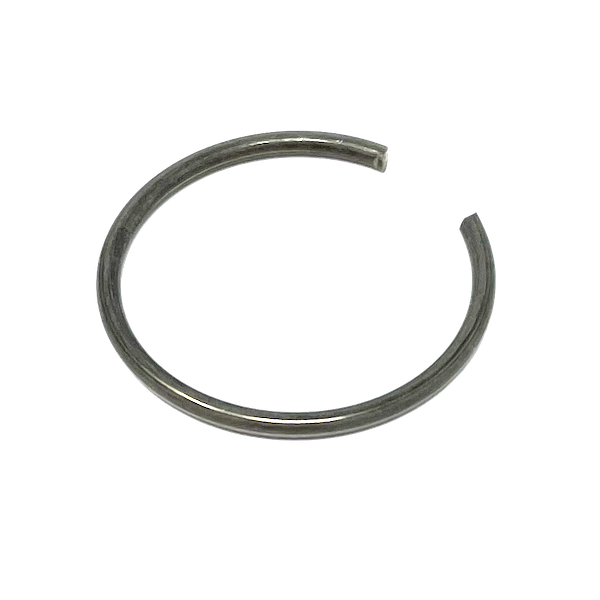

Round wire retaining ring

1F2128287A

4

€8.70 €10.70
18

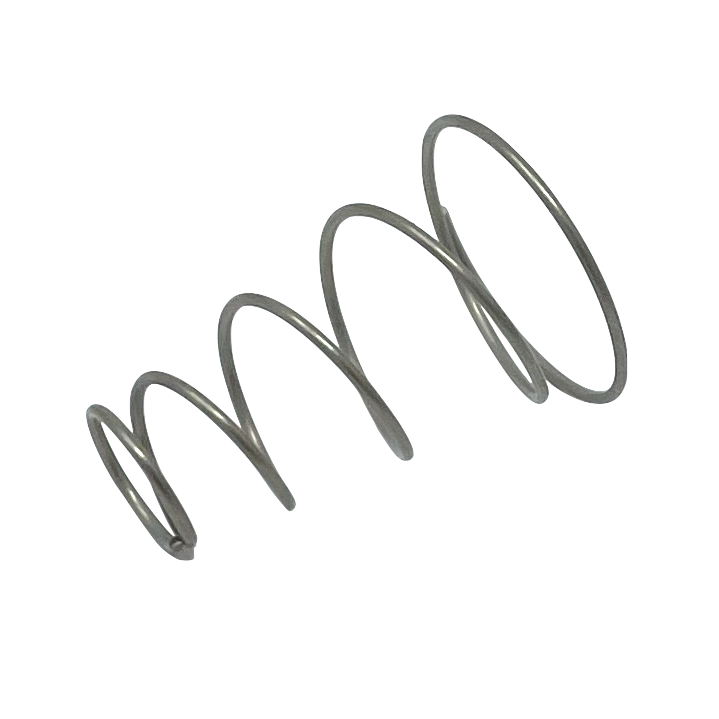

Knock back spring ø41.3

90404301-A

4

€9.08 €11.17
19

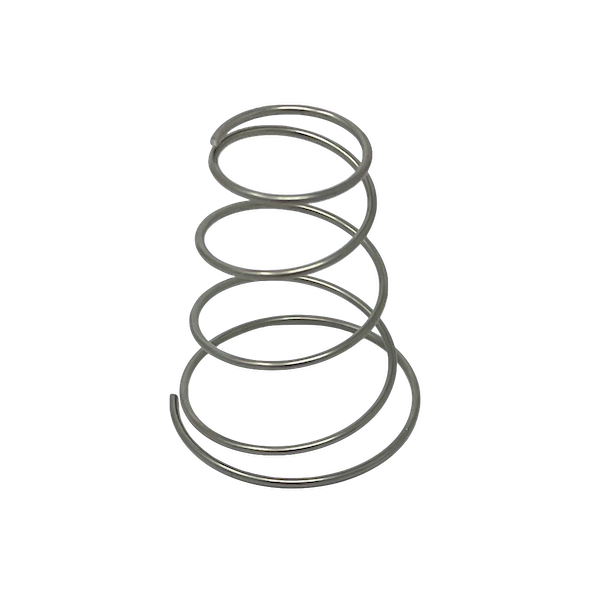

Knock back spring ø38.1

90404300-A

4

€9.08 €11.17
