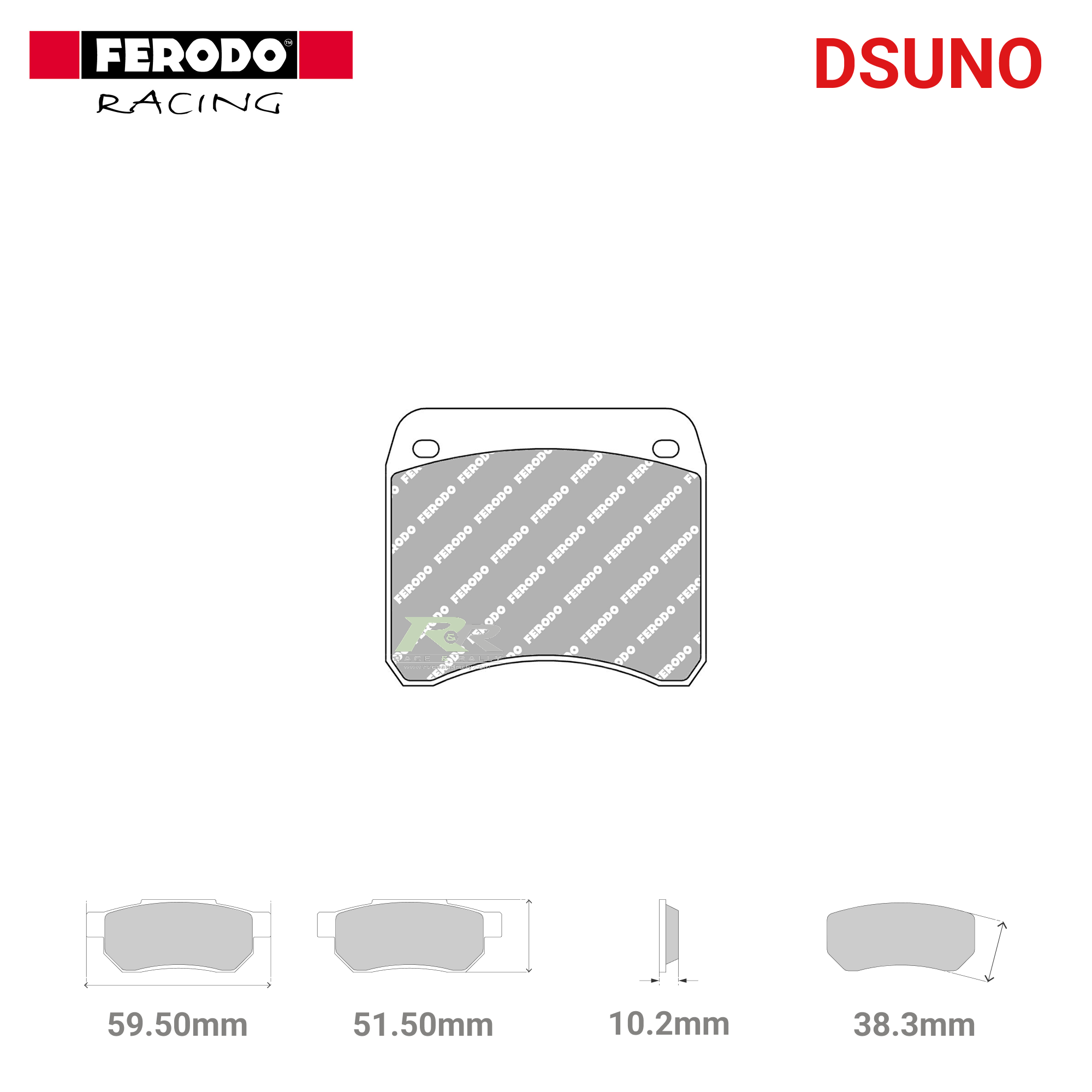

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FCP342Z |
| Pad Width | 59.5mm |
| Pad Height | 51.5mm |
| Radial Depth | 38.3mm |
| Thickness | 10.2mm |
| Compound | (Z/ZB) Dsuno |
| Barcode | 4044197688791 |
How to correctly measure your brake pads:
Download our measurement sheet guide (PDF)
Brake Pad Compound Information:
DSUNO (Z/ZB)
The ultimate feel good pad benefiting from Siloxane technology provides a high friction output, whilst improving pad and disc life and offers excellent modulation which means the risk of wheel lock is significantly reduced.
Main Applications:
- Rally
- Rear GT
- Formula
- Track car with OE brakes
Main Features:
- Heavy duty with semi-endurance material
- Very controllable torque output
- Very kind to discs
- Long life
- Short bedding timeAverage friction coefficient 0.48 over working temperature range of 200°C to 750°C
DSUNO Friction Coefficient (MU) Versus Temperature (°C)

Optimal operating temperature

Relative performance characteristics under heavy-duty race conditions

Suggested applications

Cross References:
| AP Racing | CP2195D38 |
| Carbon Lorraine | 5000W38 |
| Ferodo Racing | FCP342 |
| Mintex | MLB19 |
| Performance Friction | 7719 |
Compatible Calipers:
| AP Racing |
|---|
| CP2195 |
| CP2696 |
