Regular price
€228.88
€281.52
123.2mm
61.2mm
16.6mm
51.4mm
Compound Information
Compound Information
DS1.11 (W/WB)
Based around a silaxone resin structure that enables the DS1.11 compound to work up to the highest temperatures a brake pad could ever see which means it wont fade and has excellent long pad life.
Main Applications:
- Formula
- Rear touring car
- GT
- Track car with OE brakes
Main Features:
- Heavy duty endurance material
- Long life
- Very kind to discs
- Average friction coefficient of 0.46 over working temperature range of 200°C to 750°C
DS1.11 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Out of stock, expected in 3-5 days from order

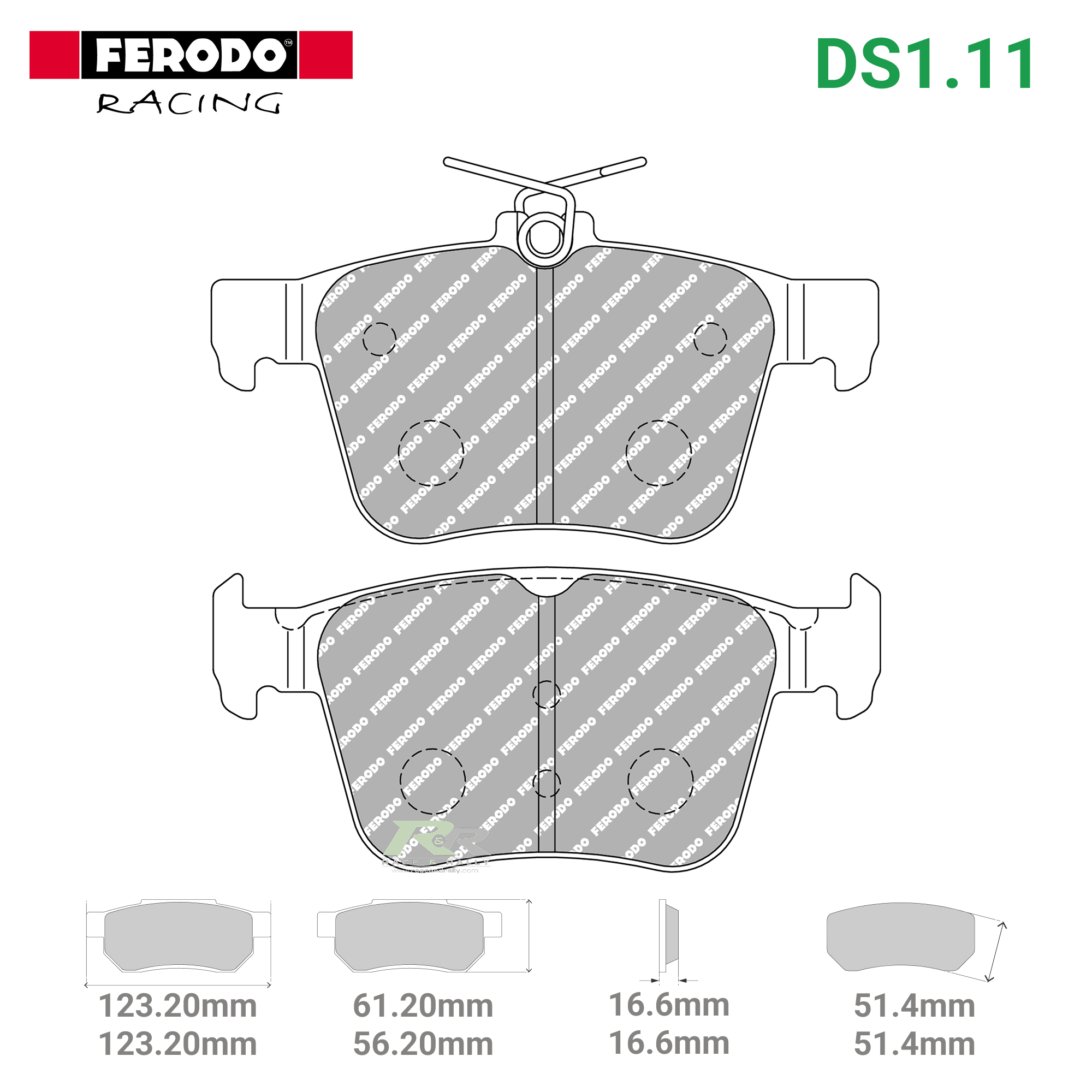

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FCP4697W |
| Pad Width | 123.2mm |
| Pad Height | 61.2mm |
| Radial Depth | 51.4mm |
| Thickness | 16.6mm |
| Compound | (W/WB) DS1.11 |
| Barcode | 4060426284305 |
Brake Pad Compound Information:
DS1.11 (W/WB)
Based around a silaxone resin structure that enables the DS1.11 compound to work up to the highest temperatures a brake pad could ever see which means it wont fade and has excellent long pad life.
Main Applications:
- Formula
- Rear touring car
- GT
- Track car with OE brakes
Main Features:
- Heavy duty endurance material
- Long life
- Very kind to discs
- Average friction coefficient of 0.46 over working temperature range of 200°C to 750°C
DS1.11 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| Ferodo Racing | FCP4697 |
| Mintex | MDB3100 |
Ferodo Racing - Pad Bedding.pdf
