Regular price
€159.06
€195.64
123.3mm
43.6mm
16.0mm
40.3mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Out of stock, expected in 3-5 days from order

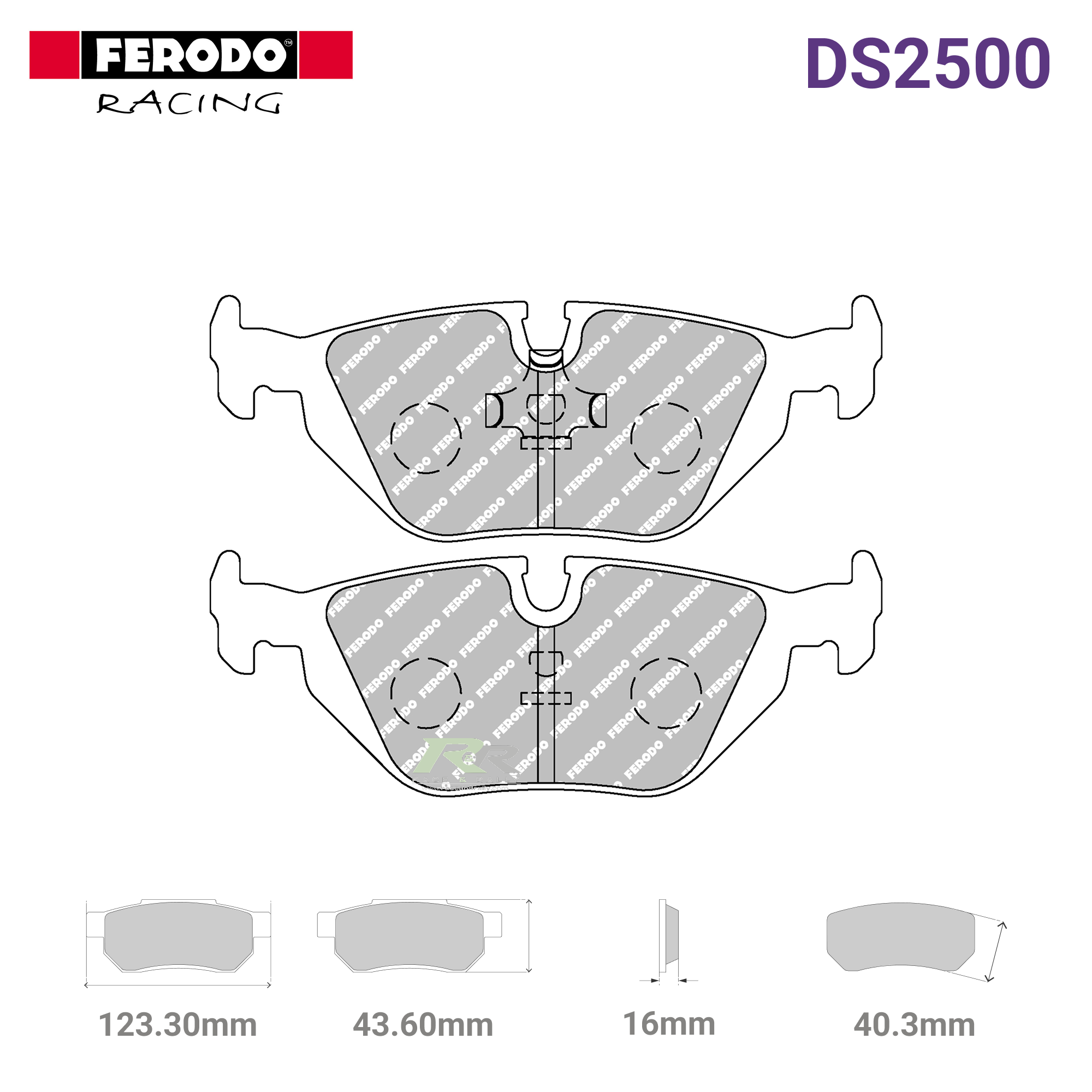

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FCP850H |
| Pad Width | 123.3mm |
| Pad Height | 43.6mm |
| Radial Depth | 40.3mm |
| Thickness | 16.0mm |
| Compound | (H) DS2500 |
| Barcode | 5016687211474 |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| Carbon Lorraine | 4032 |
| Ferodo Racing | FCP850 |
| Mintex | MDB1572 |
| Performance Friction | 0396.XX |
Applications:
| Make | Model | Year |
|---|---|---|
| BMW | E30 M3 2.3 | 1986-1991 |
| BMW | E30 M3 EVO I | 1987-1988 |
| BMW | E30 M3 EVO II | 1988-1989 |
| BMW | E30 M3 2.5 Sport Evolution | 1990-1991 |
| BMW | E36 M3 3.0 | 1992-1995 |
| BMW | E36 M3 3.2 | 1995-1999 |
| BMW | E34 M5 3.5 | 1988-1992 |
| BMW | E34 M5 3.8 | 1992-1994 |
| BMW | Z3 2.8 Roadster | 1997-2000 |
| BMW | Z3 2.8 Coupe | 1998-2000 |
| BMW | Z3 3.0i Roadster | 2000-2002 |
| BMW | Z3 3.0i Coupe | 2000-2002 |
| BMW | Z3 M 3.2 Roadster | 1997-2002 |
| BMW | Z3 M 3.2 Coupe | 1998-2002 |
