Regular price
€270.91
€333.22
131.8mm
62.2mm
16.0mm
49.0mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

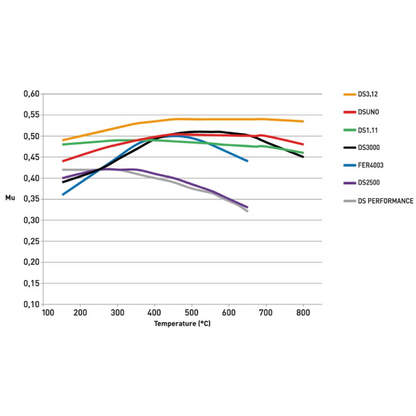

DS2500 Friction Coefficient (MU) Versus Temperature (°C)

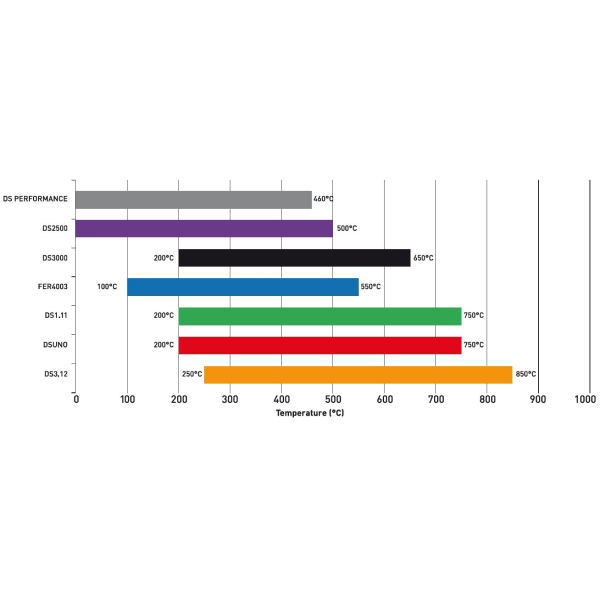

Optimal operating temperature

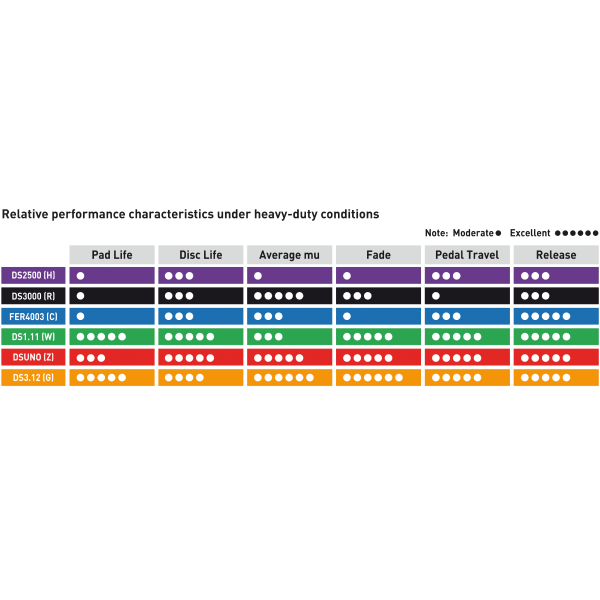

Relative performance characteristics under heavy-duty race conditions
Suggested applications
Optional Extras
Out of stock, expected in 3-5 days from order

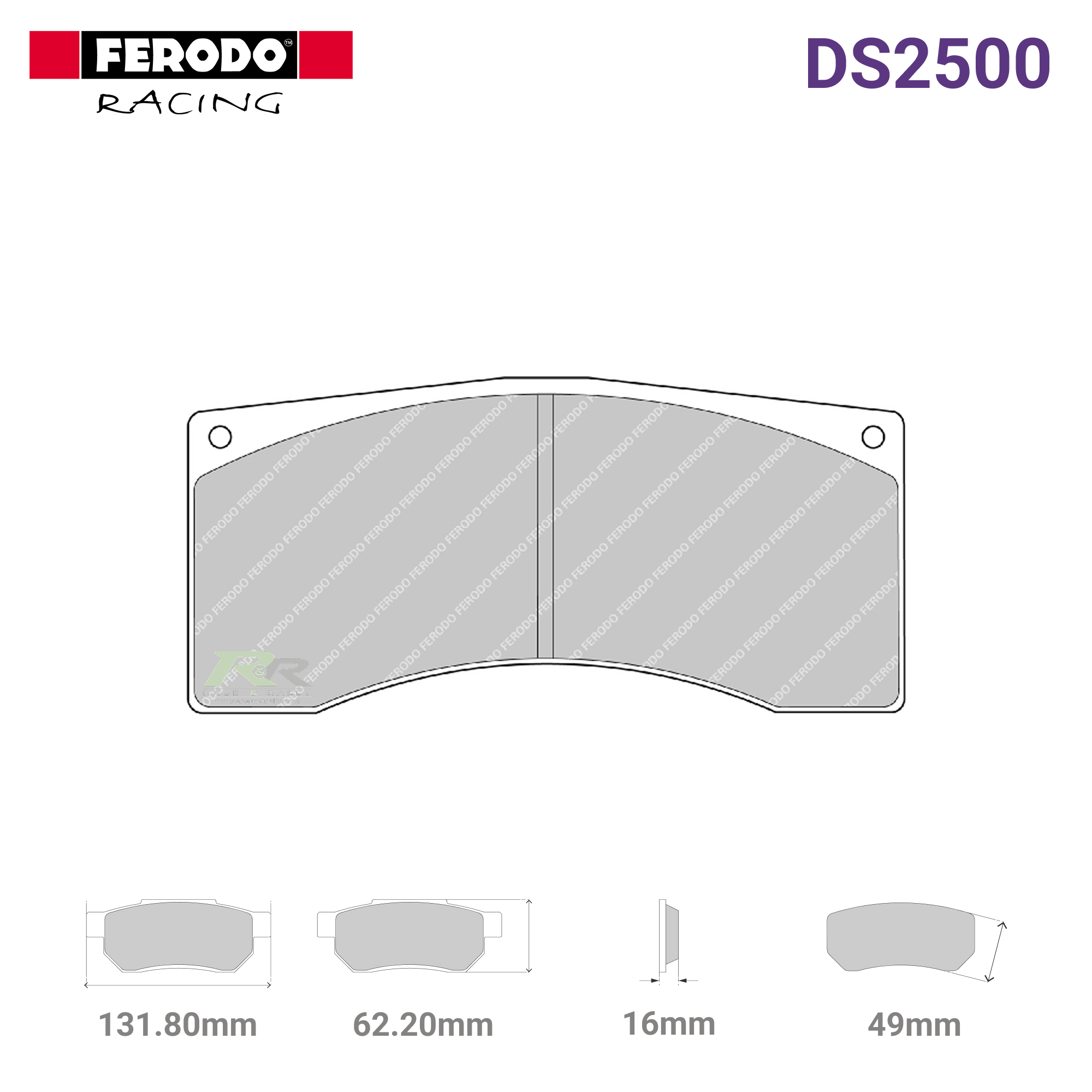

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP1077H |
| Pad Width | 131.8mm |
| Pad Height | 62.2mm |
| Radial Depth | 49.0mm |
| Thickness | 16.0mm |
| Compound | (H) DS2500 |
| Barcode | 5016687213478 |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

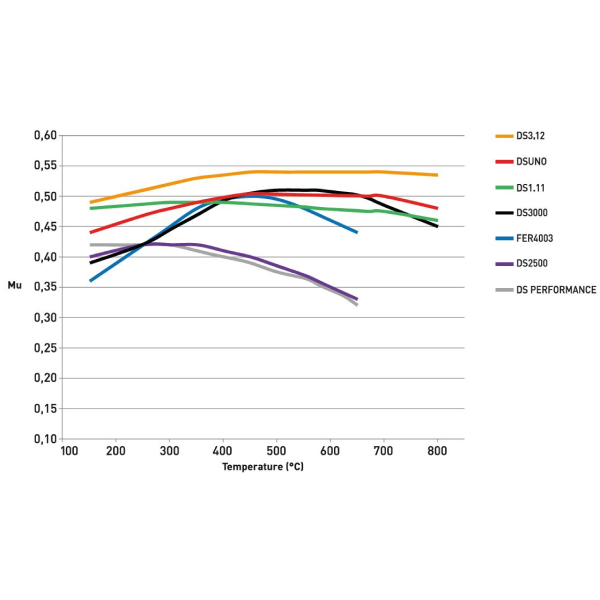

DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing | CP6070D49 |
| Carbon Lorraine | 5005W50 |
| Endless | RCP002 |
| Ferodo Racing | FRP1077 |
| Pagid | 1595 |
| Performance Friction | 7700 |
Applications:
| Make | Model | Year |
|---|---|---|
| Ford | Fiesta | Rally4 |
| Ford | Fiesta | Rally3 |
| Peugeot | 208 | Rally4 |
| Opel | Corsa | Rally4 |
| Lancia | Ypsilon | Rally4 |
| Citroen | C3 | Rally2 |
| Citroen | DS3 | R3 |
| Citroen | DS3 | R5 |
| Volkswagen | Polo | R5 |
| Skoda | Fabia RS | Rally2 |
| Toyota | GR Yaris | Rally2 |
| Lancia | Ypsilon | Rally2 |
| Ferrari | 360 Challenge | 1999-2005 |
| Ginetta | G55 GT4 | [race car] |
Ferodo Racing - Pad Bedding.pdf
