Regular price
€175.09
€215.36
127.0mm
56.0mm
16.5mm
50.3mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

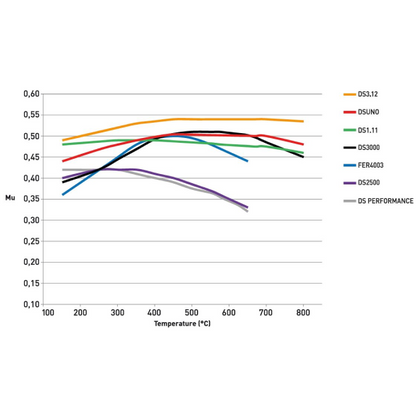

DS2500 Friction Coefficient (MU) Versus Temperature (°C)

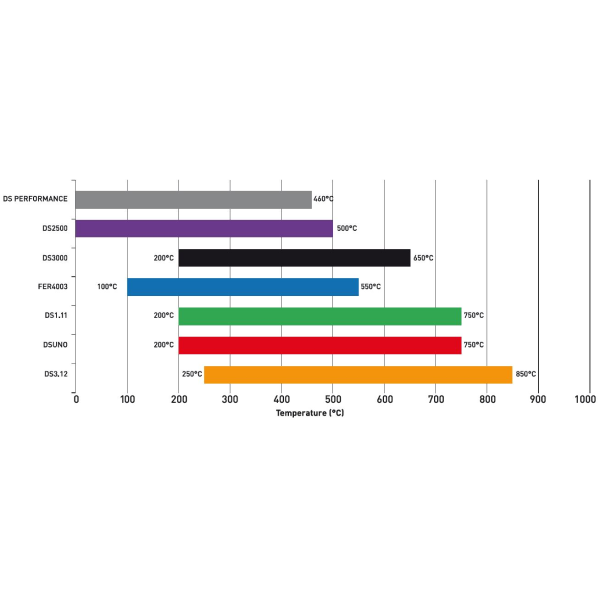

Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Low stock

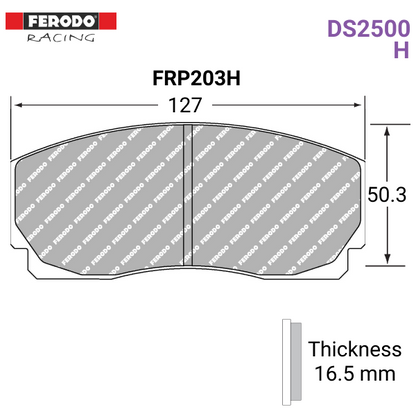

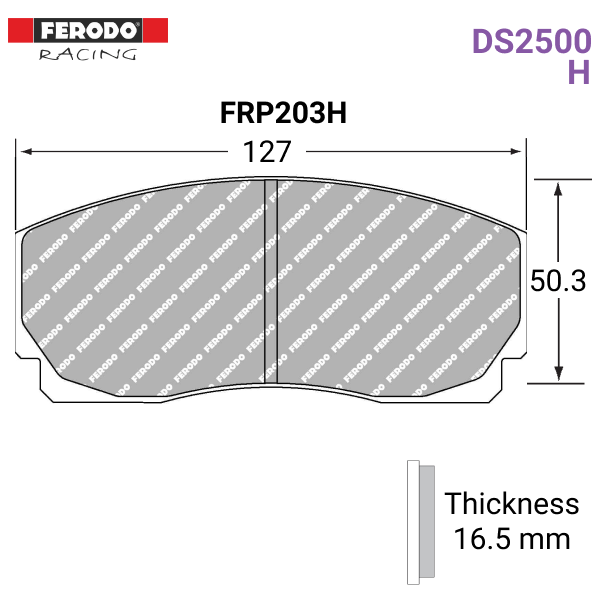

Brake Pad Dimensions:
| Manufacturer | Ferodo |
| Part Number | FRP203H |
| Pad Width | 127.0mm |
| Pad Height | 56.0mm |
| Radial Depth | 50.3mm |
| Thickness | 16.5mm |
| Compound | (H) DS2500 |
| Barcode | 5016687213874 |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.

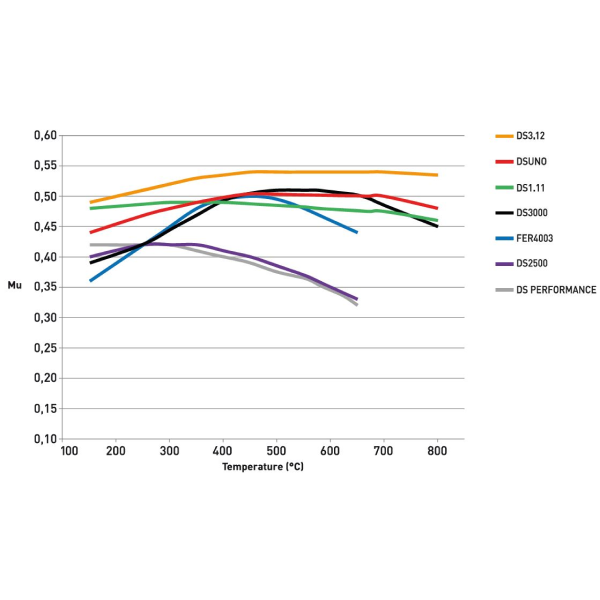

DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature

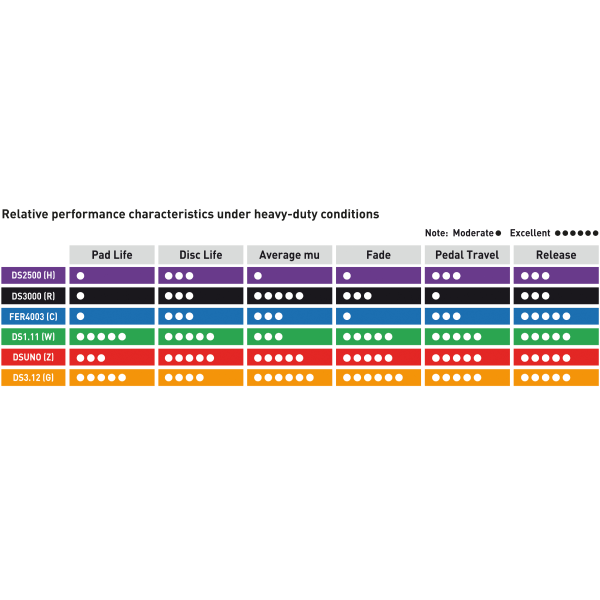

Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing | CP2270D50 |
| Carbon Lorraine | 5040W50 |
| Endless | RCP013 |
| Ferodo Racing | FRP203 |
Compatible Calipers:
| AP Racing |
|---|
| CP2270 |
| CP2271 |
| CP2425 |
| CP2575 |
| CP2831 |
| CP2876 |
| CP2986 |
| CP3008 |
| CP3009 |
| CP4270 |
Ferodo Racing - Pad Bedding.pdf
